High-speed comparator （TLV3501）

TLV3501 3502Module Youku video1（Basic functional parts）：

http://v.youku.com/v_show/id_XMzU4MTAzMjA3Ng==.html?spm=a2h3j.8428770.3416059.1

TLV3501 3502Module Youku video1（Frequency adjustment and duty cycle adjustment part）：

http://v.youku.com/v_show/id_XMzU4MTAzNzAxMg==.html?spm=a2h3j.8428770.3416059.1

A、Product Application：

II、Product Picture：

Three、Technical indicators

1.Power supply voltage：2.7-5VDC

2.Input voltage：10-1000mV（Valid values）

3.The output level：Rail-to-rail output,Enables direct driveTTL/CMOSLevel

4.Input frequency：DC--200MHz

5.Interface：SMAFemale head（The outer screw bore）

6.Input impedance：50Ohm

7.The shielded housing

8.ProvidePDFGear schematic diagram

Four、The measured waveform

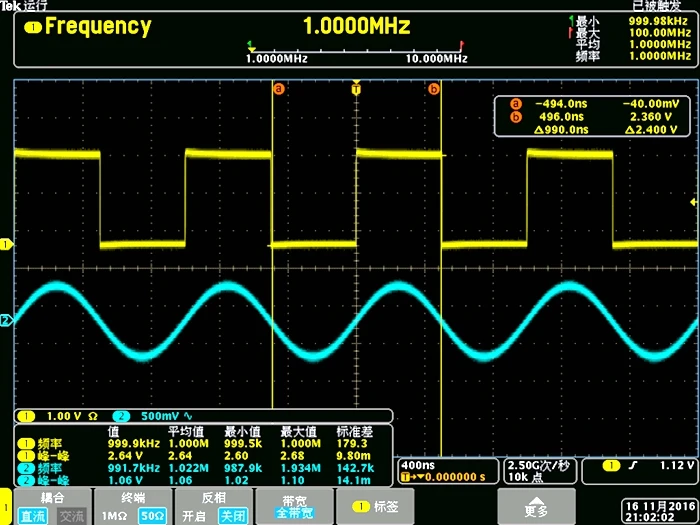

1、1MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

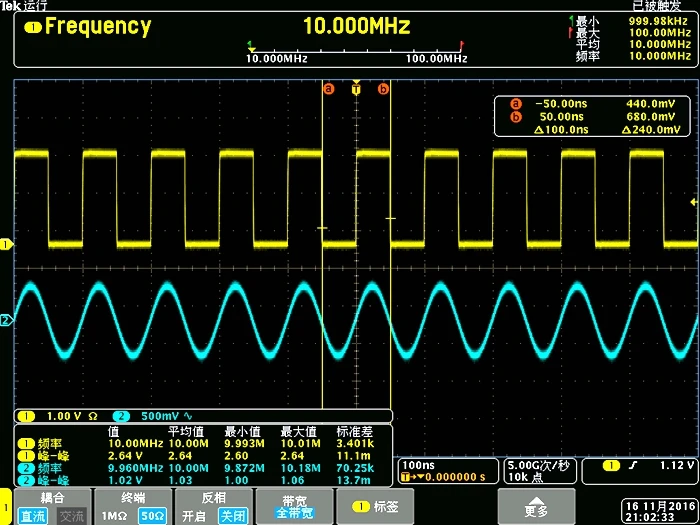

2、10MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

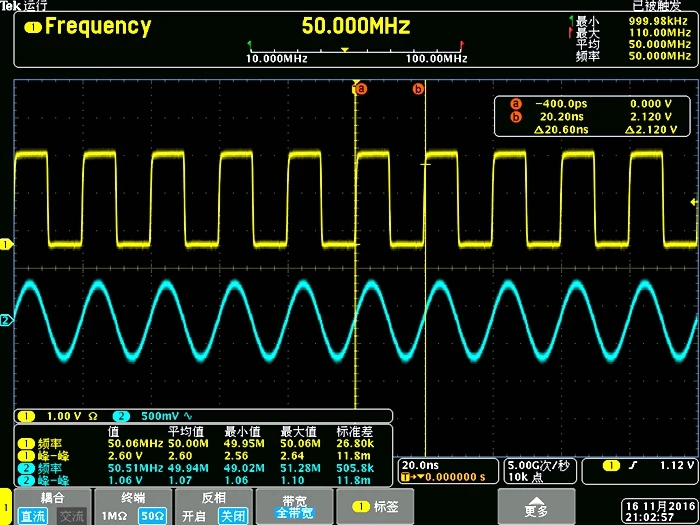

3、50MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

4、100MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

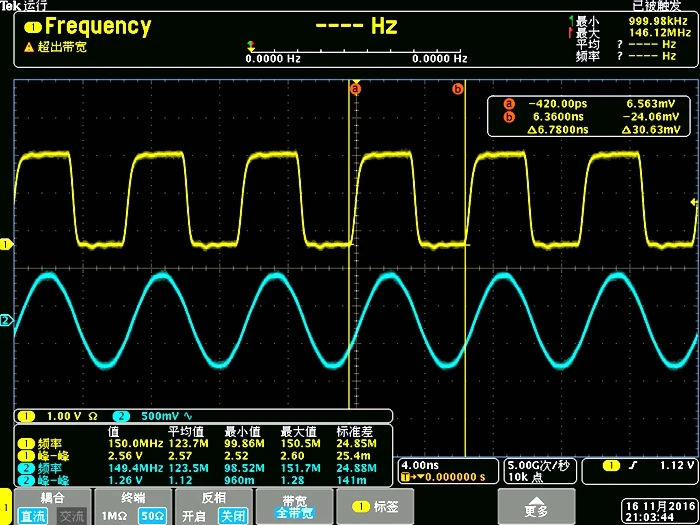

5、150MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

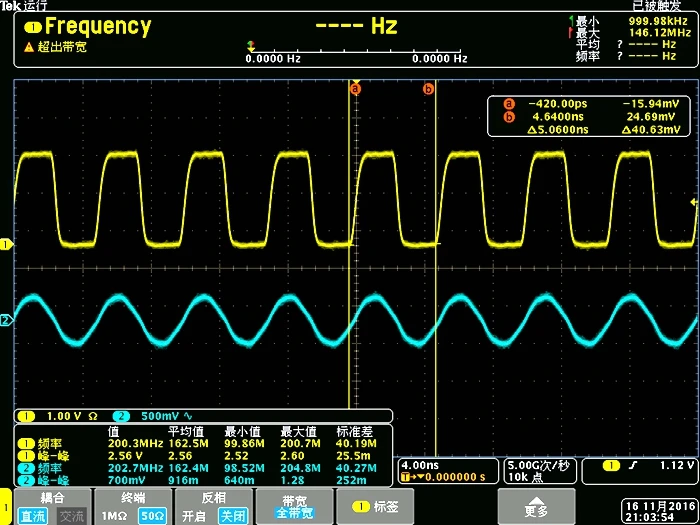

6、200MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

Data Download link: http://pan.baidu.com/s/1kVC0qMz Password：55x0
