Direct Selling Surface Lochel Hardness Tester Metal Plating Layer Carburizing Nitrizing Manual Detector HR-45 |

Direct Selling Surface Lochel Hardness Tester Metal Plating Layer Carburizing Nitrizing Manual Detector HR-45 |

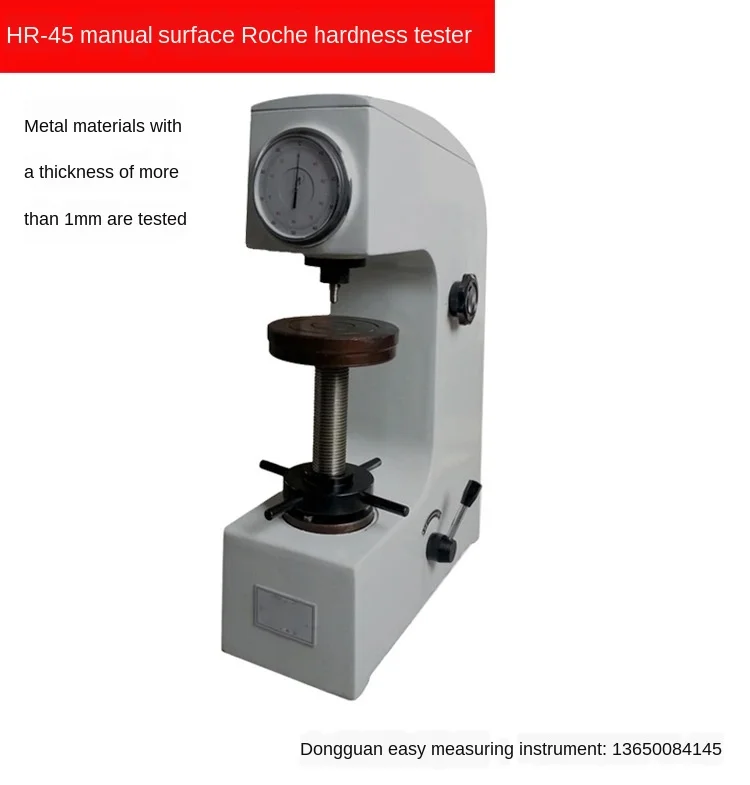

Name: Surface Hardness Tester

Brand: ai ce yi

Model: HR-45

Product Introduction:

The Hardness Tester Can Be Used for the Determination of Alloy Steel, Hard Alloy, Electroplated Layer, Carburizing and Nitrizing Layer.Surface Rockwell Hardness, Is an Indispensable Hardness Measuring Instrument for Measurement, Scientific Research, Machinery and Metallurgy Departments.

It Is Recommended to Use VICTORINOX Hardness Tester for Products with Thickness below 0.5mm, Please Contact the Owner for Details.

Technical Parameters:

Measurement Range: 70-91hr15n 42-80hr30n
20-70HR45N 70-93HR15T
43-82HR30T 12-72HR45T

Test Force: 147.1 294.2 441.3 Newton

Maximum Allowable Height of Sample: 170

Distance from Indentation Center to Machine Wall: 130

Overall Dimensions: (Length X Width X Height) 457X240X629

Weight: about 75kg

Standard Accessories:

Daping Testing Bench: 1 Piece

Xiaoping Testing Bench: 1 Piece
V-Type Testing Bench: 1 Piece
Steel Ball Pressure Nozzle: Φ1.588 1
Diamond Cone Pressure Nozzle: 120 ° 1 Piece
Standard Rockwell Hardness Block: 6 Yuan

Surface Rockwell

15N Measurement Range 70-94, Suitable for Hard Alloy, Nitrized Steel, Carburized Steel, Etc;

30n Measuring Range 42-96, Suitable for Hardened Steel, Etc;

45N Measuring Range 20-78, Suitable for Tempered Steel, Hard Cast Iron, Etc.

15T Measuring Range 62-94, Suitable for Copper Alloy, Brass, Bronze Sheet, Aluminum Alloy, Etc;

30T Measuring Range 15-82, Suitable for Malleable Cast Iron Aluminum Alloy, Thin Soft Steel, Etc;

45T Measuring Range 8-76, Suitable for Pearly Lustre Body Iron, Copper-Nickel and Zinc-Nickel Alloy Sheet.

The Day-to-Day Maintenance and Maintenance:

1 When Hardness Tester Is Not in Use for a Long Time, Apply Dust Cover to Cover the Machine.

2 Regularly Inject a Small Amount of Oil into the Contact Surface between the Lead Screw and the Handwheel.

3 before Using the Hardness Tester, the Top Surface of the Lead Screw and the Upper End Surface of the Workbench Should Be Wiped Clean.

4 If the Basic Error of Hardness Is Found to Be Large:

①Take down the Workbench and Check Whether Its Contact Surface with the Screw Is Clean;

② Check Whether the Lead Screw Protective Sleeve Lifts the Workbench;

③ Check Whether the Pressure Nozzle Is Damaged.

5 If the Main Test Force Is Applied, the Indicator Pointer Starts to Rotate Very Fast and Then Slowly, Indicating That the Oil in the BufferToo Little. at This Time, the Felt Pad on the Upper End of the Buffer Can Be Lifted and Clean 20# Oil Can Be Slowly Injected. At the Same Time, Pull the Handle Several Times to Make the Piston Move up and down for Many Times, and Remove All the Air in the Buffer until the Oil Overflows from the Piston When It Sinks to the Bottom.

6 Check the Accuracy of Hardness Tester Regularly with the Standard Hardness Block Carried by This Machine.

①Clean the Workbench and Standard Hardness Block, and Conduct the Test on the Working Face of the Hardness Block, and Never Allow the Test on the Supporting Surface.

② If the Basic Error Is Large, in Addition to Checking According to Item 4 of This Section, Check Whether There Are Burrs on the Supporting Surface of the Standard Hardness Block, IfOil Stone Should Be Used to Polish Burrs.

③ When Testing the Standard Hardness Block at Different Positions, the Hardness Block Should Be Dragged on the Workbench and Should Not Be Taken Away from the Workbench.

7 This Instrument Should Be Checked Regularly and Verified Periodically.
