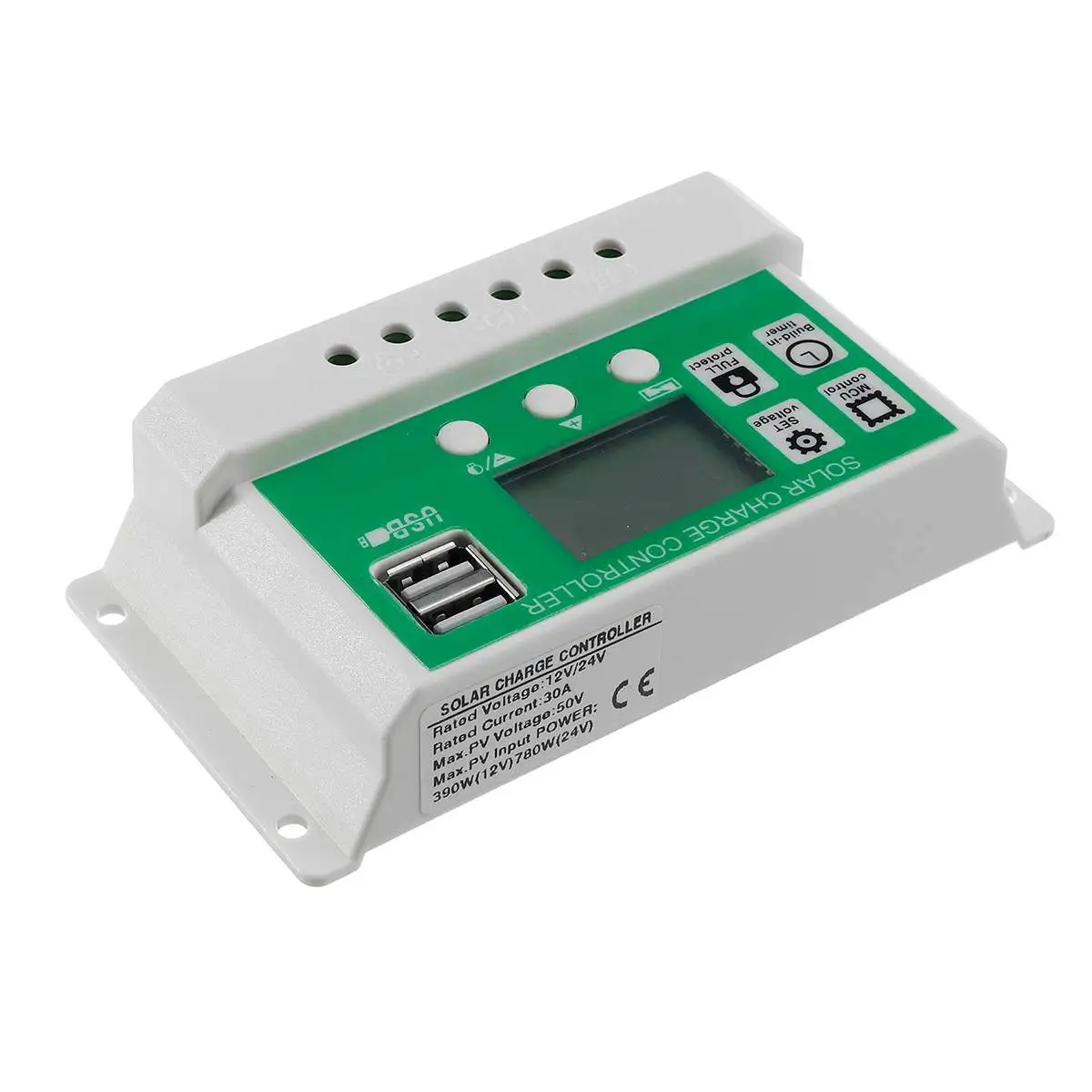

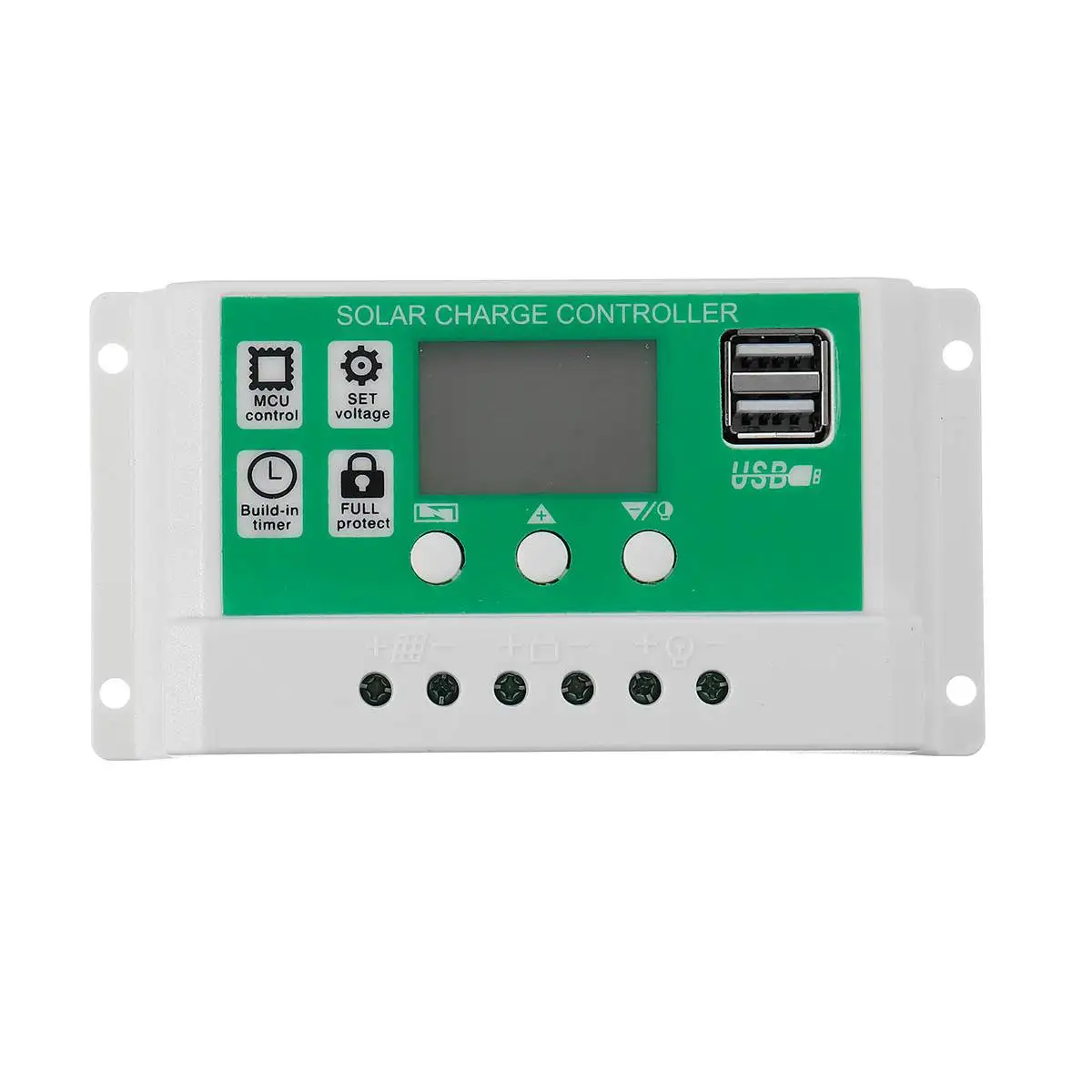

New Arrival 10A/20A/30A 12V 24V Solar Charge Controller .Wide range of applications: suitable for solar power systems, motor homes, solar street lights, smart homes, solar chargers, solar ventilation systems, solar light boxes, solar billboards, solar traffic warning lights, and other solar power supply systems Smart home

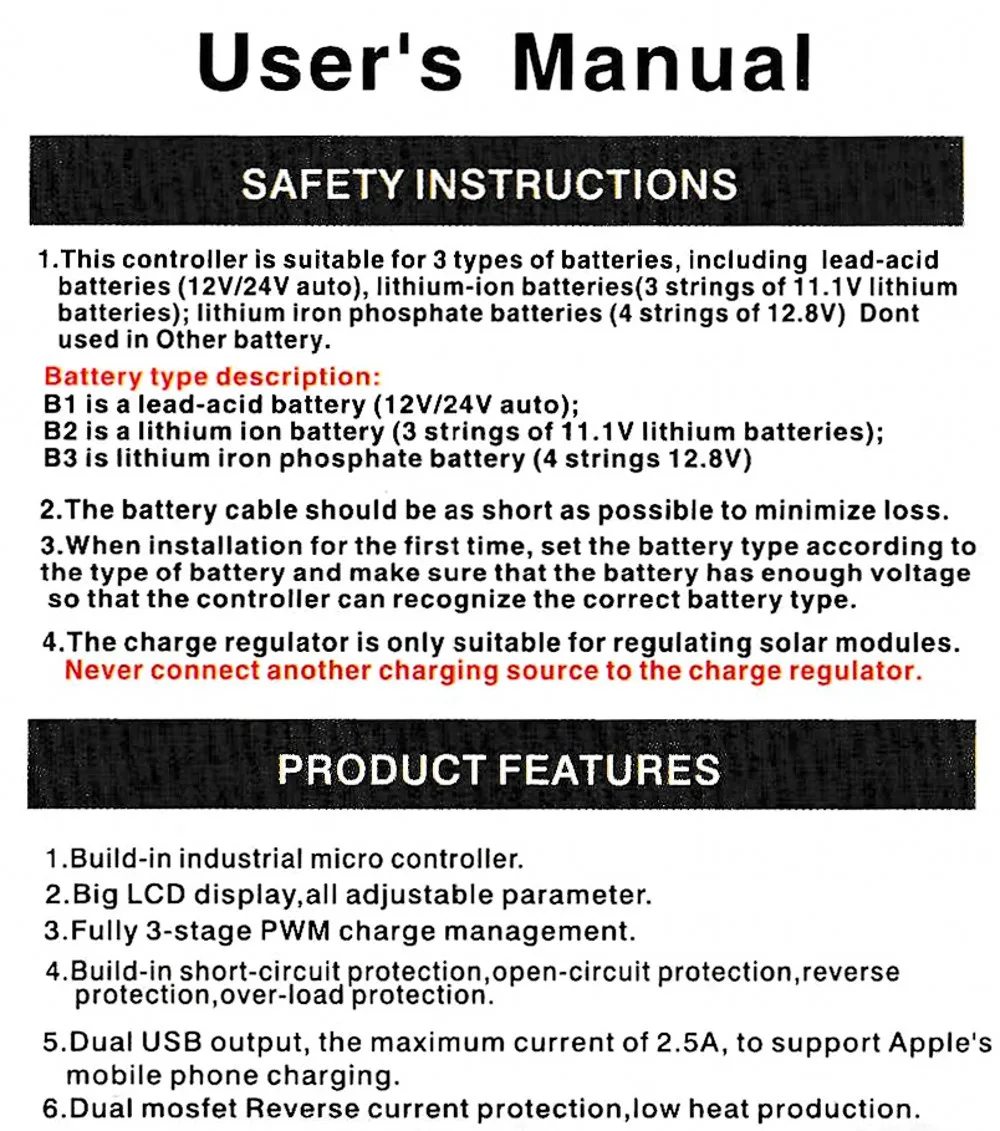

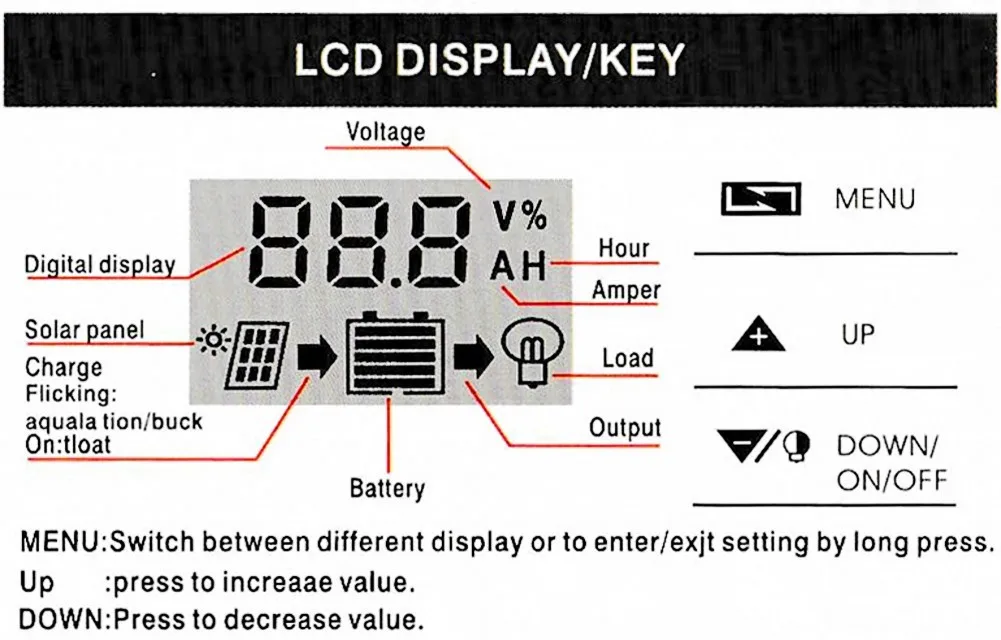

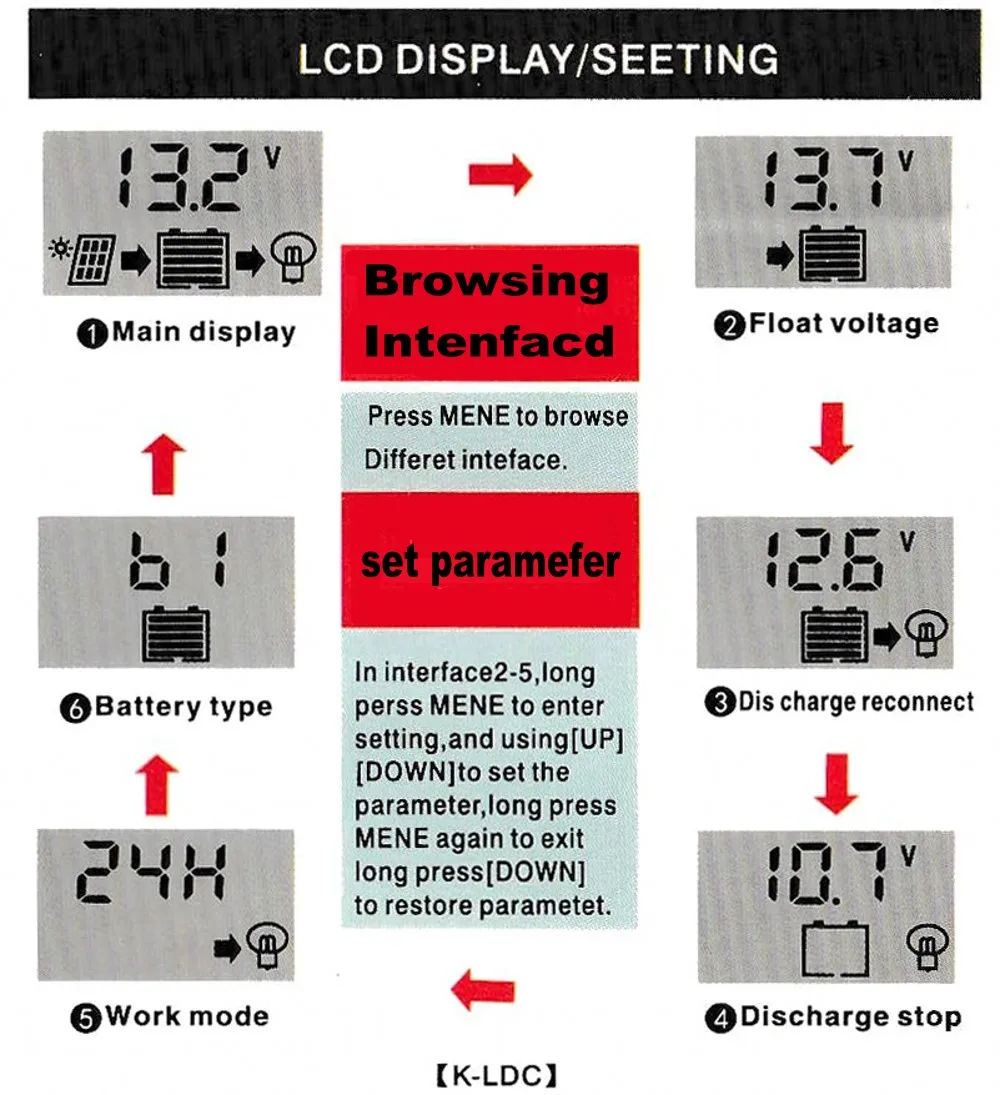

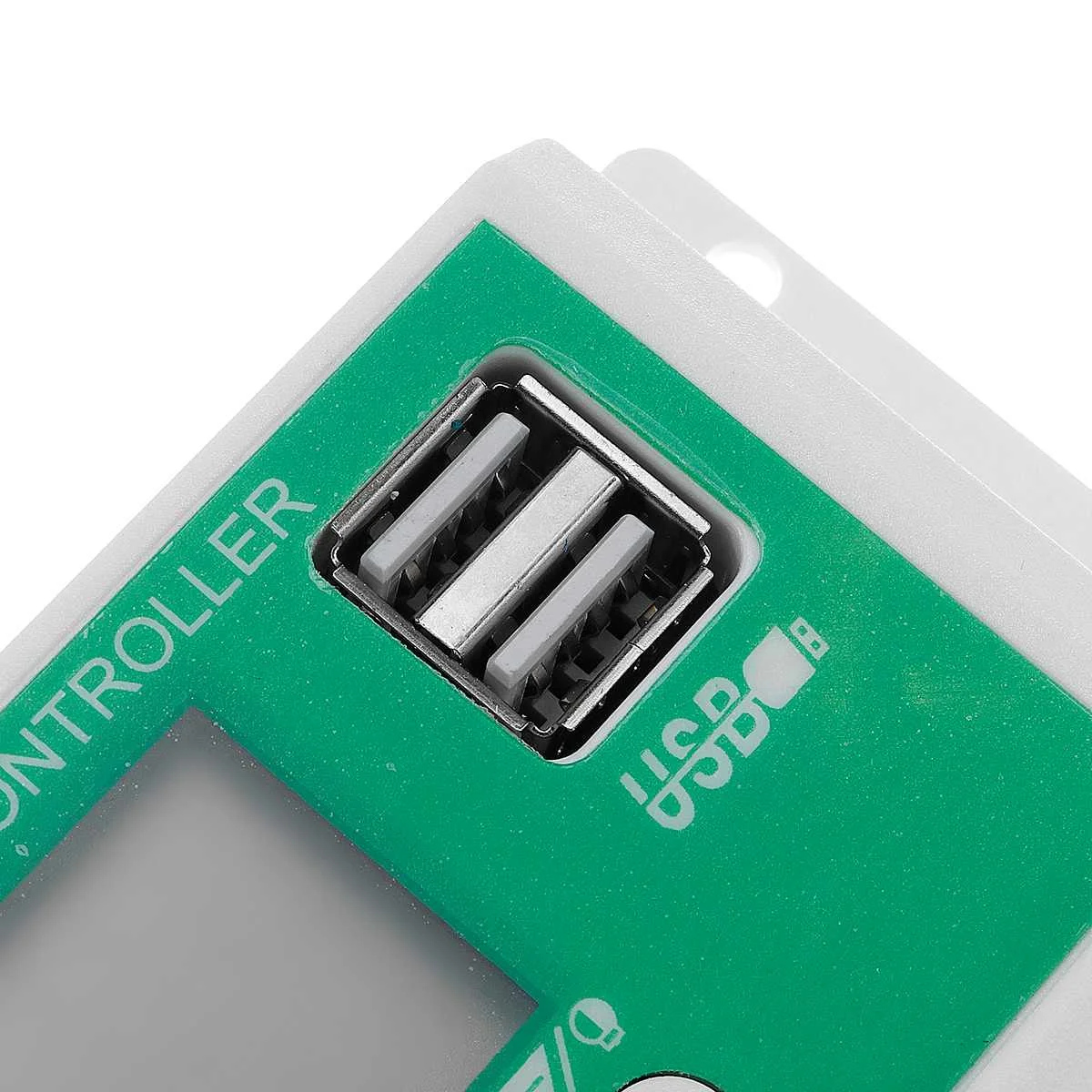

Lithium Battery LCD Display PWM Dual USB Solar Panel Charger Product description: 1. This controller is a 12V/24V self-adapting solar energy controller. It is a lithium battery solar energy controller without current display. When first installed, make sure that the battery has sufficient voltage so that the controller can correctly identify the battery type. 2. Can charge 3 kinds of batteries: lead-acid battery (12V/24V battery automatic identification), lithium ion battery, lithium iron phosphate battery! The default controller is B2 lithium-ion batteries (lithium batteries) with B2 mode. Set B1 for battery type of lead-acid battery controller. The lithium iron phosphate battery is set to B3. 3. Support battery type: B1 = lead-acid battery 12V/24V (automatic identification) B2 = lithium-ion batteries (lithium batteries) 3.7V = 11.1V B3 = lithium iron phosphate battery 4 series 3.2V = 12.8V Features: LCD display on large screen shows that charging and discharging parameters can be adjusted. Complete three-stage PWM charging management; Built-in overcurrent/short circuit protection, open circuit protection and reverse connection protection are all automatic recovery type without damaging the controller. Double MOS anti-backfilling circuit, super low calorific value. Specifications: • Rated voltage: 12V-24V • Maximum Solar Panel Voltage: 12V Battery: Max 23V; 24V Battery: Max 46V • Application: solar system controller • Current: 10A,20A,30A • USB output: 2 ways, Maximum: 5V/2.5A • Standby current: ＜ 10mA • Working temp: -35~+60 ℃ • Floating charge voltage: 13.7V(adjustable) • Discharge up to voltage: 10.7V(adjustable) • Discharge recovery voltage: 12.6V(adjustable) • Functions: LCD display; double USB charging interface; power display; voltage display; charge and discharge parameters can be adjusted by themselves; light control + delay can be set by itself; Package Details: 1pc x Solar Charge Controller 1pc x User Guide 1pcxUsb light Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3cm measuring deviation due to manual measurement.
