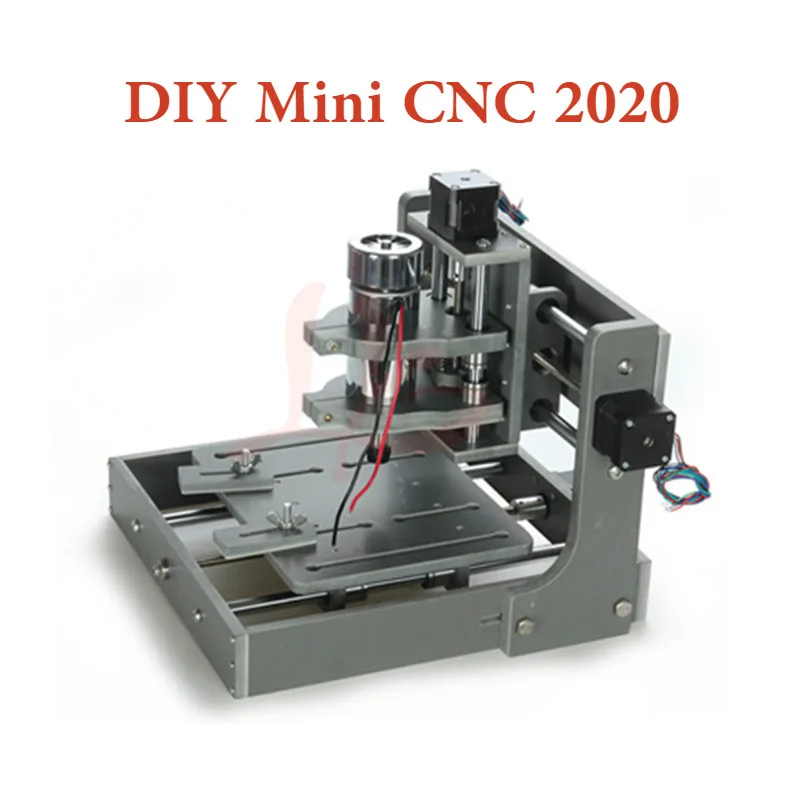

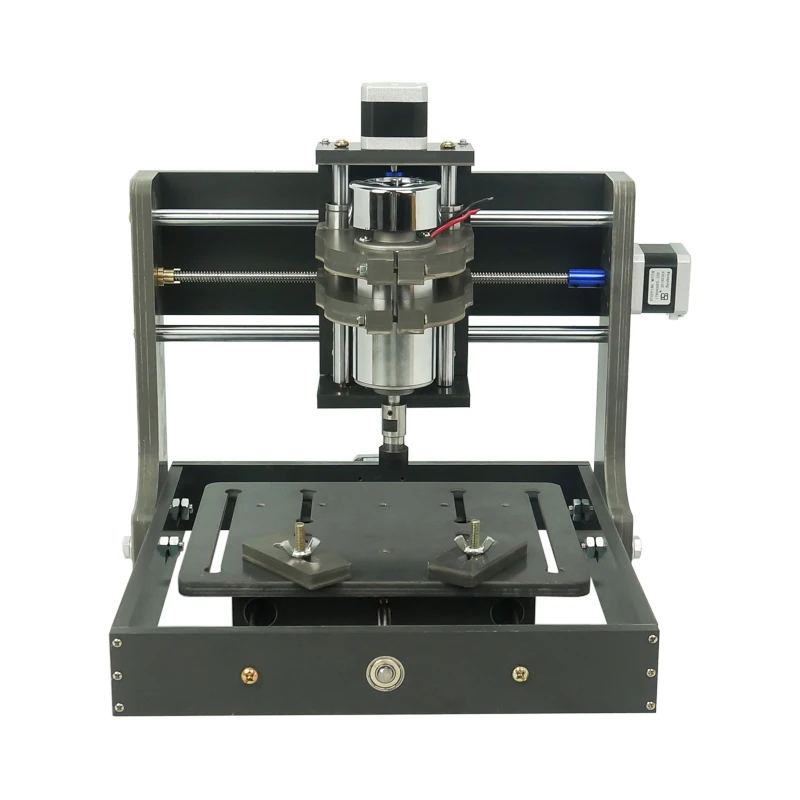

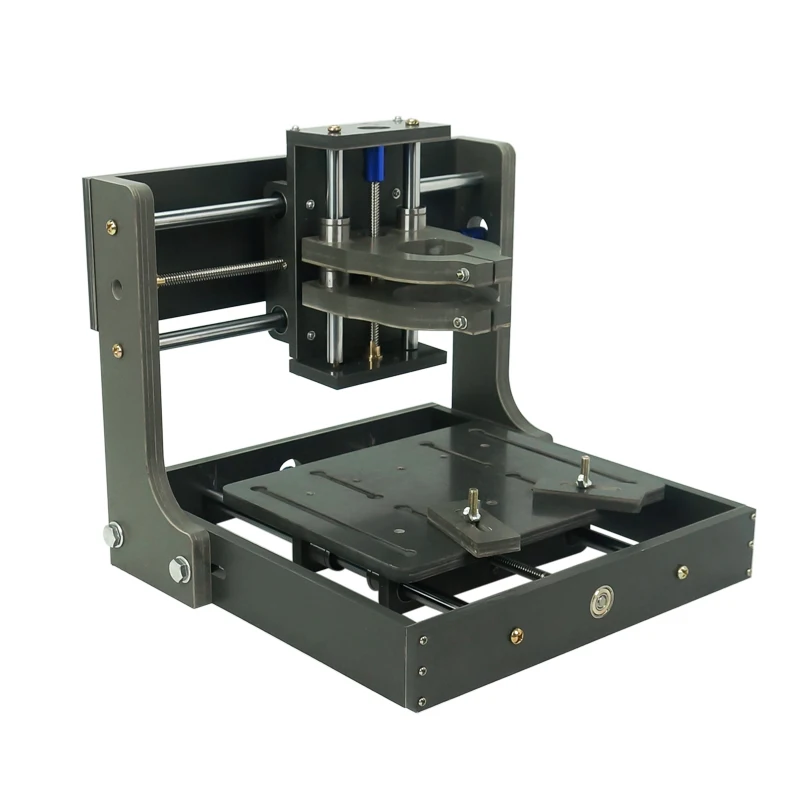

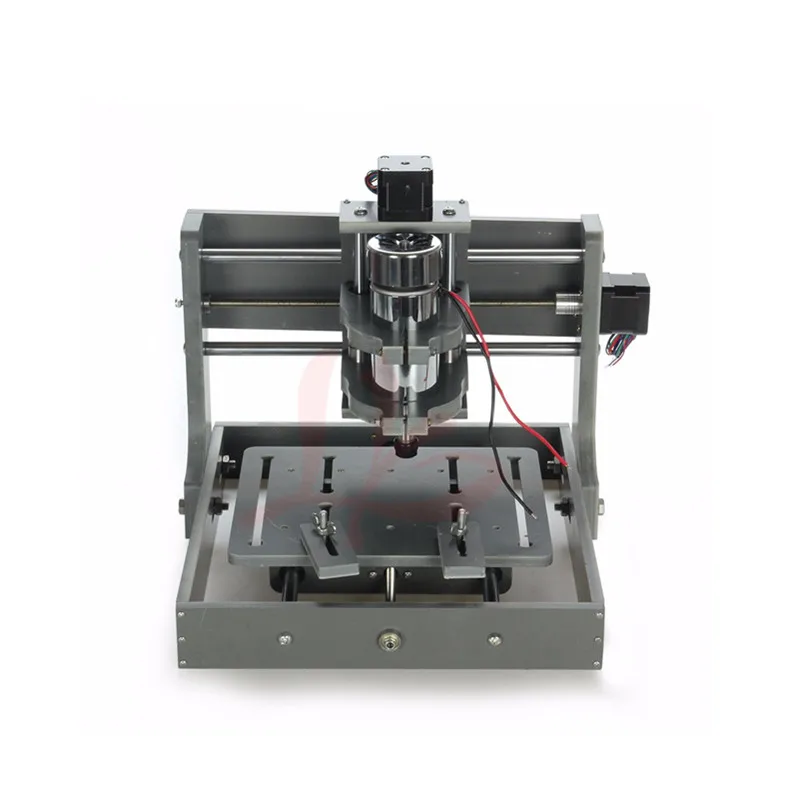

Mini DIY 2020 CNC Router machine 3 4 axis working size 200x200mm frame Engraving Milling Machine with spindle motor | Инструменты

Mini DIY 2020 CNC Router machine 3 4 axis working size 200x200mm frame Engraving Milling Machine with spindle motor | Инструменты

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty

Feature

1. Support MACH3 System.

2. Suitable for engraving PVC PCB wood materials.

3. Working table size 200 * 200 * 70mm

4. Equipped with a 300W high-speed spindle

5. With English installation manual, simply operation

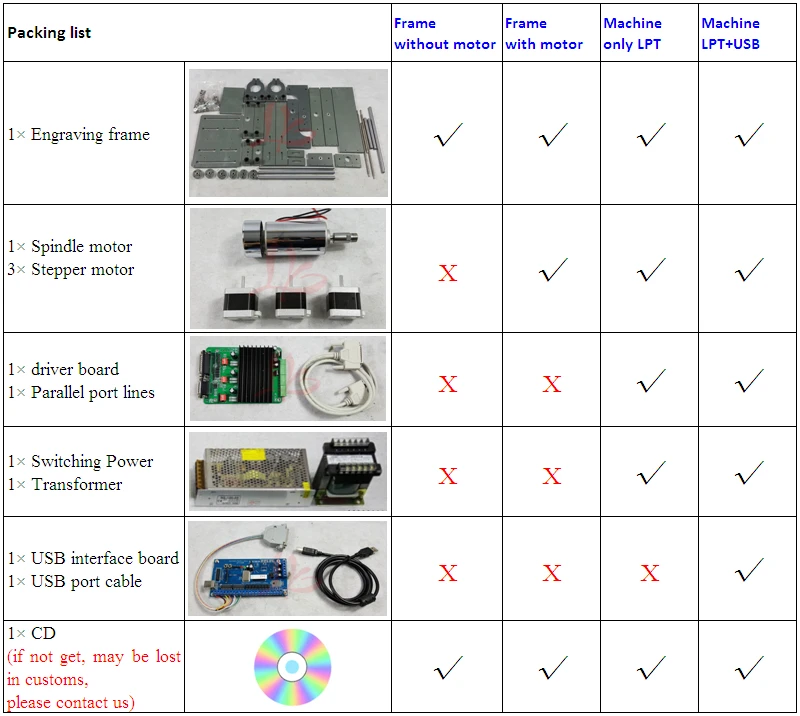

Model and Technical Parameters

MODEL

DIY 2020

Attribute

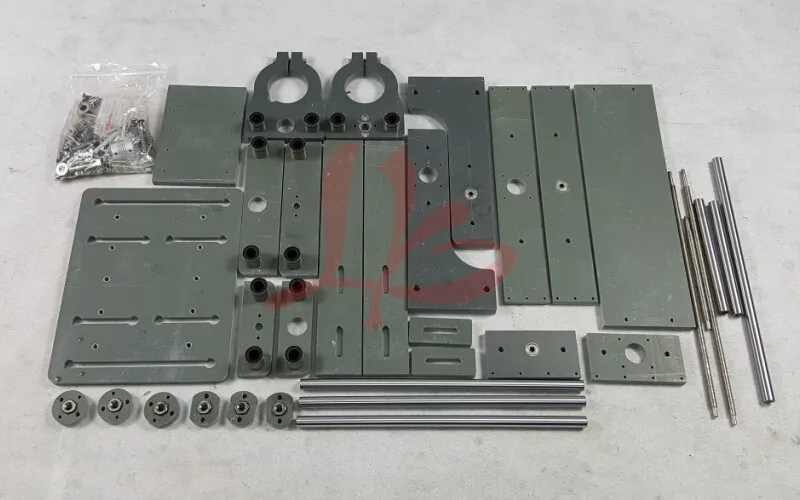

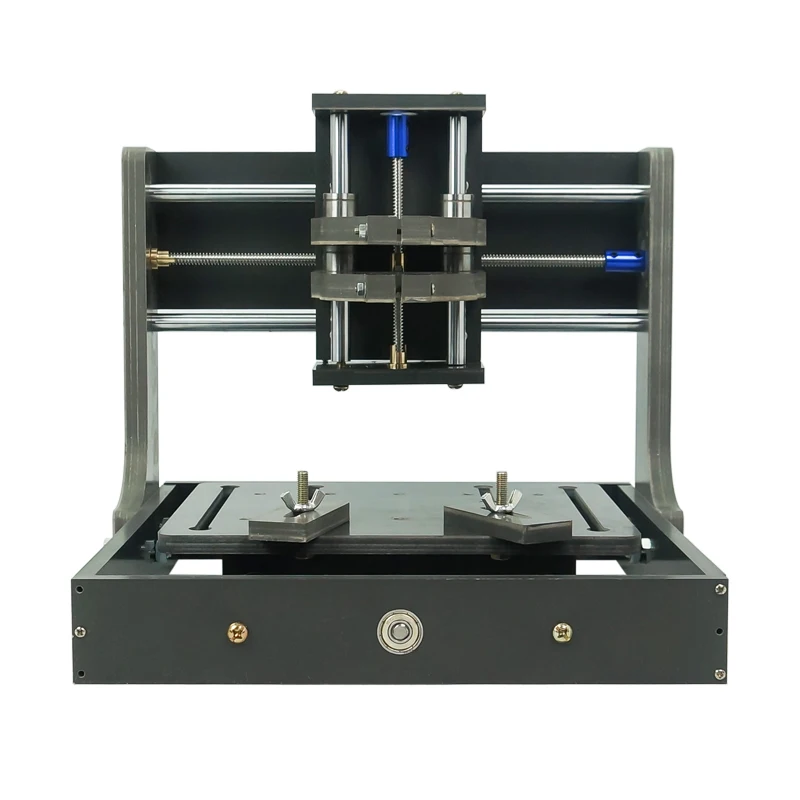

Frame

without motor

Frame
with motor

Machine
only LPT

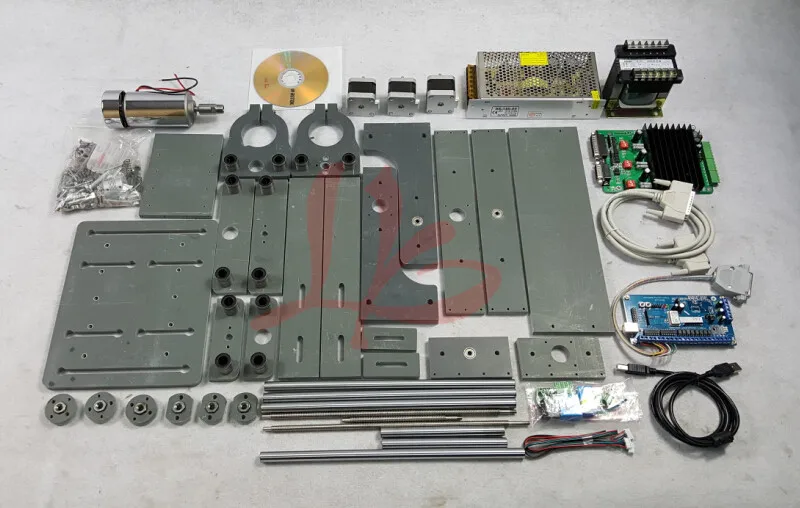

Machine
LPT+USB

Axis

3axis

3axis

4axis

4axis

Interface

No

No

LPT port

LPT+USB port

Spindle Motor:

No

No

300W

300W

Weigh

7.5

9.5

11.8

12

Machine Dimensions

600X700X500mm

Table structure

10mm PCB

Lead screw

M8 threaded stainless steel Lead screw triangle

Engraving area

200X200X70mm

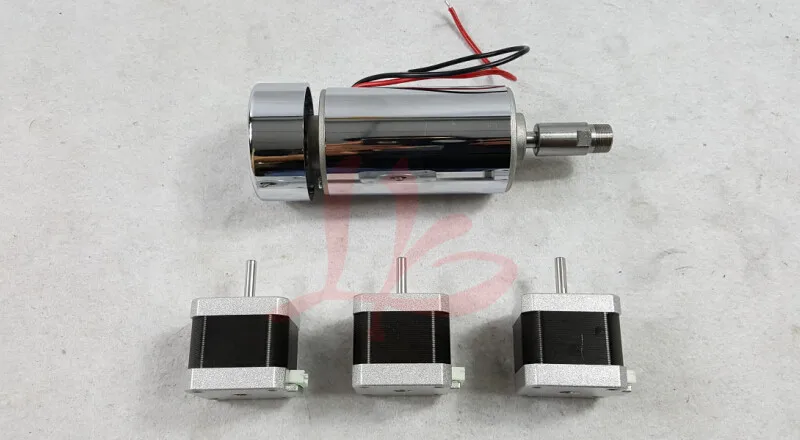

Spindle motor

300W high-speed (10,000 rpm)

Collet type

ER11,1/8"(3.175mm) Collet

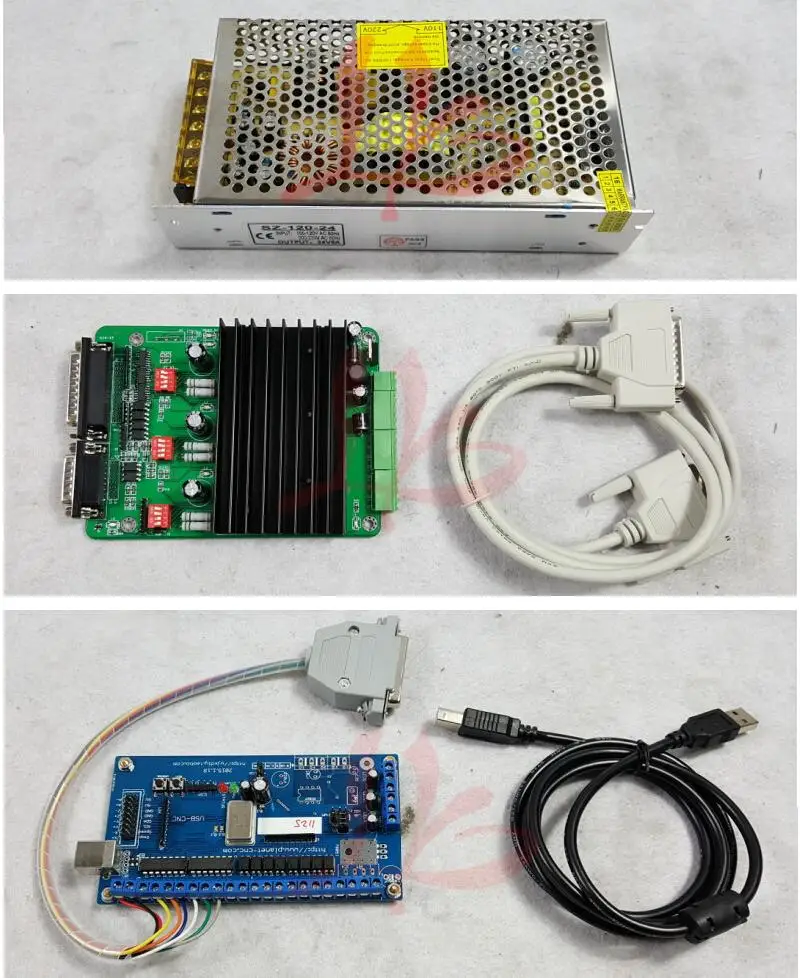

Stepper motor and drive

NEMA17 Stepper motor

Current of Driver

1.68A

Resolution ratio

0.02mm

MAX. moving speed

4000 mm/min

Software Compatability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Product description:

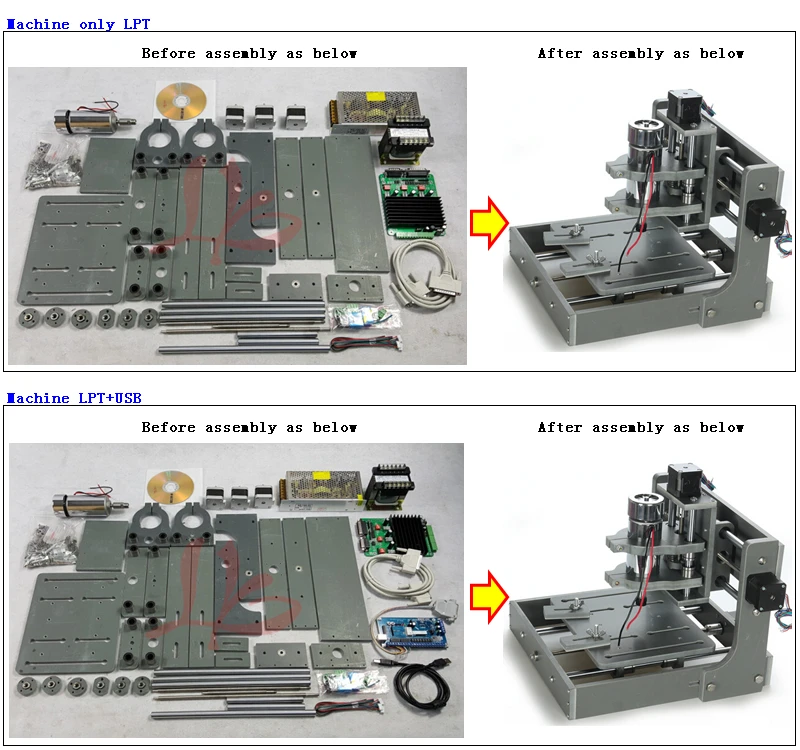

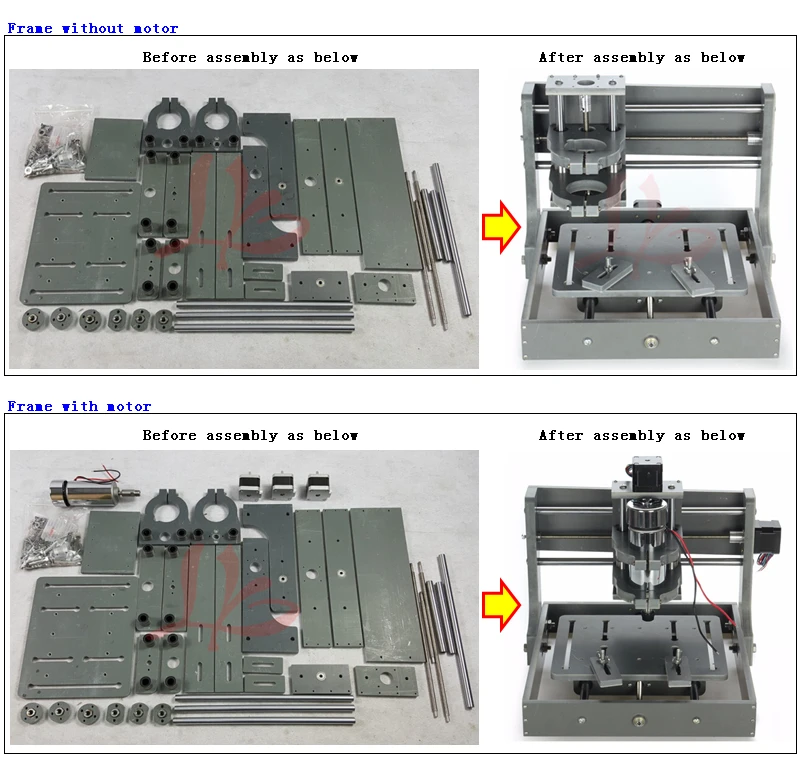

Because it is DIY products, after received the goods, need DIY to assembly,THANKS!
