Waveshare SIM7600G-H 4G / 3G / 2G / GNSS Module for Jetson Nano, GPS Module Expansion Board for Raspberry Pi Global Applicable



Note: Jetson Nano is NOT included.

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.



Overview This is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption.   Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on.   Features 40PIN GPIO extension header for connecting Jetson Nano Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Breakout UART control pins, to connect with host boards like Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card Onboard 3.5mm audio jack with earphone and mic support, for making telephone call 2x LED indicators, easy to monitor the working status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps) Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32)     Communications Specifications     　 LTE WCDMA / TD-SCDMA / CDMA 2000     EDGE GSM/GPRS Band LTE-TDD B34/B38/B39/B40/B41
LTE-FDD B1/B2/B3/B4/B5/B7/B8
/B12/B13/B18/B19/B20/B25/B26/B28/B66 UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE 850/900/1800/1900MH Emitting power 0.25W 0.5W@EGSM900
0.4W@DCS1800 2W@GSM900
1W@DCS1800 Data Speed LTE CAT 4
Uplink≤50 Mbps
Downlink≤150 Mbps UMTS
Uplink≤384Kbps
Downlink≤384Kbps

HSPA+
Uplink≤5.76Mbps
Downlink≤42Mbps TD-SCDMA
Uplink≤128Kbps
Downlink≤384Kbps

TD-HSDPA/HSUPA
Uplink≤2.2Mbps
Downlink≤2.8Mbps CDMA2000/EVDO
Uplink≤1.8Mbps
Downlink≤3.1Mbps EDGE
Uplink≤236.8kbps
Downlink≤236.8kbps GPRS
Uplink≤85.6kbps
Downlink≤85.6kbps SIM Card Normal SIM (Not Included) Applicable Region Global 4G/3G/2G

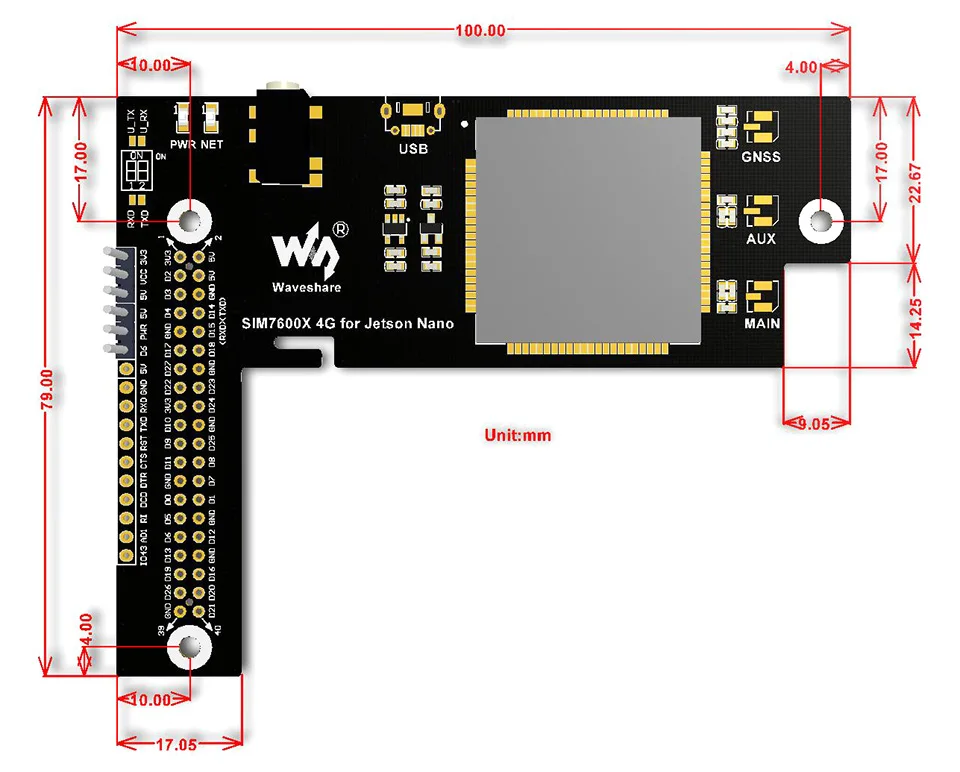

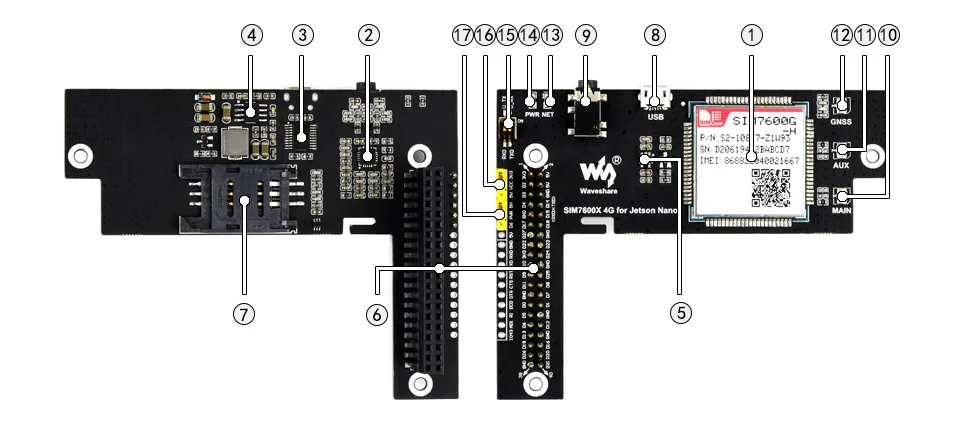

GNSS Specifications Receiver type： 16-channel C/A code   Sensitivity： Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD) Cold starts: -148 dBm   Time-To-First-Fix (open air)： Cold starts: <35s Hot starts: <1s   Accuracy： Position: <2.5m CEP     SMS and Audio Specifications SMS Supported types: MT, MO, CB, Text, PDU Storage: USIM card and ME (default)   Audio feature Supports echo cancellation Supports noise reduction     Other Specifications Power supply: 5V Operating voltage: 5V/3.3V (configured via jumper) Operating temperature: -30°C ~ 80°C Storage temperature: -45°C ~ 90°C   What's on Board 1.SIM7600G-H 2.NAU8810 audio decoder 3.TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V 4.MP1482 power chip 5. RT9193-33 voltage translator: translates 5V into 3.3V 6.40PIN GPIO header: for connecting with Jetson Nano Developer Kit 7.SIM card slot: supports 1.8V/3V SIM card 8.USB interface: for testing AT Commands, getting GPS positioning data, etc. 9.3.5mm earphone/mic jack 10.MAIN antenna connector 11.AUX antenna connector 12.GNSS antenna connector 13.Network status indicator 14.Power indicator 15.UART enable switch: ON: connect UART ports of SIM7600 and Jetson Nano OFF: disconnect UART ports of SIM7600 and Jetson Nano 16.Operating voltage selection jumper: VCC - 3.3V: set operating voltage as 3.3V VCC - 5V: set operating voltage as 5V 17.PWR control config: PWR - 5V: SIM7600 auto startup on power up PWR - D6: SIM7600 will be turned on/off by D6 pin of Jetson Nano   Dimension   Development Resources Wiki : www.waveshare.com/wiki/SIM7600G-H_4G_for_Jetson_Nano       PACKAGE CONTENT Weight: 0.233 kg   Note: Jetson Nano is NOT included.   1.SIM7600G-H 4G for Jetson Nano x1 2.LTE Antenna x1 3.GPS External Antenna (B) x1 4.Jetson Nano USB Adapter x1 5.Screws pack (2pcs) x1
