20W DC-DC Buck boost 5V-35V 12V 24V to ± 5V 9V ±12V 15V Dual Power Supply Positive negative Voltage regulator module | Инструменты

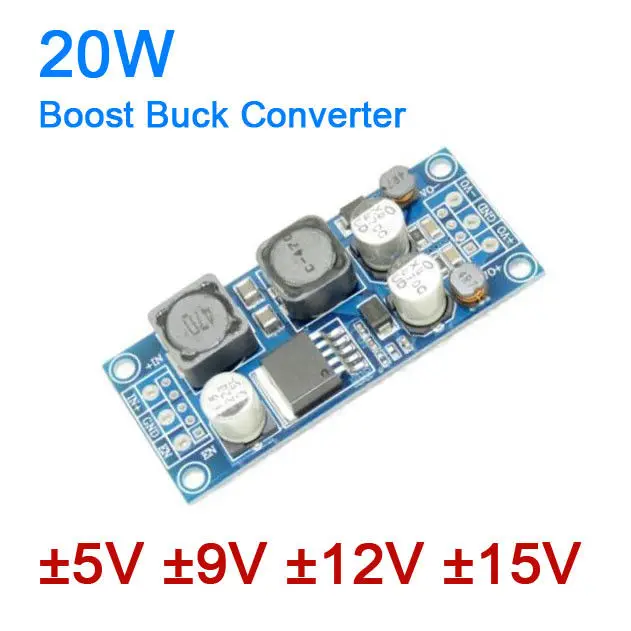

20W DC-DC Step UP & Down 5V-35V 12V to ±5V ±9V ±12V ±15V Dual Power Supply Board
    　   Description: Features:

 Wide voltage 5-35V input

2. Boost & Buck positive and negative Dual output

3. Input and output common ground

4. Efficiency up to 88%

5. Output secondary LC filter, ultra low ripple stable output.

6. Support 2.54 pin or 5.08 pitch screw line

Electrical parameters:

Input voltage: 5v-35v (suggest 10-30v input)

Output voltage: adjustable ( test: ± 5v 12w 77%  / ± 9v 15w 84% / ± 12v 20w 86% / ± 15v 20w 88% )

Output ripple: 60mV (24V input, oscilloscope 20MHz wideband)

Max min load current: 30ma ( positive not be empty when negaitve with load)

Operating temperature: -40 ~ 85 ℃

Short circuit protection: self-recovery, not a long short circuit

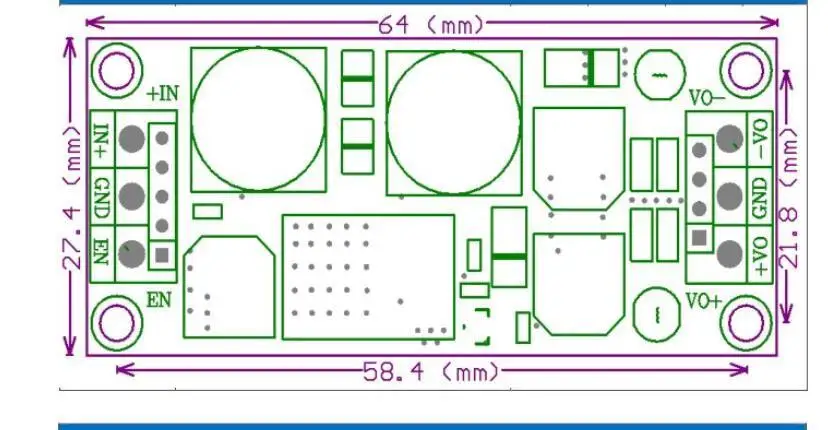

Size: 64 * 27.4 * 11.7mm (L*W*H)

Package Contents
100% Brand New
1 X Step UP & Down Dual Power Supply Module
