Video Door Phone Doorbell Wired Intercom System 7-inch Color Monitor and HD Camera with Release | Безопасность и защита

7 inch video door phone. No radiation, low power consumption and high definition. IR Camera with Night Vision.



>>>introduction:



1. Ultra-thin design luxurious style indoor machine, leading the new trend of color video door phones. 2. Waterproof, anti oxidation and wear resistance outdoor unit, equipped with rain-proof cover, support embedded installation and hanging garment two modes. 3. With IR night vision function, IR distance is about 1-3 meter. 4. No radiation, low power consumption, high definition 7 inches color images. 5. Monitor, intercom, unlock,hands-free, chord rings choice. 6. With unlock function(Please add an access control power for power off unlock)  7. Volume, brightness & contrast adjustable. 8. 4 cores wire connection between indoor monitor and outdoor camera 9. Match can up to 1&1, 1&6, 2&1, 2&6 systems.     >>>Operation Instruction:   (1)  Connect cable and electric lock according to the User Manual, check whether wiring is errorless and then proceed to next step.  (2)  Turn on the indoor unit power, check whether the power indicator of the indoor unit works normally.  (3)  Press the calling button, then the indoor monitor will hear the ringtones and show the image. (4)  Adjust brightness/ chroma/ volume/ optimum talkback location (ex-factory test).   (5)  Press the talkback key and check whether indoor and outdoor talkback works normally.  (6)  Indoor monitor under the standby mode, press the monitor button to check whether the monitoring key works normally. (7)  For more than 2 indoor monitors, press the  intercom button of the first indoor monitor, every indoor monitor shows blue screen,the press the intercom button of second indoor monitor to talk. (8)  Under the intercom mode, press the unlock button to check whether unlock works normally. (9)  You can safely use the product upon passed acceptance mentioned above.

>>>Specification:

​

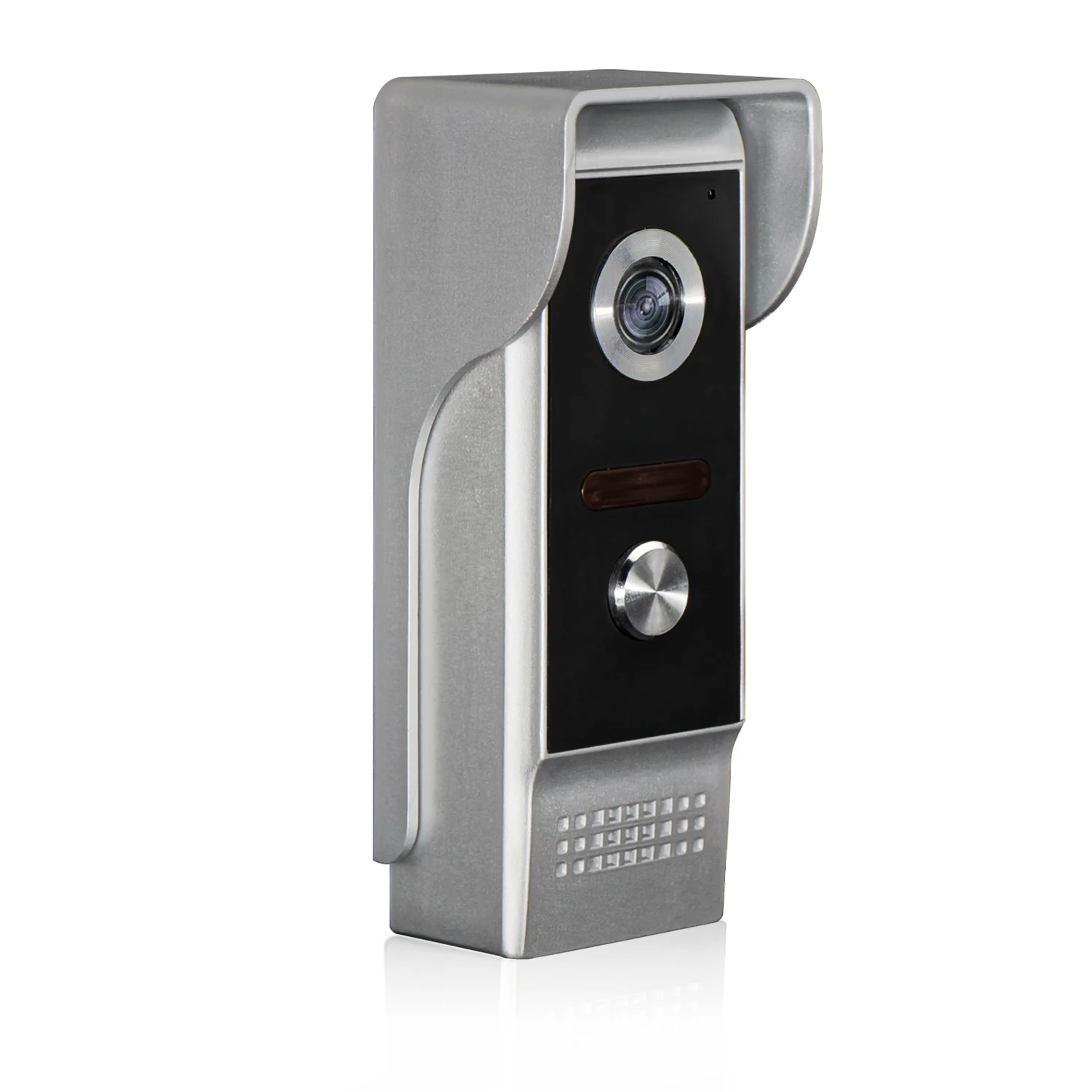

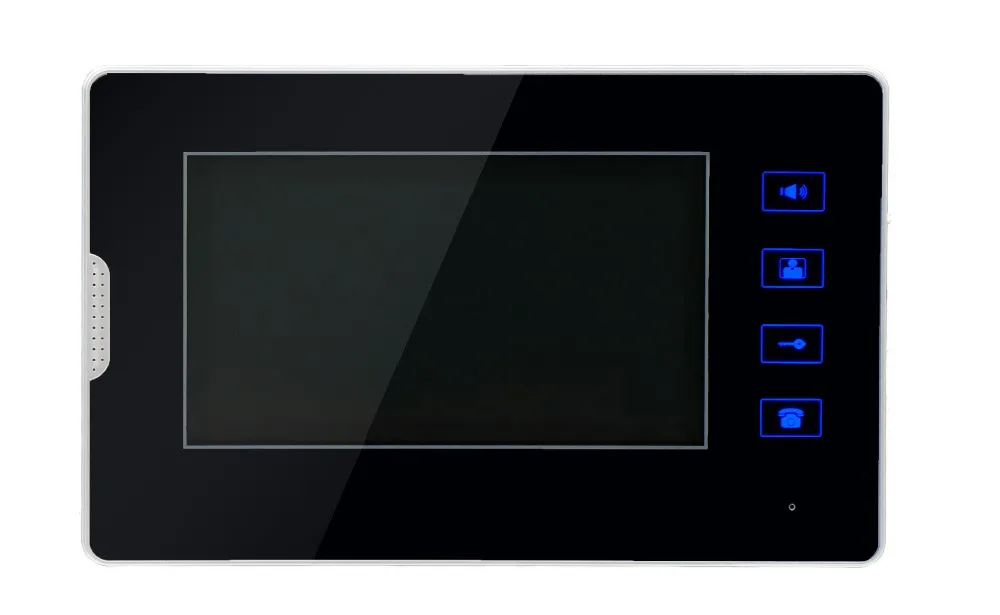

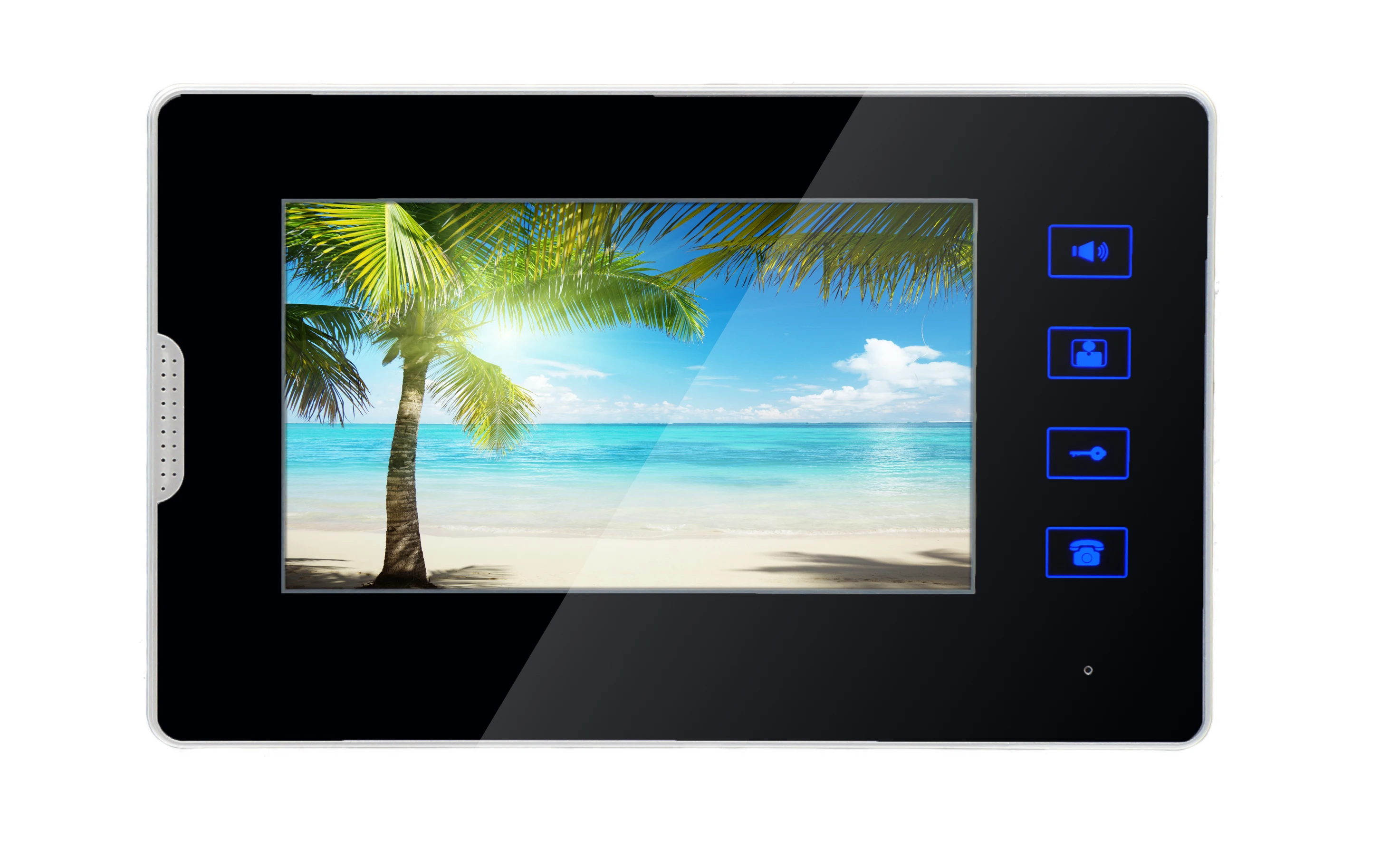

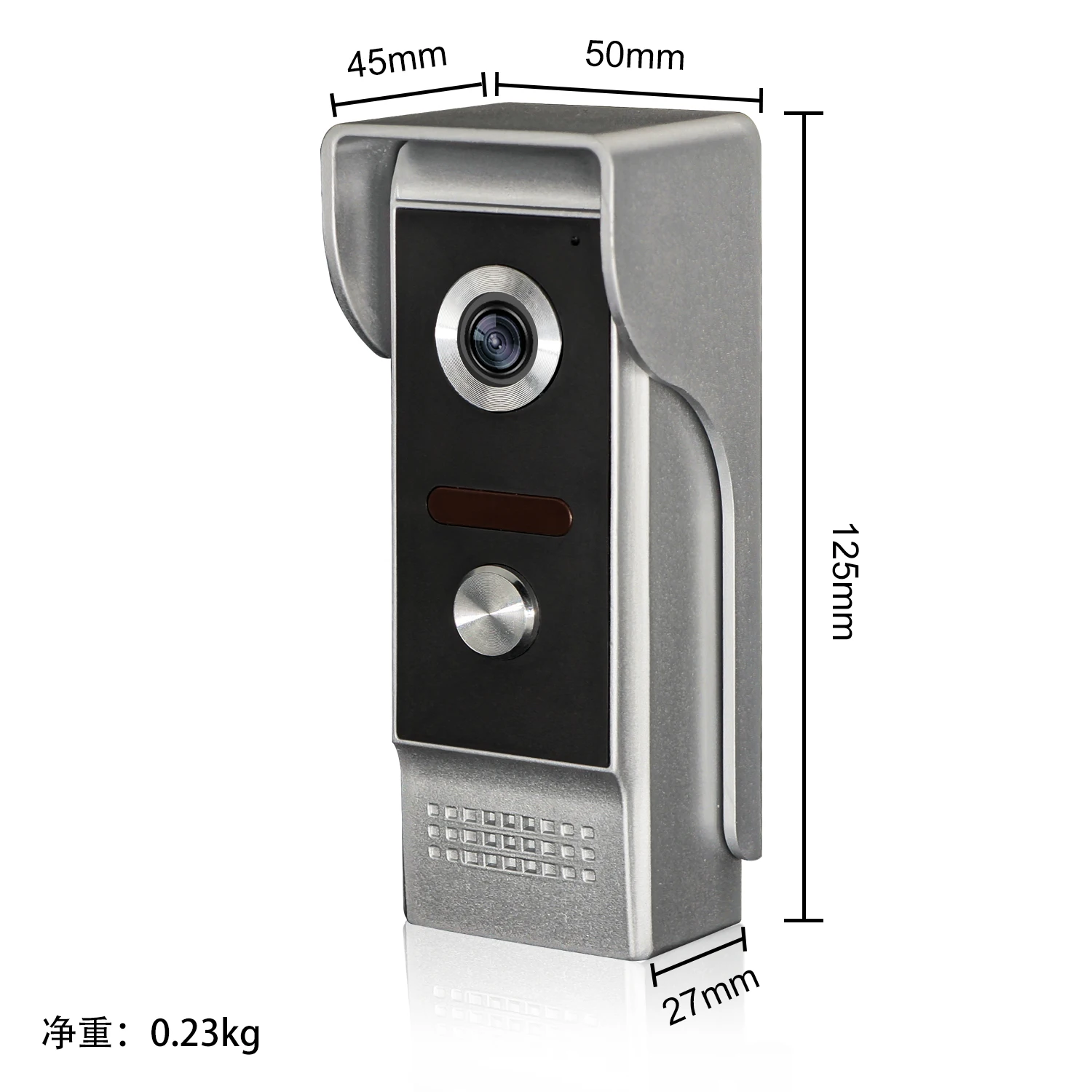

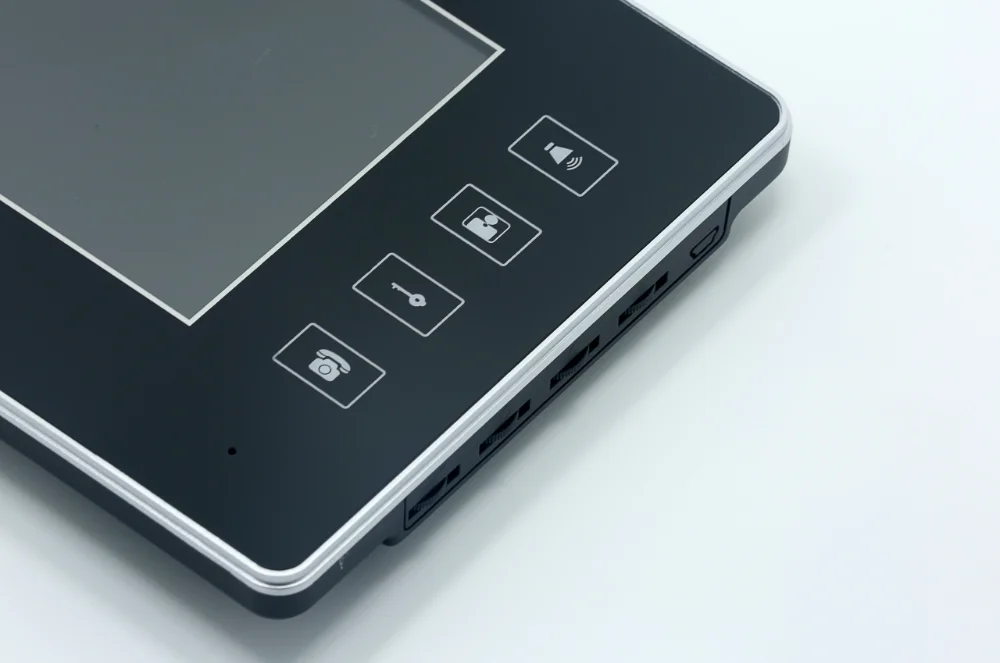

Outdoor Camera   Camera: 1/4" CMOS Min. Illumination: 0.5Lux Video output: 1Vp-p/75Ω Adapter input: AC100~240V, 50/60Hz Adapter output: DC15V/1.2A Installation: Wall mounted Material: ABS plastic & aluminum alloy Wires for Lock-camera connection.        Monitor   Screen: 7" TFT/LCD Material: ABS plastic & aluminum alloy Power source: AC100V-240V / 50-60Hz Resolution: 900*480 Conversation delay:120S±10S Monitoring delay:60S±10S Operating temperature:-25-60degree Power consumption:Standby: 0.5W, in-service: 8W Connection mode:Four-wire, 5-core wire is added to extension

>>>Package contents:

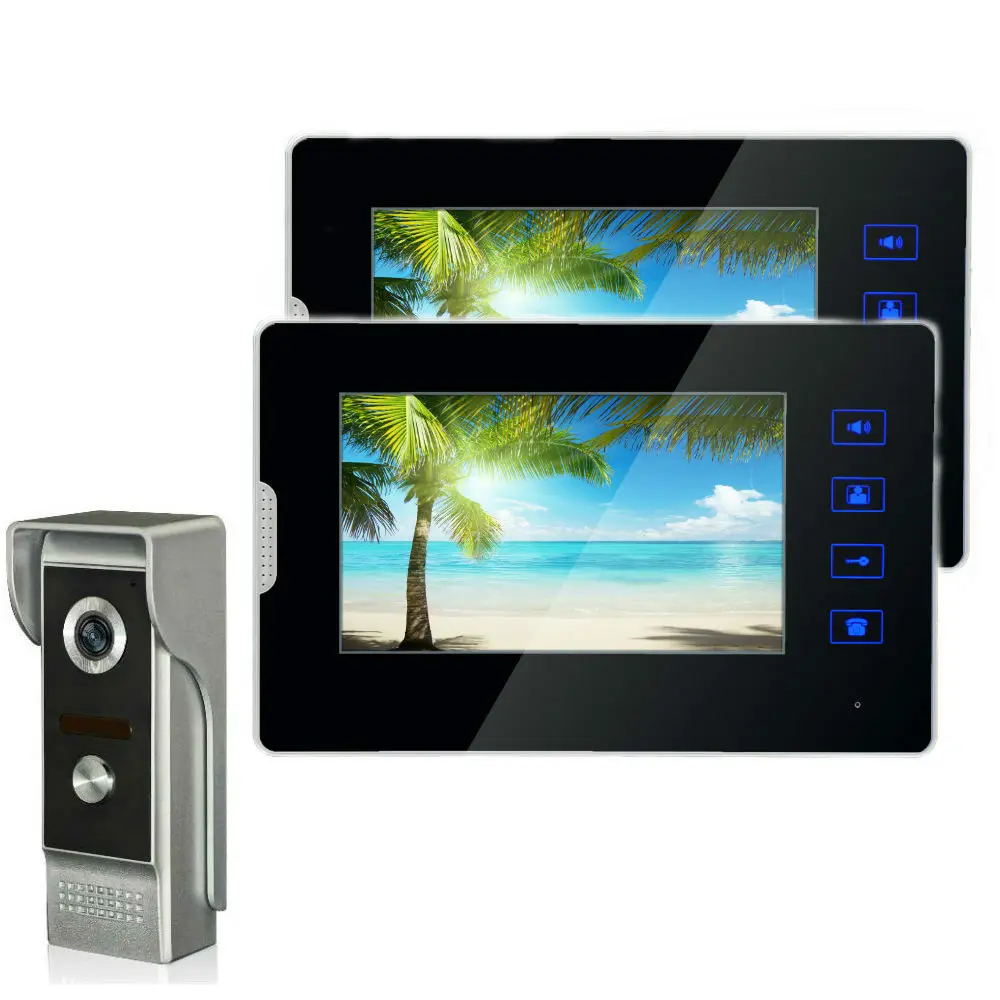

A  KIT

1 * Outdoor Unit (Camera)  2 * Indoor Unit (Monitor)  2 * DC15V Adapter  1 * 5m Cable    B  KIT 2 * Outdoor Unit (Camera)  1 * Indoor Unit (Monitor)  1 * DC15V Adapter  1 * 5m Cable    C KIT 1 * Outdoor Unit (Camera)  1 * Indoor Unit (Monitor)  1 * DC15V Adapter  1 * 5m Cable
