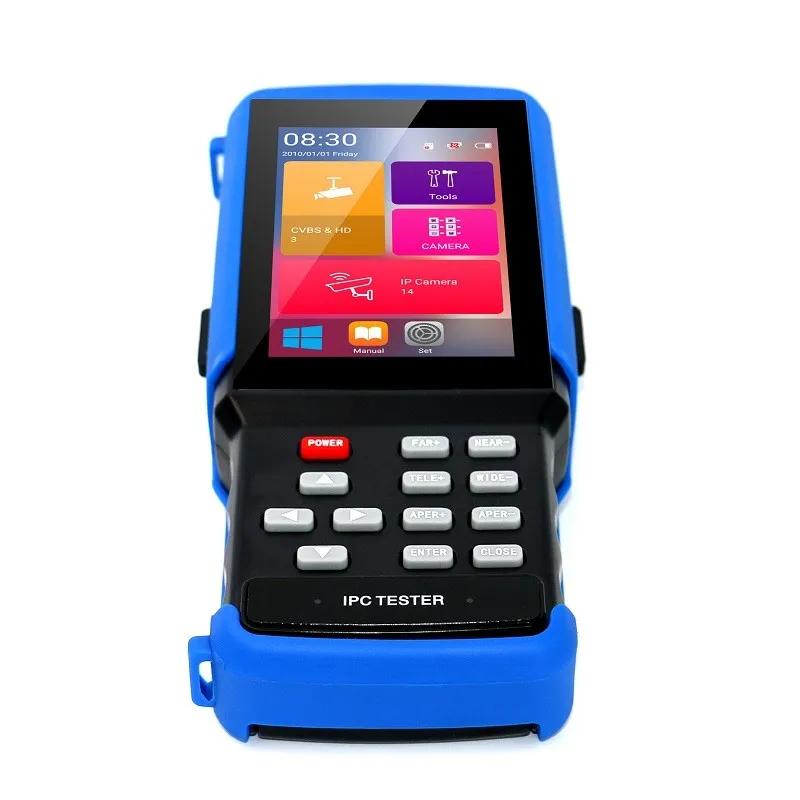

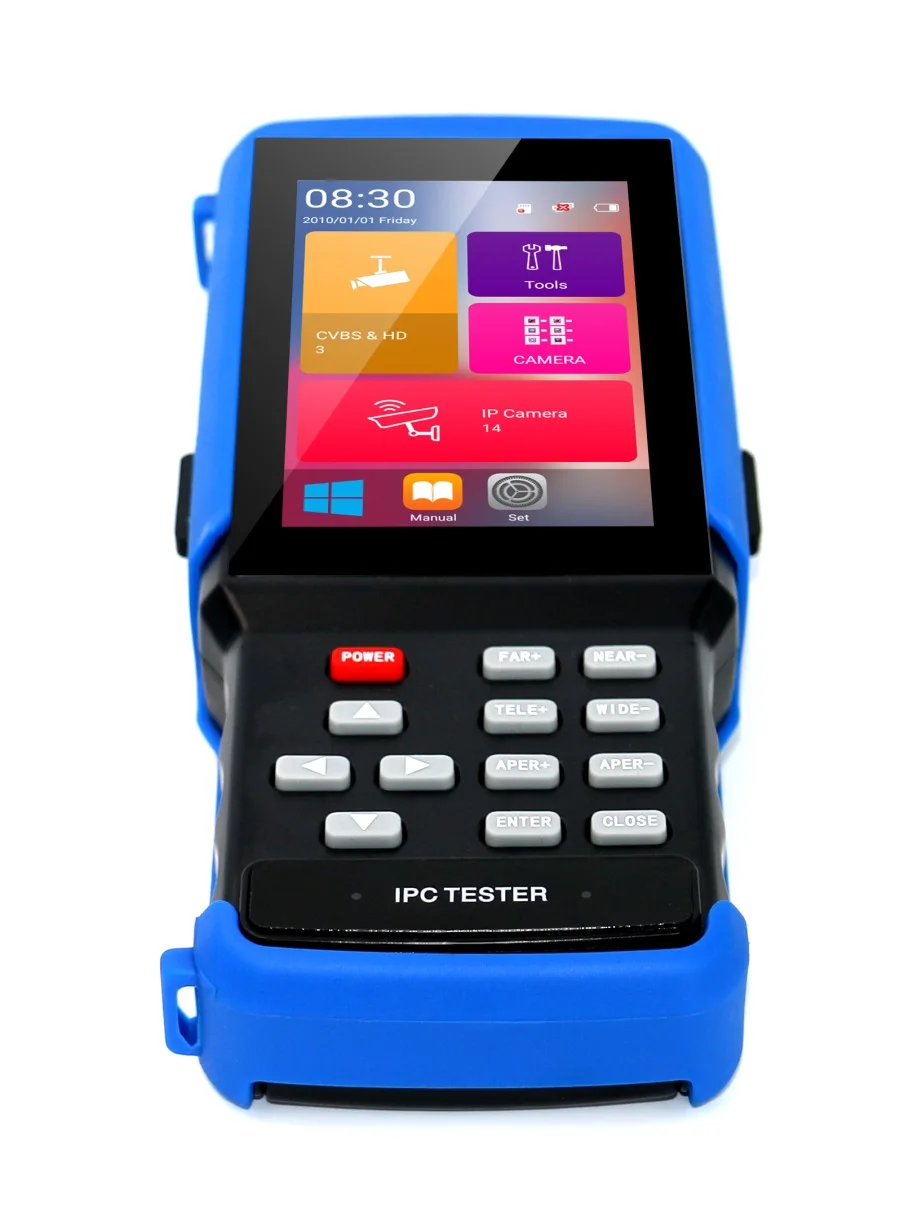

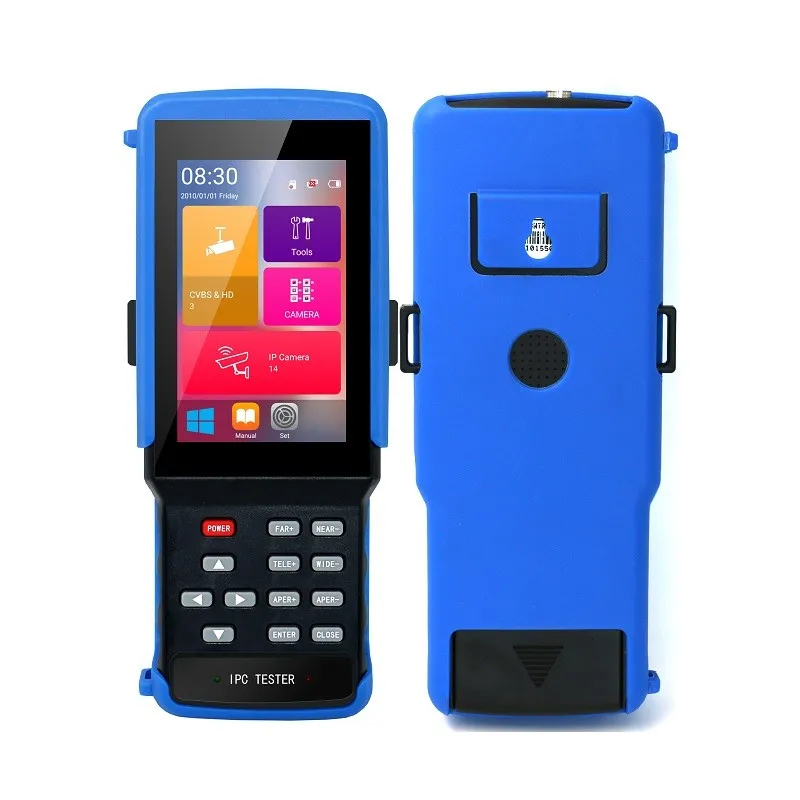

Профессиональный тестовый монитор CCTV IPC9310 H.265 4K IP 5 Мп AHD 8 CVI TVI CVBS аппарат для

Профессиональный тестовый монитор CCTV IPC9310 H.265 4K IP 5 Мп AHD 8 CVI TVI CVBS аппарат для

Overview:

IPC9310 series CCTV tester is developed for the on-site installation or maintenance of CCTV cameras. It is protable, low-power consumption high quality and durable, with IP/Analog/HD camera video display, RS485 PTZ control, DC12V/3A or 48V/24WPoEpower output, camera video snapshot and record, various network test tools such asPING, IP address discovery, port flicker control, LED lamp and RJ45 cable connection status test or cable tracking, which makes it much easier for a CCTV technician to install and maintain CCTV systems, improving work efficiency by reducing time in the field.

Main Features:

1. 4.3 inch full view IPS HD screen, resolution of 800 × 480, PPI up to 216

2. Adjustable display backlight brightness, up to 500cd, display contrast 800:1

3. G + G structure capacitive touch screen, hard and wear-resistant, corrosion-resistant, high transmittance

4. 7.4V 3200mAh high-capacity polymer lithium battery, low consumption, auto screen sleep, once fully charged work continually for 10 hours

5. Standard 48V/24W PoE power output for PoE camera testing, support PSE voltage test, DC12V/3A power output, short-circuit protection, supply temporary power for all kinds of cameras including PTZ

6. Support Chinese, English, Spanish and other more than 10 kinds of languages

7. 4K H264/H265/MPEG4/MJPEG format IP camera test, high definition hardware decoder for video image display in real time without delay and enlarge max 8 times, support snapshot, video recording and playback

8. BNC input for HD camera TVI 8MP, CVI 8MP, AHD 5MP camera test, NTSC/PAL Analog CVBS video display

9. ONVIF parameter modification, support HIKVISION, DAHUA, ACTI, NCR, SUMSUNG more than 30 manufacturer private protocols, can be customized to add, support mobile client installation

10. Support PELCO-P, PELCO-D, SAMSUNG and other more than 30 kinds of PTZ control protocols

11. Built-in explorer, RTSP player and other Android applications

12. FTP tool, transfer files in LAN freely without SD card reader

13. 10/100/1000M Ethernet interface, built-in 150M wireless WIFI, support WIFI hotspot

14. IP address scan tool, rapidly search out camera IP address, PING tool and port flicker tools for network test

15. Network cable TDR quality test, check cable breakpoint and short-circuit, test cable length, attenuation, impedance, reflectivity and delay skew parameters, UTP cable test, check cable connection status and sequence of each copper core

16. Bright white LED lamp, easy to work in dark area

Applications:

-CCTV system installation and maintenance

-Finding out the other end of the cable in security maintenance and network cabling

Parameters:

Product Model

IPC9310 HD video monitor tester

Touch Screen

4.3inch G + G structure capacitive touch screen

LCD Screen

4.3 inch resolution of 800 × 480 Full View IPS HD screen

Ethernet Port

10 / 100 / 1000M adaptive

WIFI

Built-in wireless WIFI, speed 150M, support WIFI hotspot

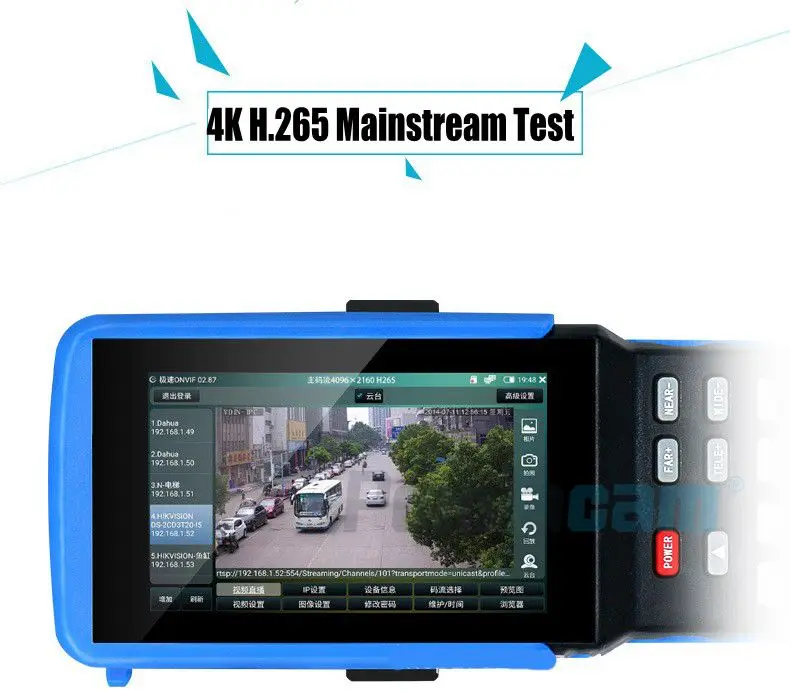

IP Camera test

4K H264 / H265/ MJPEG / MPEG4 format max 1080P video image display, ONVIF IP and other parameter modification, PTZ control

CVBS Analog test

1 channel CVBS analog input, support PAL / NTSC format self-adaption

Coaxial HD camera

Supportcoaxial HD TVI 8MP, CVI 8MP, AHD 5MP

IP Scan

Full-segment IP detection, rapidly search camera IP address

HIKVISION SADP tool

HIKVISION camera batch activation, batch IP modification, be able to modify username and password

DAHUA test tool

DAHUA camera batch activation, batch IP modification, cross network segment IP modification, username and password modification

Video image zoom

Video image magnification max 8 times

PTZ control

Support PELCO-D/P, Samsung, Panasonic and more than 30 kinds of protocols

Cable TDR test

Test network cable pair status, length, attenuation, quality, impedance, delay skew and many other parameters

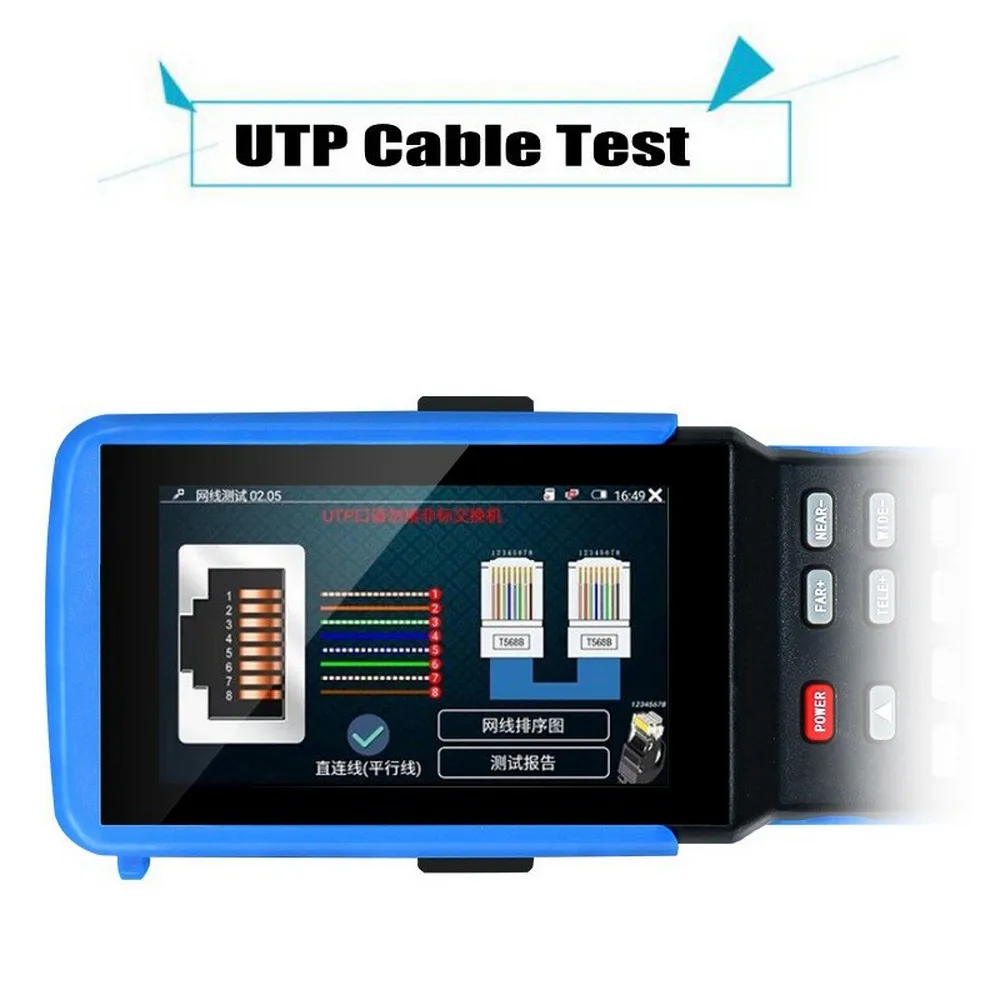

UTP network cable test

Testconnection status and sequenceof any 2network cables

DC12V power output

DC12V output max current 3A, supply temporary power for cameras

PoE power output

48V / 24W standard PoE power output

PSE voltage test

DisplayPSE devicevoltage and circuit connection status

RS485 serial port tool

Be able to send or receive any data or hex data

Charger

DC12V / 2A, Support US / EU standard

Battery

Built-in 7.4V polymer lithium battery, capacity 3200mAh, be able to work for about 10 hours

Language

Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
