CSR8675 Wireless Adapter Bluetooth 5.0 Receiver Board ES9018 I2S DAC SQ875 Audio Decoder 24Bit/96Khz LDAC with Antenna | Электроника

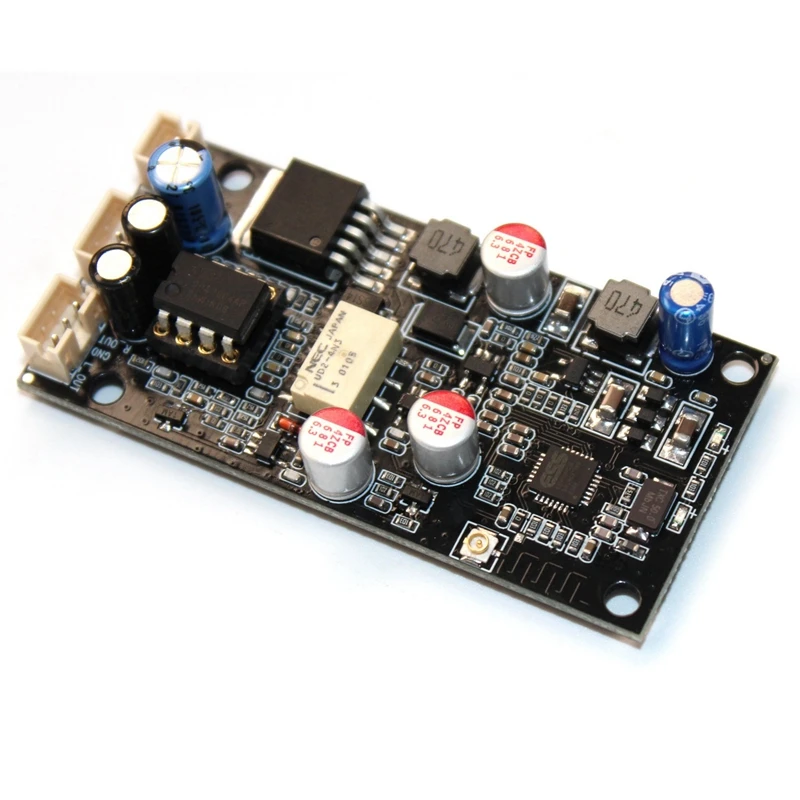

SQ875 Bluetooth audio receiver adopts CSR8675 Chip solution Bluetooth digital audio signal reception, ies digital signal transmission to ESS9018 decoding chip, analog audio signal output through dual op amp gain filter output.
The SQ875 supports Bluetooth wireless reception and one AUX analog audio input for switching output. Lossless switching with relays will not affect sound quality.
By default, the module enters AUX line mode, the switching mode is automatic switching, and preferably Bluetooth.
The SQ875 module is a high-level version that supports the LDAC protocol and supports a sampling frequency of 24 bits / 96 kHz, which exceeds the sampling frequency of 24 bits / 48knz APTX-HD.
SQ875 is a DC single-supply switching power supply, a wide range of DC voltage 5 V-32 V DC, multi-stage voltage regulator product design, Bluetooth module, DAC chip, operational amplifier chip are powered by independent power management chip, op amp uses dual (positive and negative) 13 V power supply, fever level design.

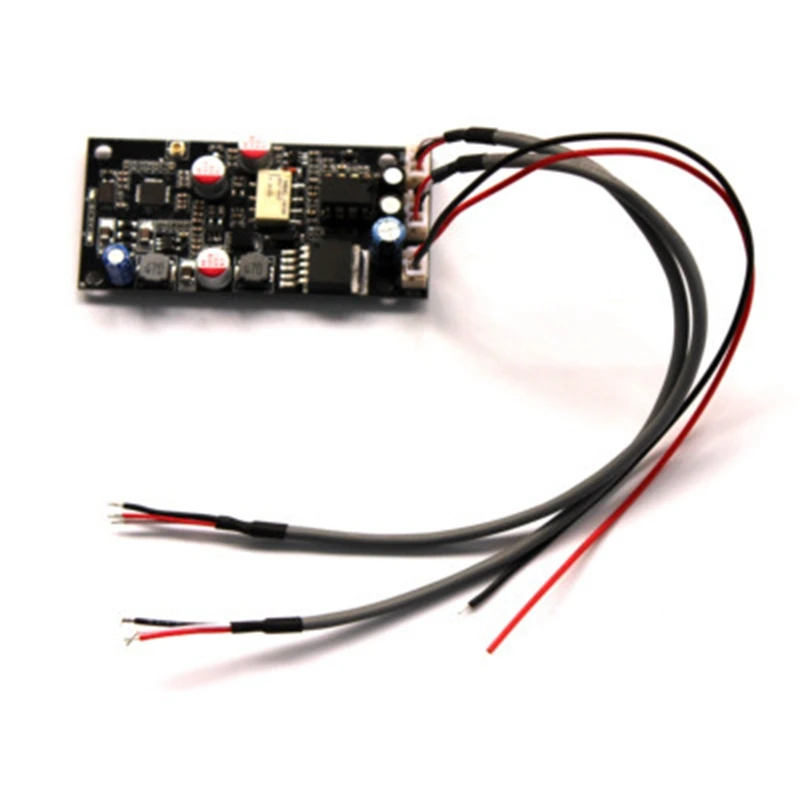

1. DC power input, red (+ 12V) is positive, and black (GND) is negative. Support DC5V-32V, Note: AC power cannot be used.
2. AUX analog audio input, the white line (INL) is the left channel, the black (GND) is the audio ground, and the red (INR) is the right channel. Note: the sound ground wire cannot be connected incorrectly.
3. Audio output, the white line (L-OUT) is the left channel, the black (GND) is the audio ground, and the red (R-OUT) is the right channel. Note: the sound ground wire cannot be connected incorrectly.

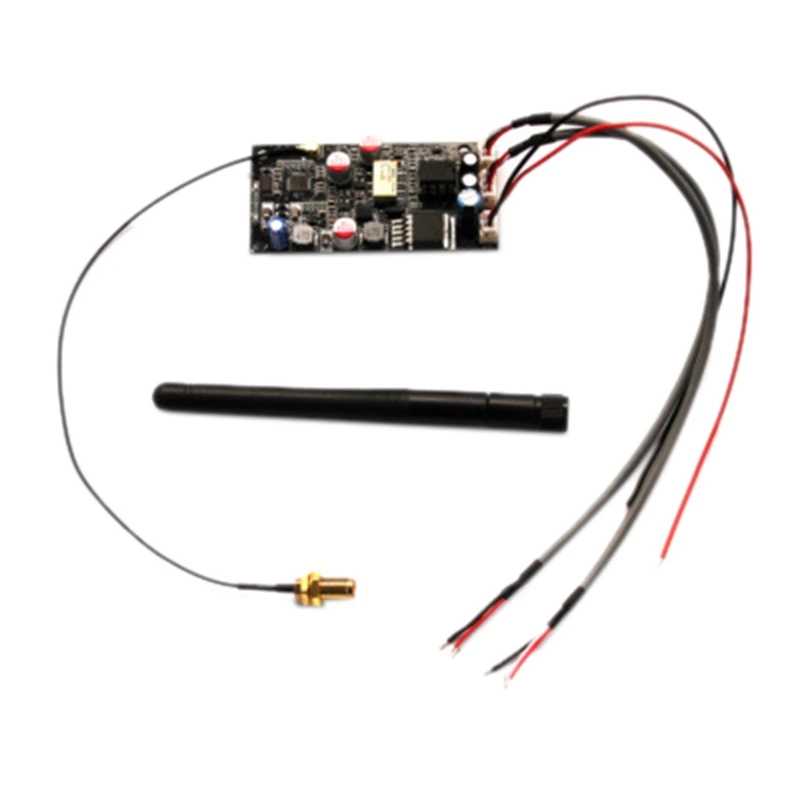

4. The external Bluetooth antenna is fastened, and the buckle antenna is directly attached, and the 2.4G antenna can be used. The module must be installed in a gold M case and an external antenna must be added.
Colour: black
Material: metal

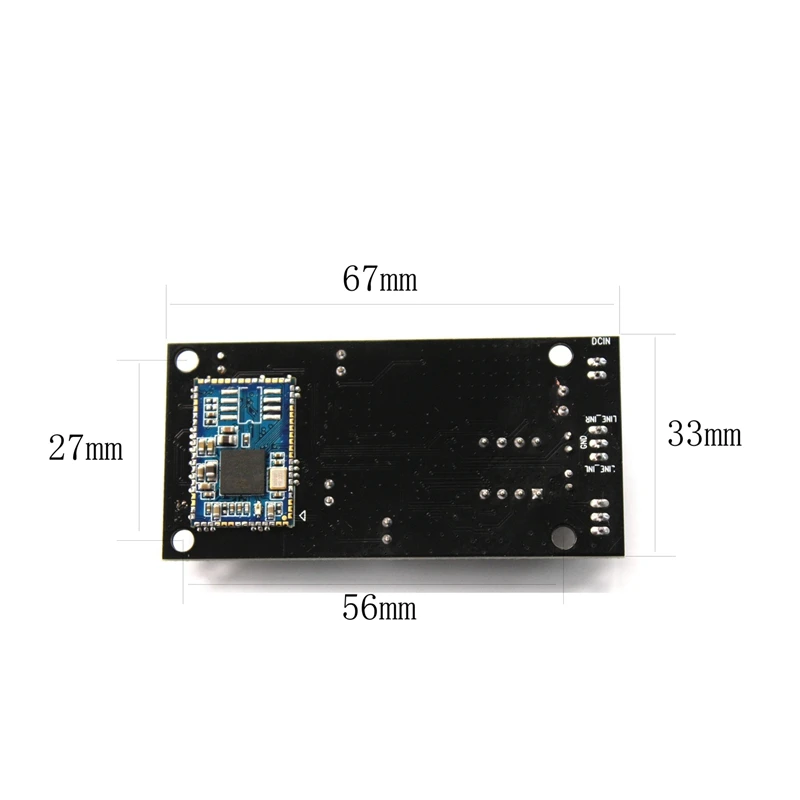

Size: about 67 * 66 * 27mm
Package Contents:
1 * Decoder (with antenna)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
