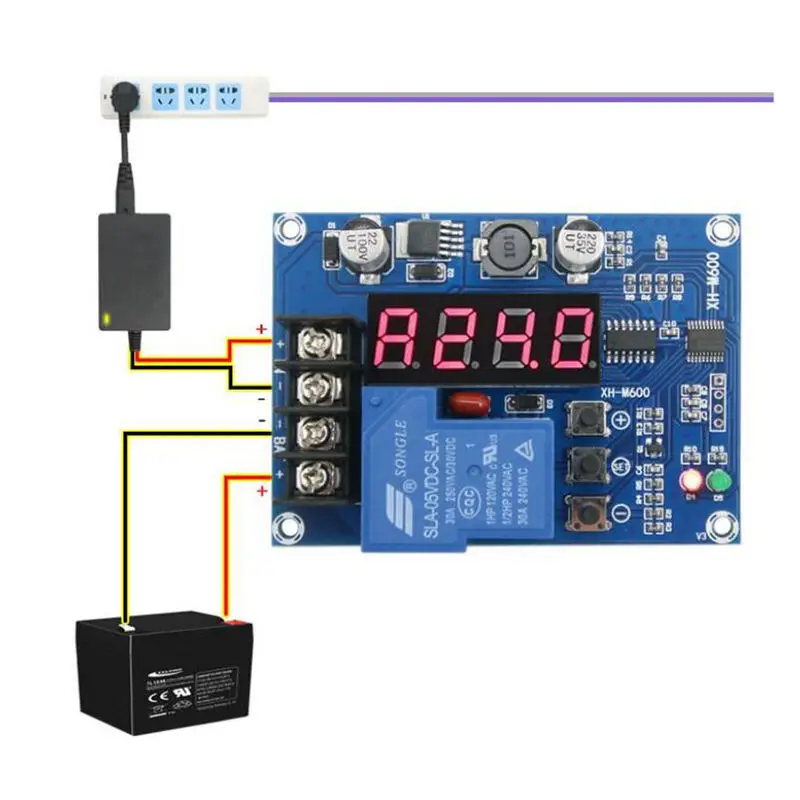

1:connect to battery(if not,won't have display)
2:press the "+" display upper limit volatge , long press will flashing ,then set the upper limit volatge (H)
3:press the "-" display lower limit volatge , long press will flashing ,then set the lower limit volatge (L)
4:connect to the charger
5: can press the set close the display save electricity
Model:XH-M600
control voltage :DC 6-60V
control current: max 30A
Control Precision:0.1V
Output Type:direct output
Voltage Tolerance:+/-0.1V
Application Fields:6-60V battery

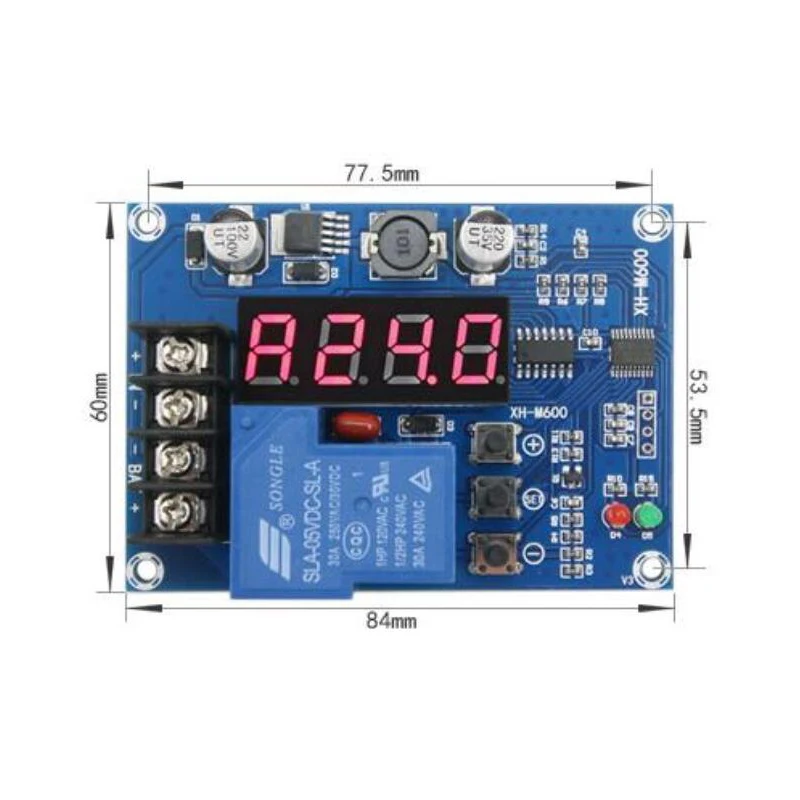

Size:84*60mm
color: blue
Material: metal + pc
Package Contents: 1* Charger Control Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
