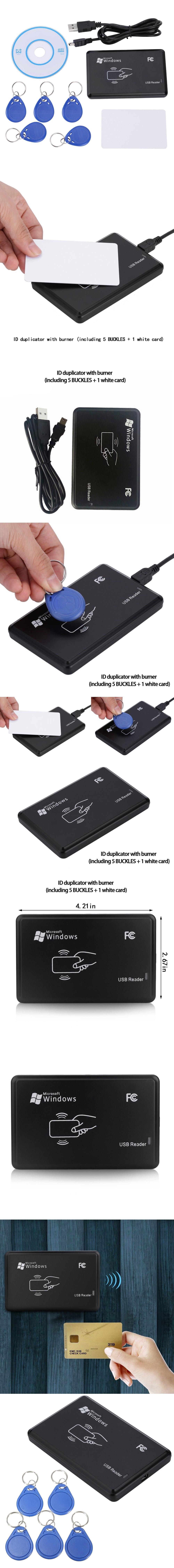

125khz RFID ID EM Card Reader Writer Copier Duplicator With 5 Key Tag Kit Portable Size |

125khz RFID ID EM Card Reader Writer Copier Duplicator With 5 Key Tag Kit Portable Size |

Product Description:

ID Copier Clone:
1. Support Windows 2000 / XP / NT / ME / Vista (does not support 10 systems of Windows).
2. Write support/copy card/type tags: EM4305, 8800, ATAT5577, T5557, T5567, CET5200 or compatible cards/tags.
3. Support reading EM 4001, EM4200 or compatible cards/labels.

Description:

The card reader supports plug and play, is free to plug and unplug, no external power supply, users do not need to load any drivers, Windows system directly as a device type keyboard ID.

The computer USB interface card reader, "drop" the card reader, and soon start self-test and initialization, then "maintenance" initialization is successful, the credit card enters a waiting state.

The computer peripheral manager enters the device to indicate that the device has successfully connected to your computer.

Enter the card number on the credit card reader in the cursor computer and press Enter.

ID card, the original card number is fixed, the card reader can be converted into the bit and output format according to the original card number.

The output card reader of each manufacturer is not the same thing, but basically it is output according to a certain standard.

Specifications:

Technical Parameters:Support fully compatible format uem4100 ID card (64 bit, Manchester code)

Working frequency :125 khz

Communication rate :106 Kbit / s

Serial transmission rate :9600 Kbit / s

DC power supply :5 V (±5%)

Current consumption :<100 mA

Effective working distance :100mm

RS232 / R232 interface

Extended I/O port stateless

Indication 2 LED (power LED status indicator)

Operating temperature :- 10 ° C to 70 ° C

Storage temperature :-20 ° C to 80 ° C

Maximum working humidity :0~95% relative humidity

Product size :110mm x 80mm x 26mm

Weight: 130g

Installation Notes:

Connect the USB cable, the sound card reader twice, the green light flashes twice, the installation is silent silently.

Available is the "Word", "Reminder" software test.

Open "Word" or "Reminder" in the credit card input state, call loudly, green light flashes once, "Word" or "reminder" and automatically enter a series of numbers.

For normal system, the number that appears is the serial number of the RF card.

Tips:

1. Install the card reader in a convenient location to avoid access to the display due to the radiation from the display, which may interfere with the normal operation of the card reader.

2, Credit card, we do not recommend using the mouse.

3. The communication between the reader and the computer cable length must be less than 15 meters.

Package Include:

1 x 125 khz ID copier (Programmer / Reader)

1 x USB cable

1 x CD (Applicatin,Driver,Instruction Manual)

1 x T5577 writing paper

5 x EM4100 read-only label
