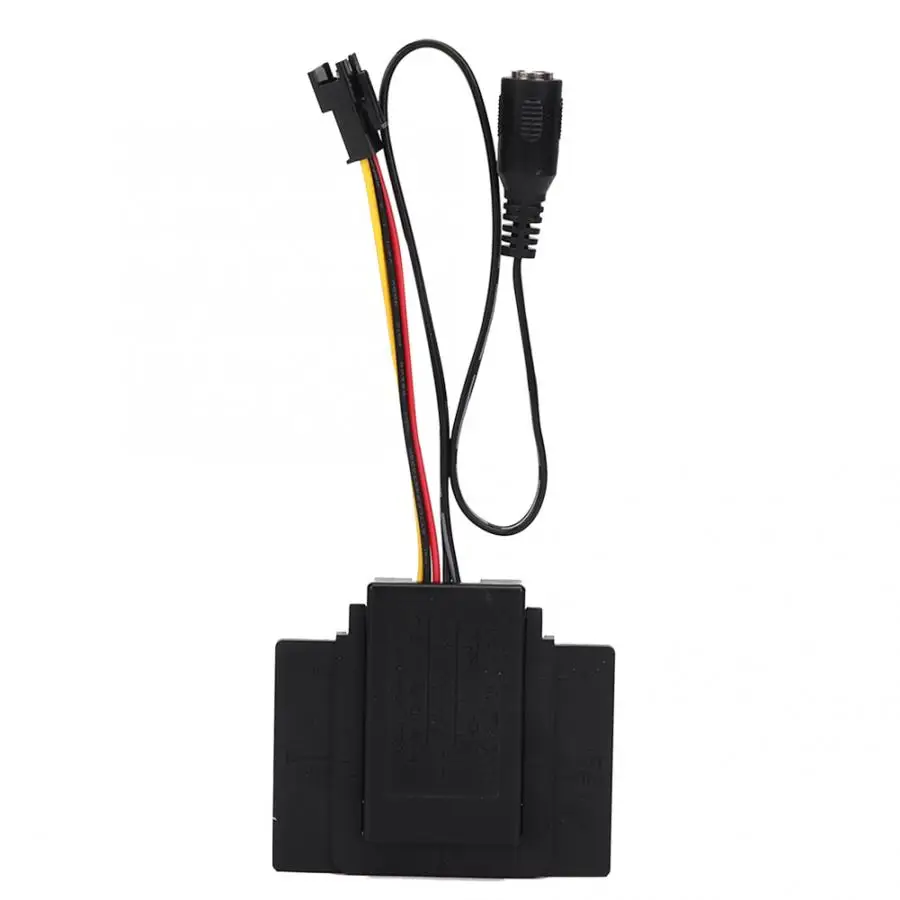

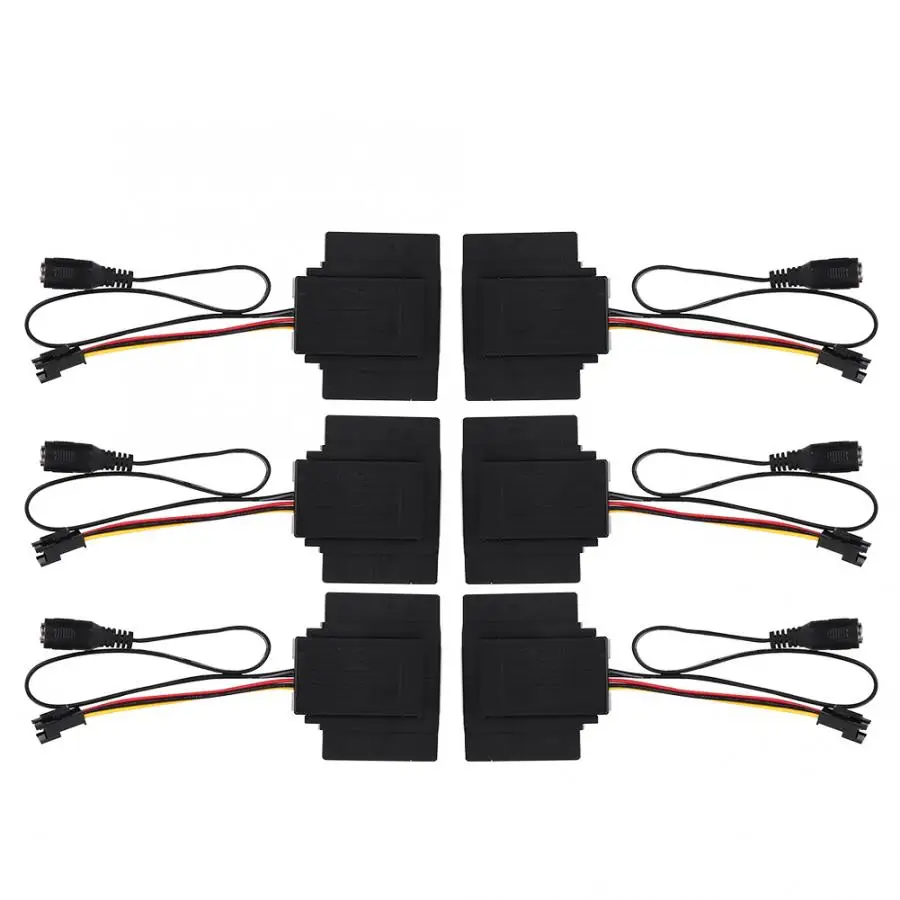

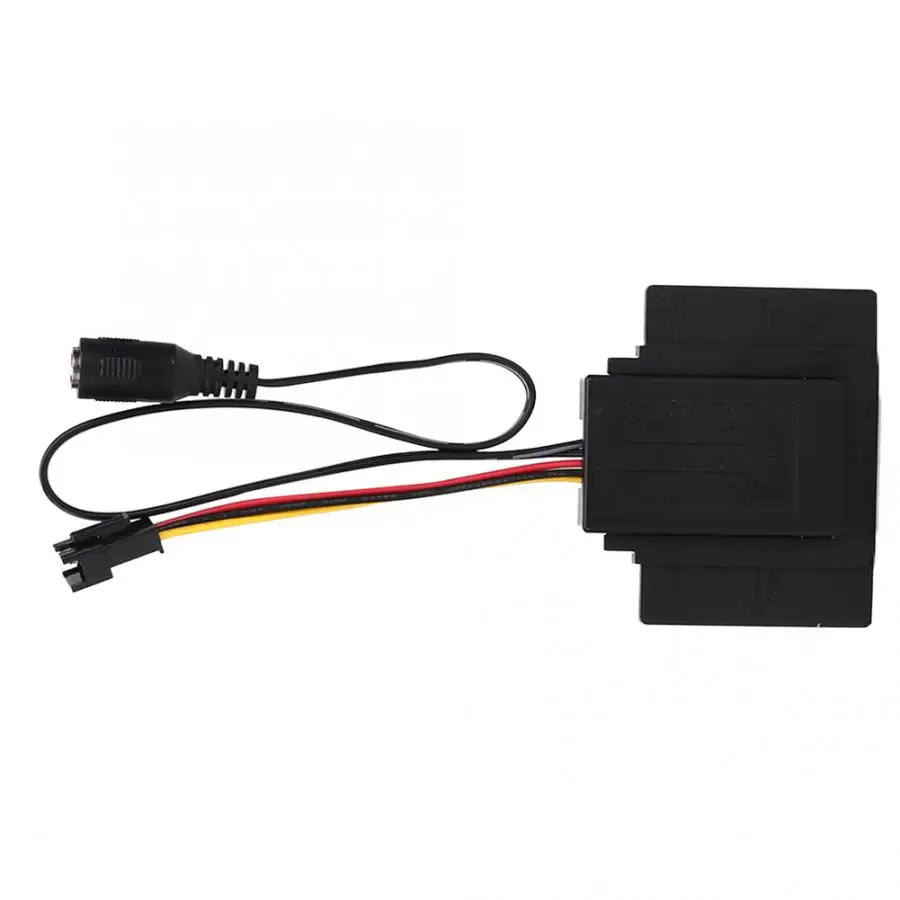

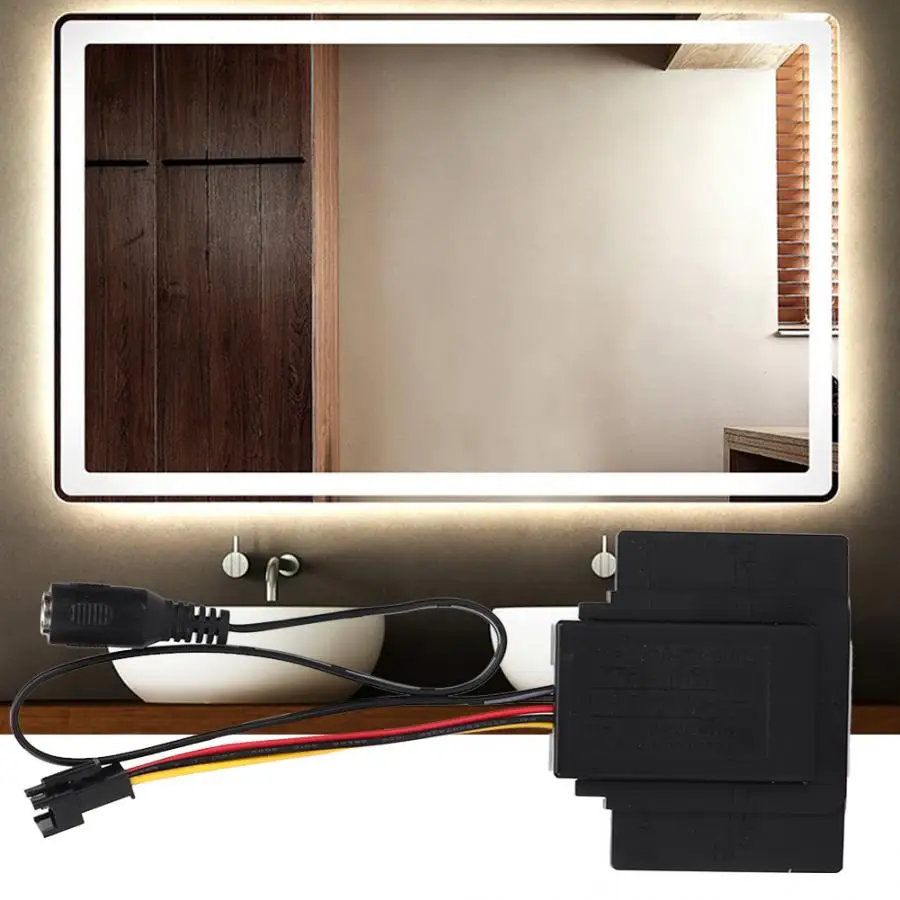

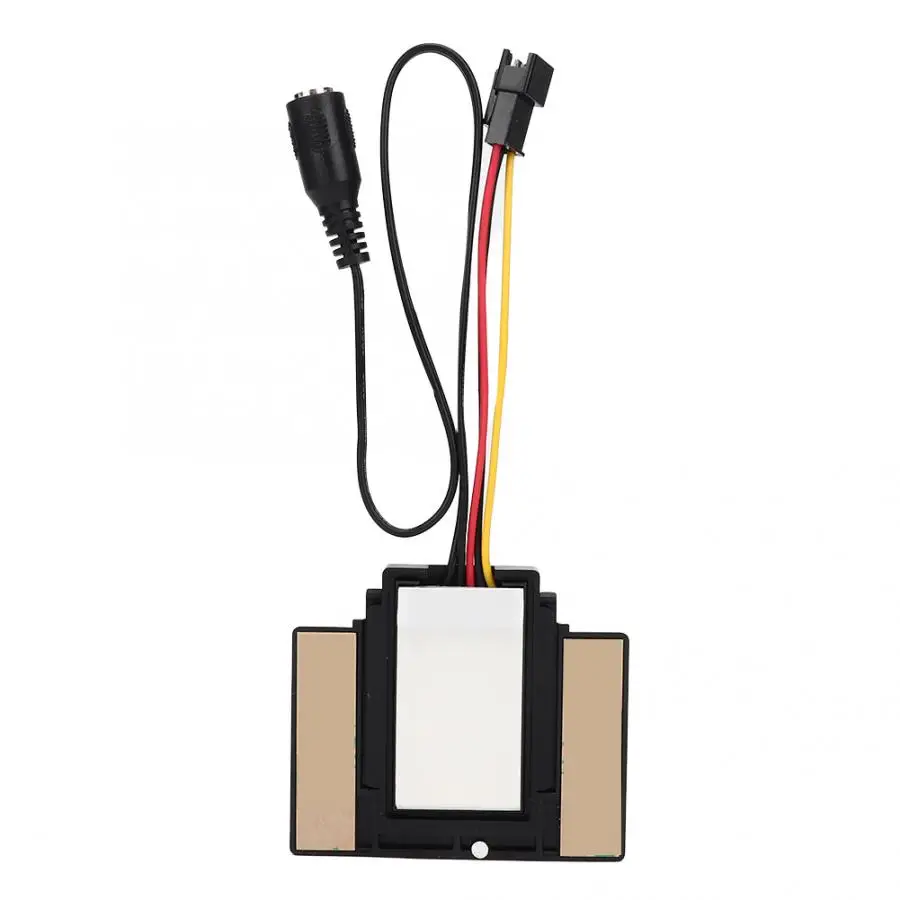

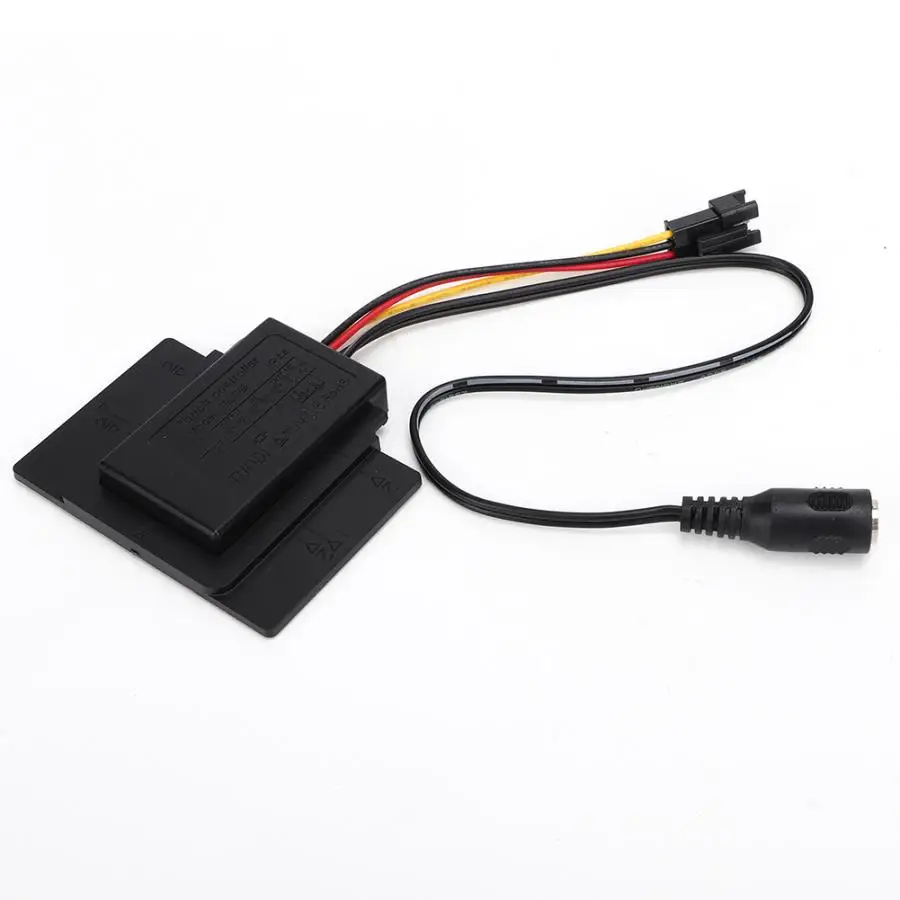

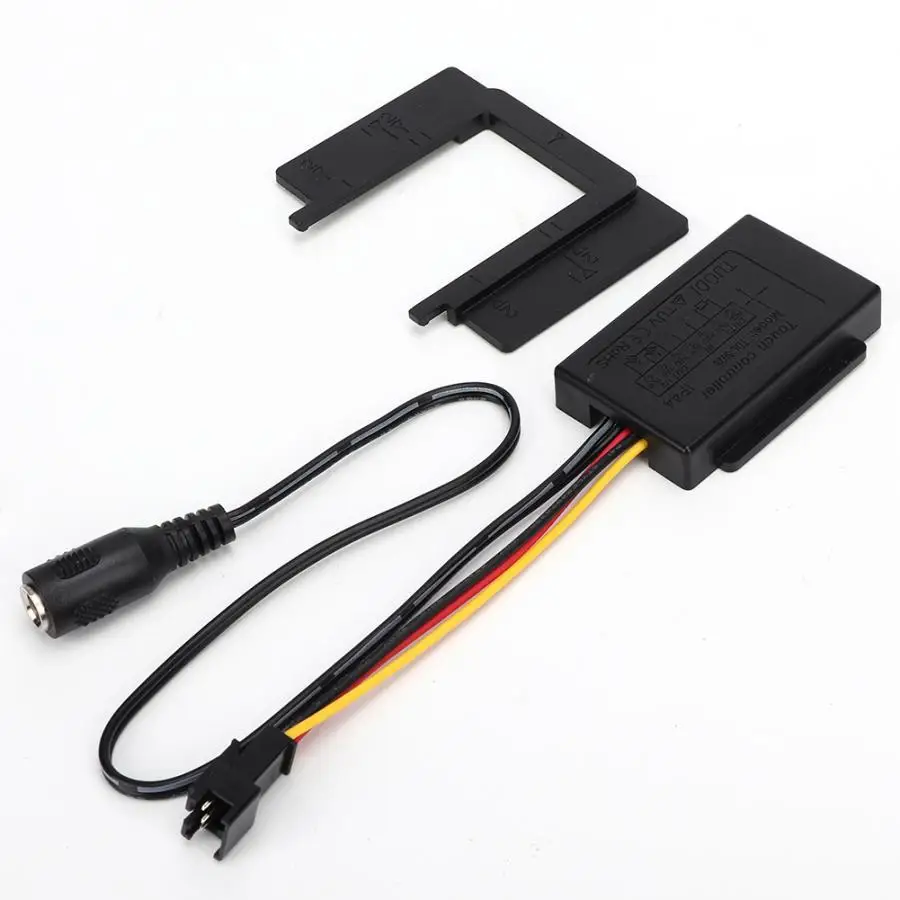

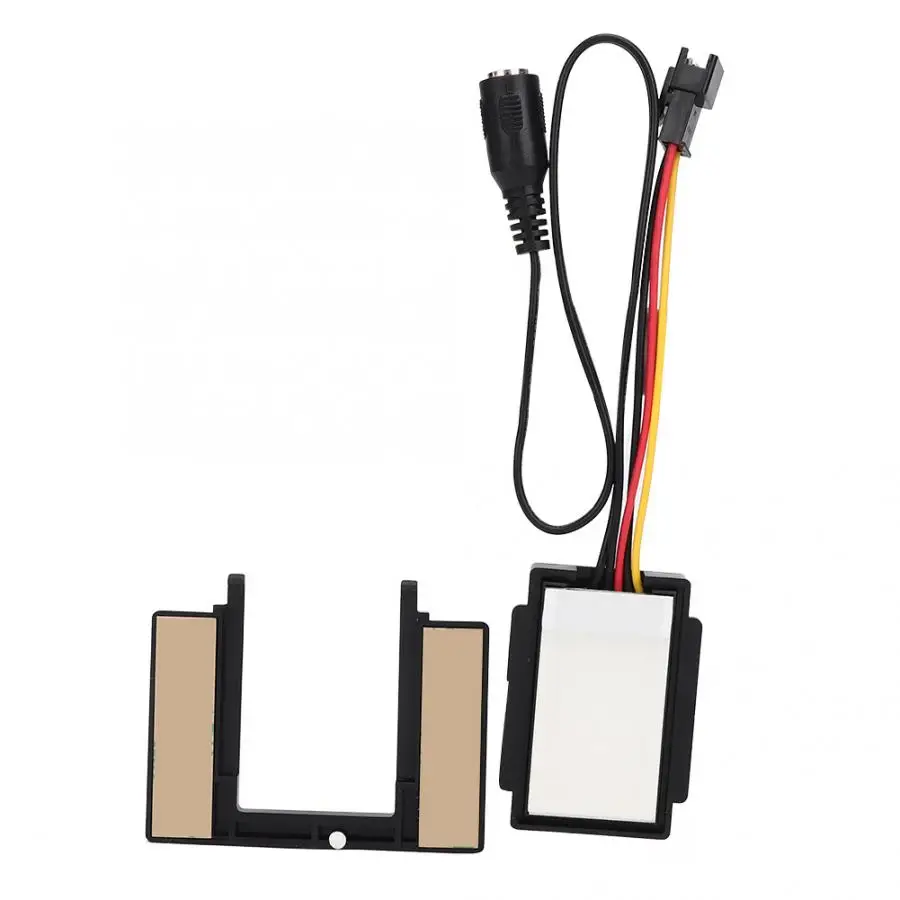

LED Intelligence Touch Sensor Induction Switch for Bathroom Mirror DC5-24V

Feature:

Specification:

Item type: LED Sensor Switch
Condition: 100% brand new
Weight: Approx. 36g
Color: As picture shown
Working voltage: DC5-24V
Induction method: touch type
Quiescent current: 10ma
Touch distance: <12mm (glass)
Maximum load: 5A
Waterproof grade: IP44
Working temperature: -20 ° C - +50 ° C

Options: Single Output A1, Single Output A2, Single Output A3, Dual Output B1, Dual Output B2, Dual Output B3

This product is a veneer touch switch that can directly load LED lights and control relays.
The combination of a full plastic case and side-illuminated backlight technology makes the product high-end and beautiful.

Single output mode
A1 1. In the white backlight state, short press to enter the brightness cycle adjustment, respectively 25%-50%-75%
-100% off, in the off state, the backlight switches to blue.
2. In the blue backlight state, long press to turn off the blue backlight, short press to turn on the blue backlight.
A2 1. Short press the switch light and press and hold for the stepless cycle dimming.
2. In the blue backlight state, long press to turn off the blue backlight, short press to turn on the blue backlight.
A3 1. Short press the switch light, long press to turn off all lights.
Dual output mode
B1 1. In the white backlight state, the long press is the two-way stepless dimming mode, and the brightness can be adjusted from 5% to 100%.
2. In the state of white backlight, short press to adjust the brightness ratio of two channels can be cyclically adjusted. The ratio is divided into 5 stages, namely: 100%: 0%-75%: 25%-50%: 50%-25%: 75%-0%: 100% to turn off the light, then the backlight switches from white It is blue.
3. In the blue backlight state, press and hold again to turn off the blue backlight, short press to turn on the blue backlight.
B2 1. In the state of white backlight, long press the stepless dimming mode, and the two lights will cycle in the fade-in and fade-out states.
2. Under the white backlight state, the short-pressing brightness ratio can be cyclically adjusted. The brightness ratio of the two lamps is from 40%, 70%, 100% to off at the same time. At this time, the backlight switches from white to blue. If there is a state of extinction, short press cycle adjustment is only valid for the bright group. In the blue backlight state, press and hold again to turn off the blue backlight, and short press to turn on the blue backlight.
B3 1. In the white backlight state, short press is the two-way switch switching mode, which is: the first way to open - the second way to open - the two way to open - close, in the closed state, the backlight switches to blue.
2. In any case, long press to turn off all lights directly.
