[ For more information, Contact Lily. Email: info(@)chinsailcnc.com,

Skype/ Whatsapp:+86 1886 5928 760]

No.1 Brief Intorduction

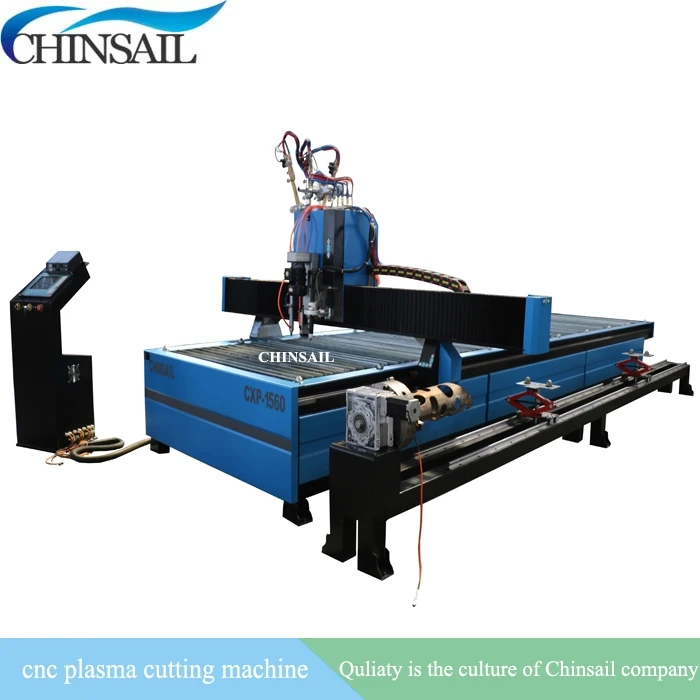

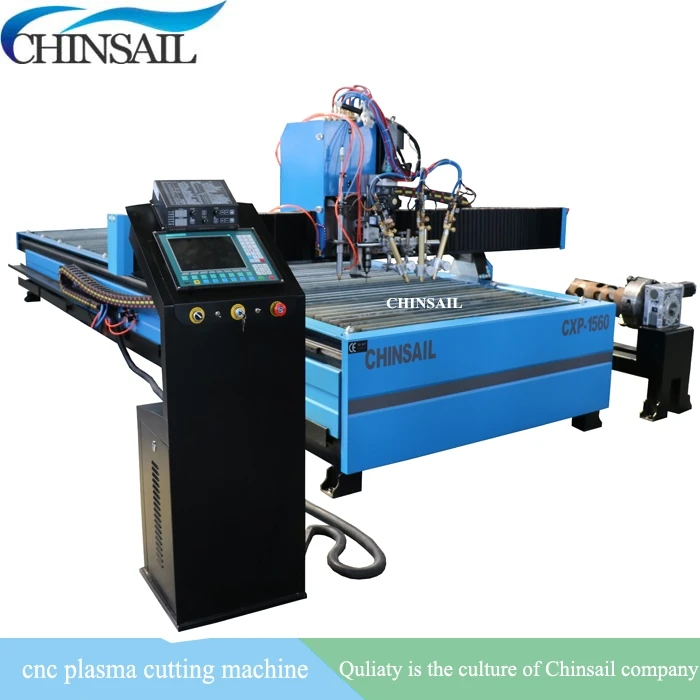

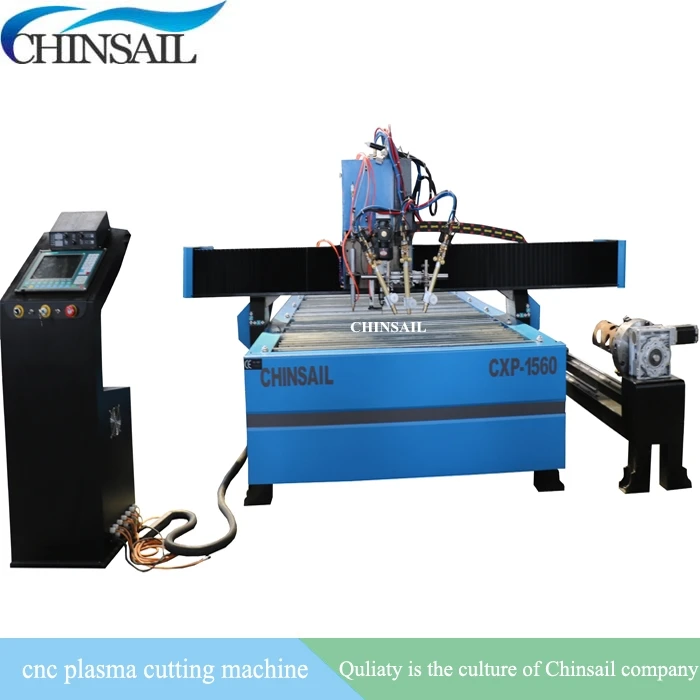

Tabletop plasma machine 1560, it is professional in cutting metal, such as carbon steel, mild steel, iron, stainless steel, aluminum etc. It is very popular for its economic price and working efficiency.

Machine working size, and other requirements all can be customized.

Pls kindly notice: Different plasma source power, different machine prices. it has 63A 100A 120A 160A 200A Chinese plasma source for you to choose, also can choose US imported plasma generator.

If you need more information, feel free to send message to us.

No.2 Feature of cutting torch plasma cutter

1. With very high precision for cutting SS MS and other metals.

2. Small cutting gap, with no residua

3. Light design of the beam promises high cutting speed and accuracy.

4. Working with computer and support G code and files of  Uncannest software (specilized in cutting metal material) (optional Fastcam software)

5. Start control system and Start THC device

PS: marking head, drilling head, rotary axis, flame cutting head all is optional part, can be customized it for you.

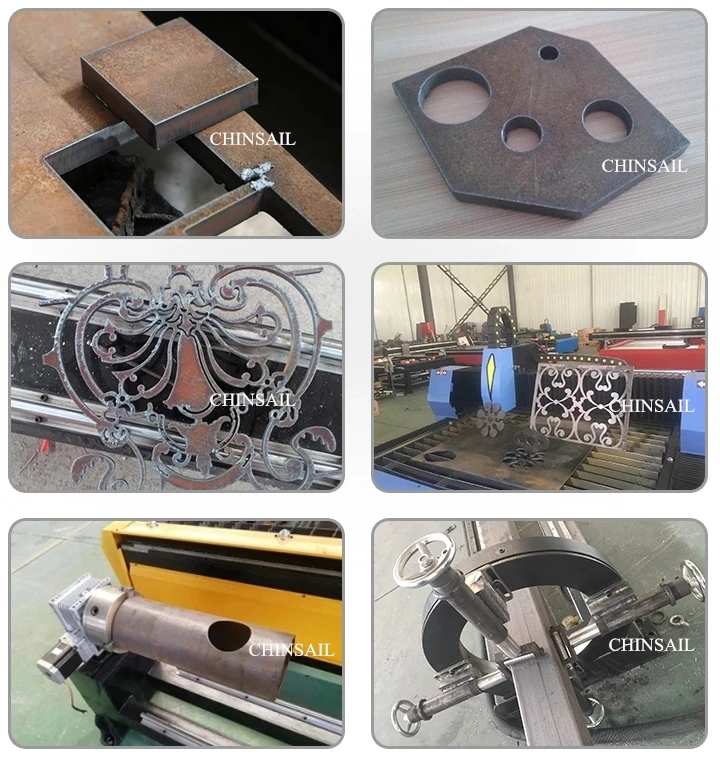

No.3 Application:

Advertising industry:

Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.

Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.

No.4 Technical parameters

Main Configurations

Working area

1500*6000mm

Voltage

220V/380V 3 phase

Plasma source

Chinese Huayuan / USA PLASMA SOURCE

Plasma power

63/100/120/160/200A 45/65/85/105/125/200A

Control system

Shanghai Fangling control system

Torch height controller

THC

Control software

FASTCAM software

Raid guide

Linear rail guide

Motor and driver

Leadshine driver and stepper motor

Table

Blade table

cutting nozzles

10 sets

 Cutting speed

0-10000mm/min

Parameters

Effective cutting width ( X axis )

1500mm

Effective cutting length ( Y axis )

6000mm

Drive mode

Leadshine stepper drive

Control system

Shanghai Fangling Controller

Lifting body

1 set

Plasma torch

1 set

File transmission

USB transmission

Cutting shape

Able to program and cut the steel plate parts with any plane shapes formed by straight lines and arcs

Software

Fastcam software

Plasma power source

63/100/120/160/200A 45/65/85/105/125/200A

Cutting thickness

0-40mm metal

Height regulating device

Arc voltage height

Cutting speed

0-10000mm/min

Cutting precision

±0.3mm

Support software

Fastcam / type3 / autocad / pro / CAXA etc

Power supply voltage

No. 5 Related products

No. 6 Packing & Shipping

No. 7 After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email, skype, whatsapp etc.

Guarantee:
2 years for the whole machine. Within 24months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 24 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

No. 8 Company Introduction

No. 9 Contact

Email: info(@)chinsailcnc.com

Skype/ Whatsapp:+86 1886 5928 760

Looking forwards to your inquiry!!! Contact us at any time!
