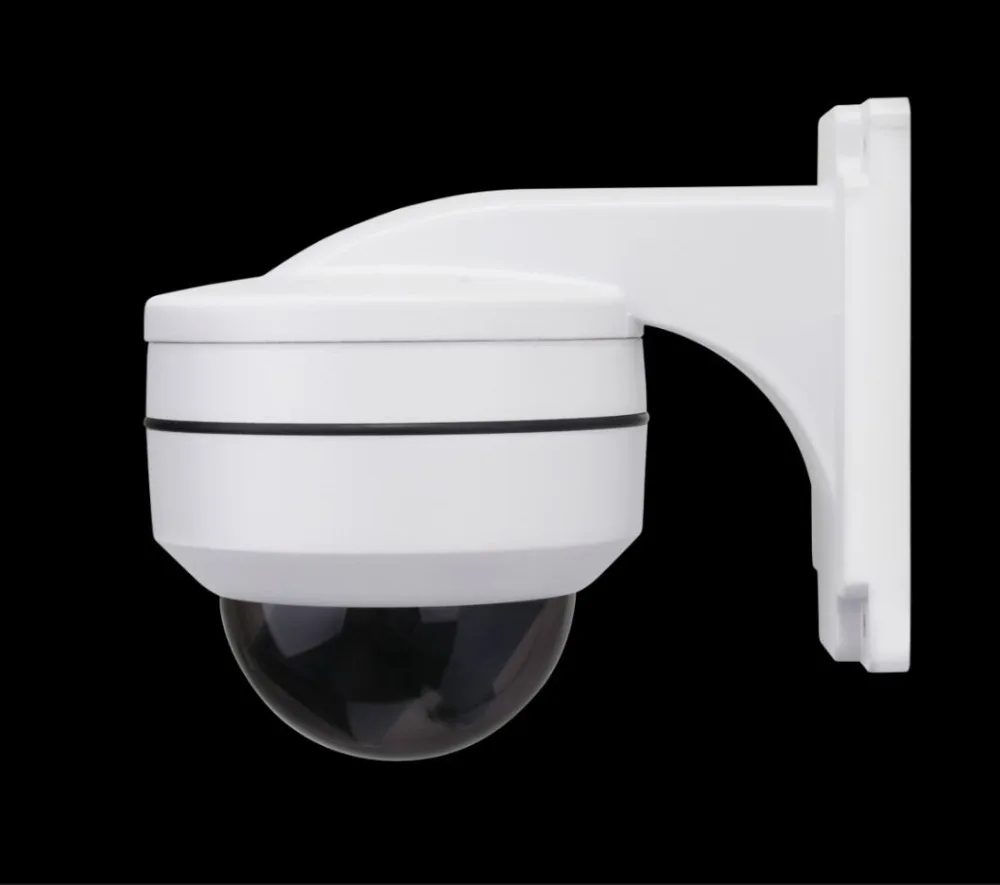

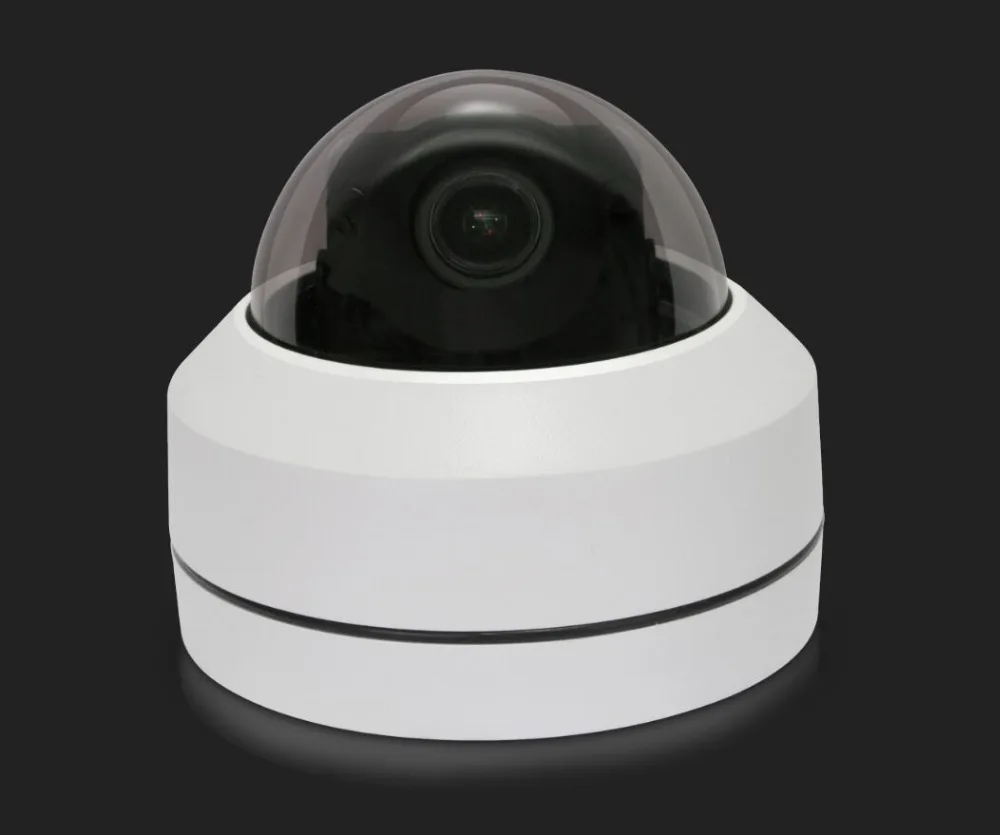

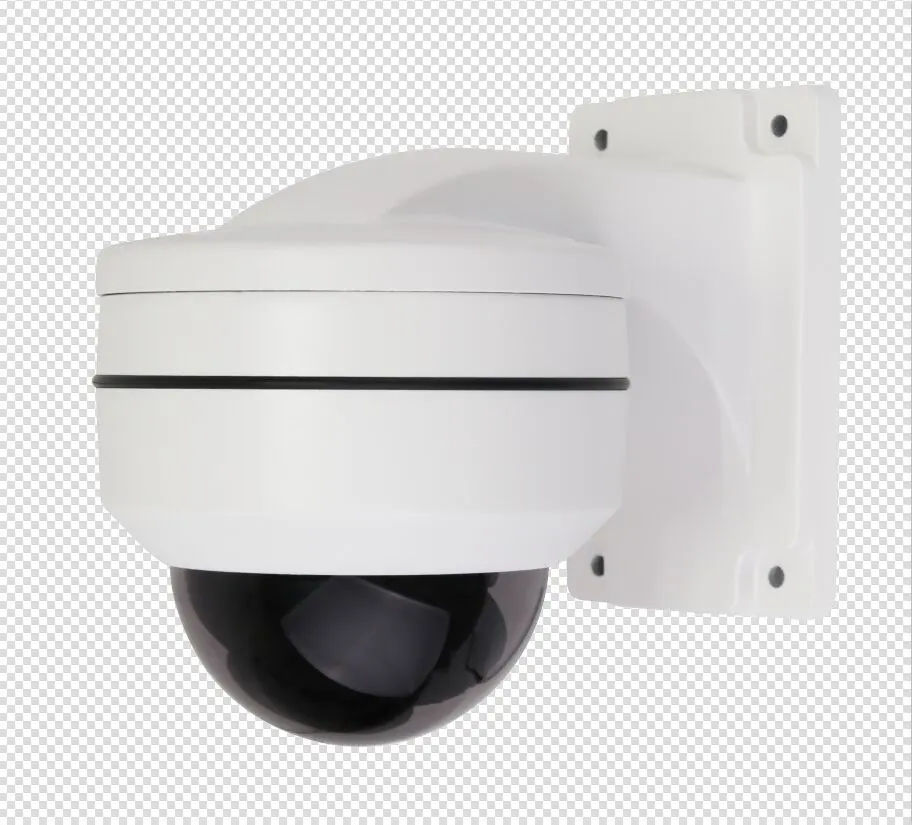

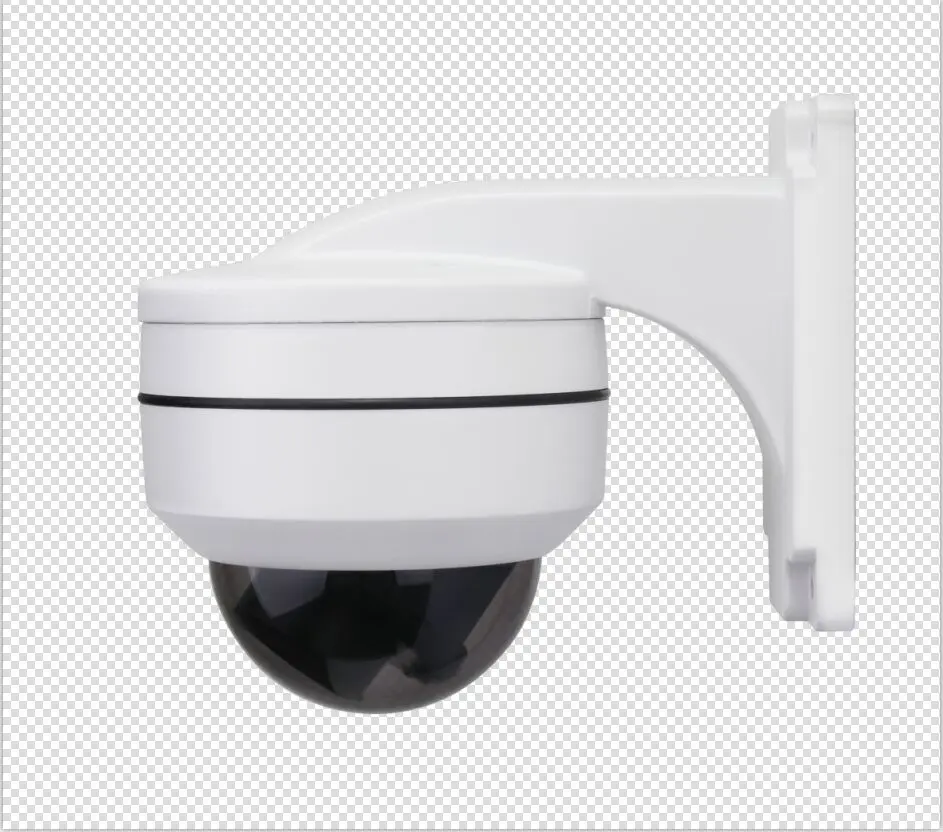

2.8-12mm 4x auto zoom 5MP POE power mini speed dome cameras work wtih POE NVR P2P 5mp 2mp HD CCTV cameras IP67 cameras

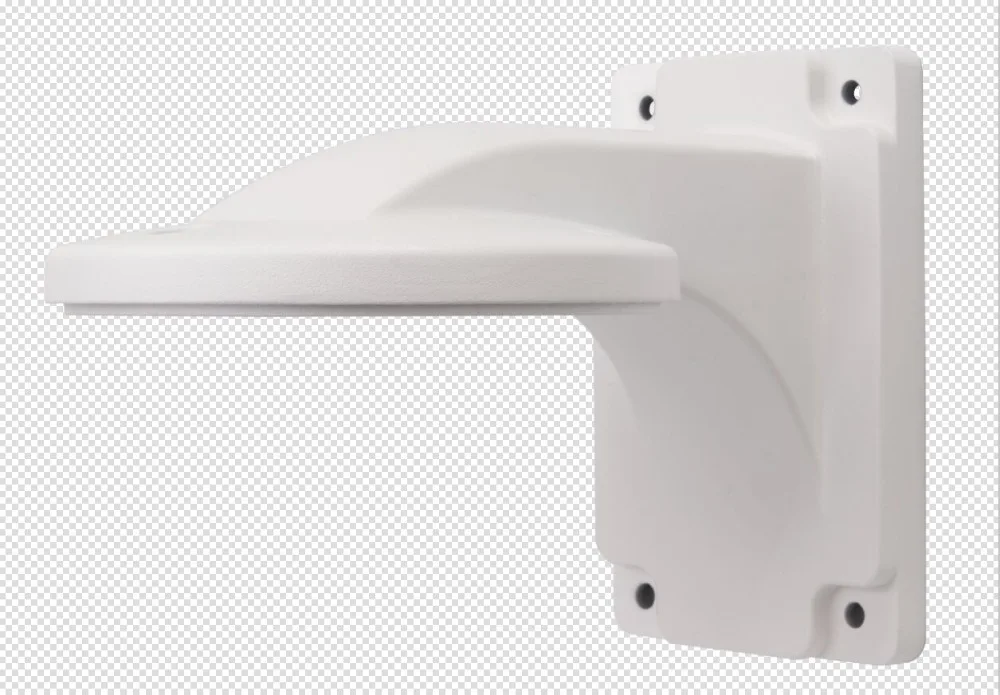

Full  Metal  Bracket

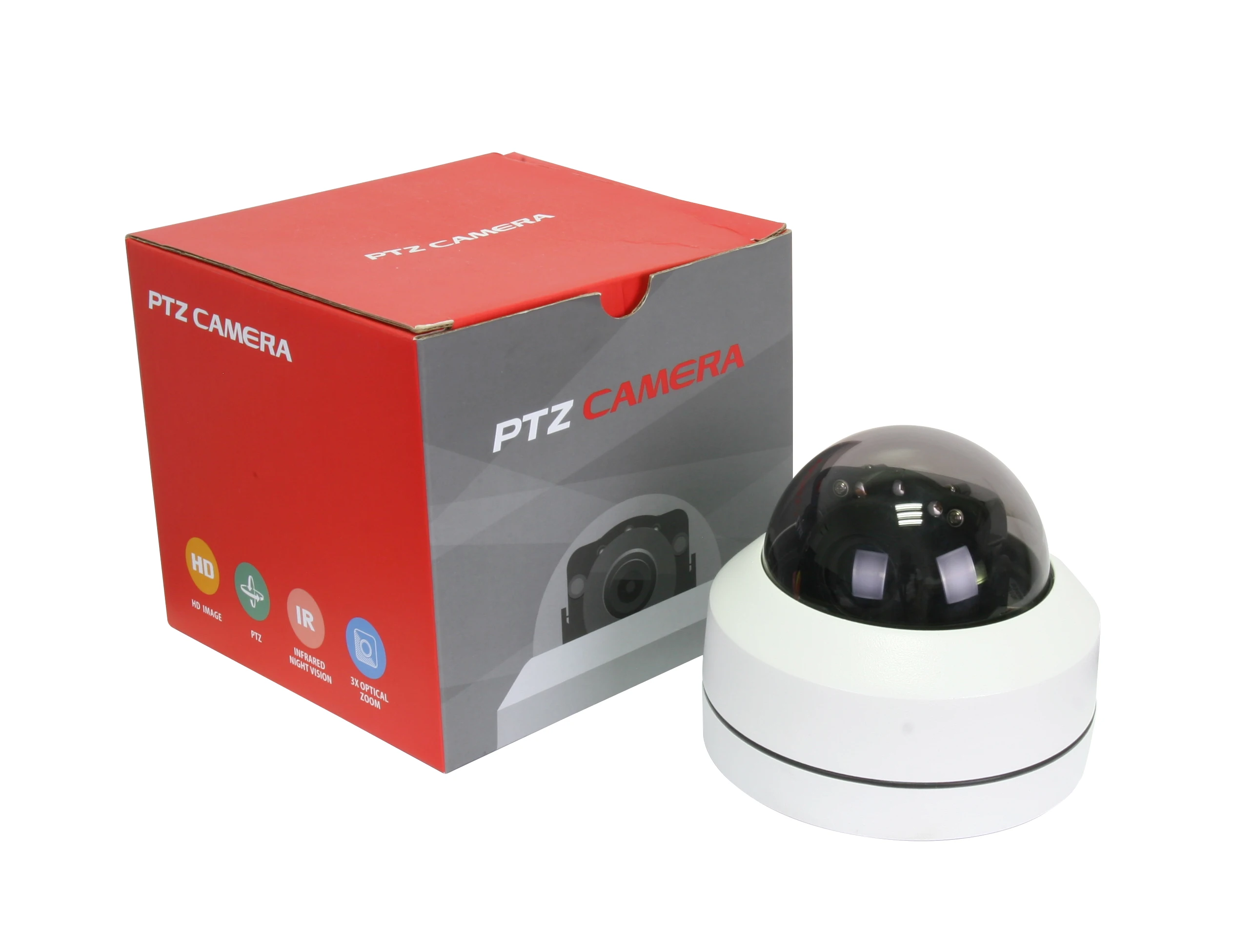

Professional  Packing box and  Original  Camera

Features:

● 5.0MP/2MP  HD Mini IR vision  metal  speed dome cameras

●  Support Onvif protocol GB/T28281,work with Hikvision , dahua, XM  NVR

●  Plug and Plug  P2P mobile remote monitoring ;

● Support lightning protection, anti surge;

● Outdoor speed dome camera protection grade:IP67;

● Support Chinese and English IE interface and have operation tips function,user interface friendly;

● 2PCS Infrared lights, effective IR distance 30m.

● 355°endless pan range and 0°- 90°tilt range.

● Max. pan preset speed of 25°/s and max. tilt preset speed of 20°/s

● Pan control speed 0°~25°/s, tilt control speed 0°~20°/s

● Support 16 presets, 1 patrol, 1 pattern, support AB Scan.

● Support Proportional zoom function, rotation speed can be

  adjusted automatically according to zoom multiple.

● Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)

Specification :

Image sensor

5MP Sony335 low lux CMOS sensor

2MP Sony 307 Star light CMOS sensor

Resolution

5.0MP/2MP

Low illumination

color:0.1Lux/F1.2；black-white 0.01Lux/F1.2

Electronic shutter

Auto/manual（1/5——1/20000s）

Day-night mode

Auto ICR

Optical zoom

2.8mm-12mm 4x auto zoom

Pan angel

0.01°——355°

IR distance

20m-30m

Pan speed

Horizontal rotation 355 ° continuous rotation，0°～25°/S

Tilt speed

0—20°/S

Tilt range

0°-90°

Proportional zoom

Support, change the speed based on the zoom

Preset

16

Patrol

1

Pattern scan

1

A.B scan

Support

Park function

Support,preset, cruise, pattern scan, two-point line sweep, horizontal automatic

Max image size

2688×1520

Output bit rate

32Kbps——16Mbps

Video compression

H.265/H.264 /MJPEG

Network protocol

TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP

Interface protocol

Onvif、hikvision、xm、jovision private protocol

Network interface

Built-in RJ45 network interface,support 10M/100M IP DATA

Application interface

Provide Linux、NindoNs SDK develop bag and CGI protocol,can be second fast developed

Browser

Support IE7、IE8、IE9,Chrome8+,Firefox3.5+,Safari5+

Power consumption

DC 12V1A、 10W(max)

Working temperature

-20℃～+60℃

Working humidity

≤90%RH(no frostless)

Protection grade

TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP67
