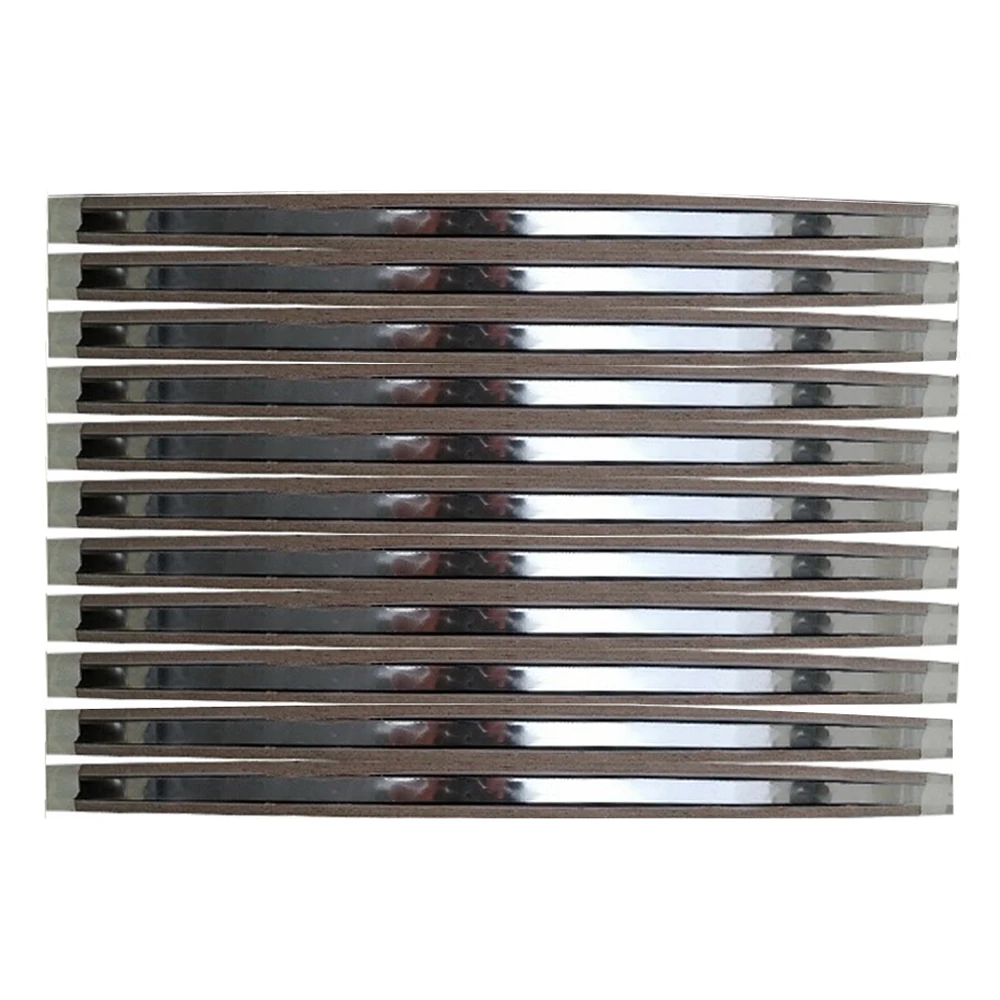

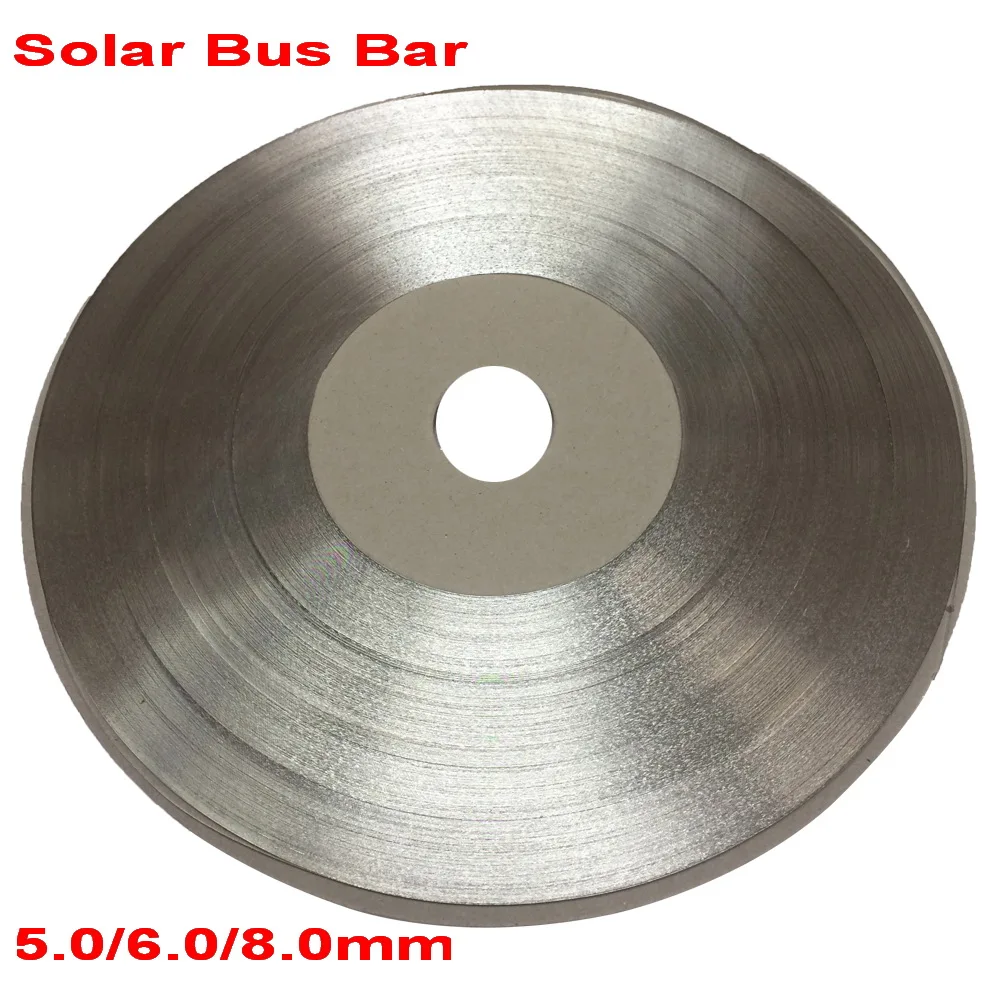

6.0mm 8.0mm 5.0mm solar bus bar  Solar Bus Tabbing Wire PV Ribbons For DIY Solar Panel Solar Cells Solder



Main Technical Highlights

1. Our environmentally friendly Lead-free Tin-coated Silver Copper has passed the SGS testing, full complied with EU RoHS standards;



2. Copper Base: imported refined toughness OFC/T2 Copper; Copper Content>99.99%, Conductivity>98%;



3. Copper-based Resistivity: OFC≤0.0165Ωmm2/m, T2 copper ≤ 0.0172Ωmm2/m;



4. Coating Composition: 62% Sn, 36% Pb,   2% Ag;



5. Coating Thickness: single coating 0.01-0.05, coating uniformity, surface brightness and smooth;



6. Coating Melting Point: 190°C;



7. Tensil Strength: >200N/mm2;



8. Elongation: >20%.



Common Specification

!!!!!! Click the Specification You Want to Order!!!!!!

Type Product width(mm) Specification(mm) Thickness(mm) Tolerance Length/KG   Thickness×Width   Copper Base Single-side Tin Layer Width Thickness m feet Tabbing Wire

0.8

/1.0

/1.2

/1.3


0.08 * 0.8 0.045 0.018 ±0.05 ±0.01 1844 6050 0.10 * 0.8 0.050 0.025 ±0.05 ±0.01 1475 4839 0.08 * 1.0 0.045 0.018 ±0.05 ±0.01 1475 4839 0.10 * 1.0 0.050 0.025 ±0.05 ±0.01 1180 3871 0.12 * 1.2 0.070 0.025 ±0.05 ±0.01 820 2690 0.16 * 1.2 0.110 0.025 ±0.05 ±0.01 615 2018 0.12 * 1.3 0.070 0.025 ±0.05 ±0.01 757 2484 0.16 * 1.3 0.110 0.025 ±0.05 ±0.01 568 1864

1.6

/1.8

/2.0

0.15 * 1.6 0.100 0.025 ±0.05 ±0.01 490 1608 0.20 * 1.6 0.150 0.025 ±0.05 ±0.01 368 1206 0.16 * 1.8 0.110 0.025 ±0.05 ±0.01 410 1320 0.20 * 1.8 0.150 0.025 ±0.05 ±0.01 312 1024 0.15 * 2.0 0.100 0.025 ±0.05 ±0.01 390 1280 0.20 * 2.0 0.150 0.025 ±0.05 ±0.01 295 968 Busbar Wire

3.0

/4.0

/5.0

0.15 * 3.0 0.100 0.025 ±0.05 ±0.01 261 856 0.20 * 3.0 0.150 0.025 ±0.05 ±0.01 200 656 0.15 * 4.0 0.100 0.025 ±0.05 ±0.015 186 610 0.20 * 4.0 0.150 0.025 ±0.05 ±0.015 140 459 0.20 * 5.0 0.150 0.025 ±0.05 ±0.015 120 394 0.30 * 5.0 0.250 0.025 ±0.05 ±0.015 81 266

6.0

/8.0

0.20 * 6.0 0.150 0.025 ±0.05 ±0.015 100 328 0.30 * 6.0 0.250 0.025 ±0.05 ±0.015 65 213 0.40 * 6.0 0.350 0.025 ±0.05 ±0.015 50 164 0.30 * 8.0 0.250 0.025 ±0.05 ±0.015 46 151 0.40 * 8.0 0.350 0.025 ±0.05 ±0.015 35 115

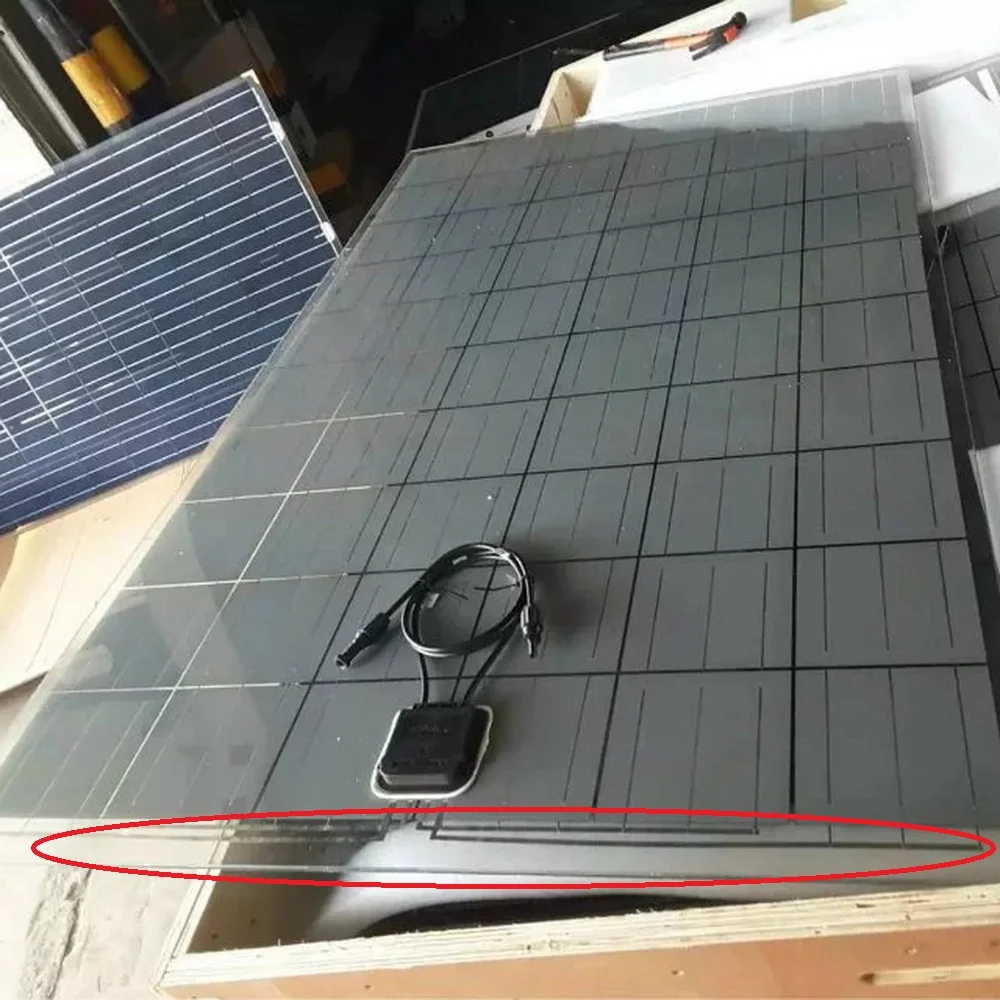

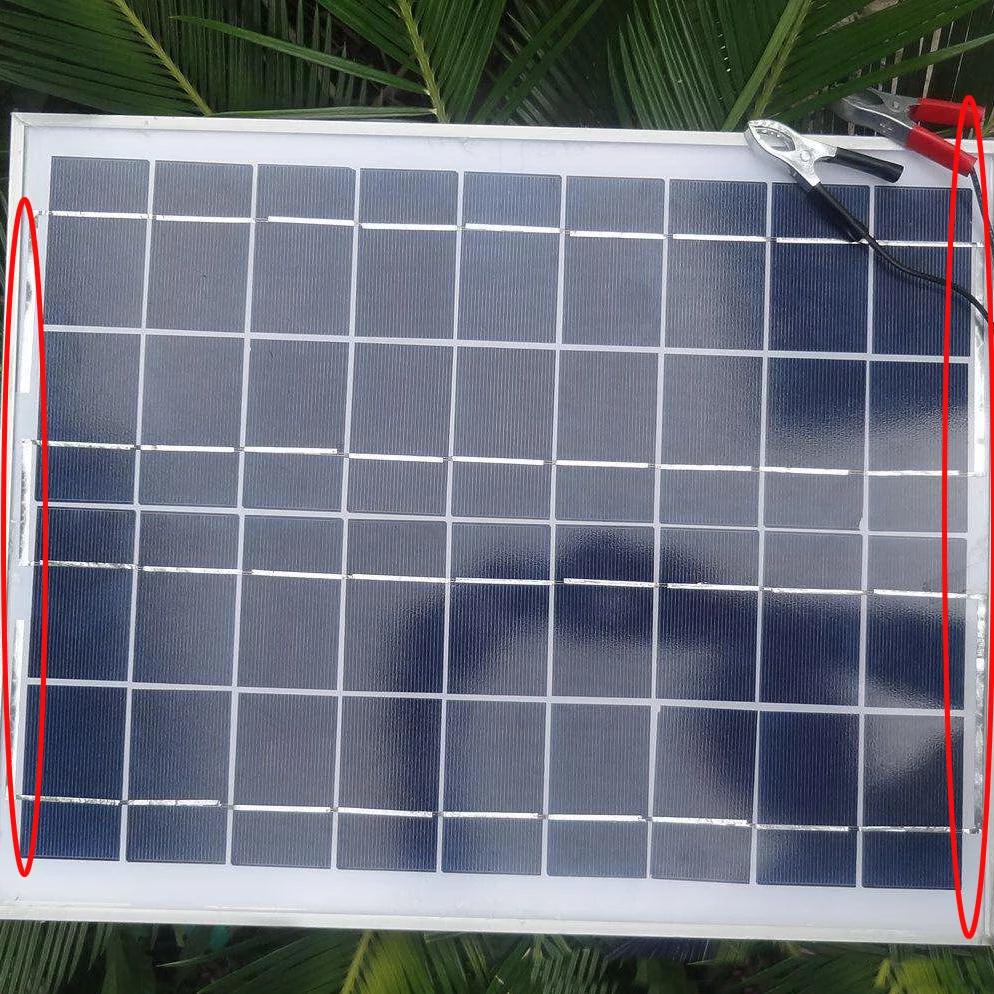

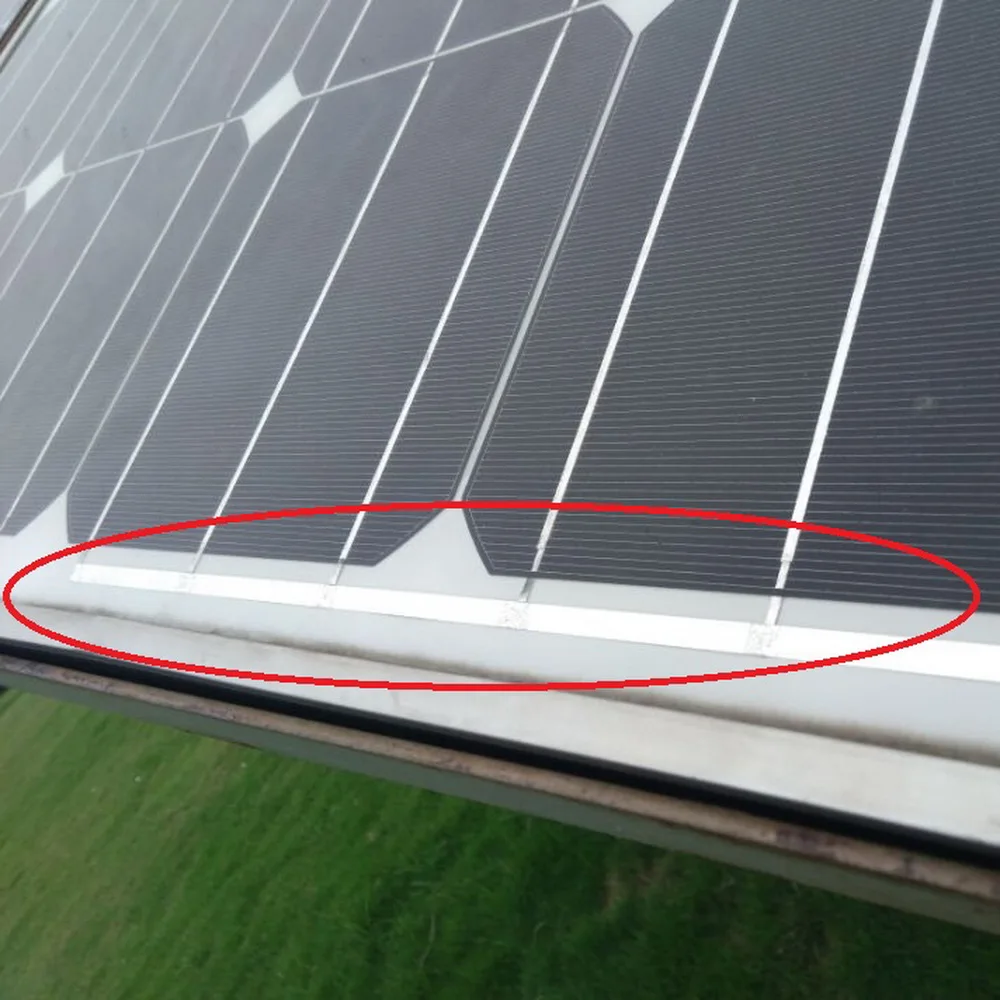

Product Widely Application
