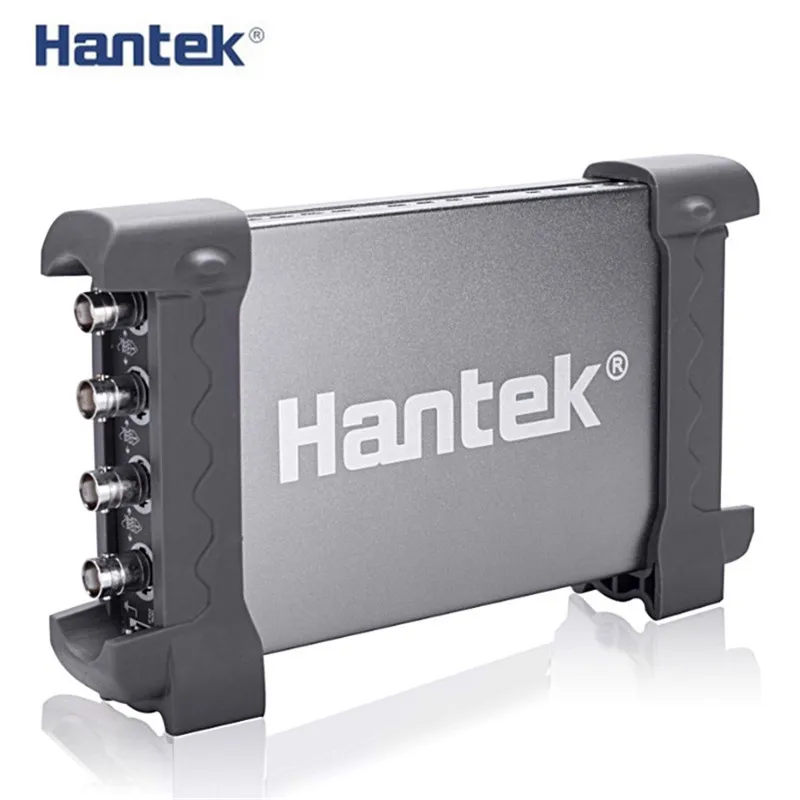

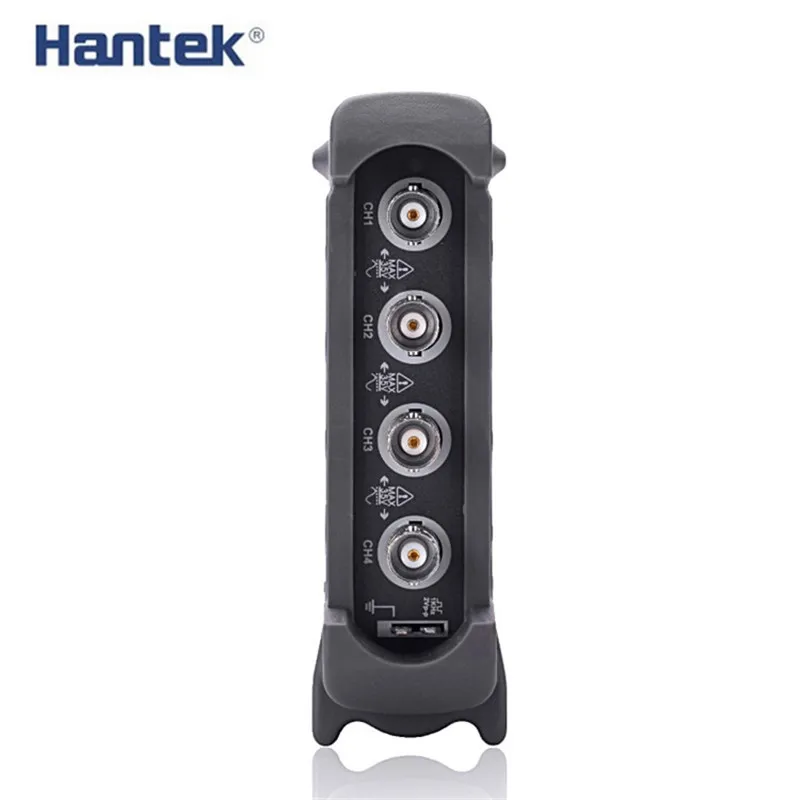

Hantek 6074BC

The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth. It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying. High cost performance, pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

Feature

· The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.

· Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.

· USB2.0 Interface, plug and play device.

· Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

· Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.

· Software support: Windows10, Windows 8, Windows 7

· The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.

· More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

· Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

· FFT spectrum analyzer

· One computer could connect with multiple oscilloscopes, expand the channel number easily.

· USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.

Model

Hantek6074BC

Bandwidth

70MHz

Channel

4 CH

Real-time Sampling Rate

1GSa/s

Memory Depth

64K

Time Base Precision

±50ppm

Time Base Range

2ns/div-1000s/div (1-2-4 sequences)

Input Impedance

1MΩ 25pF

Input Sensitivity

2mV/div-10V/div

Vertical Resolution

8Bit

Vertical Displacement Range

2mV-10V/div @ x1 probe; 20mV-100V/div @ x10 probe

200mV -1000V/div @ x100 probe; 2V-10000V/div @ x1000 probe

DC Gain Accuracy

±3%

Bandwidth

20MHz

Trigger Mode

Edge, Pulse, Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform Signal Process

+,-,x,÷, FFT, Invert

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Volume

175mm * 105mm * 25mm

Weight

0.9KG

Accessory

2 passive probes, 2 gator clip lines
