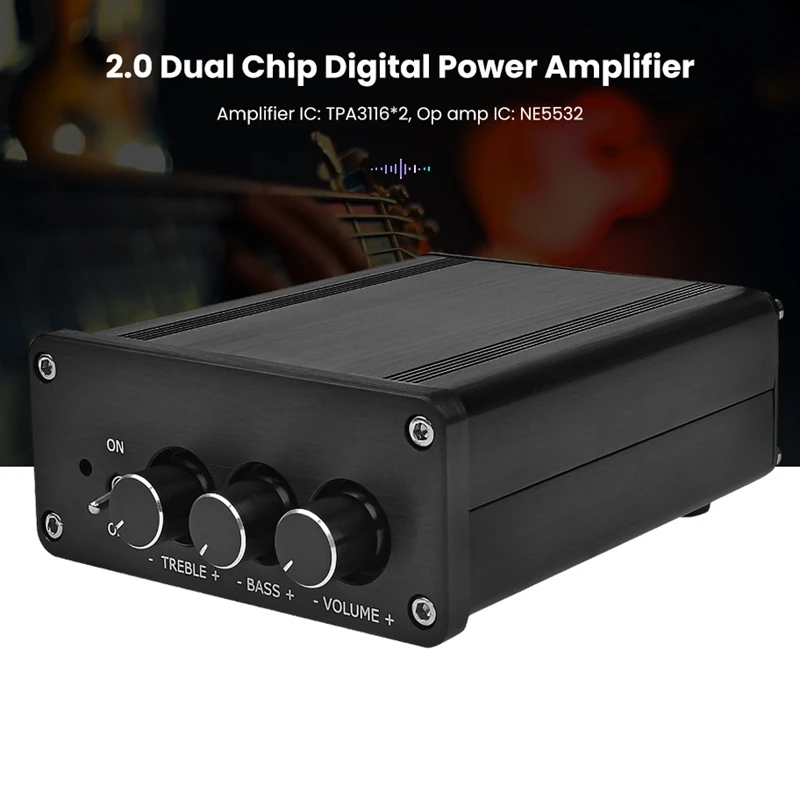

body { font-size: 100%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Using TPA3116, NE5532
Power filter capacitors uses10 470UF/25V electrolytic capacitors
The resistor uses 1% precision chip resistor to ensure good signal to noise ratio of the whole machine
PCB uses 1.6mm thick double panel, 2.0A thick copper, tin spraying process to ensure good passing performance of large and small currents. First class PCB quality

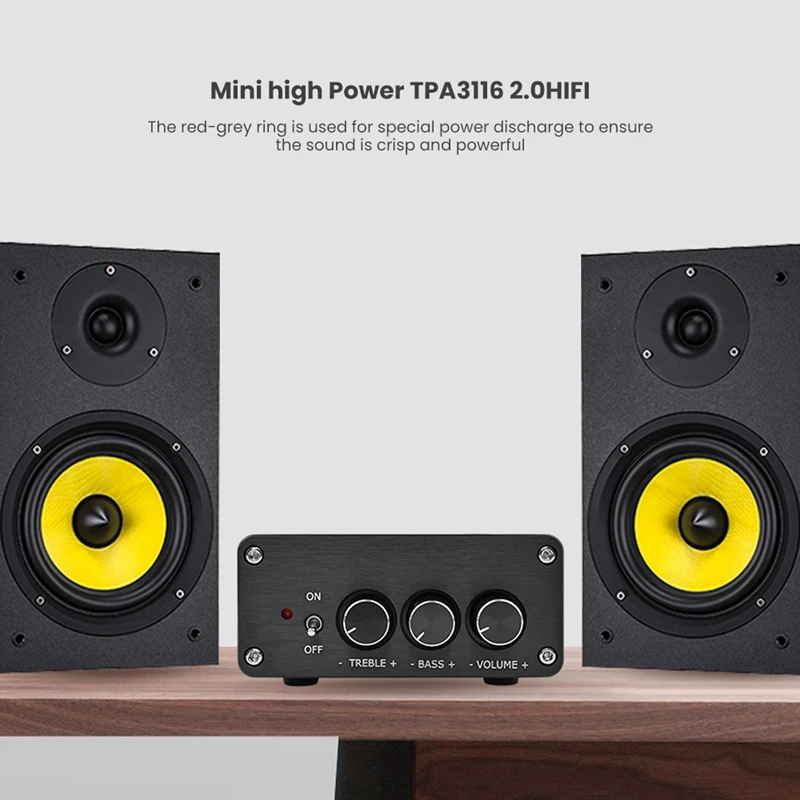

Use special power discharge inductance of red-grey ring to ensure sound crispness and forcefulness
1. Working methods: Class D
2. Static Current: 50mA
3. work efficiency: 90%
4. Rated output power:100W * 2
5. Frequency response: 20 Hz to 20 KHz
6. Working voltage: DC18V-DC24V
7. Current: ≥3A
8. Weight: 0.35 kg

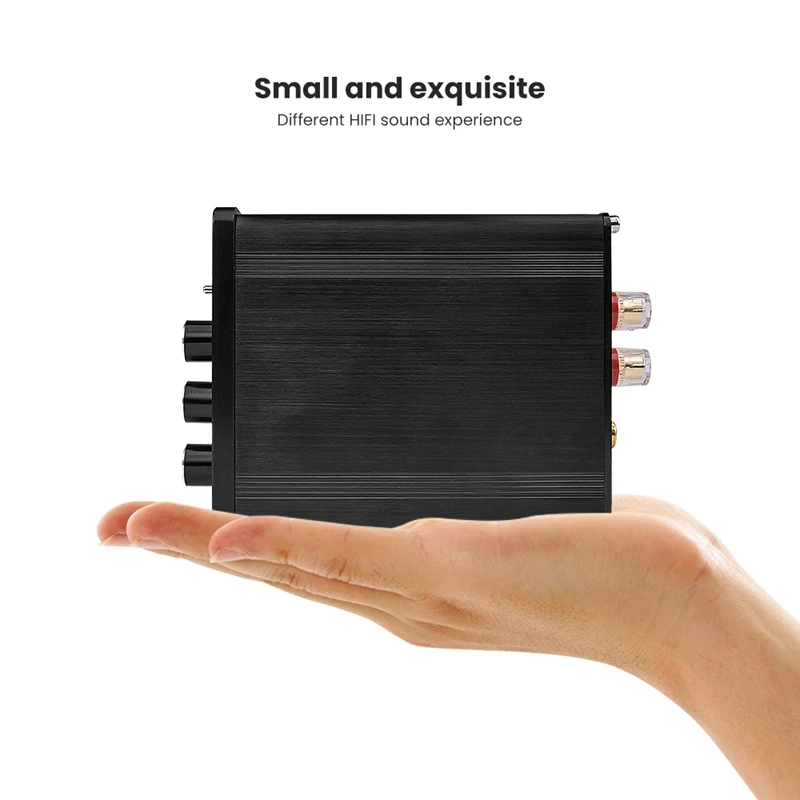

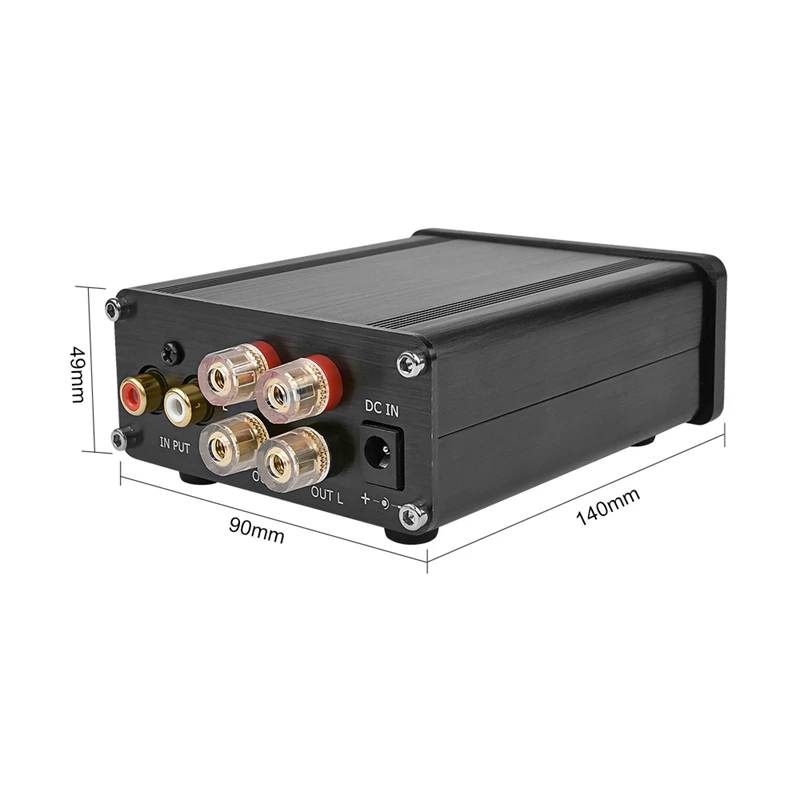

9. Machine size: 140* 90* 49mm
Colour: Black

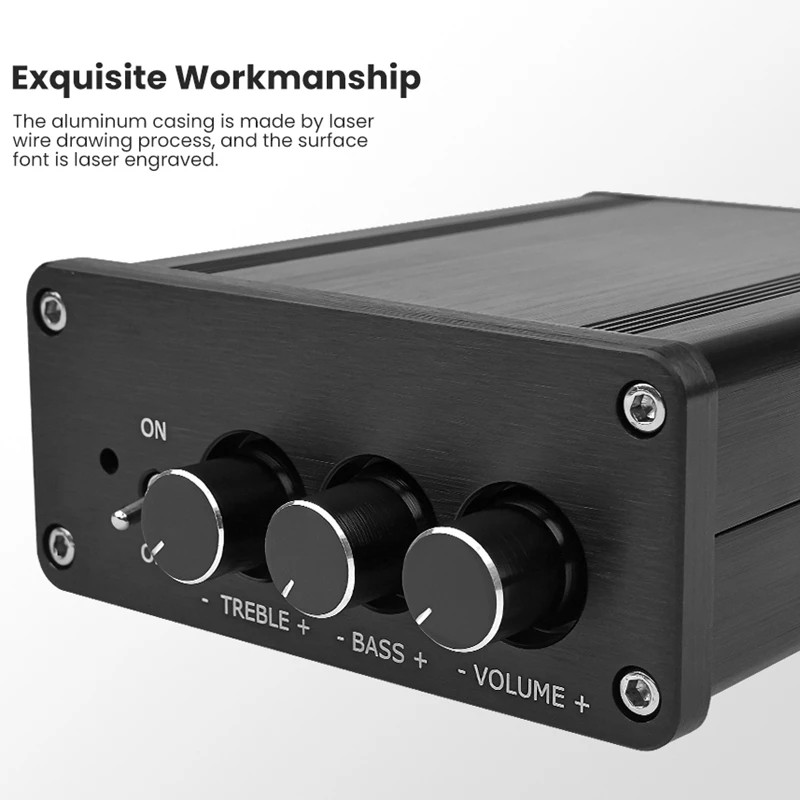

Material: Aluminum alloy
Packaging:
1* TPA3116 Digital Audio Amplifier
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
