3pcs PC104 2.54mm Промышленный разъем Dual Row 2X16P/20P/25P/32P/40P с золочеными контактами из пластика высотой 11 мм и длинными выводами 12 мм для женского соединения.

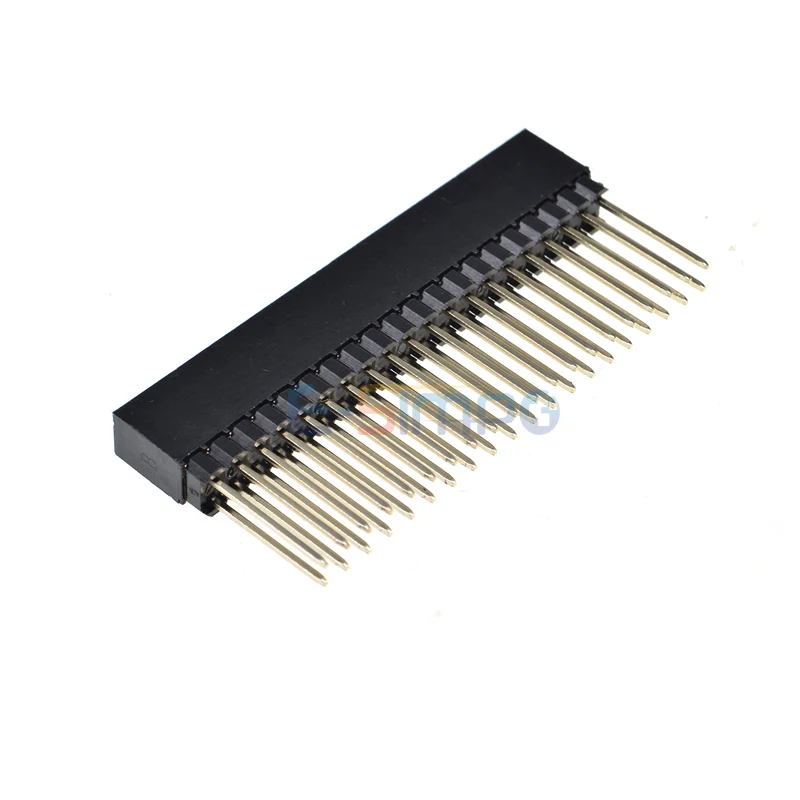

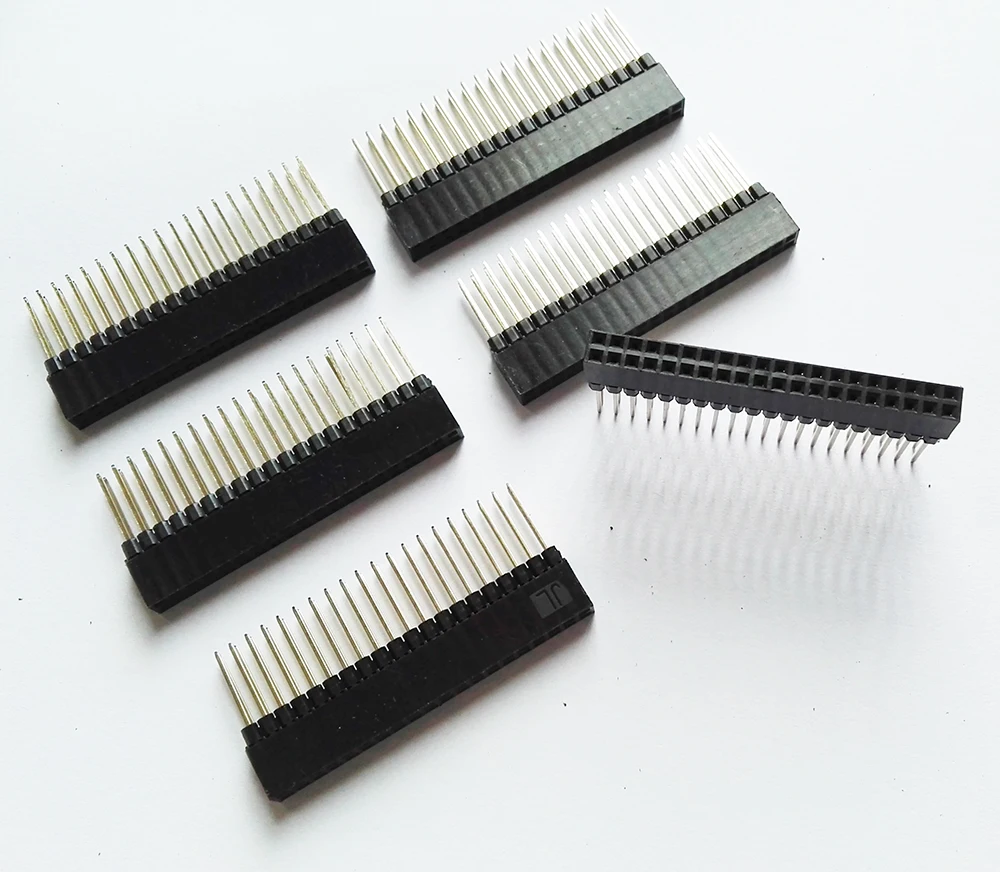

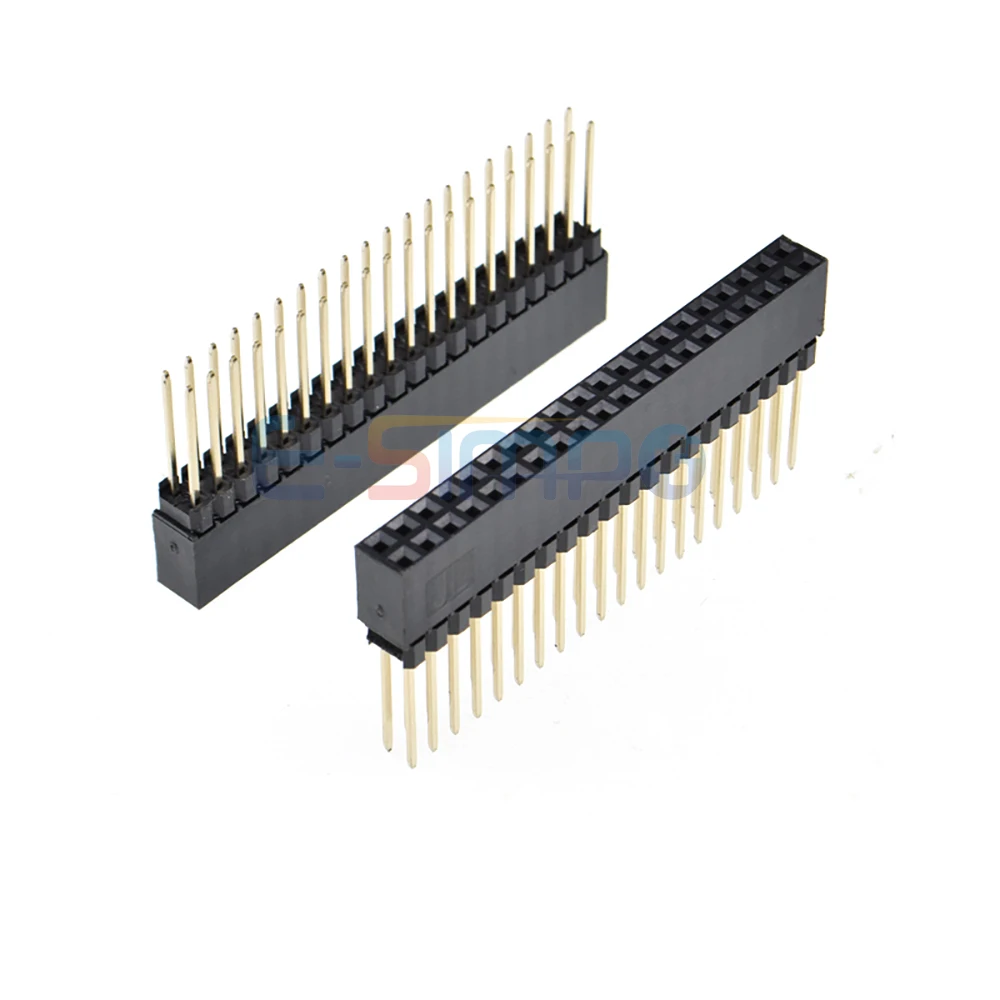

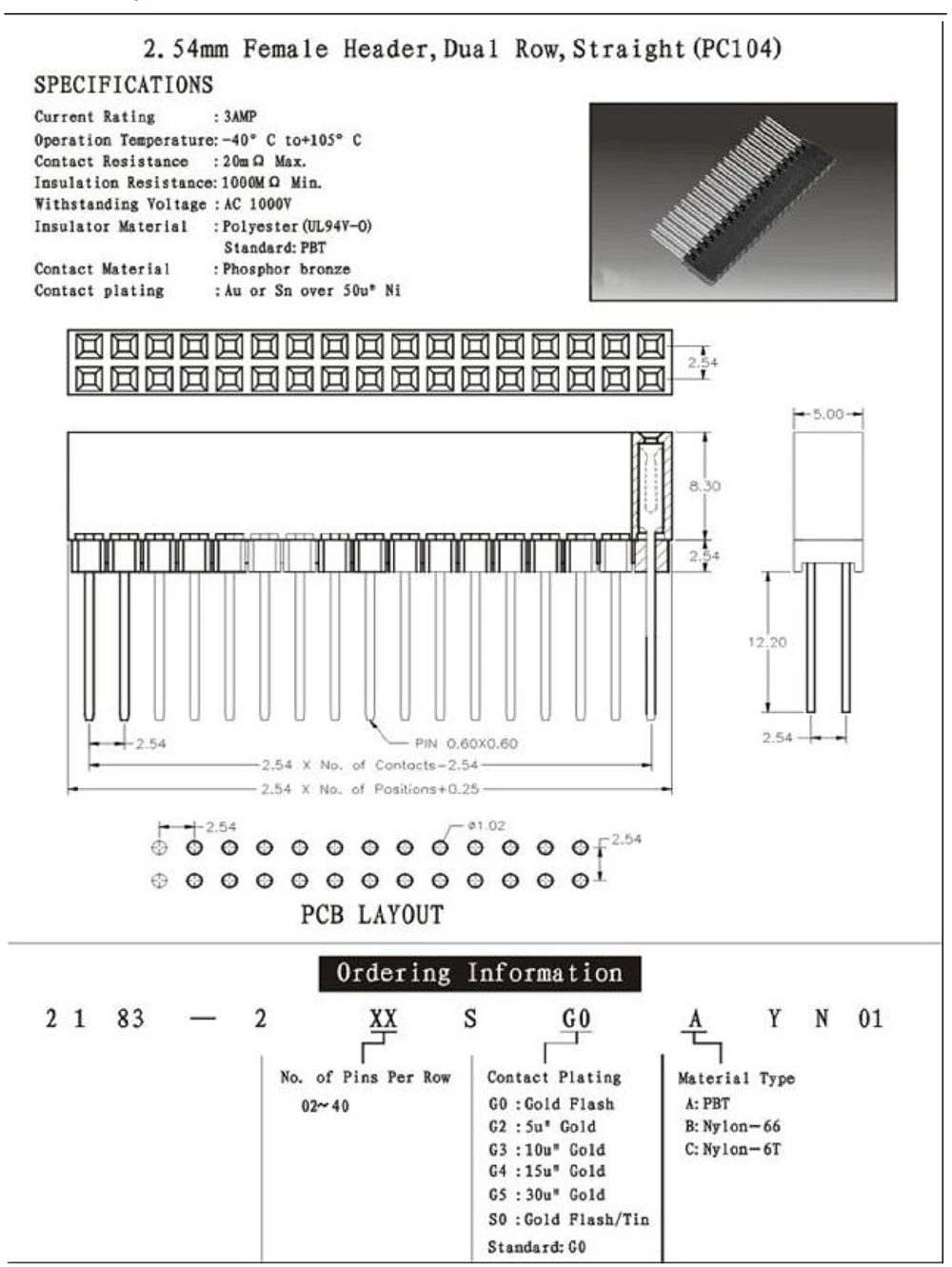

PC104 2.54mm Female Header, Dual Row,Straight,High Quality,Gold-Plated,Plastic Height 11mm, Long Pin 12mm

Pin-Pin Distance/Pitch: 2.54mm

Row Qty: Double Row

Straight  Type, NOT Right Angle

Current Rating: 3Amps

Insulator Resistance: 5000Megohms min

Dielectric Withstanding: AC 1000V

Operating Temperature: -40-105 Celsuis Degree

Contact Material: Phosphor bronze

Finish: Gold Flash

Tolerance: +/-0.2mm



Package Content

3pcs
