Professional cnc plasma machine 1530 1560 2060 with marking head / drilling for option |

Professional cnc plasma machine 1530 1560 2060 with marking head / drilling head for option



For more information, Contact Lily

Email: info(@)chinsailcnc.com

whatsapp/skype:+86 1886 5928 760

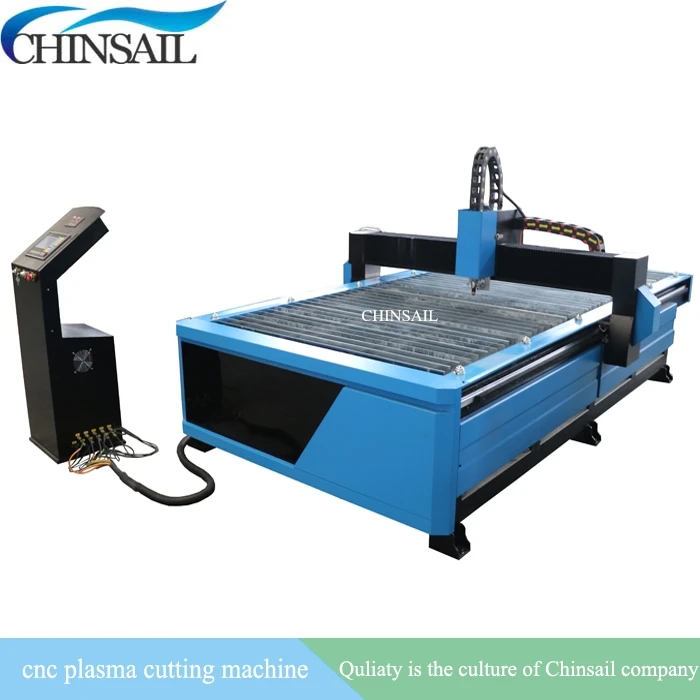

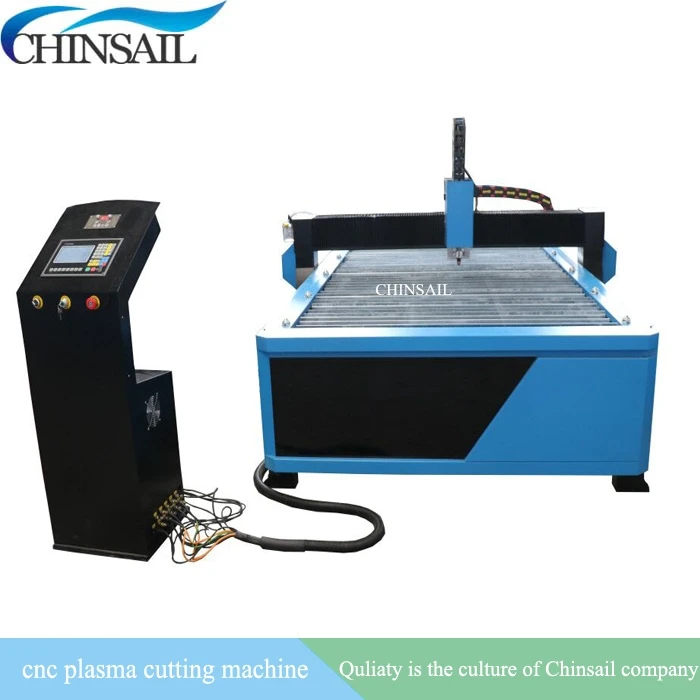

Machine real pictures   Features

1. Fast cutting speed,high precision and low cost.

2. With firm and reasonable structure,the machine is easy to operate and durable for use.

3. The cutting incision is thin and tidily and can avoid the second processing.

4. High configurated CNC system,auto arc-striking and stable performance.

5. Together working with other advertising equipments,they form an advertisement producing line which completely solve the problem of traditional manual mode.

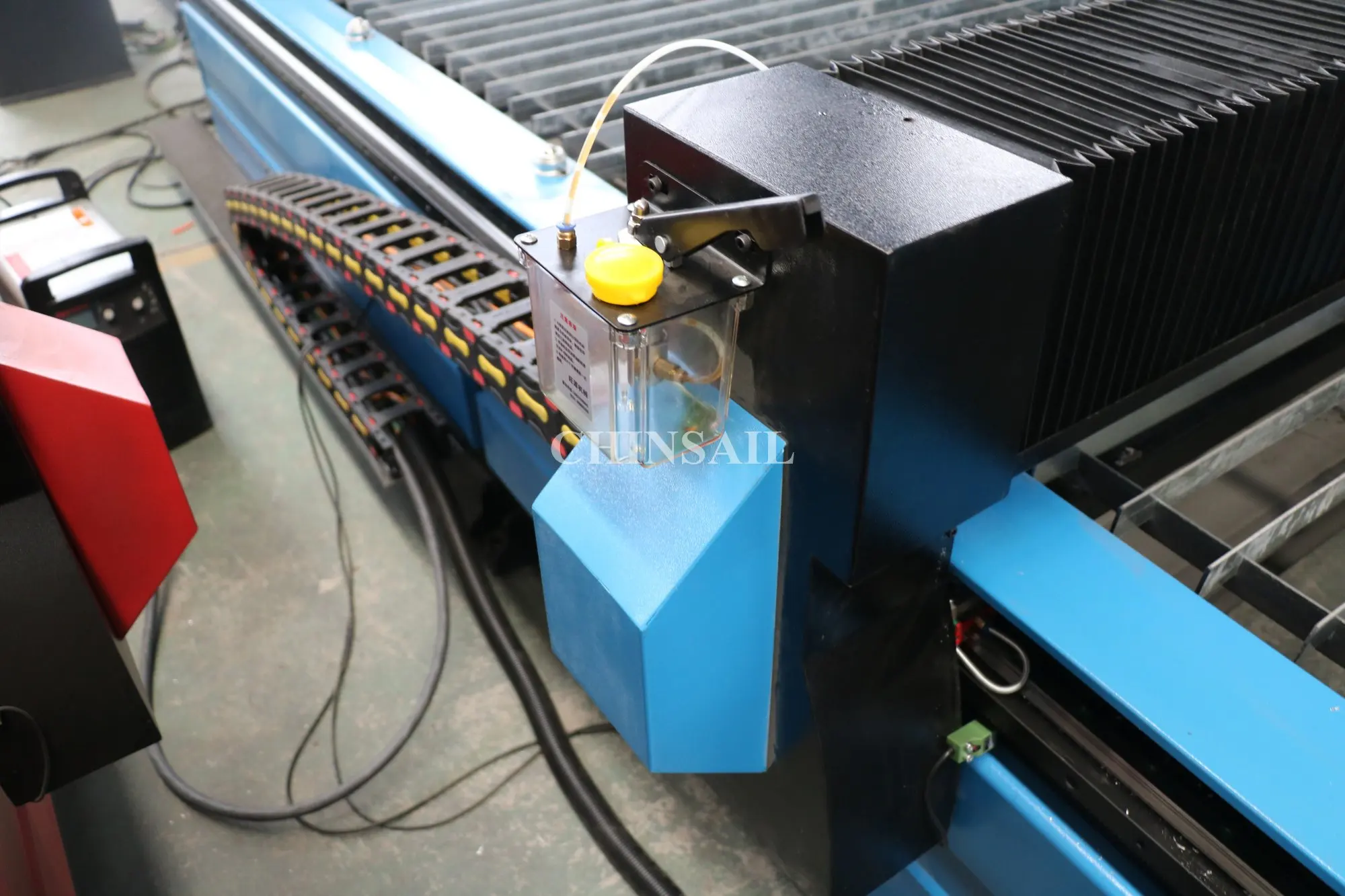

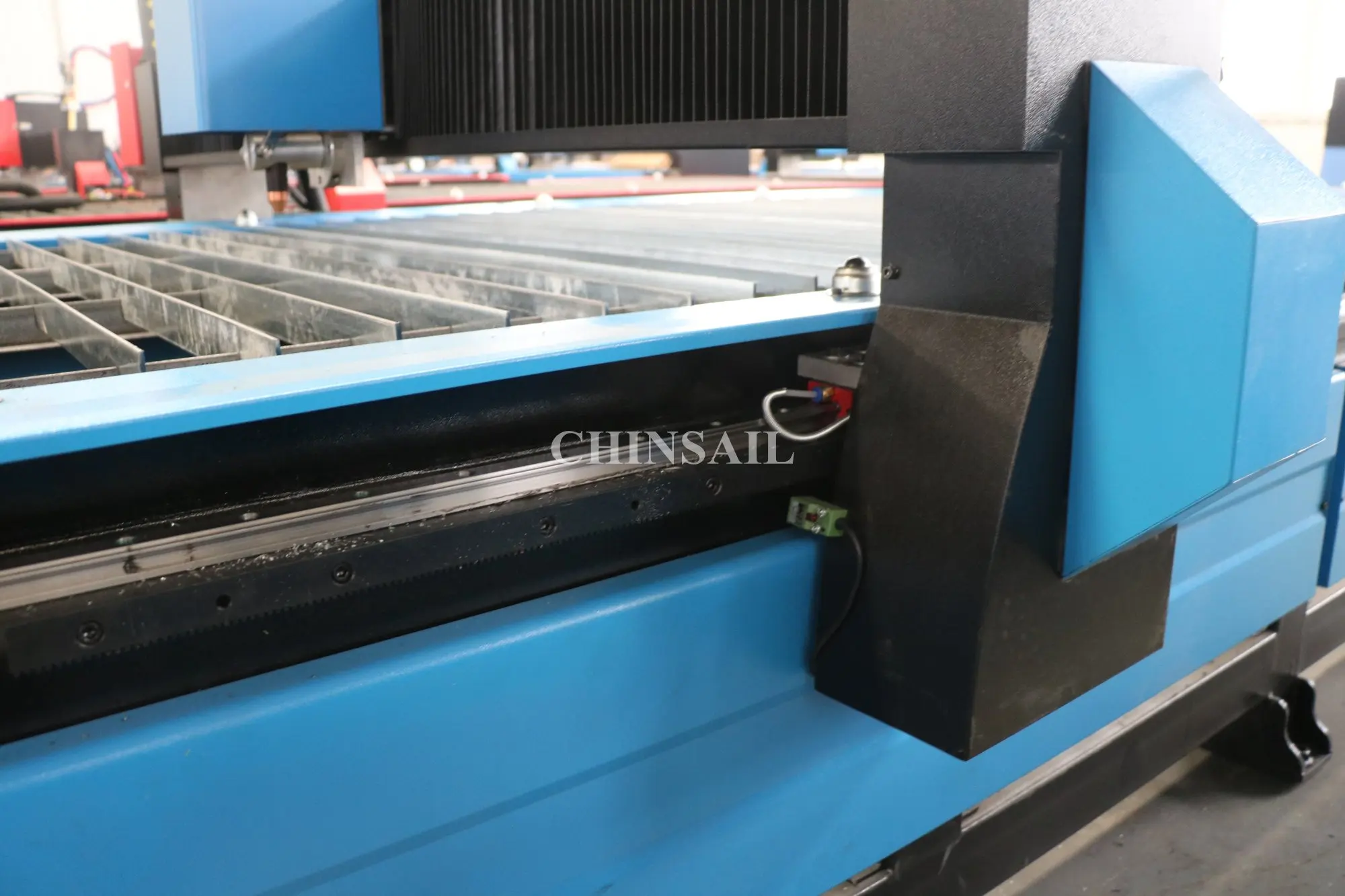

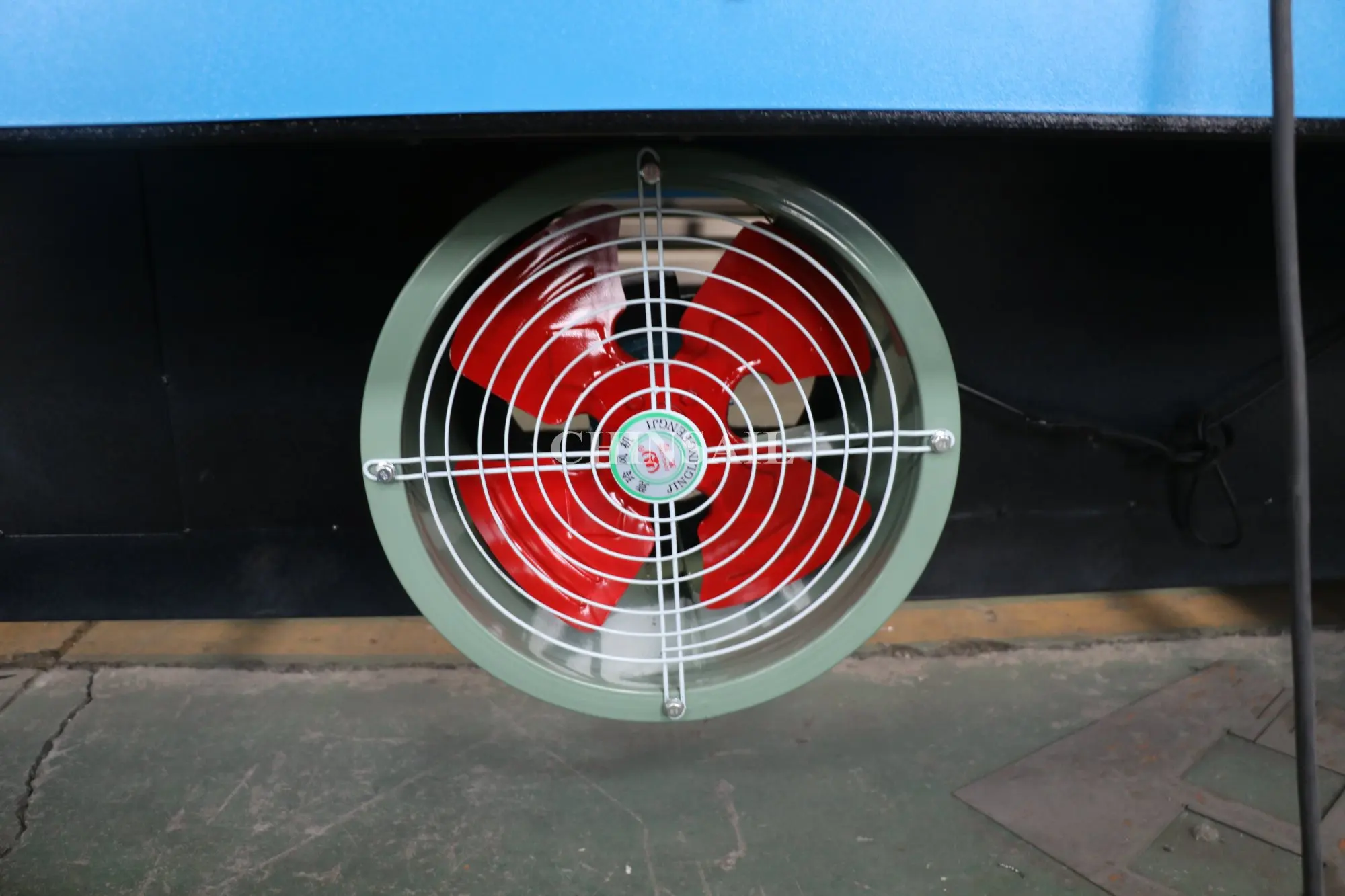

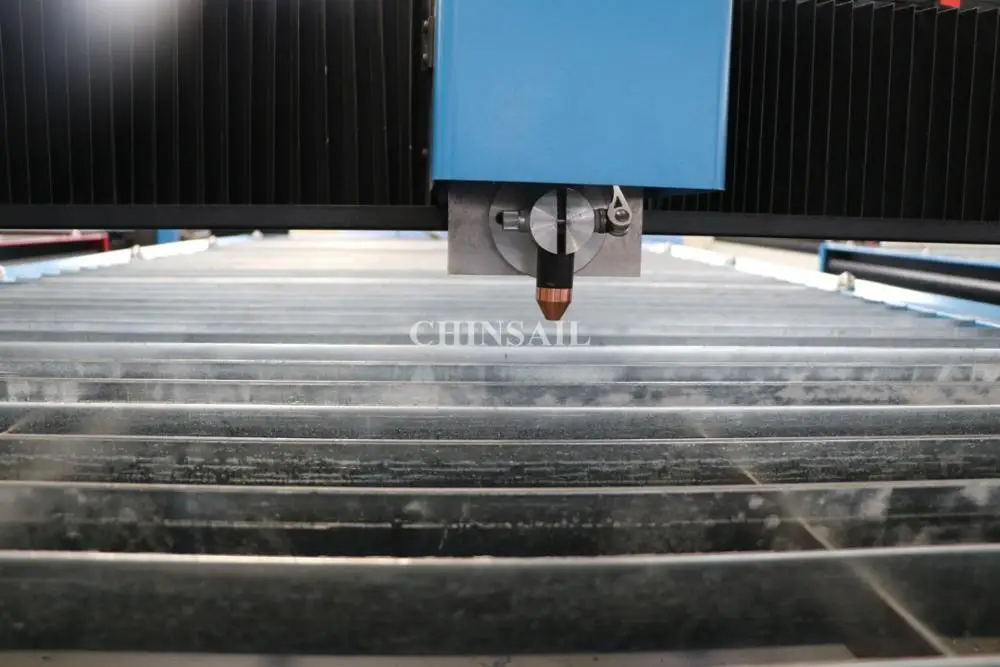

Blade table & High quality plasma head High quality square railways Auto oil lubrication exhaust fan



 Applications  Advertising industry, arts and handicrafts cutting,  kinds of metallic materials, such as Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube. Samples



Technical parameters



o. Description

CXP1530

(Optional:CXP1015/CXP1212/CXP1325/CXP1540/CXP1550/CXP1560/CXP2030

/CXP2040/CXP2050/CXP2060,other size can be customized)

1 Working Size

1500*3000mm

(Optional:1000*1500/1200*1200/1300*2500/1500*4000/1500*5000/1500*6000

/2000*3000/2000*4000/1500*5000/1500*6000/2000*5000/2000*6000mm,other size can be customized)

2 Z Axis Clearance 150mm(200 And Higher Is Optional) 3 Table Type Knife table (Teeth table And Water table can be optional) 4 Transmission System Rack Pinion And Square Linear Rails For X/Y 5 Driving System Stepper Motor And Drivers(Servp motor is optional) 6 Max. Cutting Speed 12000mm/Min(different configuration and different material and thickness speed is different) 7 Max. Travelling Speed 30000mm/Min(different configuration speed is different) 8 Working Voltage 220V 1ph /380V/3ph(220V/3ph is optional) 9 Plasma Generator Huayuan China and USA power as your requirements 10 Arc Mode Non-Contact Arc, Arc   Pressure Adjuster 11 Output Current 63/100/120A/160A/200A China for option (45/65/85/105/125/200A USA) 12 Max. Cutting  Thickness 8/15/20/30/40mm 13 Operating System Starfire Controller/Start Controller/JiaoDa fangling controller 14 Working Material Steel, Aluminum, Galvanized Sheet, Titanium Plate,   Platinum Plate and almost all of the metal







After-sale service 1. Lifetime maintenance free of charge.

2. Free training course at our plant.

3 .We will provide the consumable parts at an agency price when you need replacement.

4. 18 hours on line service each day, free technical support.

5. Machine has been adjusted before delivery , operation disk was included. If there is also any questions, pls kindly tell me

6. 24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.
