Dahua HAC-HFW2402T-I8-A-S2 4MP Starlight+ HDCVI IR Bullet Camera CCTV Audio in interface built-in mic |



Special Note:

This product is a pre-sale item.It will be ship around 15 or more days after ordering.Please extend the delivery time.

  HAC-HFW2402T-I8-A

4MP Starlight+ HDCVI IR Bullet Camera

> Starlight+, 120dB true WDR, 3DNR
> Max. 30fps@4MP
> HD/SD output switchable
> Audio in interface, built-in mic
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 80m, Smart IR
> IP67, DC12V±30%



Camera

Image Sensor

1/1.8" CMOS

Effective Pixels

2560(H)×1440(V), 4MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s~1/100,000s

NTSC: 1/30s~1/100,000s

Minimum Illumination

0.002Lux/F1.6, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 80m (262feet)

IR On/Off Control

Auto / Manual

IR LEDs

4

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm Optional)

Max Aperture

F1.6

Angle of View

H: 88.5° (112.7°/55.8°)

V: 48.3° (60.2°/30.8°)

Focus Control

N/A

Close Focus Distance

1900mm (1300mm, 3800mm)

74.80'' (51.18", 149.61")

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.



DORI

Definition

Distance

Detect

25px/m (8px/ft)

2.8mm:58m(190ft)

3.6mm:72m(235ft)

6mm:113m(371ft)

Observe

63px/m (19px/ft)

2.8mm23m(76ft)

3.6mm:29m(94ft)

6mm:45m(148ft)

Recognize

125px/m (38px/ft)

2.8mm:12m(38ft)

3.6mm:14m(47ft)

6mm:23m(74ft)

Identify

250px/m (76px/ft)

2.8mm:6m(19ft)

3.6mm:7m(24ft)

6mm:11m(37ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

4MP (2560×1440)

Frame Rate

25/30fps@4MP, 25/30fps@1080P

Video Output

1-channel BNC high definition video output / CVBS video output (DIP switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

1ch in & Built-in Mic

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max. 11.5W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Aluminium

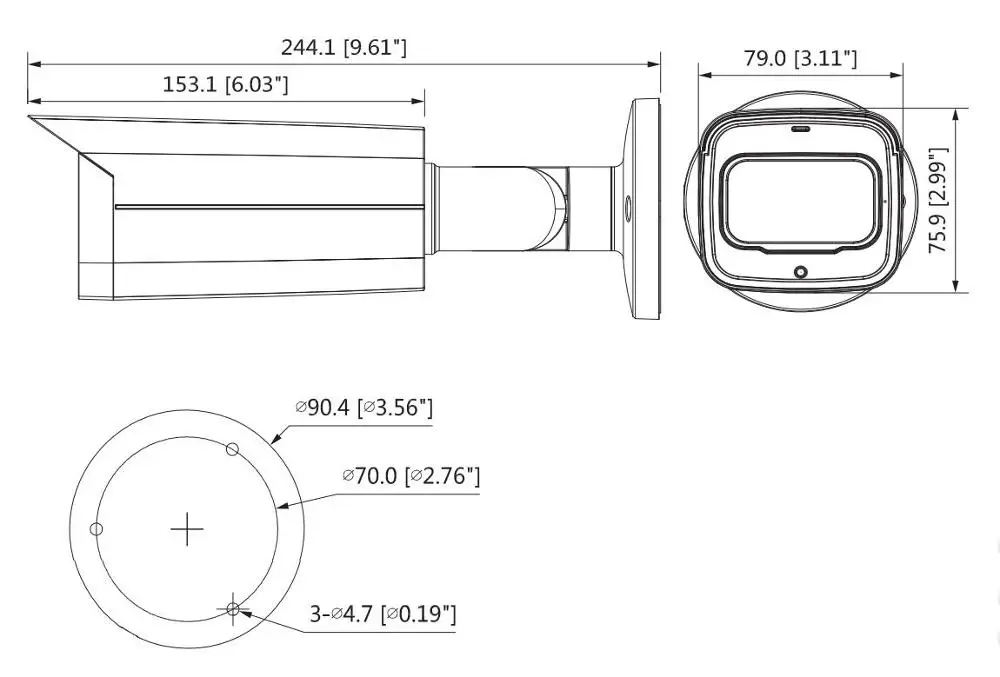

Dimensions

244.1mm×90.4mm×90.4mm (9.61"×3.5"×23.5")

Net Weight

0.75kg (1.65lb)

Gross Weight

0.92kg (2.03lb)

Ordering Information

Type

Part Number

Description

4MP Camera

DH-HAC-HFW2402TP-I8-A 2.8mm

4MP Starlight HDCVI IR Bullet Camera, PAL

DH-HAC-HFW2402TP-I8-A 3.6mm

DH-HAC-HFW2402TP-I8-A 6mm

DH-HAC-HFW2402TN-I8-A 2.8mm

4MP Starlight HDCVI IR Bullet Camera, NTSC

DH-HAC-HFW2402TN-I8-A 3.6mm

DH-HAC-HFW2402TN-I8-A 6mm

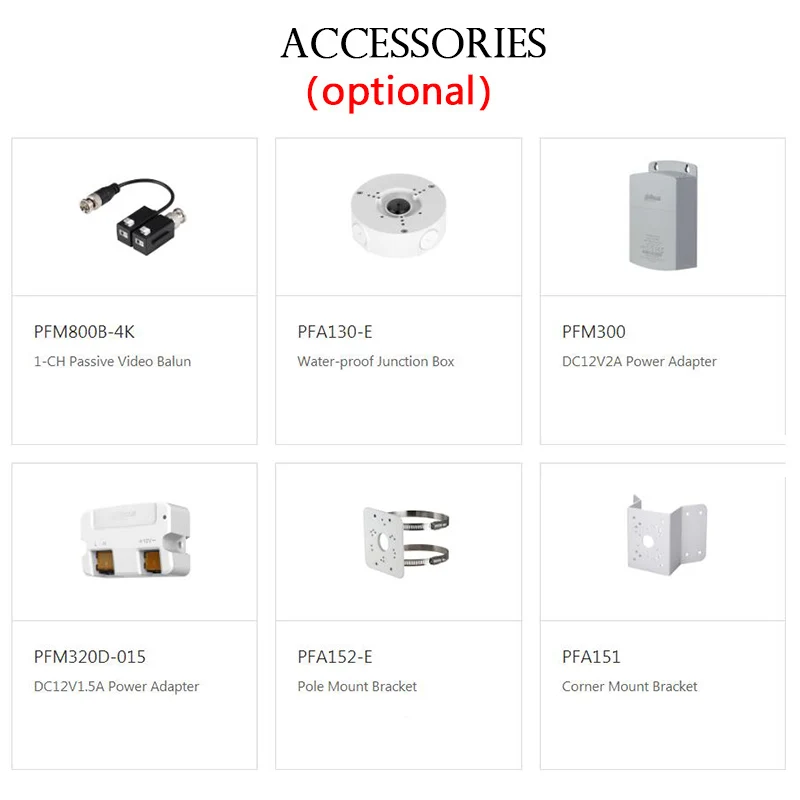

Accessories

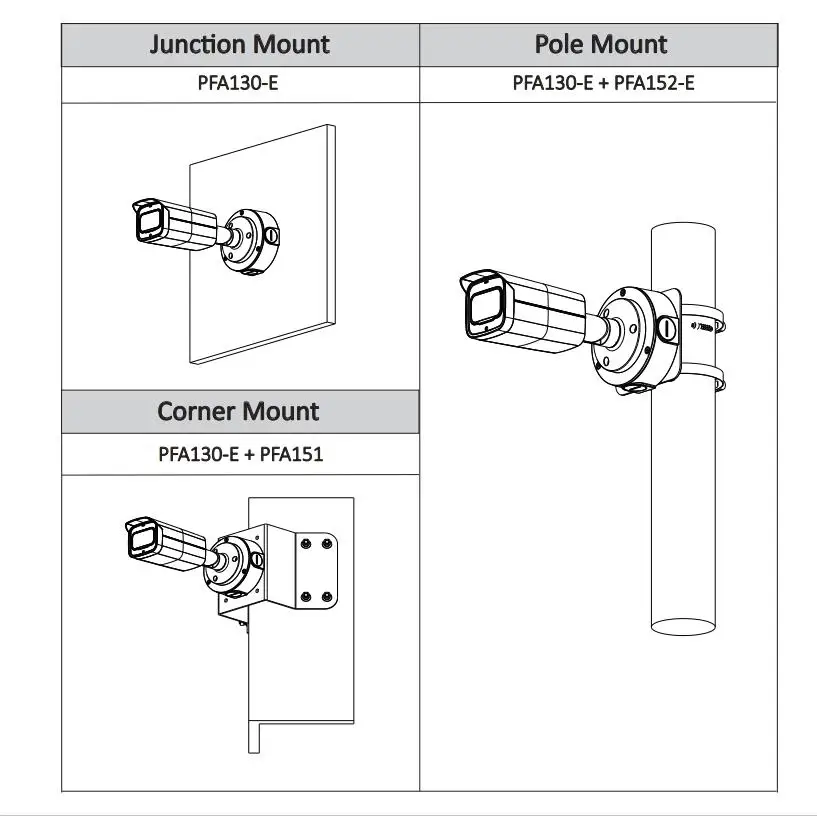

PFA130-E

Junction box (For use alone or with PFA152-E pole mount or with PFA151 corner mount)

PFA152-E

Pole mount (For use with PFA130-E junction box)

PFA151

Corner mount (For use with PFA130-E junction box)

PFM800-4K

Passive Video Balun

PFM800B-4K

Passive Video Balun

PFM320D-015

12V 1.5A Power Adapter

PFM320

12V 2A Power Adapter

PFM300

12V 2A Power Adapter

If you need a model that we don't have in the store, you can also contact us. We are the agent of DAHUA and can quote the best price for you. After-sale: We offer a one-year warranty.









---
