body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Use normal USB flash drive as the medium for transfer design.34pin floppy driver interface, 5V DC power supply, easy to install.720KB built-in flash memory, with FAT12 format, used for cache data from USB flash drive.720KB capacity of files in root directory or 999 folders can be searched.Long file name and 4-level directory in 999 folders supported.Jumpers with function for different machines.
Button:When no USB flash drive plugged on emulator:Left button used to rise ten-digit, right button used to rise single-digit, press 2 button together to rise hundred-digit, when the hundred-digit is 'b', the image mode used.When an USB flash drive plugged on emulator:Left button used to transfer data from built-in memory into USB flash drive, right button used to transfer data from USB flash drive into built-in memory.
Firmware version of emulator:Keep pressed 2 button together, power on, 8 segment numbers will display firmware version and data of emulator to detect different model.

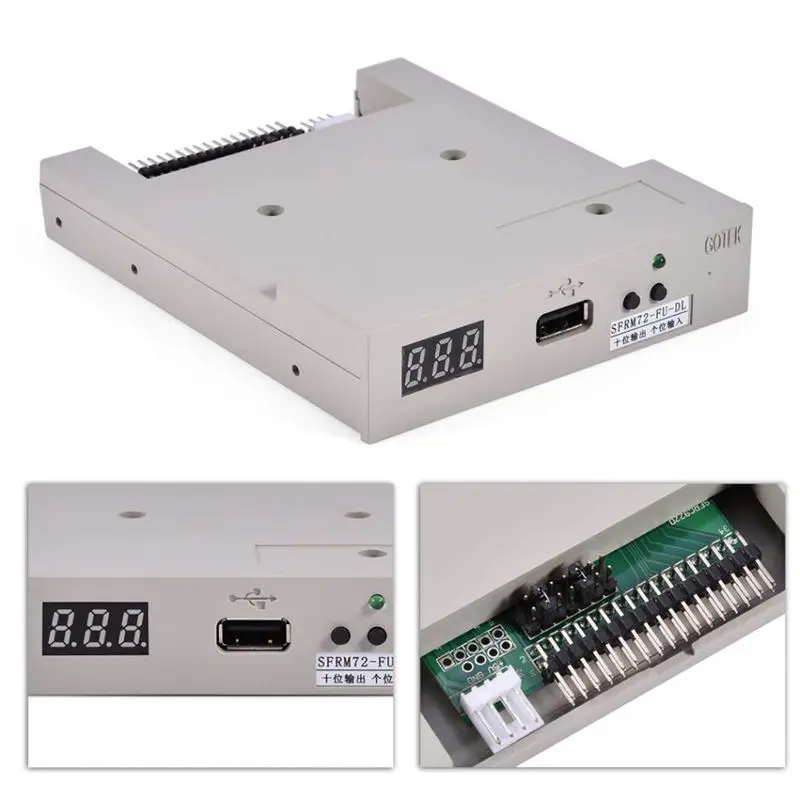

Panel:8 segment numbers: Represent partitions number.Green LED: Status of read and write operation.USB port: Connect USB flash drive
100 disk image file supported. (used for machine with non FAT disk format, example for make boot disk).
Model Number: floppy
Interface Type: USB3.0
Drive Type: DVD-ROM
Application: Desktop
Item Condition: New
Installation Method: Built-in
Disc Loading Mode: Tray Type
Error Correction Function: Support
Floppy Driver:

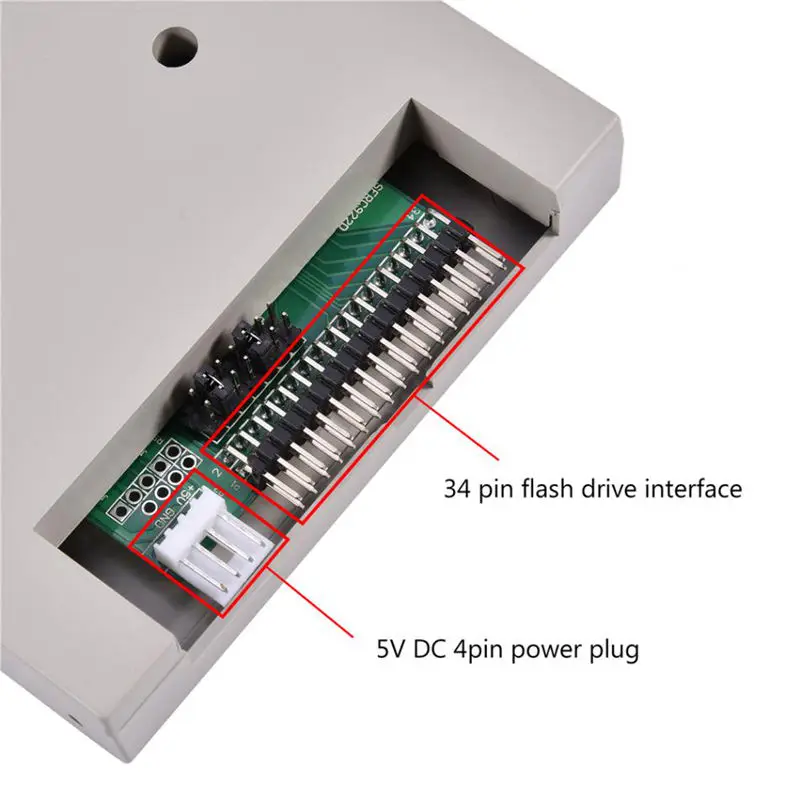

Interface: 34 pin floppy driver interface, 5V DC 4 pin power plug
Format of disk: Cylinders: 80 Tracks: 160 Sectors/Track: 9 Bytes/Sector: 512 Data
Transfer rate: 500 kbps
Encoding method: MFM
Error Code:
E0: No specified file in USB flash drive
E16: Built-in memory fault
Jumper Setting:
J5: ---
JA: Set to generate READY signal on 34pin of floppy driver interface
JC: ---
JB: ---
S0: Driver select 0
S1: Driver select 1
MO: Motor
Compatibility: Suitable for Yamaha Korg Roland Electric Organ with 720KB floppy drive
Voltage: 5V DC
Interface: USB port, 4 pin power plug, 34 pin plug
colour:white
Material:Metal + ABS

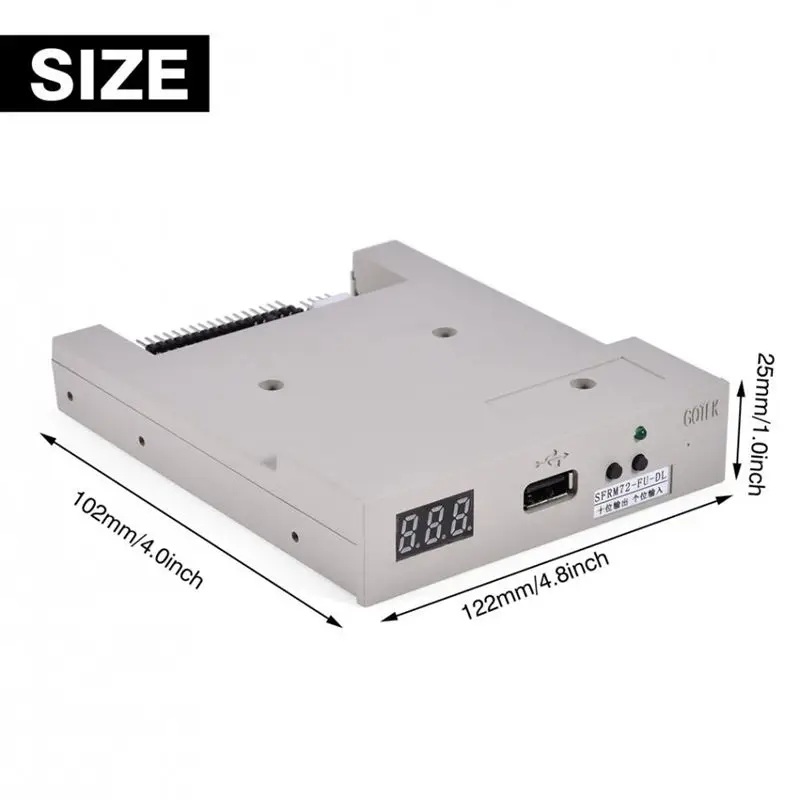

Size (L x W x H): Approx. 122 x 102 x 25mm / 4.8 x 4.0 x 1.0inch
Package Contents:
1 x USB Emulator
2 x Jumper Cap
4 x Screws
Only the above package content, other products are not included.
