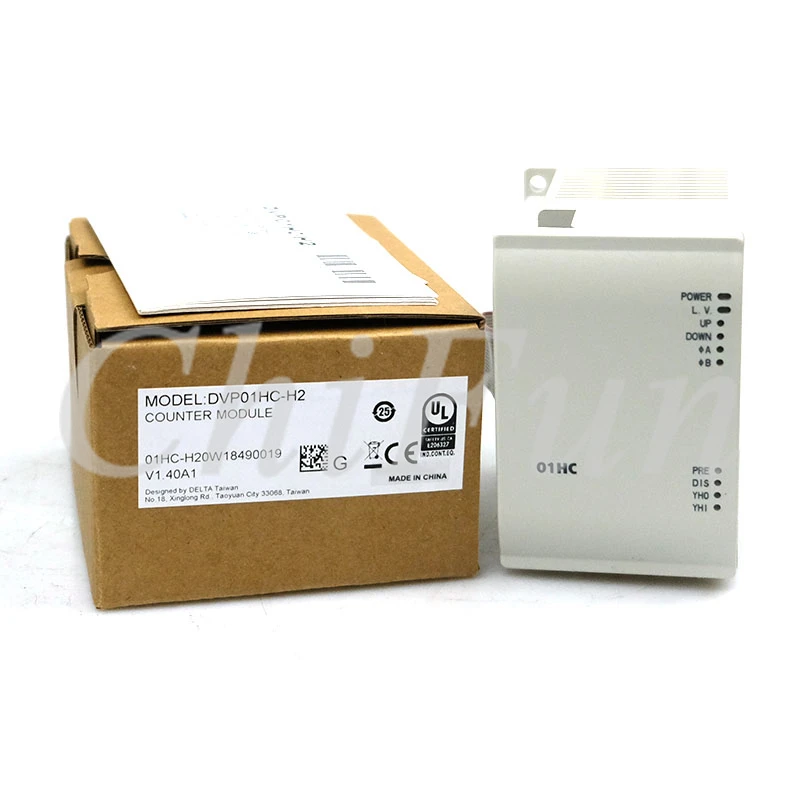

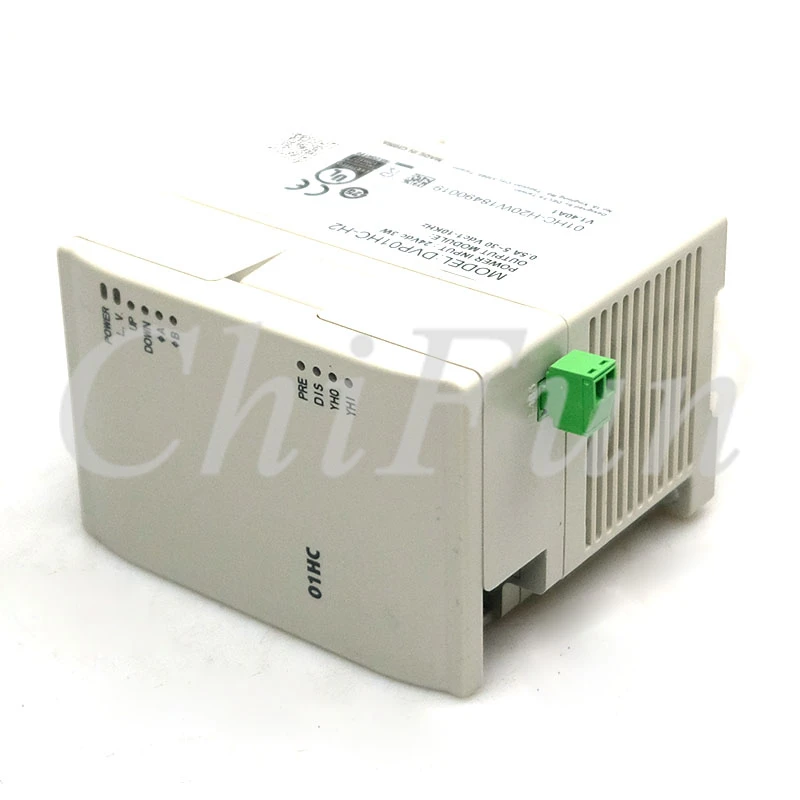

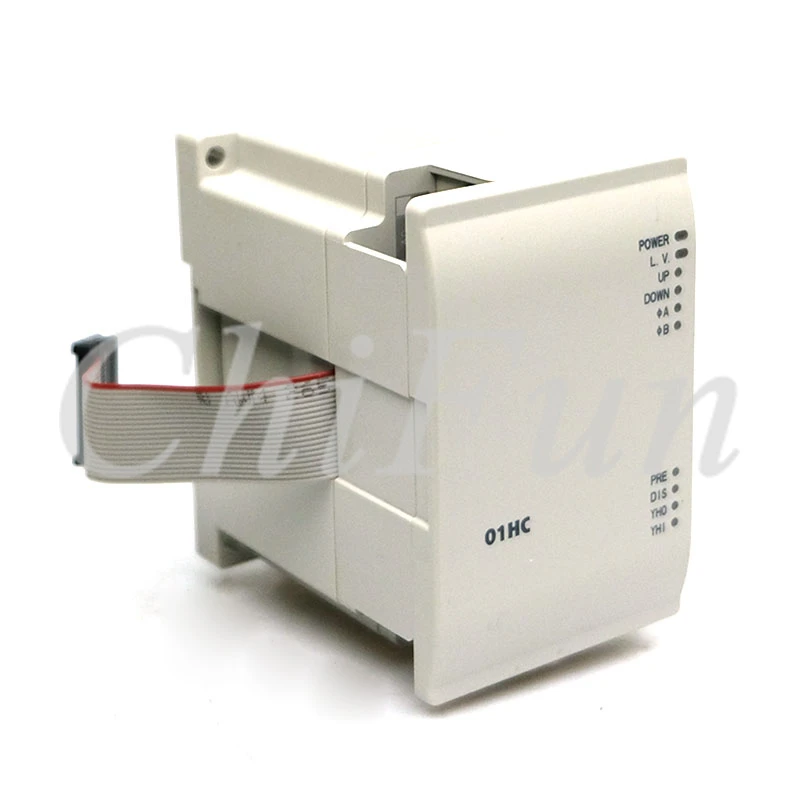

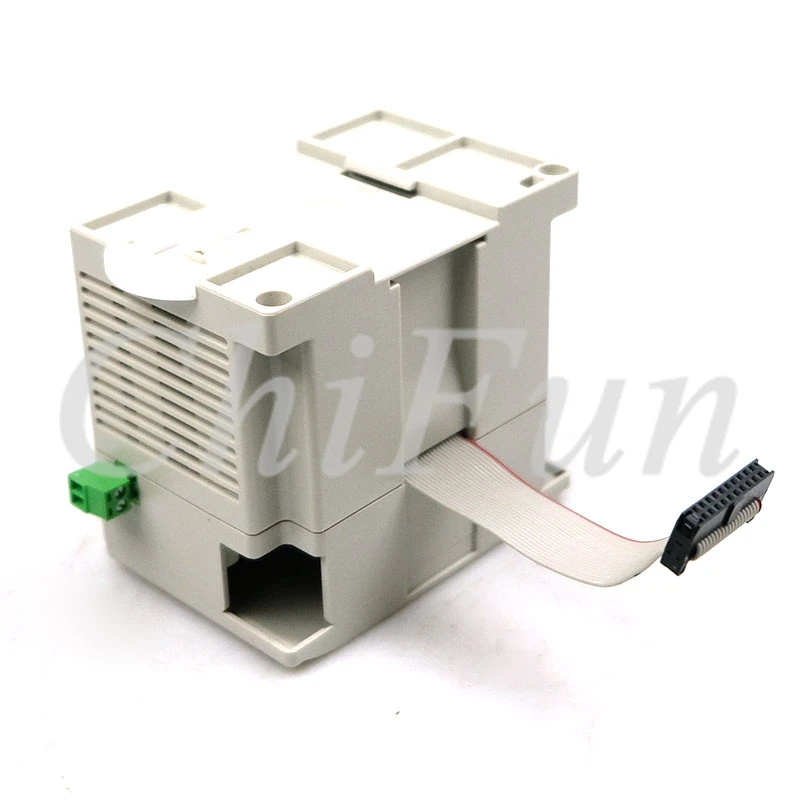

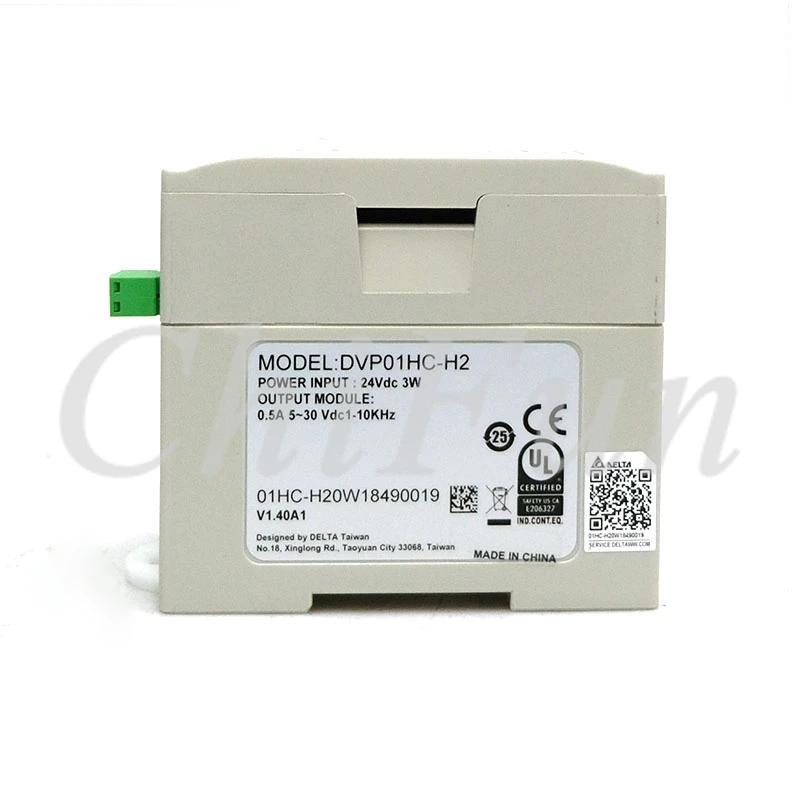

Delta DVP01HC-H2 EH3 Series PLC High-speed counter module Special Extension Module in box | Строительство и ремонт

Delta DVP01HC-H2 EH3 Series PLC High-speed counter module Special Extension Module in box | Строительство и ремонт

Introduction

1. DVP01HC-H2 hardware high-speed counting input module is able to accept external counting pulse signals of 200KHz. DVP-EH2 series MPU writes or reads the data in DVP01HC-H2 through FROM/TO instructions. There are 33 16-bit control registers (CR) in DVP01HC-H2. The 32-bit parameters are composed of 2 continuous control registers. The module can execute itself after the control registers in the module are set up. 2. The program of MPU can designate the counting mode (1-phase, 2-phase, 16-bit or 32-bit) by writing TO instruction into the control register in the module. When you wire, be sure to connect 24V, A24+, B24+, P24+, D24+, A12+, B12+, A5+, B5+, P5+ and D5+ to the positive potential, and -V, PRE-, DIS-, A- and B- to the negative potential. 3. The source of input signals can be a 1-phase or 2-phase encoder. The voltage level can be 5V, 12V or 24V. In addition, DVP01HC-H2 offers instruction input terminal (PRESET) and disabling counting instruction input terminal (DISABLE) for setting up the initial value. 4. DVP01HC-H2 has 2 output points, YH0 and YH1. When the present value in the hardware high-speed counter equals the set value, the corresponding output point will start to execute. The transistors of the output points are independent and isolated.
