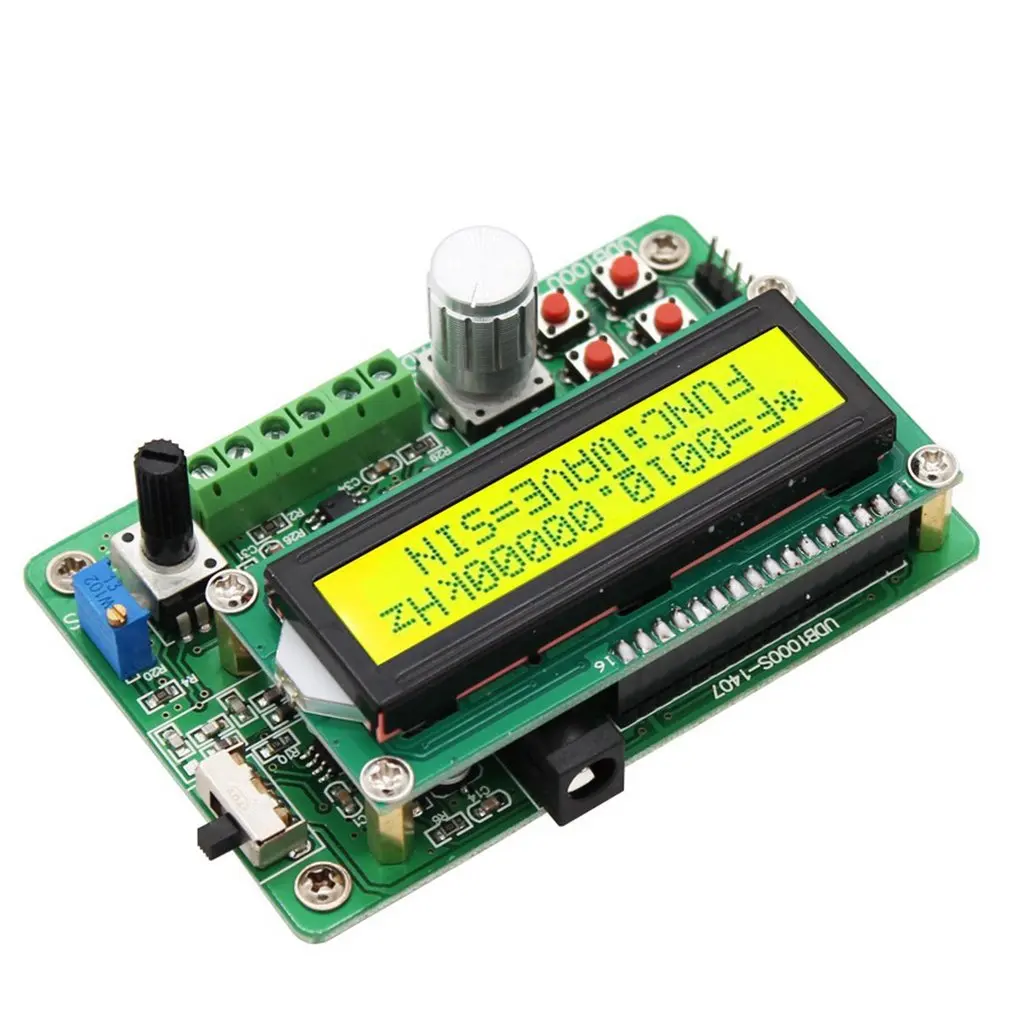

UDB1000 Series DDS Signal Source Signal Generator with 60MHz Frequency Meter Sweep Module (with sweep and communication)

Features:
The UDB-100×S series is a signal generator based on Direct Digital Synthesis (DDS). The FPGA design is easy to use and has high signal stability.
It is powered by DC5∨ power supply and can output various function waveforms such as sine wave, square wave, triangle wave and sawtooth wave.
At the same time, it has three functions of TTL synchronous output and 60MHz frequency meter.
It is an ideal equipment for electronic engineers, laboratories, production lines, teaching and research, and can also be used as a supporting module for industrial equipment.

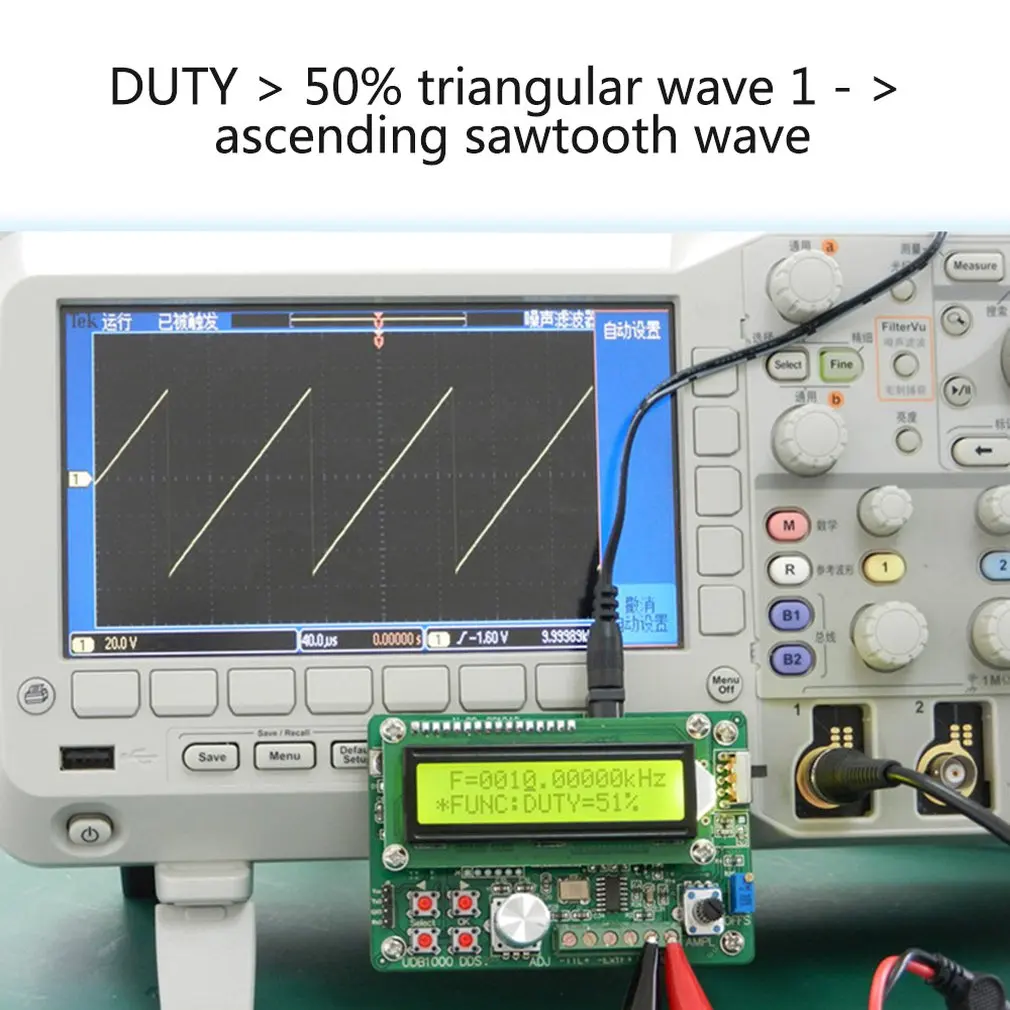

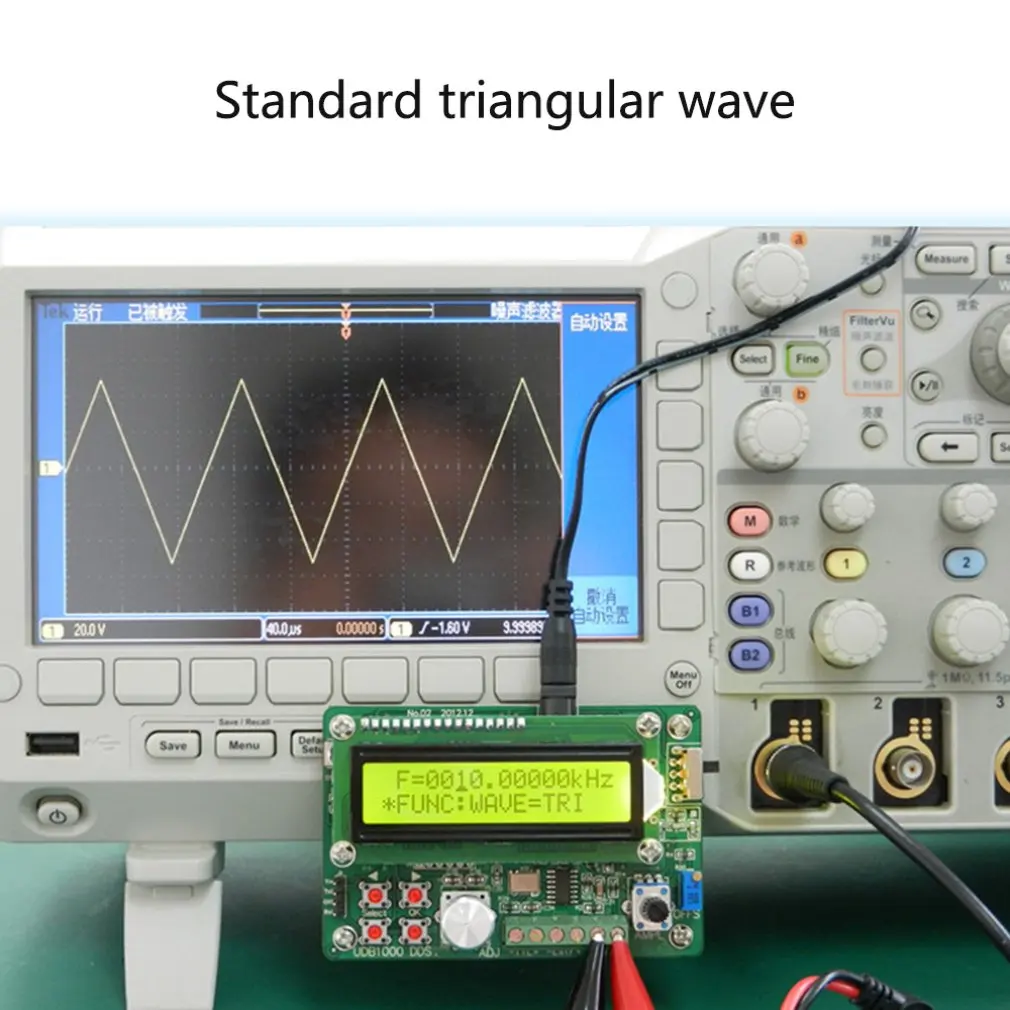

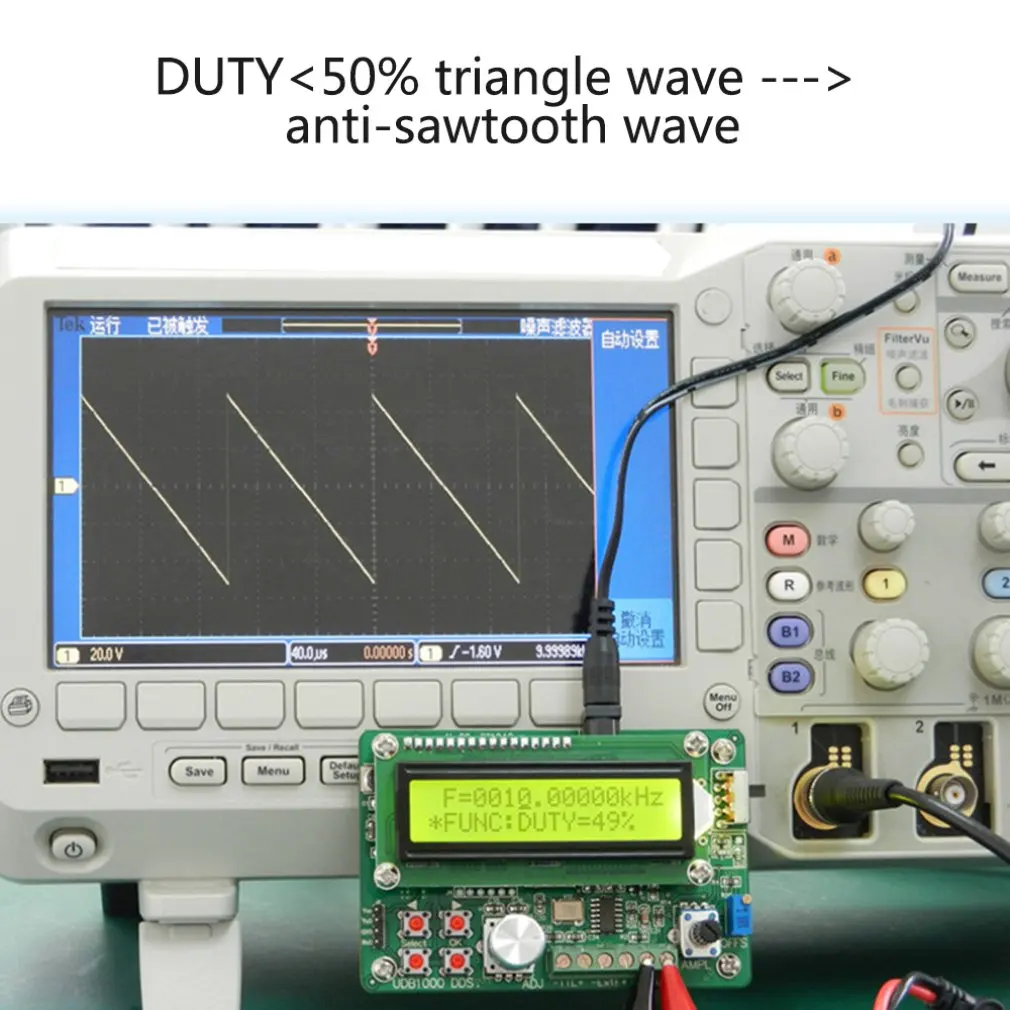

1. Signal: It can output sine wave, square wave (duty cycle adjustable), triangle wave, lifting sawtooth wave, pulse wave, TTL digital signal;
2, square wave duty cycle 1%-99% continuously adjustable measurement: the instrument has the function of frequency measurement and counting
3, scanning: SWEEP scanning function, can achieve frequency scanning
4, storage and transfer function: with 10 sets of parameter storage function, M0 ~ M9, boot automatically call M0 position parameters.

Specifications:
Minimum frequency resolution: 0.01Hz
Output impedance: 50g ± 10%
Output waveform type: sine wave, square wave, triangle wave, sawtooth wave
Output modulation: frequency sweep
Sine wave: Harmonic system 40dbc(<1MHZ), 35dbc(1MHZ-1.8MHZ)
             Distortion ≤ 0.8 (reference frequency 1 kHz)
Square wave: lifting time: ≤100ns Overshoot: ≤5%
             Duty cycle adjustment range: 1%~99%
Frequency measurement range: 1HZ~60MHZ
Minimum input voltage: 0.5vp-p
Maximum allowable input voltage: 20vp-p
Counting range: 0~4294967295
Power supply mode: Dc5V±0.5V
Type:1002S,1005S,1008S
Color: green

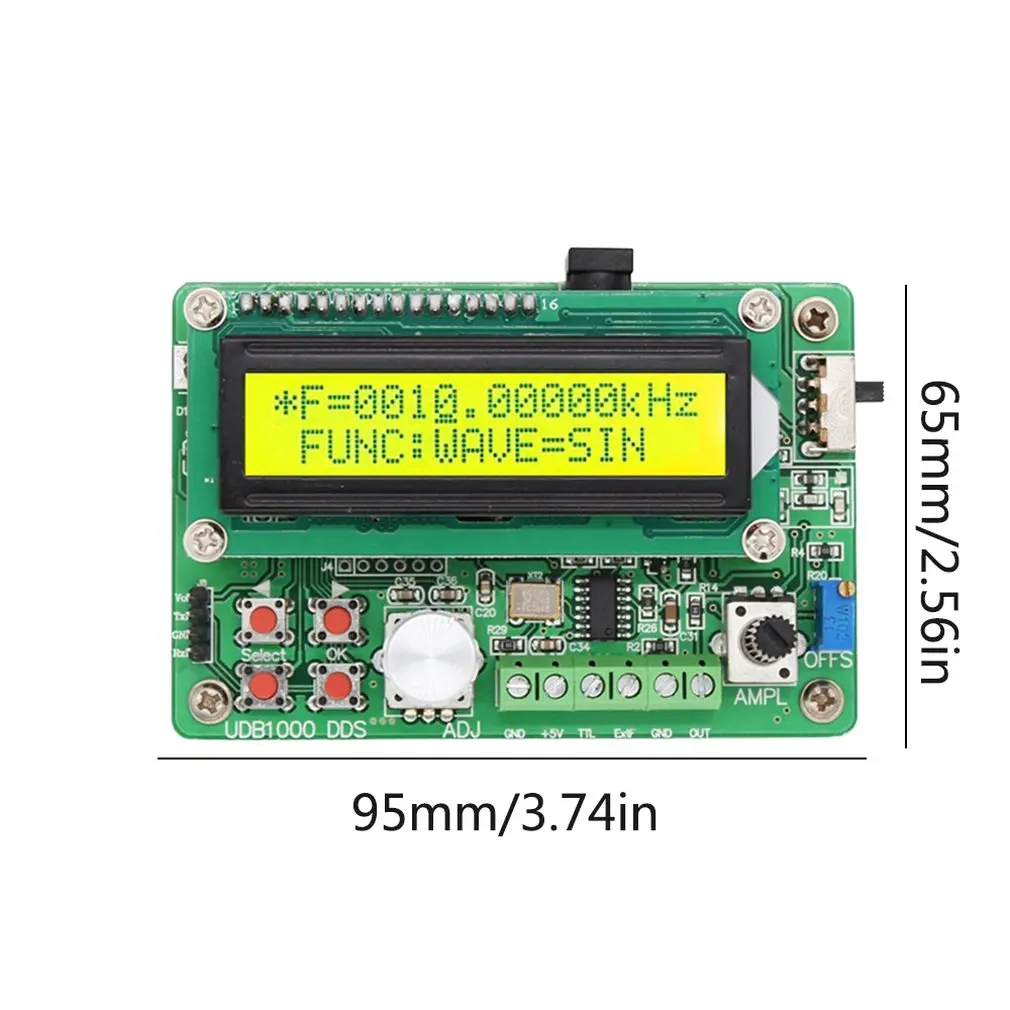

Size: 100*70*30mm

Package Includes:

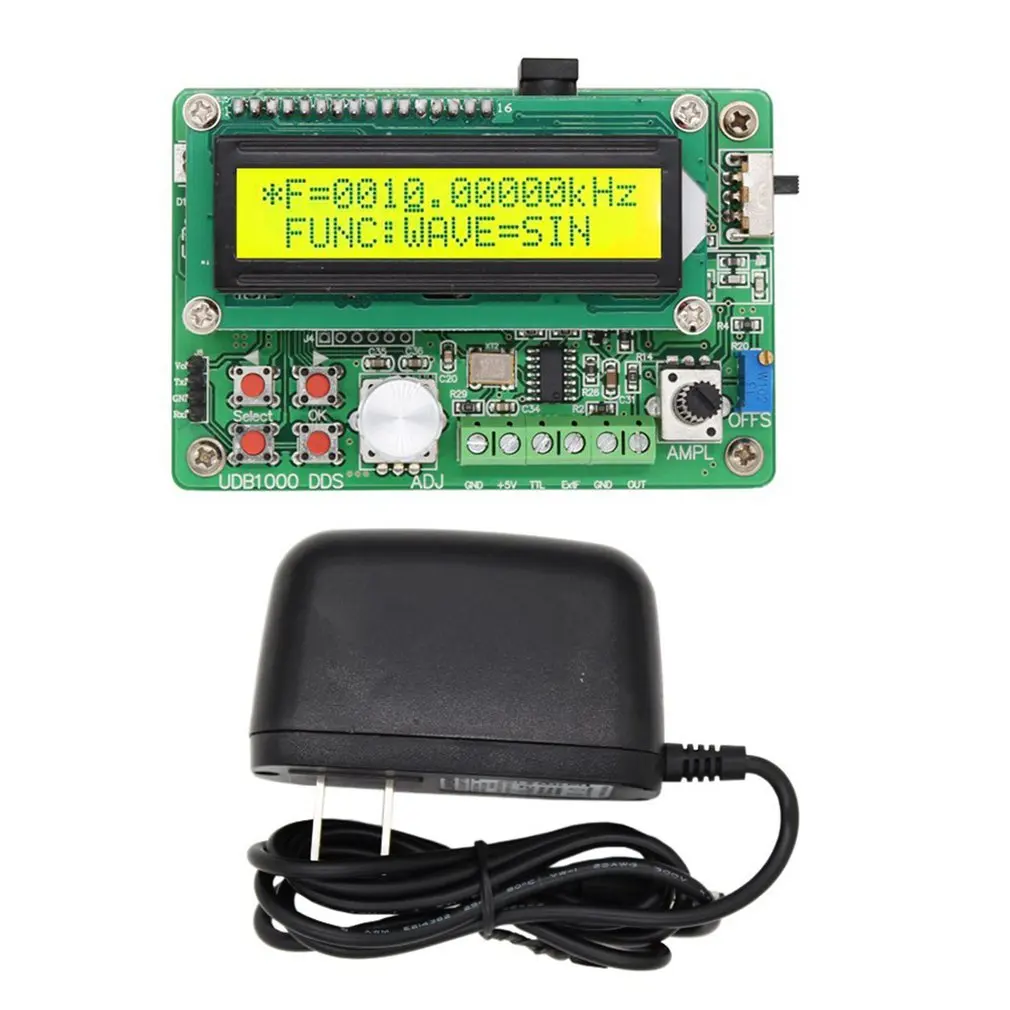

1 * signal generator
1 * power adapter

Notes:
Please allow 1-28mm tolerance due to manual measurement .
Due to the difference between different monitors, the picture may not reflect the actual Type of the item.
