New designed 1325 1530 cnc plasma cutter metal cutting machine 1325 with CE ISO

For more information,Contact Emily email/Skype:info6(@)chinsailcnc.com

Whatsapp:+86 186 6368 0159

Features of plasma cutting machine

1)Small type portable mini cnc plasma cutting machine

2)Programmable cutting arbitrary shape parts of line and arc .

3)Dynamic and static graphic display ,easy to learn . Can convert CAD file in computer ,through USB flash drive transmits to machine to realize cutting all kinds' graphs and also can program and operate directly on the machine .

4)Track and movement organizations adopt unique design , ensuring the working precision of machine .

5)Can use flame cutting (gas cutting ) and plasma cutting .

6)Interfaces in English or Chinese can be converted freely .

7)Economical , Portable and easy to operate .

1

Model

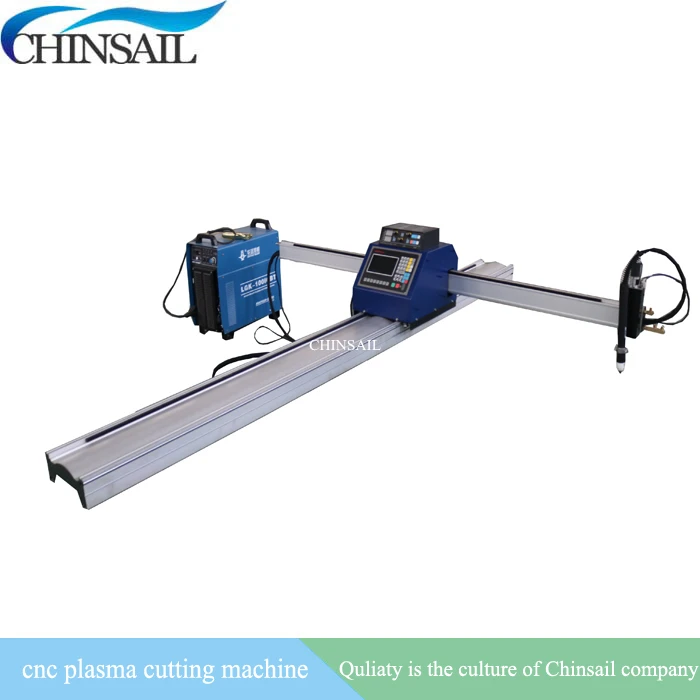

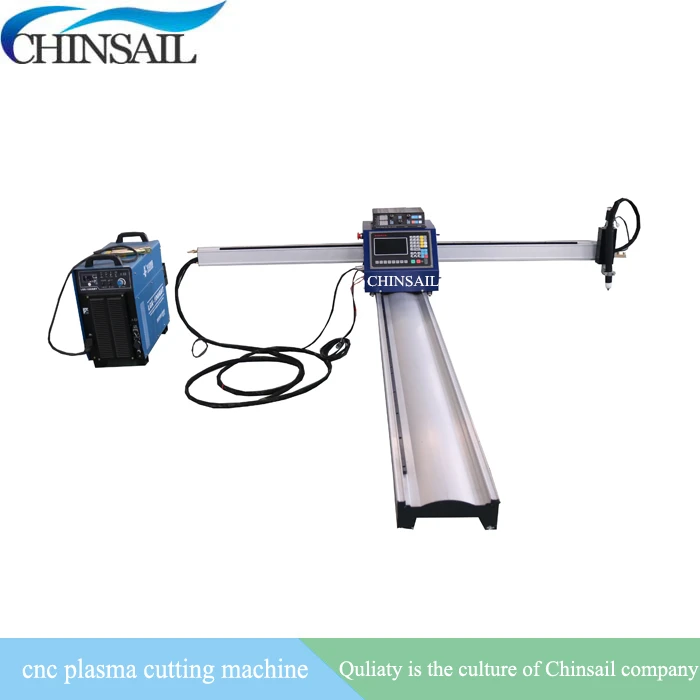

Protable plasma cutting machine CXP1325

2

Cutting shape

any shapes

3

Working area

1300*2500mm

4

Effective Cutting Width (X axis)

1300mm

5

Effective Cutting Length (Y axis)

2500mm

6

Cross Beam Length

2000mm

7

Longitudinal Rail Length

3000mm

8

Cutting Speed

0-4000mm per minute

9

Plasma Cutting Thickness

0--40mm ( Depends on plasma power source capacity)

10

Flame Cutting Thickness

6--200mm

11

Motor

Stepper motor

12

Cutting Mode

flame and plasma

13

Ignition device

Auto ignition device

14

Height regulating device

Arc voltage height

15

File transmission

USB transmission

16

Gas Pressure

Max. 0.1Mpa

17

Oxygen Pressure

Max.0.7Mpa

18

Cutting Gas

Acetylene/Propane

19

Plasma Power Source

optional

20

Plasma Air

Only pressed Air

21

Plasma Air Pressure

Max. 0.8Mpa

22

Cutting precision

±0.5mm National standard

23

Control accuracy

±0.01mm

24

Power Supply

220V/380V 50HZ / 60HZ

25

Rated Power Supply

200W

26

Working Temperature

-10°C-60°C. Relative Humidity, 0-95%

>>Applicable industries

Ship Building,Construction Equipment,Transport Equipment,,Bridge Building,Wind power,Structural Steel,Boiler containers,Agriculture Machinery,Chassis electrical cabinets,Elevator manufacturers,Textile Machinery,Environmental protection equipment,ect

>>Applicable materials

Aluminum,Titanium,Nickel,Iron,Galvanized sheet,White steel,Titanium plate,Carbon steel,Stainless steel,Alloy steel,Composite metal

Pre-sale Service
1.Help you chose the fit machine.
2.Manufacture the machine according to your and accessories.

Sale Service
1.acceptance of equipment together with you.
2.offer you help to make the operating insruction.
3.any other help you need.

After-sale Service
1.Two years warranty for the whole machine except for wearing parts.
2.18 Hours online service.
3.Free accessories due to quality problem.
4.Free repair whole using life(without the freight and accessories charge).
5. Engineers available to service machinery overseas and also remote assistance.

Q1: How can I get the best machine?

You can tell us your working material and details by picture or video so that we can judge whether our machines are satisfied with your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, how to operate?

We will send you electric manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by phone, email or other contact ways.

Q3: If the machine has problem in my place, how could I do?

We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4: This model is not suitable for me, do you have more models available?

Yes, we can supply many models. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according to your requirement!

Q5:What's the guarantee, in case the machine breaks down?

The machine has two year’s guarantee. If it breaks down, generally speaking, our workers will figure out what the problem may be, according to client’s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
