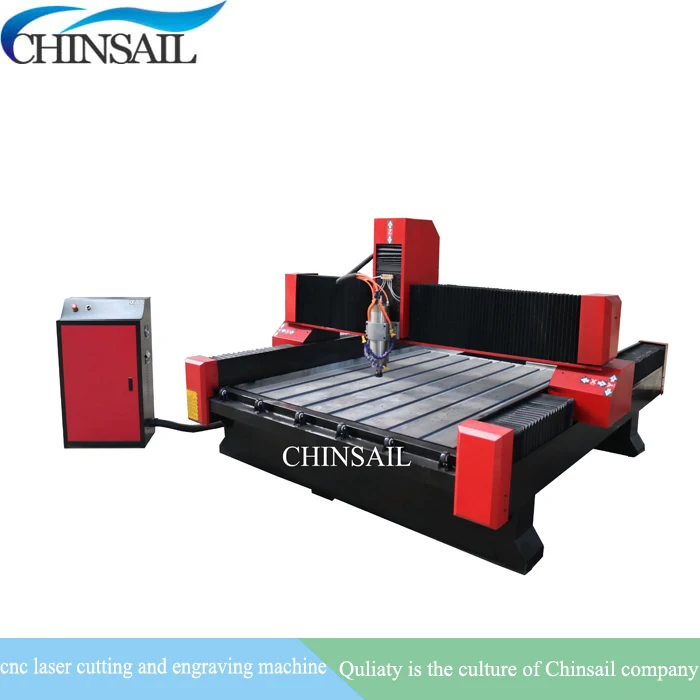

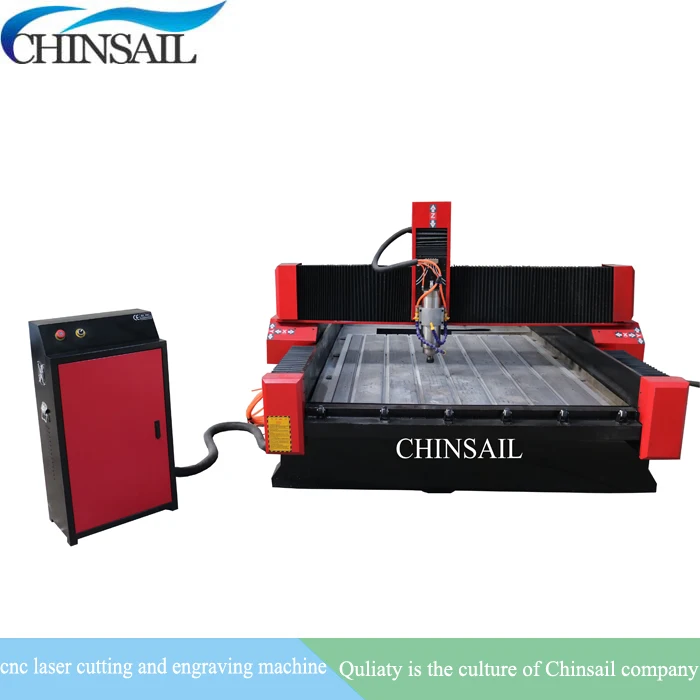

CE promotion large cnc router machines 1520 1530 2030 for granite/marble/stone/wood

​For more information,Contact Emily

email:info6(@)chinsailcnc.com Skype:info6(@)chinsailcnc.com

1). Adopt high quality linear square rails, double-row four columns slide block, high precision, huge bearing capacity, good moving stability and tools falling accuracy.

2). Whole machine welded with thickness steel tubes, not easy to be deformed. working table backed with steel plate, bearing capacity more than 1 ton.

3). Constant power spindle motor, big cutting intensity and high efficiency.

4). Dust-proof and waterproof design protects the transmission components.

5). Equipped with water tank and automatic water cooling system.

 T-slot table

Configuration

Heavy duty
T-slot table + stainess steel water tank
Welded machine structure
X Y Z Hiwin rails
X Y axis Gear transmission
Z axis Ball screw transmission Configuration
shanlong/nc-studio/Mach 3 controller for option

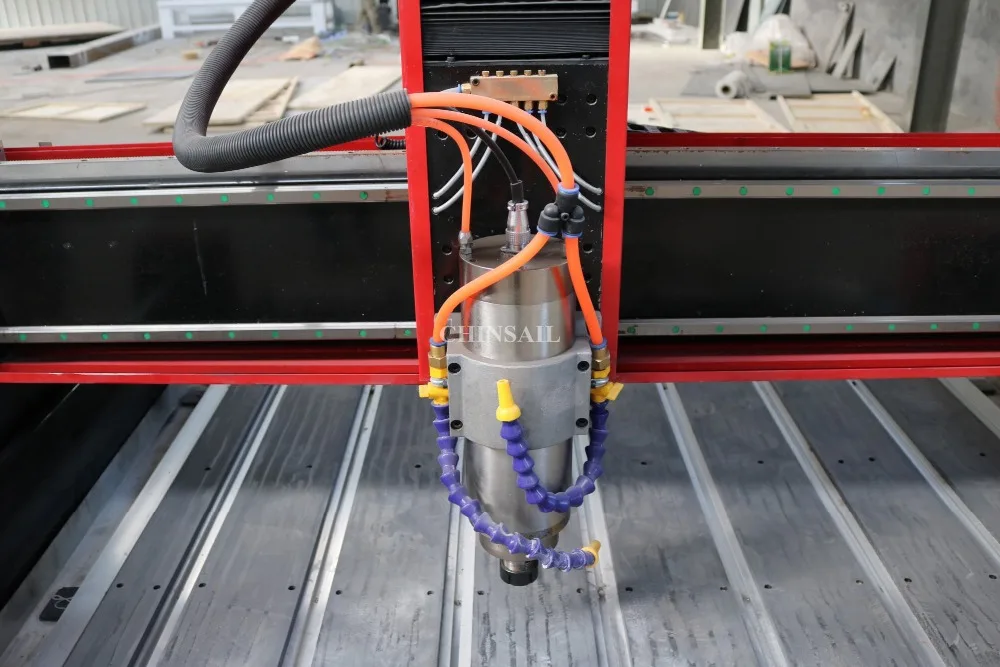

5.5 KW Chinese top Water cooling spindle
Fuling inverter
stepper motor 450B
leadshine driver M860

Description  Parameter CXS1520

X,Y,Z working area

1500x2000x200mm

X,Y,Z Traveling positioning accuracy

±0.03/300mm

Lathe bed frame

Steel square tubes,Lathe bed steel pipe

X,Y Structure

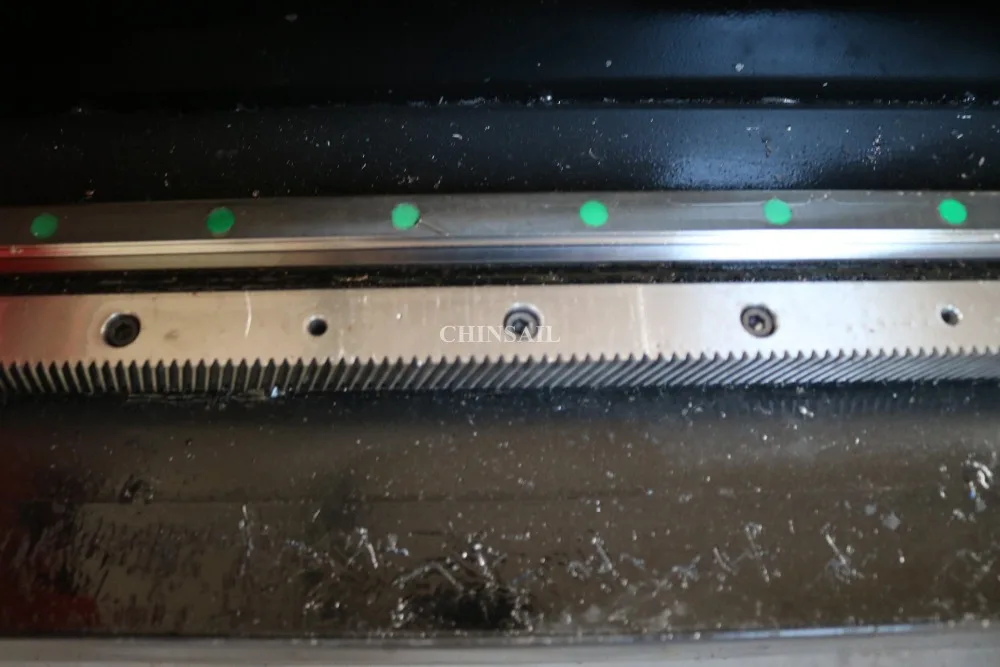

Rack drive and Taiwan HIWIN guide

Z Structure

TAIWAN Ball screw and Taiwan HIWIN guide

Drive motors

Stepper motors

Table surface

T-slot table

Max rapid travel rate

60000mm/min

Max working speed

30000mm/min

Spindle power

water cooling spindle

Spindle speed

0-24000RPM

Spindle inverter

Fuling inverter

Working voltage

220V/380V

Command language

G Code

Operatiing system

shanlong/nc-studio/Mach 3 controller for option

X,Y Resolution

<0.02mm

Software compatiliby

Type3/Artcam/Ncstudio/Ucancam/JDpaint etc

software

Running environment temperature

0-45 centigrade

Relative humidity

30%-75%

G.W.

Approx. 2000kg

warranty

2 years

Delivery time

5-7 days

Optional parts

1.Vacuum pump(Germany Becker or chinese)

2.Rotary system

3.Dust collector

4.Sink and air cooling system

5.custom any size machine

Quality Control

1.Strect control machine assembly each link,ensure

the machine clean and beautiful.

2.48 hours continuous work before the machine

 leave the factory, ensure high quality of the machine

Widely used for 3D/2D engraving, Embossment, line engraving ,Cutting, Edge inversing, Drilling on Nature stones, marble, granite, bluestone, artifical stone, tombstone, stele, ceramic tile, etc.

Woodworking industry:
wood crafts, picture frames cutting, handicraft carving wave plates, wooden door production and processing.
Advertising industry:
advertising materials such as PVC, acrylic, double color plate

Packaging Detail: packed in ply-wooden box

Delivery  Detail: within 10 working days

Package size: According to specific machine

1. The machine is packed by plastic sheet, water-proof and dampproof.

2. The foam are put on the important parts of the machine.

3. Then the machine is packed by the plywood case used for export.

4. The trcuk will deliver the packed machine to the designated place.

5. You can choose to deliver the machine by sea, by train, by plane

1.18 hour technical support by email, calling or Skype

2.Use-friendly english manual and vedio for machine

using and maintaining.

3.Our machines obtain CE and ISO9001 certificate.

4.two yeas warranty for the whole machine.

1. I never use this kind of machine before, is it easy to learn?

User-friendly English manual and operation video will be sent together with the machine,

if there is still any question, we can talk through phone or Skype.

Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you

professional guidance.

2. If the machine has problem, what can you do to help?

Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone.

our after-sales staff can come to your workshop if the problem still cannot be fixed.

3. How could I know if this machine is suitable for me?

Before ordering, we will provided every details of the machine for your reference,

or you could tell us your work piece,our techniciant will recommend the most suitable machine

for you. Furthermore, we can make a sample in advance for you to check if your drawing is

provided.
