Surpass Hobby F540 3030KV 4P Brushless Motor & 45A Esc Led Programming Card Combo Rc Set | Электроника

The set includes a F540 3030KV 4P Brushless Motor and a 45A brushless Electric Speed Controller(ESC), which is perfect for the 1/10 RC Off-Road Car. This F540 3030KV 4P Brushless Motor is built from the best materials available, and is designed to provide both quality and performance at an affordable price.
And it's with high quality aluminum alloy parts that are produced on the latest CNC milling machines. Additionally, the 45A brushless ESC features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity.
Compatible with sensorless brushless motors. High anti-interference capability. Using advanced software interface to set up or update the software. Super smooth and accurate throttle linearity. Fast response to throttle input.
Material: aluminum alloy
Colour: Black

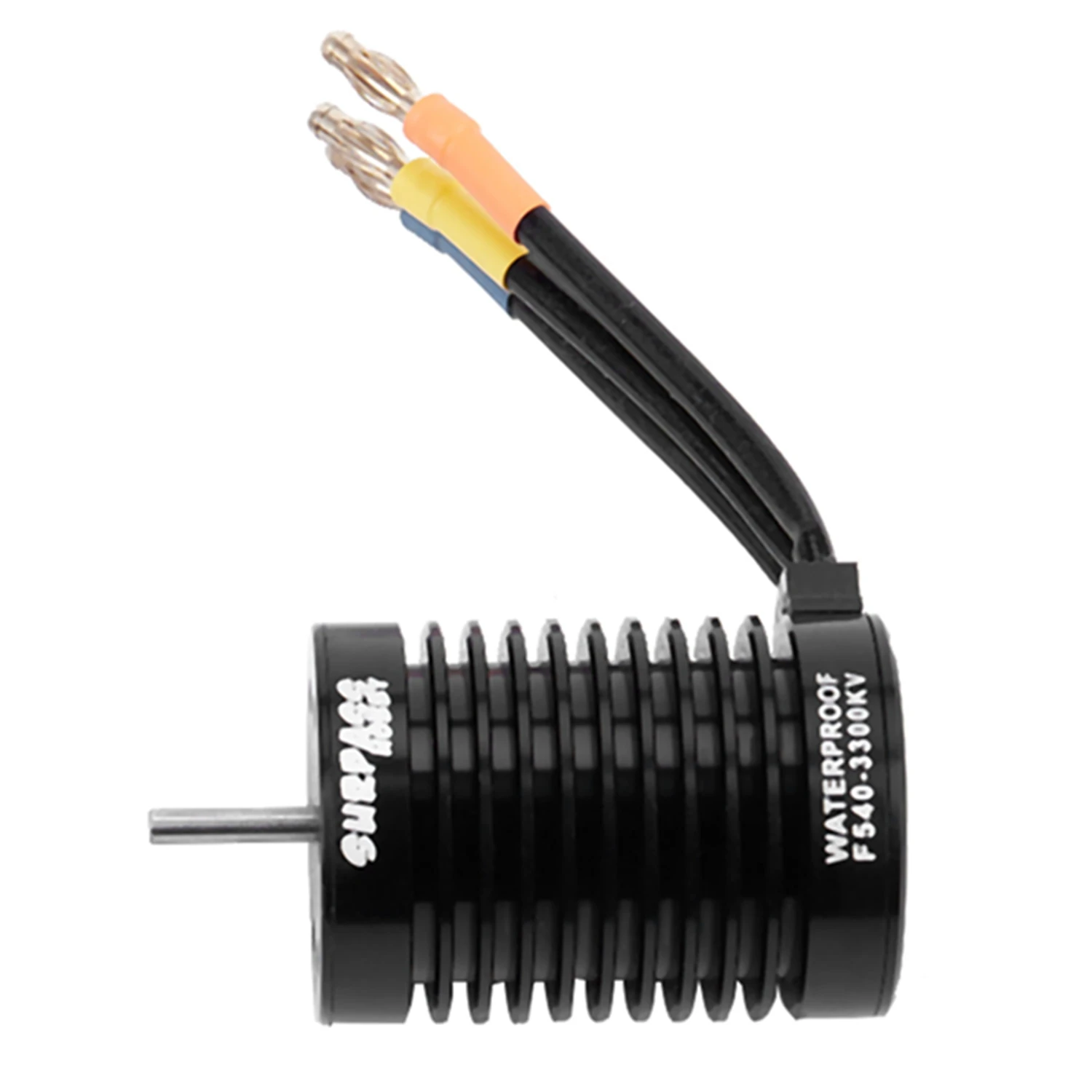

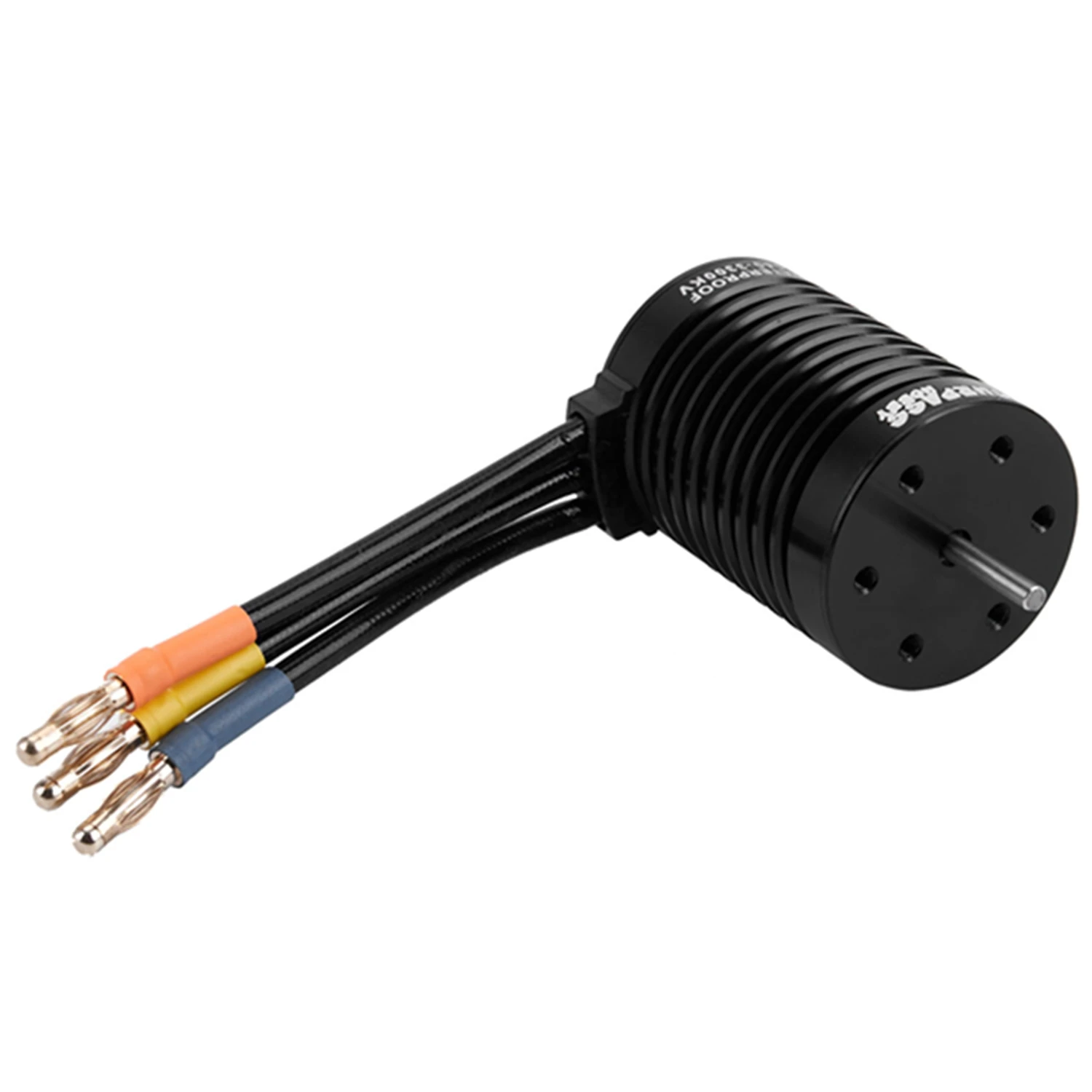

Motor
4 poles Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fit all 1/10 brushless cars-multi-mounting system for M3 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) laminations.
Removable/replaceable.
Precision engineered for maximum energy conversion.
ROAR legal.
RPM: 3030KV
Max Current: 66A
Max Watts: 820W
Can Size: 3650
Sensored: No
Can Diameter: 36mm
Can Length: 50mm
Shaft Diameter: 3.175mm
Shaft Length: 15mm
Bullet Connector: 4mm
Weight: 146g/5.2oz
Max voltage: 2S
Note: there's some little error from human measuring.

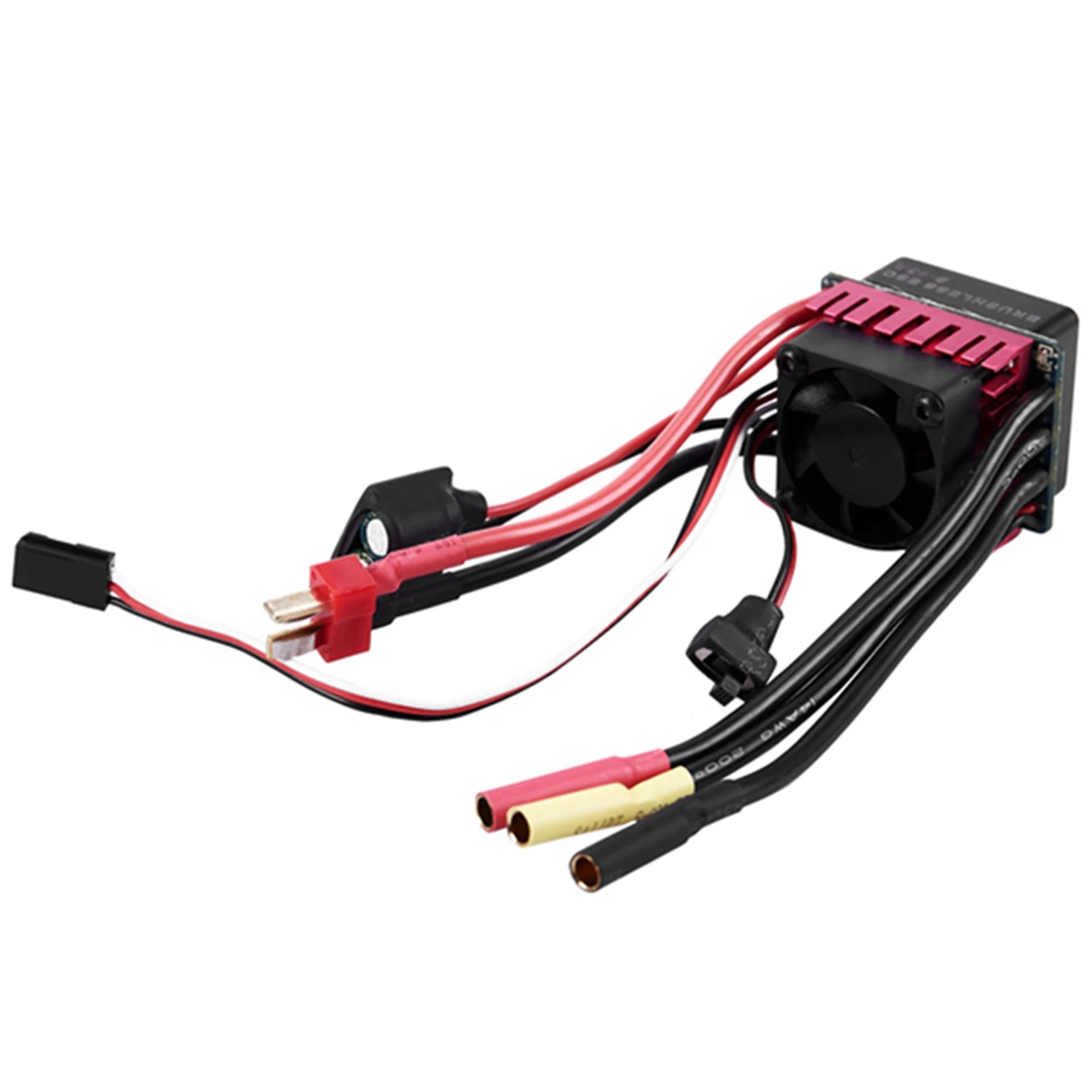

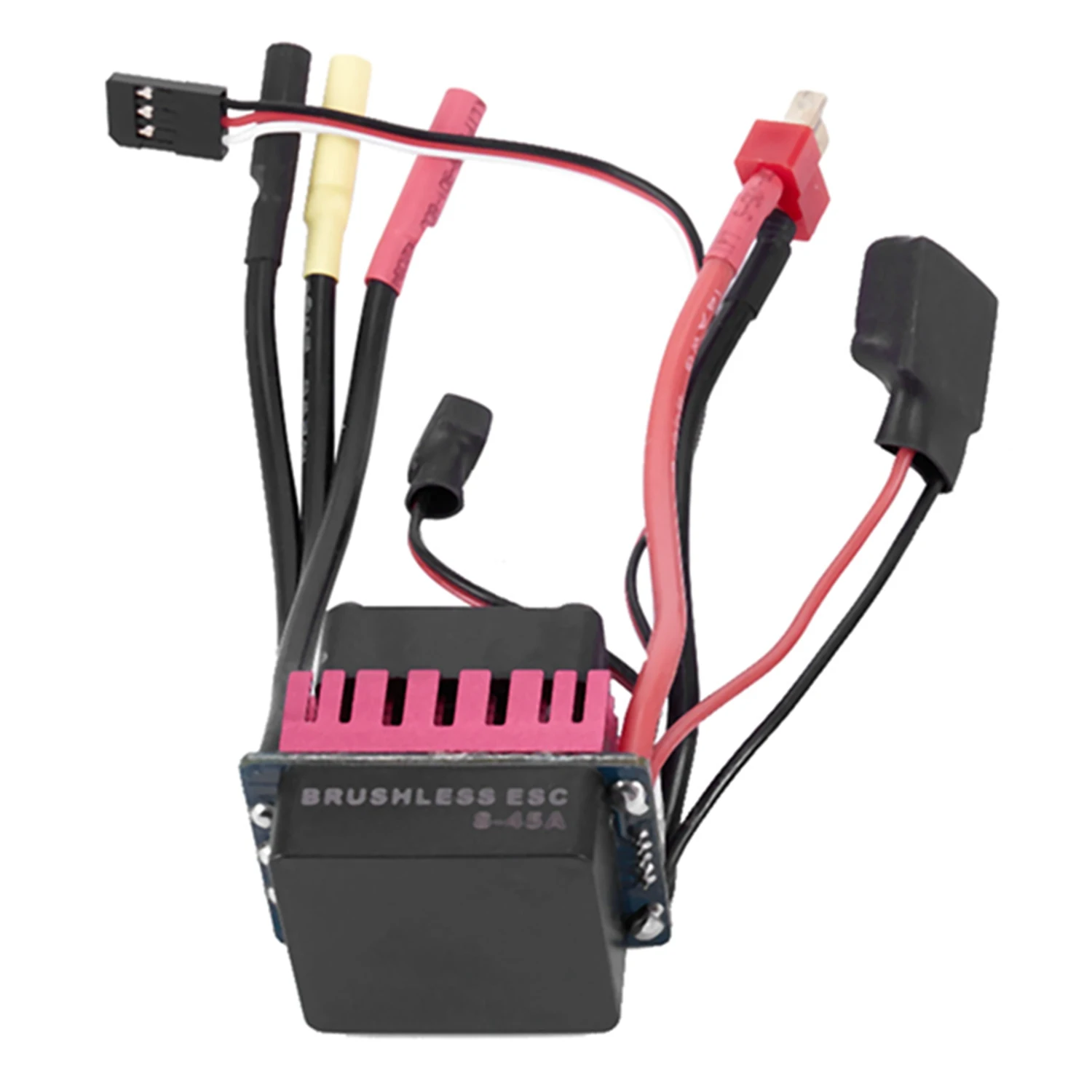

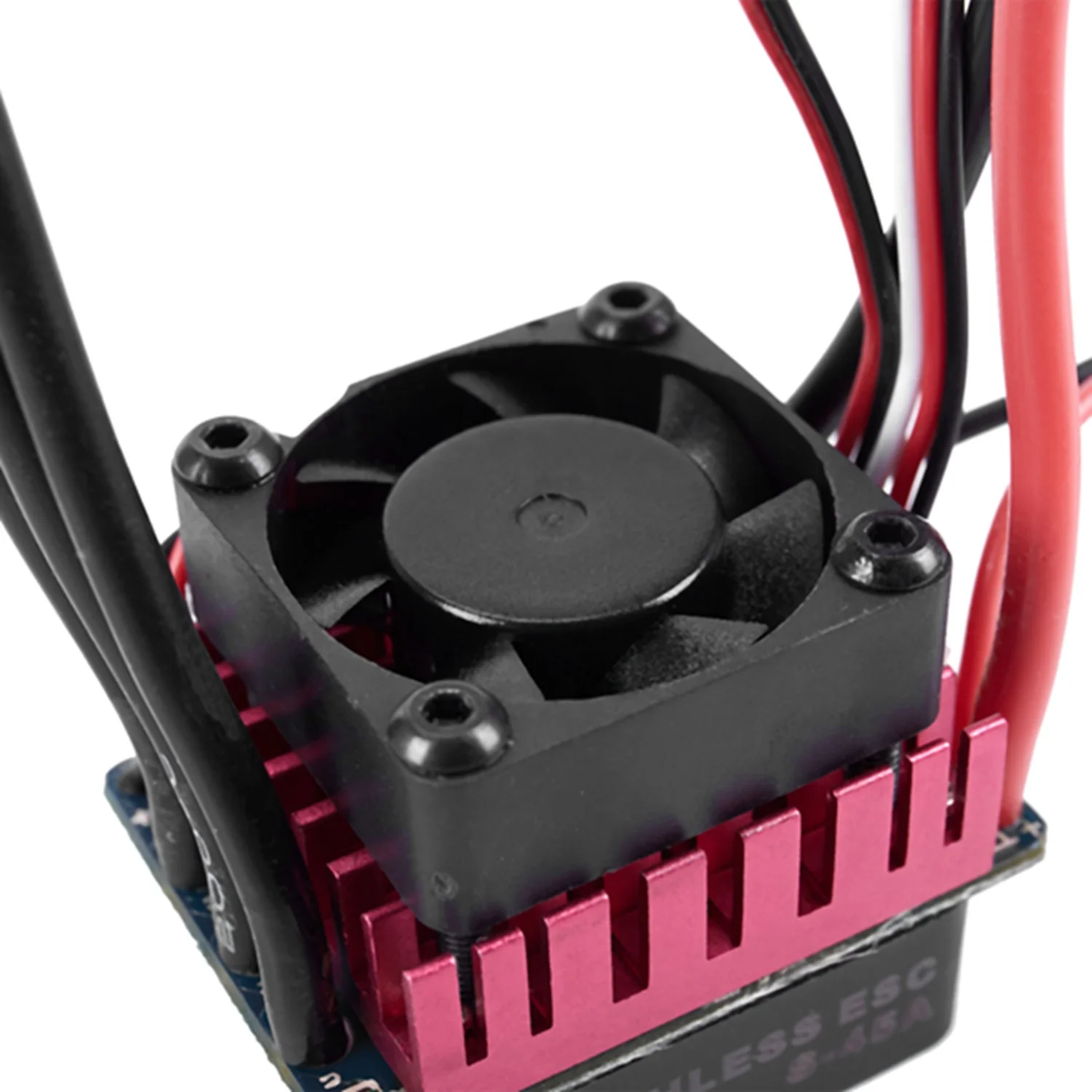

Electric Speed Controller
Mutiple protection features: low voltage cut-off protection, over-heat protection and
throttle signal loss protection.
Cont. Current: 45A
Burst Current: 260A/10sec
Battery: 2S
SBEC: Yes
SBEC Output: 5.8V/3A
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
Size: 45*35*35mm(with out fan)
Weight: 76g /2.7oz
Package size: 11 * 9 * 6.5cm/ 4.3 * 3.5 * 2.5in

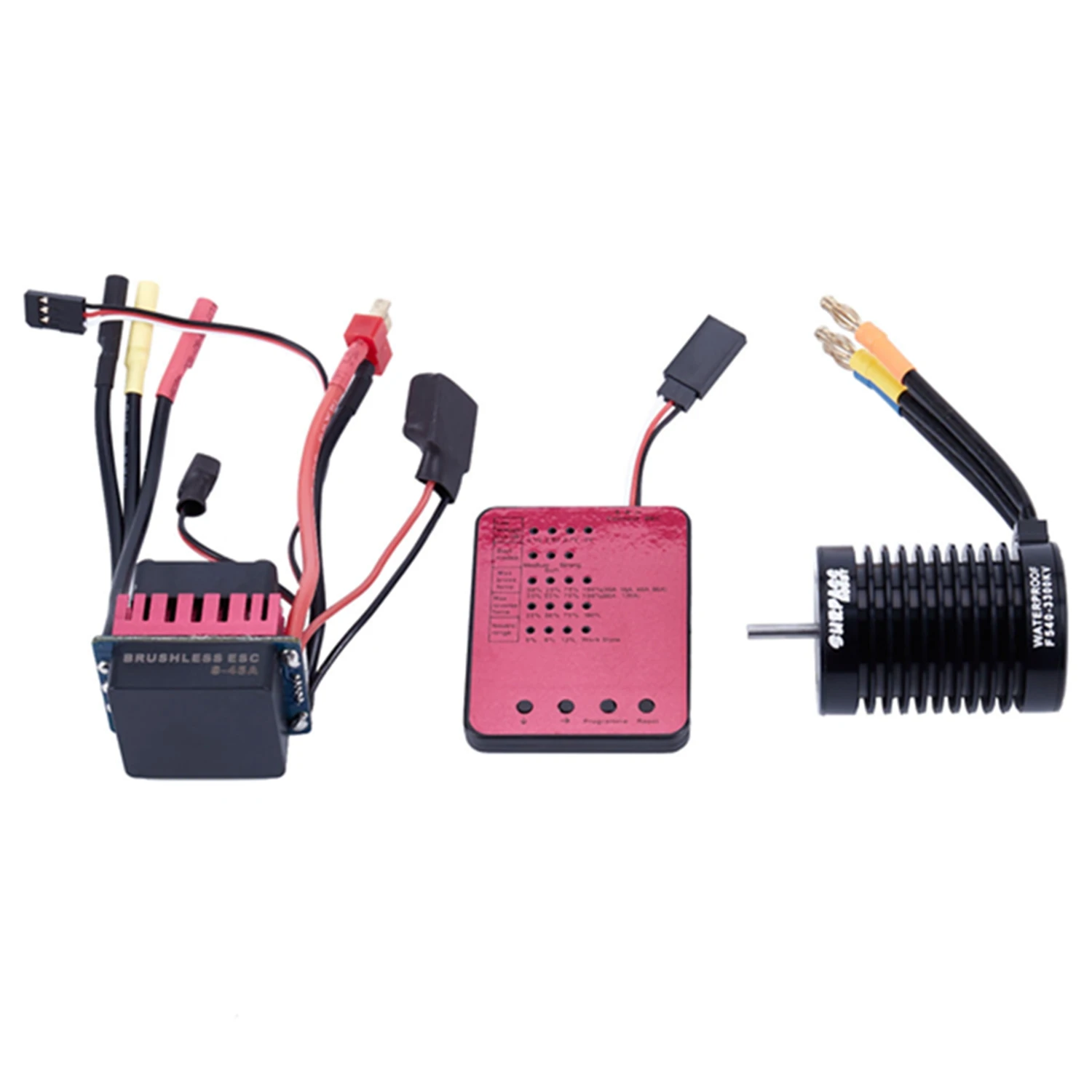

Package includes:
1* F540 3300KV Motor
1* 45A ESC

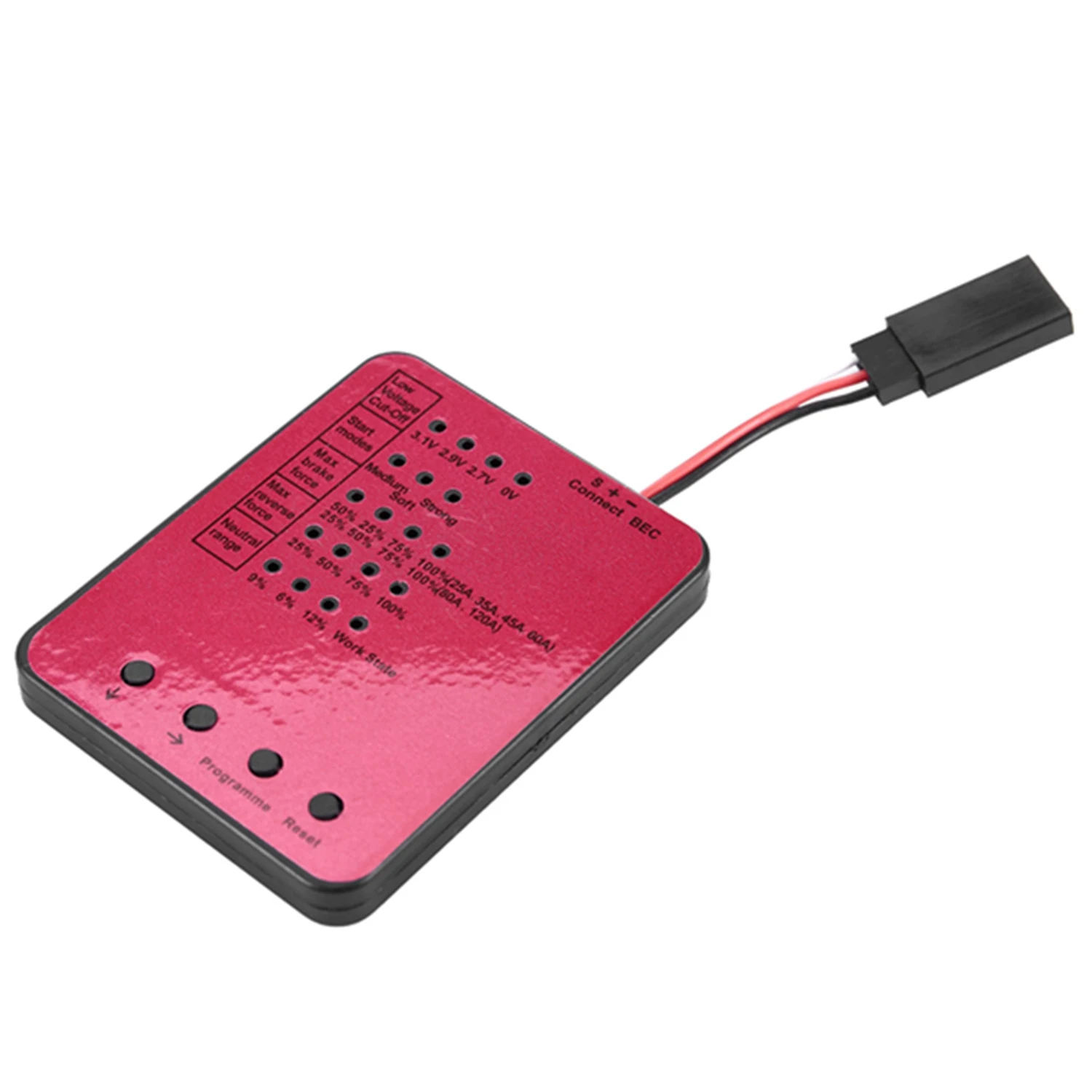

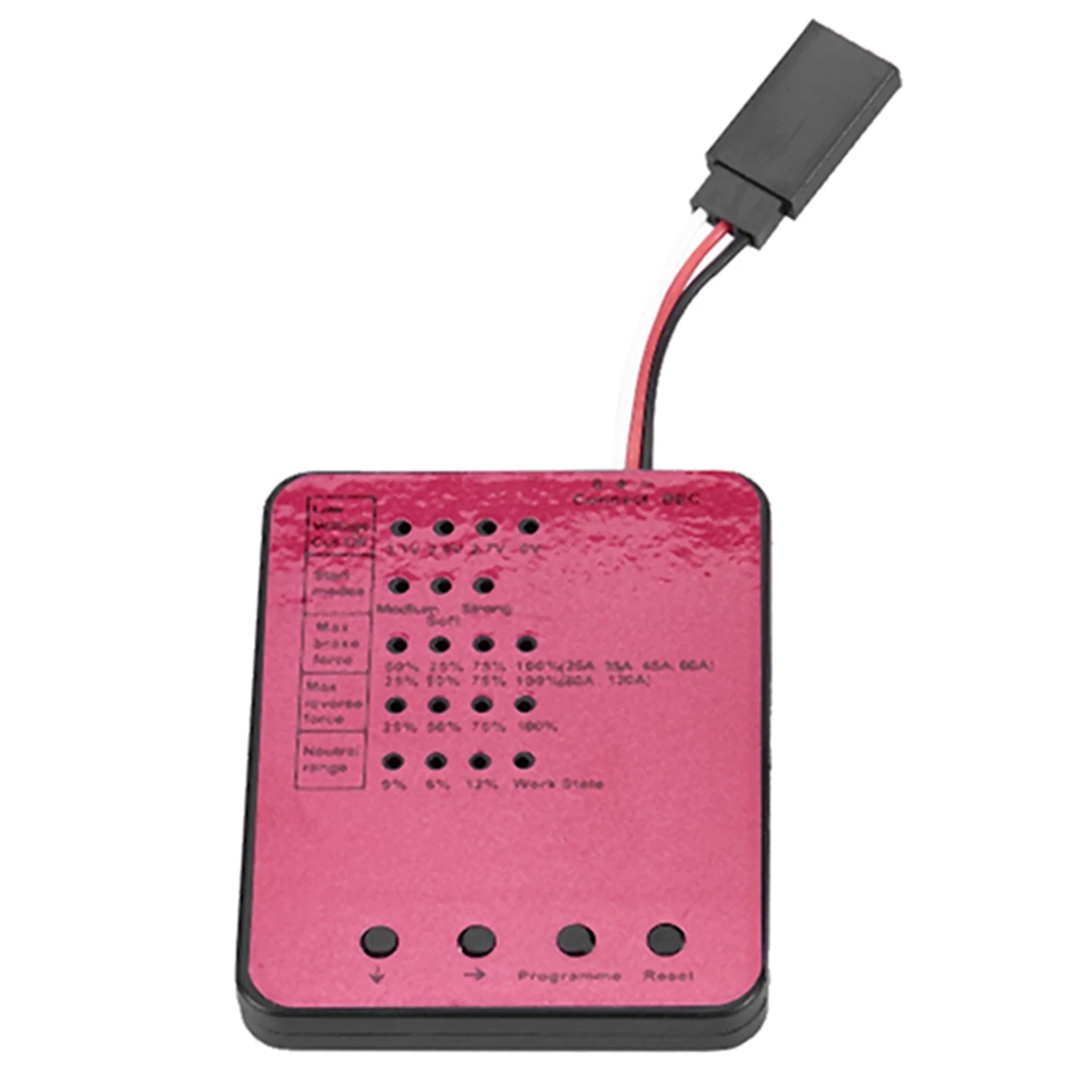

1* LED Program Card
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
