1 pcs RFID RC522 Reader IC Card Module Tags SPI Interface Read and Write Free / Drop Shipping

Features:
MF RC522 is applied to the highly integrated read and write
13.56MHz contactless communication card chip
Low-voltage, low-cost, small size of the non-contact card chip to read and write
Smart meters and portable handheld devices developed better choice
The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols
14443A compatible transponder signals
The digital part of to handle the ISO14443A frames and error detection.
support rapid CRYPTO1 encryption algorithm, terminology validation for products
MFRC522 support for series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s
MF RC522 are similar to MF RC500 MF RC530 , but also have the characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs
The MF522-AN module design circuit card reader, easy to use
Low cost, and applies to the user equipment development
The reader and advanced applications development meet the user RF card terminal design/production needs
This module can be directly loaded into the various reader molds, very convenient

Specification:
Operating Current :13-26mA/DC 3.3V
Idle Current :10-13mA/DC 3.3V
Sleep Current: <80uA
Peak Current: <30mA
Operating Frequency: 13.56MHz
Supported card types: for1 S50ifare1 S70ifare UltraLightifare Proifare Desfire
Environmental Operating Temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Data transfer rate: maximum 10Mbit/s
Size: RFID-RC522 Module:3.9 x 6 cm The Standard S50 Blank Card :8.5 x 5.4 cm
Diameter of S50 special-shaped card: 3.1(max)
Net weight: 67 g

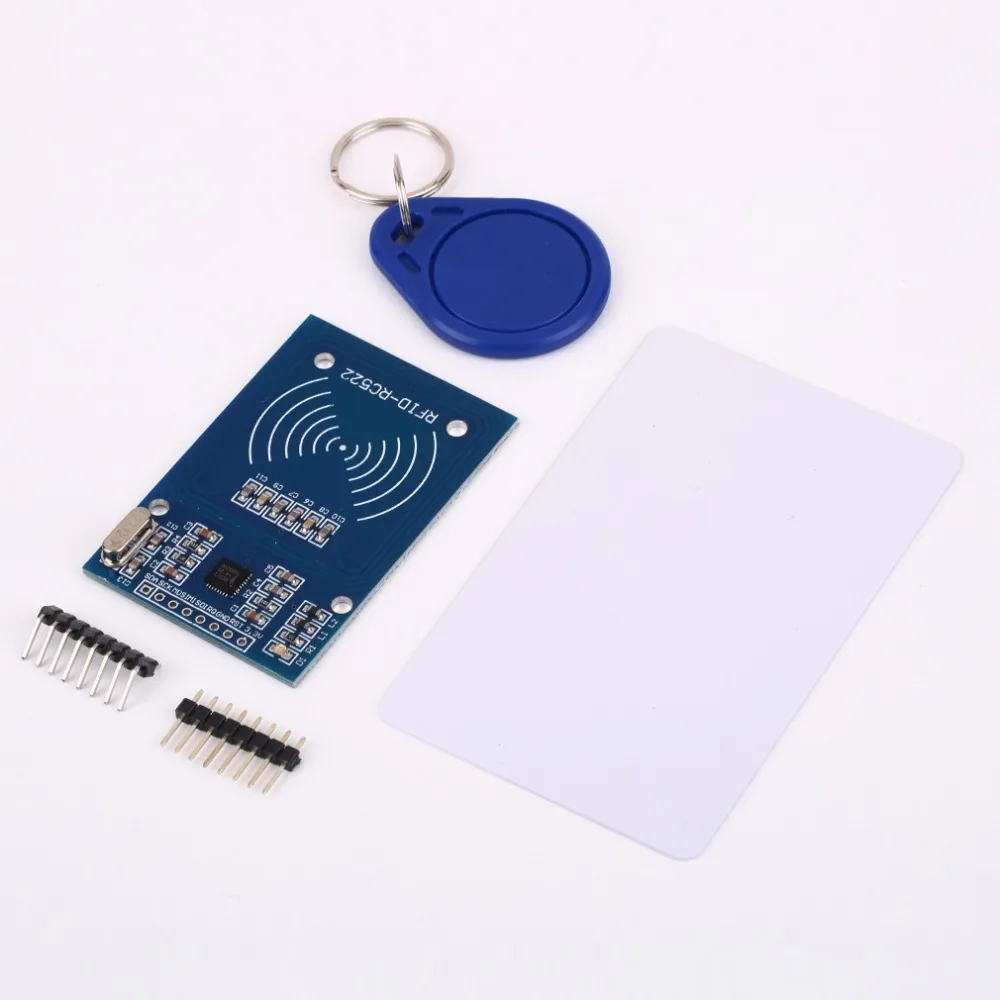

Package Included:

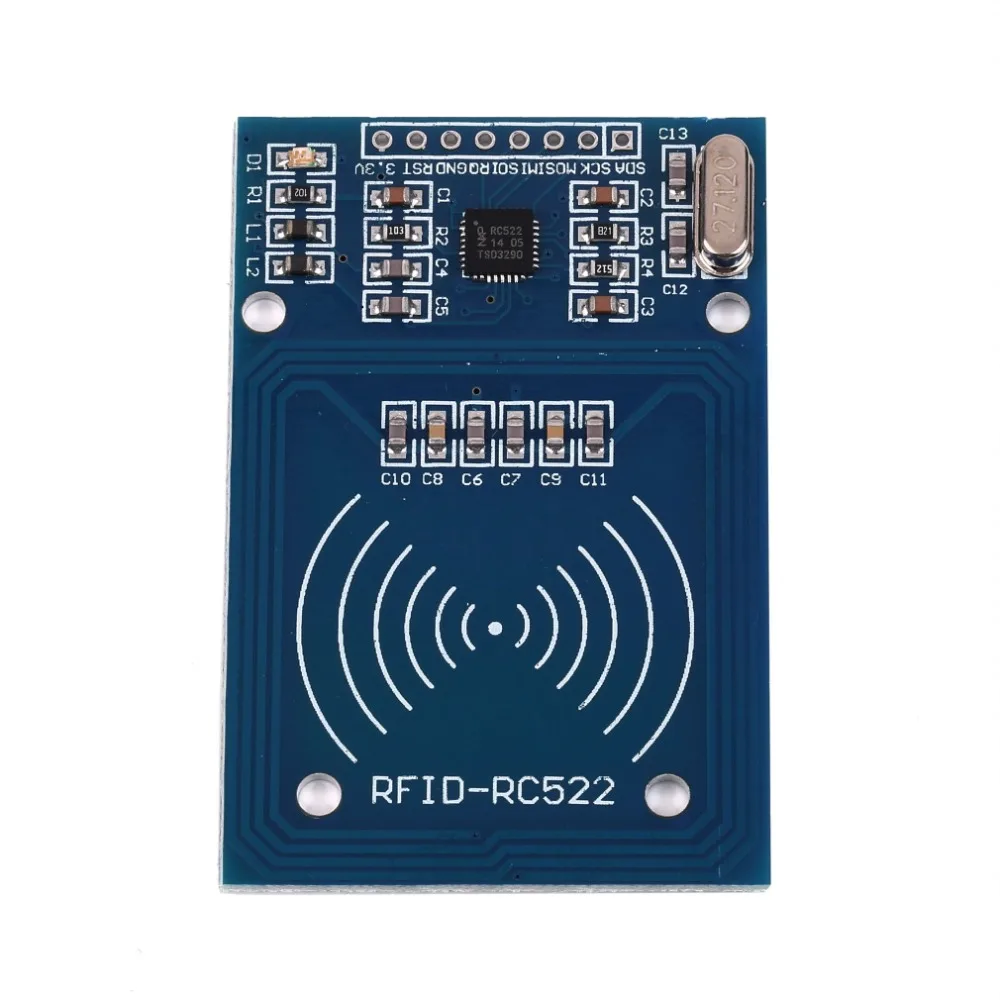

1 x A RFID-RC522 Module
1 x The Standard S50 Blank Card
1 x S50 special-shaped card (as shown by the key ring shape)

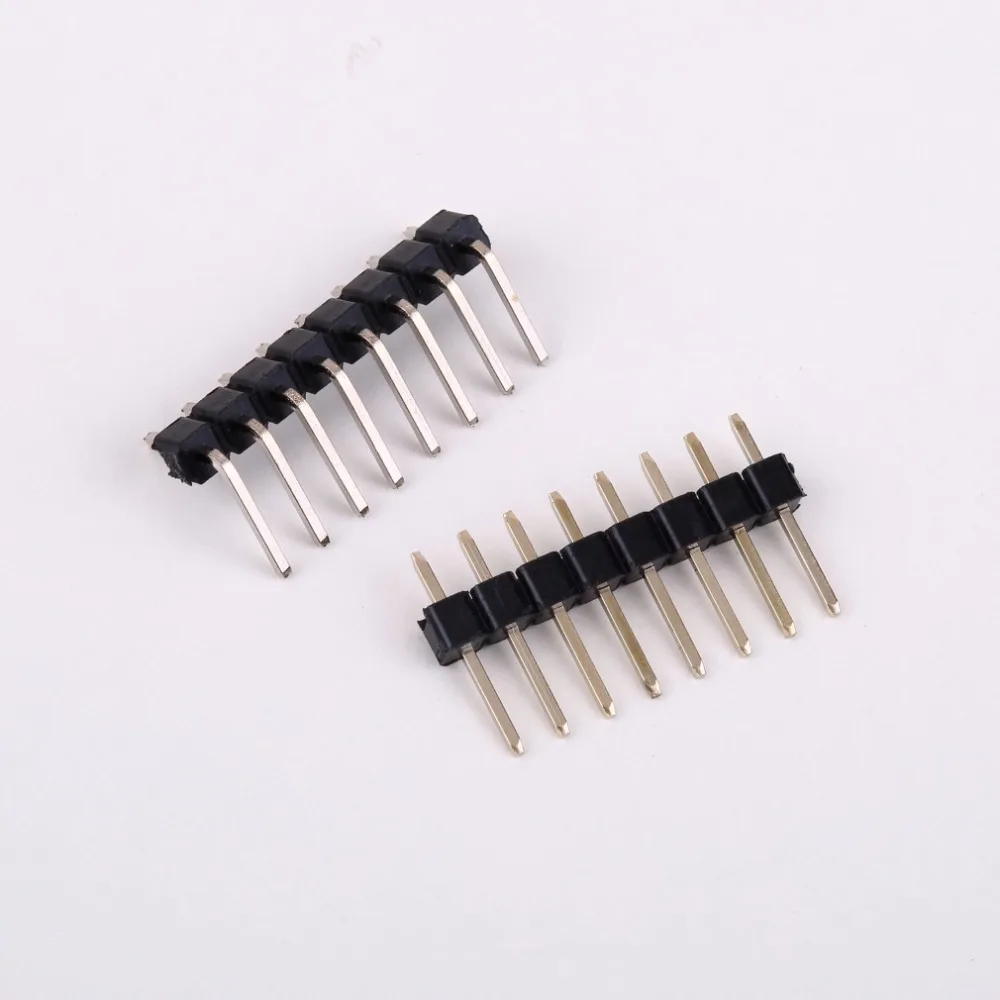

1 x straight Pin
1 x Curved Pin
