Touch LCD color screen 4g 3g TCP IP home security alarm WEB IE /APP control 4g intruder alarm TCP IP anti tamper 3g alarm

Main Features :

1. Large color  screen, LCD graphic display steps ,work status ,alarm process easy and intuitive .

2. Alarm mode : with internet network and GSM network alarm , GSM network with GPRS function , remote arm and disarm panel through CMS or SMS ,CID protocol ,SMS notification , the priority of internet network and 4G network is optional

3. GSM-hook and voice telephone with intercom function

4. All alarm information can be programmed by 16ways

5.Sleep mode design ,in sleep mode status ,all the lights ,LCD backlight,voice and prompt tone are disabled

6. Arm panel under idle status is equivalent to cellphone ,can  call throught the GSM network for balance inquiries

7. With associated zones , 8 groups assicoated zone , 2 kinds of association patterns , can  effectively reduce false alarm or for other functions .

8. PGM output : with a programmed output port ,followed by  5kinds of alarm event output

9. The doorbell audio optional : 1. Ding Dong    2. Welcome

10. Remote phone operation : Dilaing by telephone offsite , after password verification , can arm ,disarm ,listen in premise , system status query and electrical switches controls and other operations

11. Voice arm :  when panel alarm , it will audtomatically dial the preset user phone  numbers  to report alarm  information then can remote control the panel after enter user passwords

12.  32 wireless zones , each wireless zone can automatically  learn the codes or be coded manually via the keyboard and web operation

13.   8 wired zones , user can set the circuilt type and speed of response , support N.O , N.C

14. Enable enroll total  8  wireless remote , 16 electronic switch , 1 wireless doorbell  and unlimited for quantity of one way wireless siren , 1 wireless two way siren , 16 RFID tags

15. 6  follow me phone ( voice alarm receiving phone # ) , 2  for CMS , 4 for private alarm receiving .

16.  Status inspecition functions : enable record and inquiry  512 alarm event messages . Like the time when happens anti-tamper alarm ,detector alarm , tel-line off , arm , disarm , system setting ,batter low voltage ,etc . And also can inquiry  the zone number and arm type

17. Timing arm and disarm : 4 sets of timing arm and disarm time

18. Electrical switches control : user can remote switch on/off via phone or SMS , also can be controlled manually throught the local alarm panel .

19. Zone programmable : factory preset ofr each zone type . user can modify all the zone type according to the actual needs .

20. Clock :  Built in  full automatic calendar clock , set to local time consistent .

21. Password  access management : the panel has one administrator password 16 user  password , the administrator password primarily for system administrator  to set up the alarm system , the user passwords for users in the day to day user such arm/disarm ,remote operation . The administrator password ,user password can be freely modified

22. For CMS network alarm ,depending on the number of users , the user cab set four user codes ( account number )

23. Zone type identification : after an alarm is triggered , the alarm zone number displayed on the LCD screen of the  panel ,also can send the detailed report  to CMS which includes arm location and zone types

24. Alarm mode : stand - alone single-faily use by the ordinary telephone alarm , it cab also be connected to the internet with the alarm center by the computer alarm,alarm center automatically recognize and compatible with ordinary telephone alarm .

25. The tampering alarm : cut cable between wired detectors and the panel will trigger alarm

26. Anti-tamper function : when someone deliberately dismantled the panel , it will  alarm when triggering tamper switch at the back of the panel

27. CMS communication test : panel will send a message to CMS at the pre-set time interval to inspect the communication if normal

28. Siren options : built in siren , external wired siren , wireless siren . All sirens can be programmed as enable /disable when arms

29. The voice speaker volume adjustament : total 7 level,adjust the volume by a panel arrow keys

30. Wireless repeater function : can extend the distance between the detector and the panel by adding a wireless repeater

31. The wireless detector low battery prompted :

Detectors will send status report to the panel every 1-3 hours , the corresponding zone number and the battery voltage symbol will be displayed on the LCD screen  and also will report to CMS

32. Scanning the QR code from system to realized one app to remote control all system.

33. Support 32 Wireless zones can be link to 32 wifi camera. All alarm zones with alarm linkage function if be triggered. Auto snap the alarm image from the wifi camera devices, and auto backup the alarm video to SD card or P2P cloud server.

34.All the alarm zones can be edit by the users. and show the new zone name from GSM sms, APP client or CMS platform.

35.Users can recevie the alarming from app, auto recording the video from app after alarming.Freely to check all the alarming events recording, event from TF card.

Technical parameters:

◎ Power supply: 15V/2000mA


◎ Built-in rechargeable battery: 11.1V/1000mah ( it will have low battery indication when battery voltage lower than 9.6V)

◎ Static state current: <50 mA (not include wired detector current)

◎ Alarm current: <300 mA (not include external high sound siren current)

◎ Maximum output current: ≤100mA (provide power to wired detector)

◎ Emitting frequency: 433MHz

◎ Wireless receiving/emitting range: in the open air (100-150meters)

◎ Alarm mode: Internet, 4G,3G,GSM/GPRS

◎ Resistance can be triggered alarm with -40%  to + 40%

◎ Alarm is delay setting

◎ Communication protocol with CMS ; Ademco Contact ID

◎ DTMF frequency deviation :  < 1.5 %

◎ Recording time: 20s

◎Built-in TCP/IP module

4G TCP IP Alarm panel *1

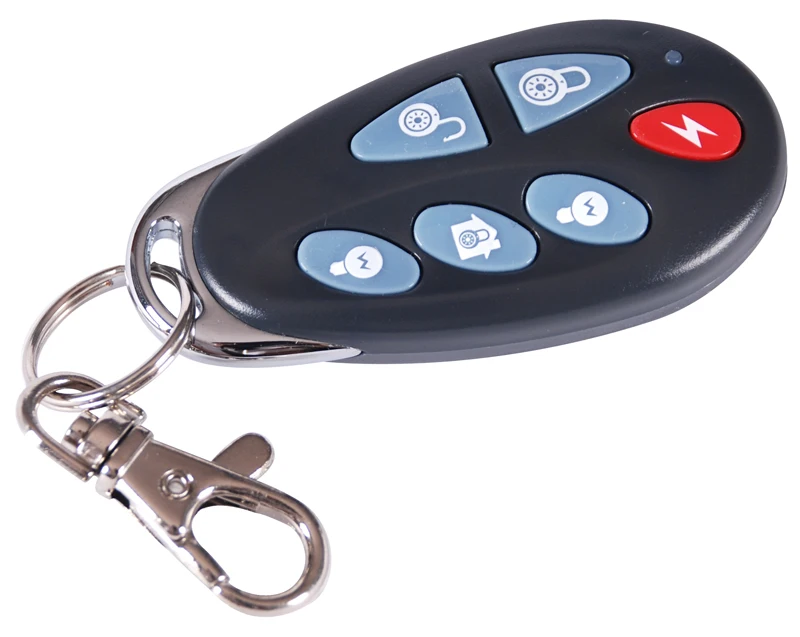

PB-403R Remote control *2

RFID Tags *2
