QIACHIP Wireless RF Wall Panel Transmitter and AC 110V 220V 433 Mhz 2button Channel Remote Control Rounded Switch Receiver

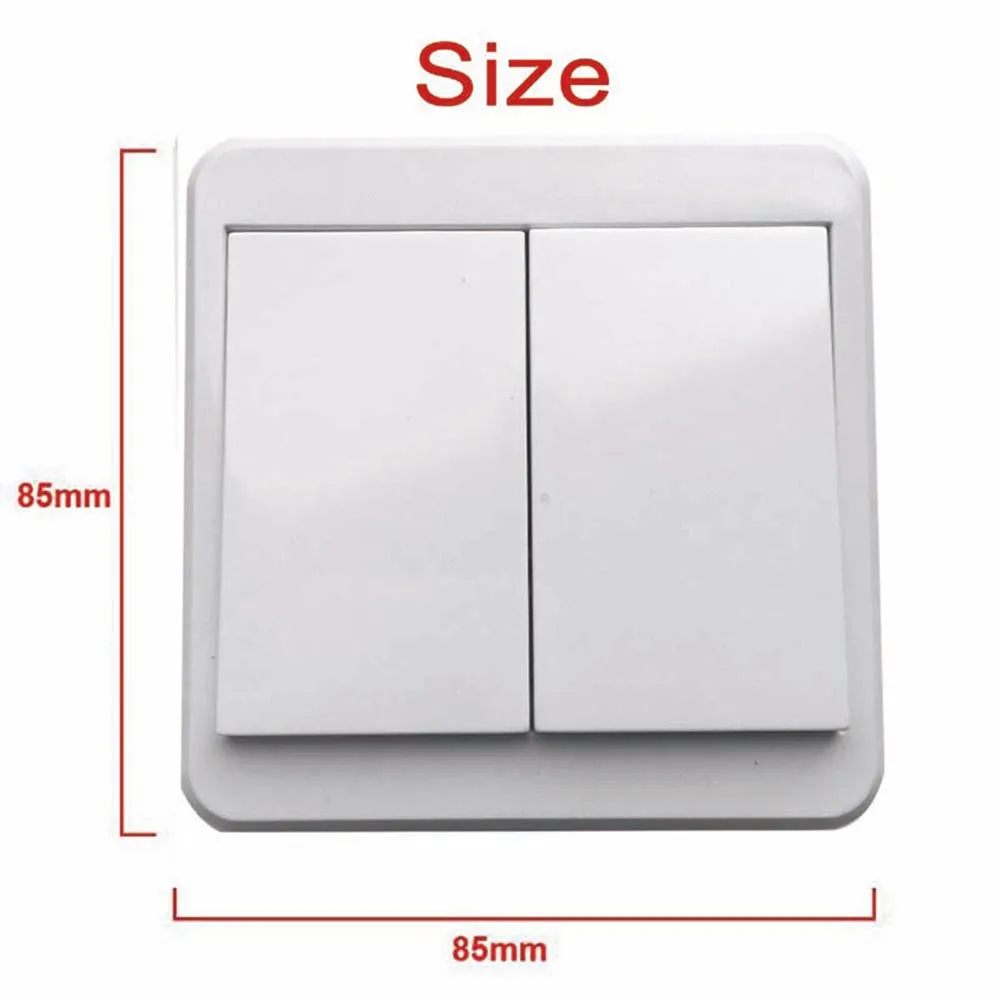

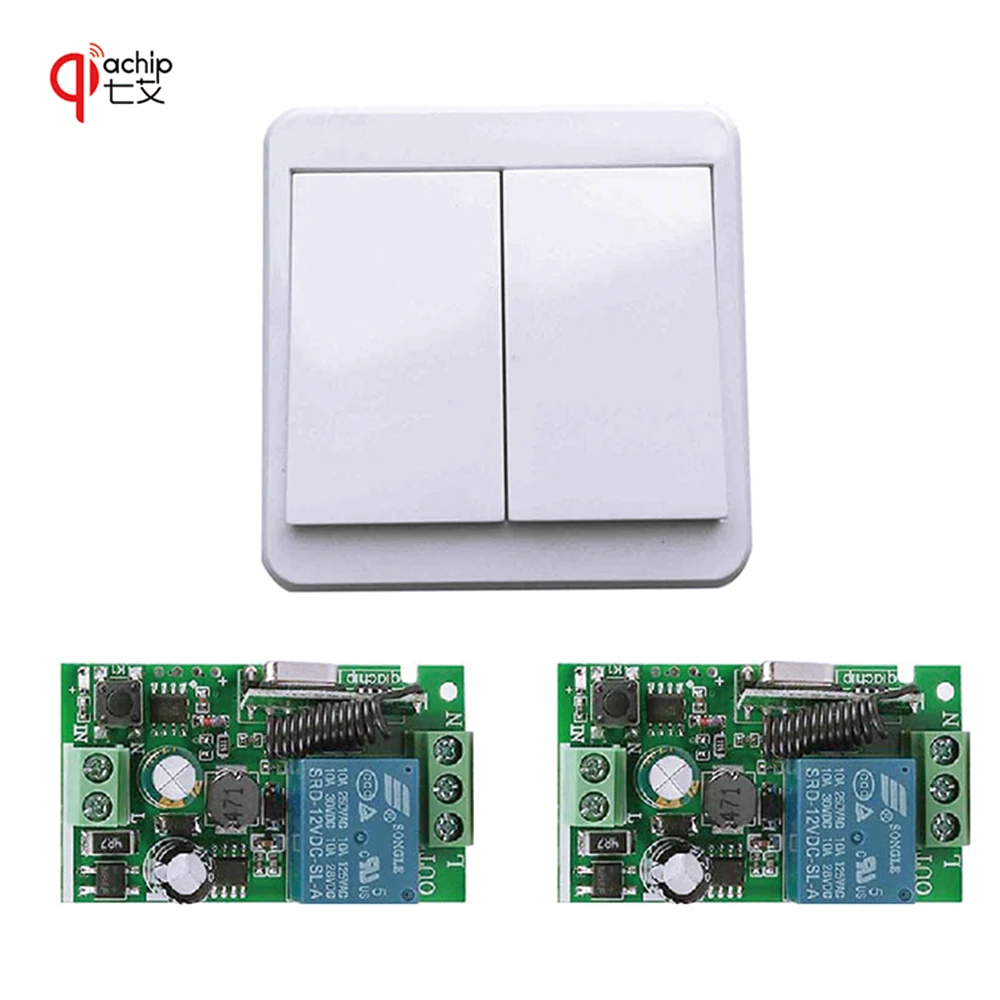

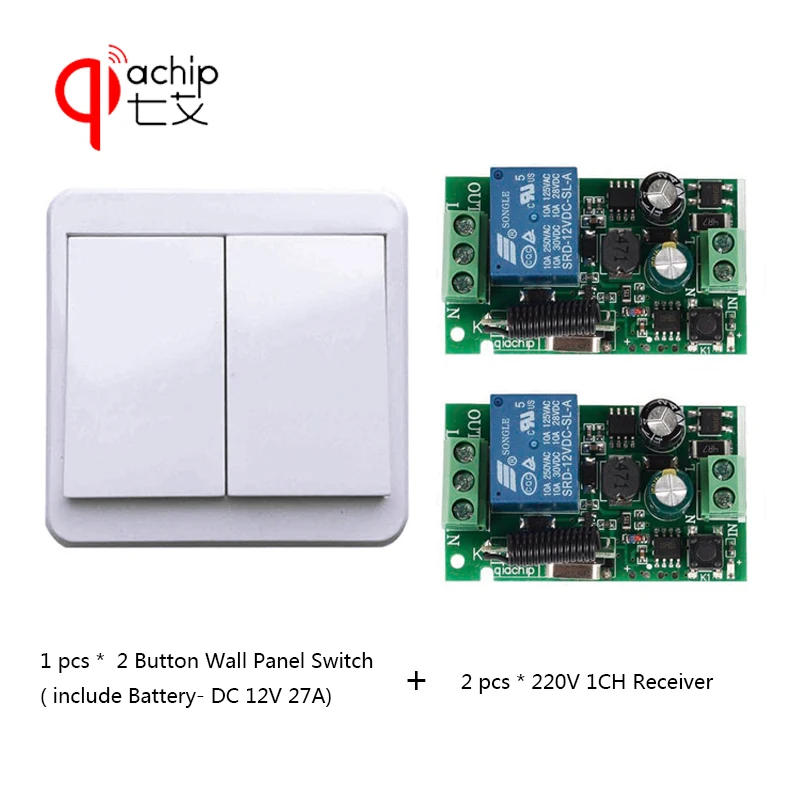

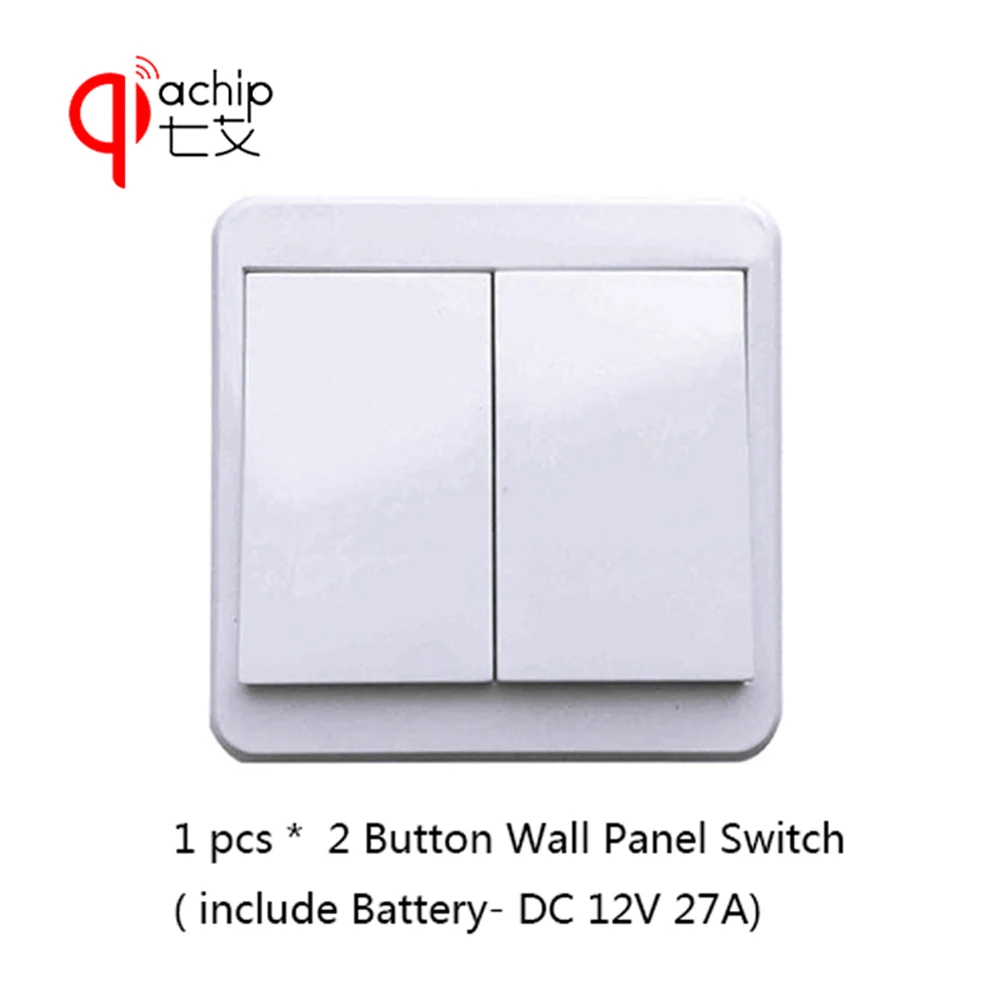

A.1 pcs *  2 Button Wall Panel Switch (include Battery- DC 12V 27A)

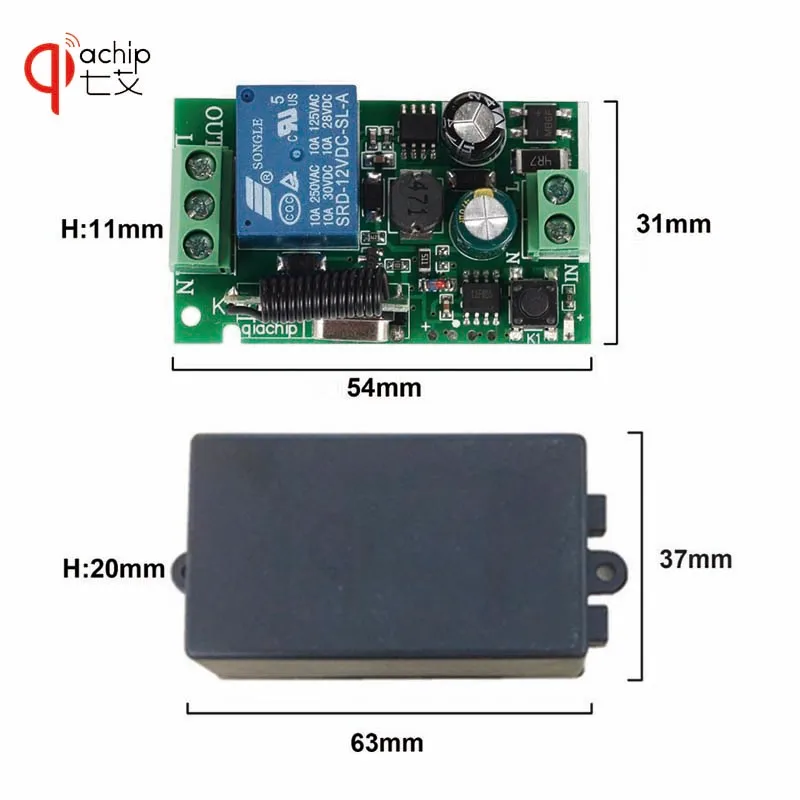

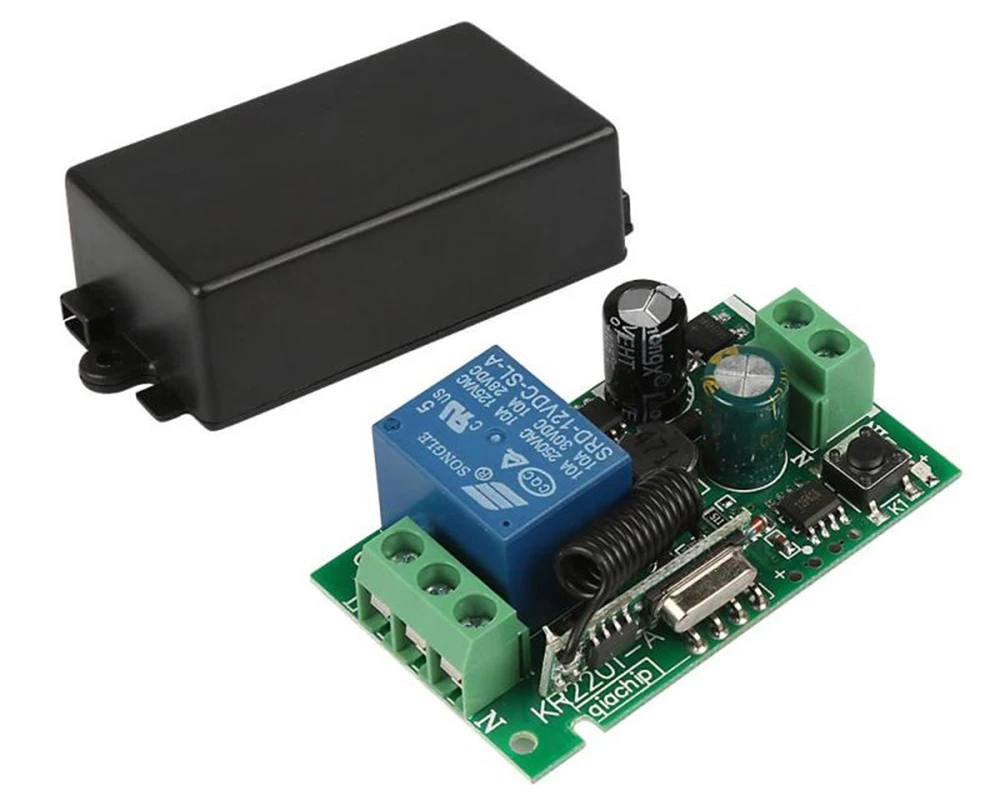

         2 pcs *  220V 1CH Receiver

B.1 pcs *  2 Button Wall Panel Switch (include Battery- DC 12V 27A)

C.1 pcs *  220V 1CH Receiver

How to use? ( Please check the video in Computer, cell phone is not supported )

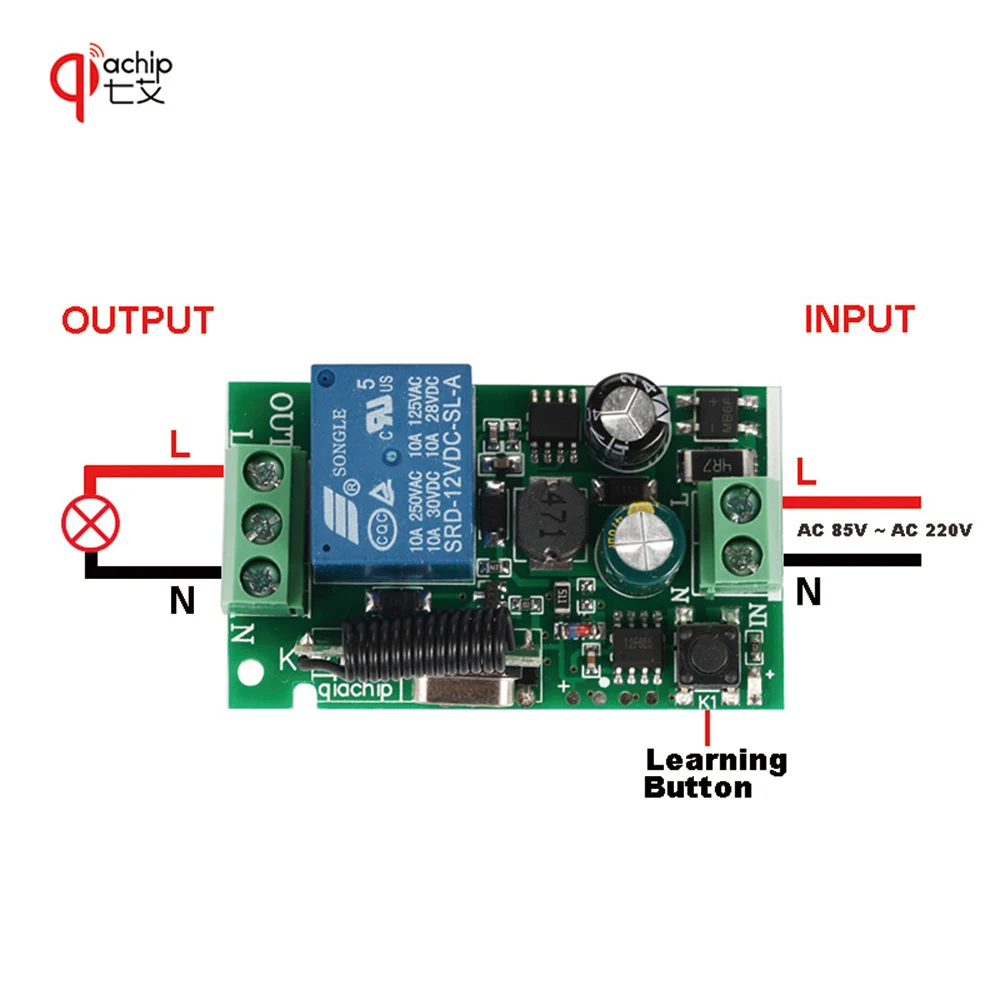

The first step:Clear the receiver's memory

Press the Learning Button on the receivers for 8 times, the codes will be cleaned.

After cleaning the code, all the remote control cannot work anymore.

Step Two: Match Wall Panel Remote Transmitter and Receiver

Press the learning key on the receiver twice time, it comes into toggle setting mode.

Wait for a moment, the LED will be on , it comes into learning state.

Press the remote button, LED indicator on the receiver board will flash then come off.

Learning successfully.
