OLG02 is an open source dual channels LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The
LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity.

OLG02 has Rich Internet Connection method such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

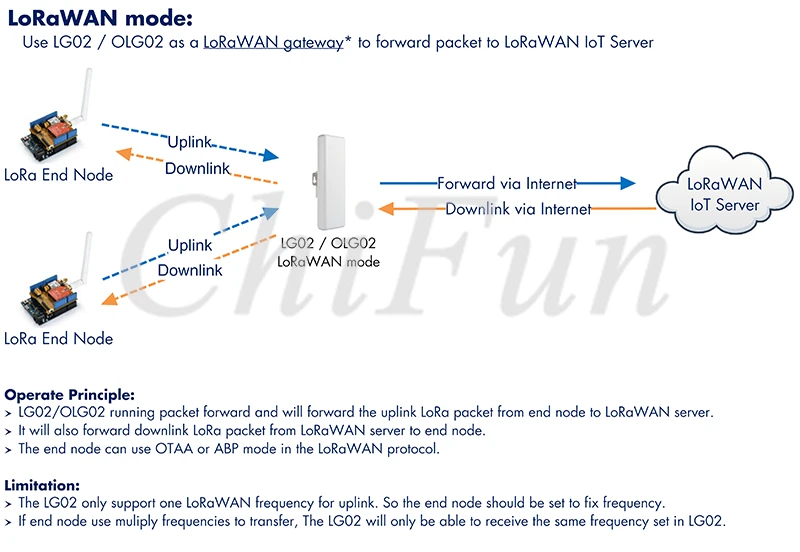

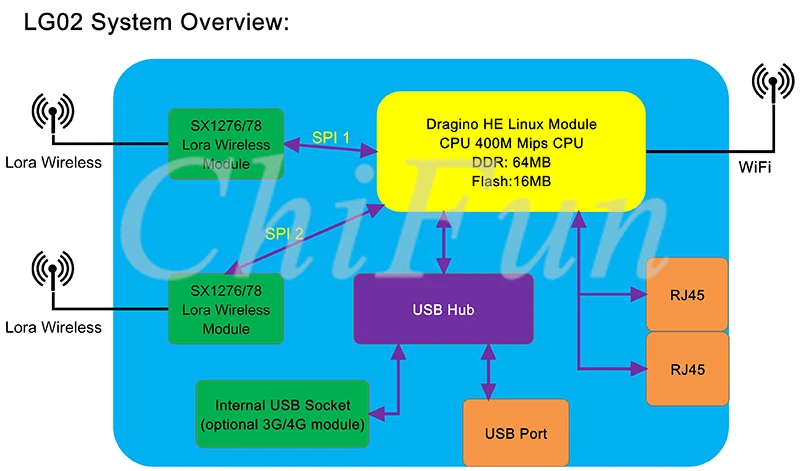

OLG02 can support the LoRaWAN protocol in single frequency and customized LoRa transmit protocol. The design of OLG02 is use the Linux to directly control two sx1276/sx1278 LoRa modules which lets the LoRa can works in full duplex LoRa mode and increase the communication efficiency.

OLG02 can be used to provide a low cost IoT wireless solution to support 50~300 sensor nodes.

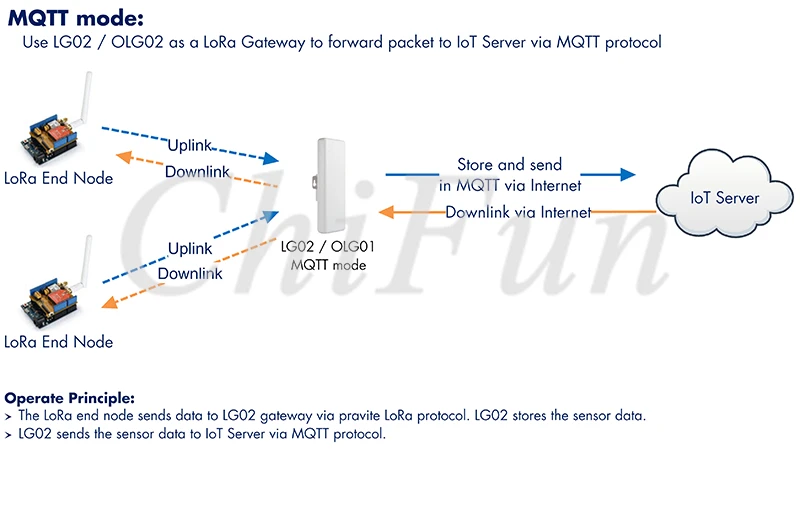

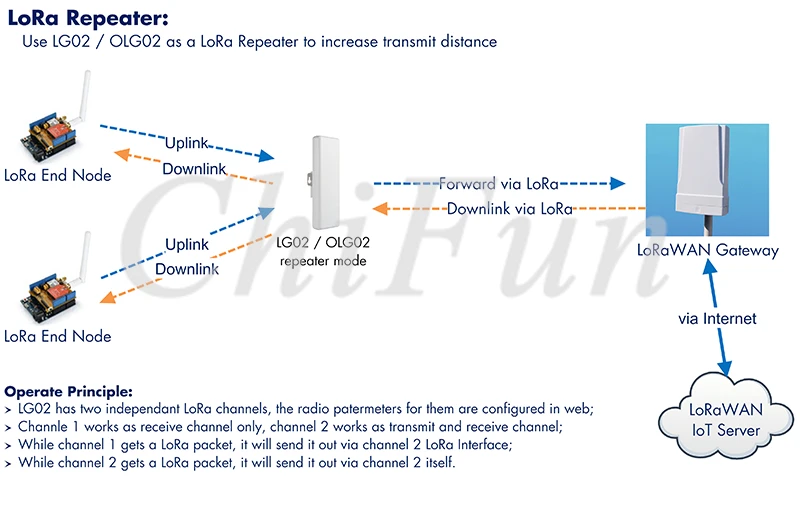

Except LoRaWAN mode, OLG02 can support mutiply working mode  such as: LoRa repeater mode, MQTT mode, TCP/IP Client mode, TCP/IP Server mode to fit different requirement for IoT connection. Click this link for more info about the modes.

OLG02 base on sx1276 solution which provide a low cost for your IoT network connection. Compare to the cost with normal SX1301 LoRaWAN solution. OLG02 is only of its 1/4 or less cost. This make the OLG02 very suitable to set up small scale LoRa network or use it to extend the coverage of current LoRaWAN network.

    433: Best Tuned at 433Mhz
    868: Best Tuned at 868Mhz
    915: Best Tuned at 915Mhz
