Good choice 1212 1218 1224 4x8ft cnc router metal cutting machine

email: info3(@)chinsailcnc.com, whatsapp/skype: +86 180 5360 9593

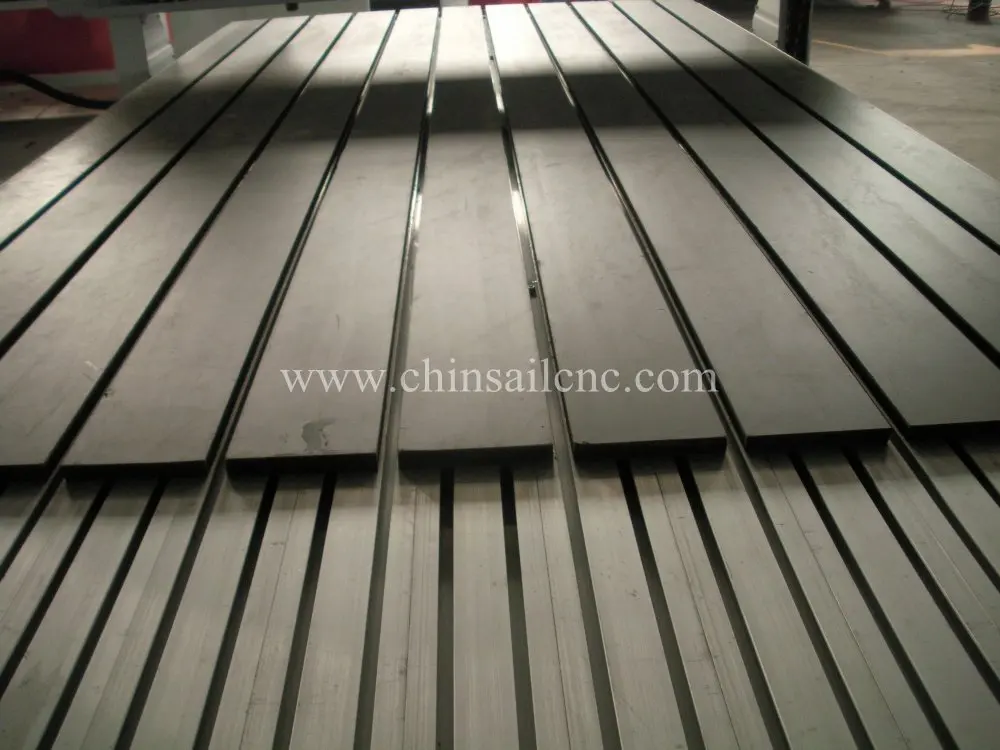

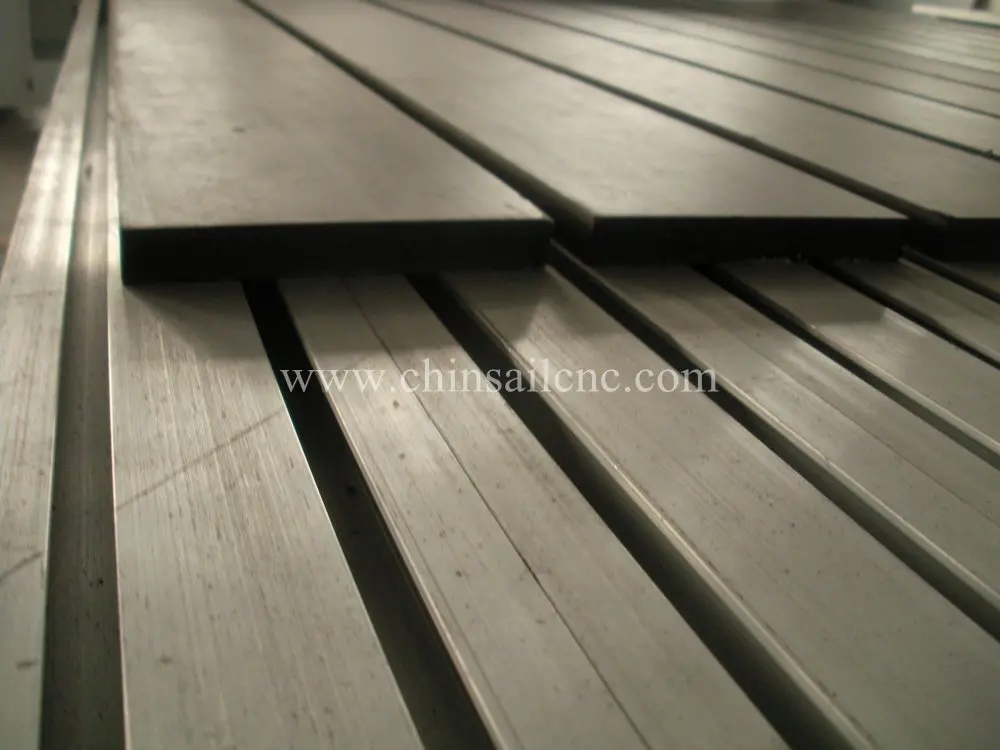

cnc router 1224 with T-slot table

cnc router 1224 with vacuum table

Features of cnc router machine

1.high accuracy ball bearing guide screw of taiwan,minimize the slit.

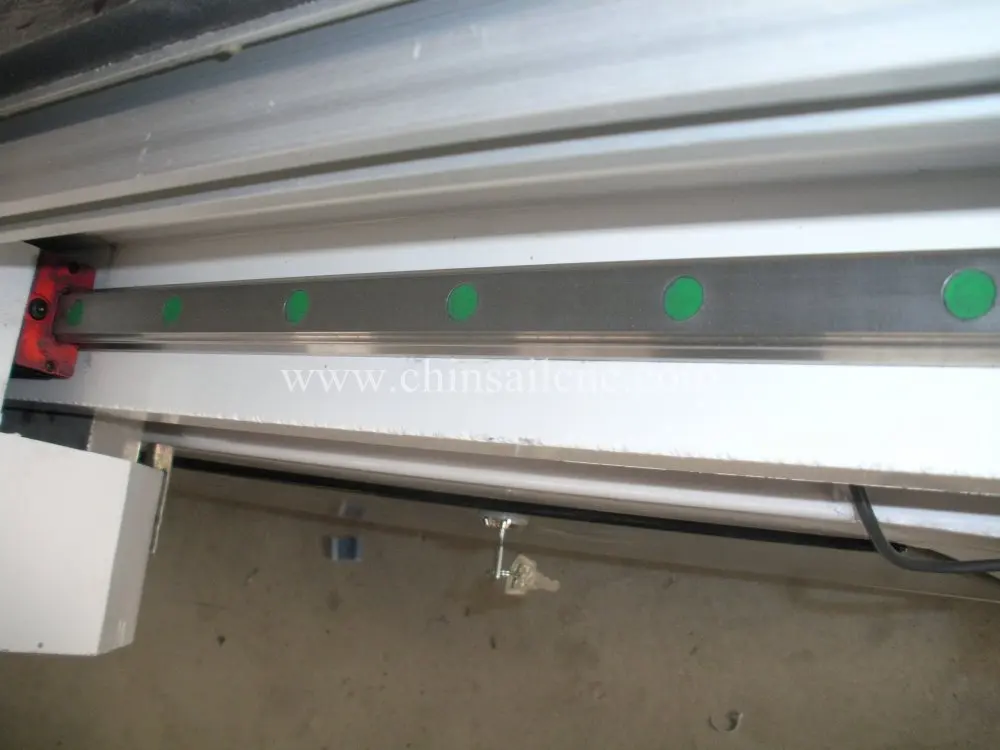

2.imported linear rail,self lubricating glide.

3.our routers have the features of recarving after stop and the power failure may be restored.

4.unique preservation way of the zero point.

5.use for long time and no distortion.

6.this type is suitable for advertisement.

Application of Cnc Router Machine

1).Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,light-box mold,stamp,mound,etc.
2). Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
3). Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.

Technical parameter of Cnc Router Machine

 Technical parameters of cnc router machine

CXG1224 cnc router

X,Y,Z Working Area

1200x2400x120mm

Z feed Height

120mm (200mm / 250mm / 300mm / 350mm  heighten Gantry for optional)

X,Y,Z Traveling   Positioning Accuracy

±0.01/300mm

X,Y,Z   repositioning Positioning Accuracy

±0.01mm

Table   Surface

T-slot table or vacuum table

Frame

Iron cast structure

X, Z Structure

Hiwin Rail   Linear Bearings and TBI Ball Screw

Y Structure

Hiwin Rail   Linear Bearings and TBI Ball Screw

Max. power   Consumption

2.0Kw

Max.Rapid Travel   Rate

1000mm/min

Max.Working   Speed

5000mm/min

Spindle Power

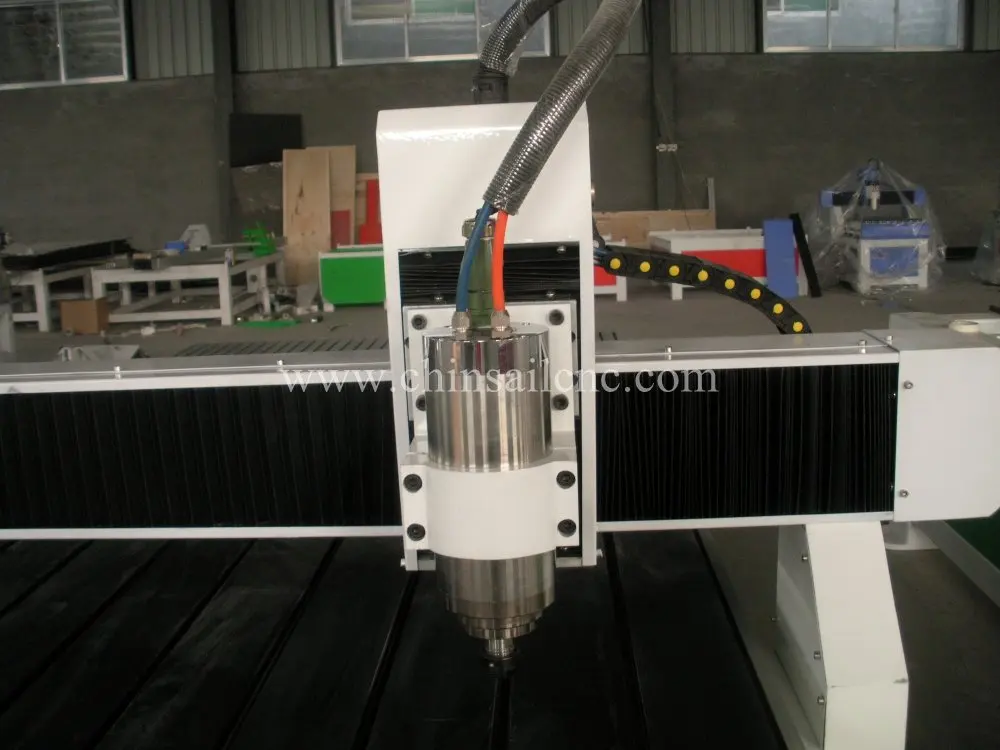

3.0 Kw water cooling spindle

Spindle Speed

6000-24000RPM

Drive Motors

Stepper system (option: Servo)

Working   Voltage

AC220V/50/60Hz (380V option)

Command Language

G code

Operating System:

Nc studio (options: DSP /Mach3 PC Software)

X,Y Resolution

 <0.01mm

Software Compatability

Type3 software (   option: Wentai software, Artcam software)

Running   Environment

Temperature:   0-45°C Relative humidity: 30%-75%

After-sale service of cnc router machine

1.Professional technical suggestion before you order a machine
2.2 years quality guaranty, the machine with main parts(excluding the consumables)
3.18-hour technical support by email or calling
4.Completed machine manual and CD will be provided together with machine

Package & Shipping

Why choose CHINSAIL products?

Shandong Chinsail Machinery Co., Ltd has professionally produced Plasma cutting machine Cnc Router ,Cnc Laser for more than 12 years.In the fiercely competitive enviroment,our company invest a lot of funding for researching and development of new products and build a professional after-sale team.

Shandong Chinsail Machinery Co., Ltd will bring you high-quality machine,professional service and quick response.

Contact

email: info3(@)chinsailcnc.com, whatsapp/skype: +86 180 5360 9593

If you have any questions of cnc machines, feel free to contact me, I will be here waiting for you all the time!
