Dahua Original IPC-HDBW2431E-S 4MP HD POE SD Card Slot H.265 IP67 IK10 30M IR Starlight IVS WDR Upgradeable Mini Dome IP Camera

1. About camera :

This model is 100% original Dahua IP camera ,it support firmware updating !

2. About shipment :

If you can order ≥ 4pcs cameras , we will try to send items via fast shipping for free .
We will choose the best shipping method for your order according to our experience as different countries has different shipping rules . Besides , wish you kindly understand that we could not remove the shipping cost for you if your shipping cost is too high .

3. About service :

Please contact our customer service if any doubt , We can support Skype/WhatsApp/WeChat , please contact our customer service to get the ID because we can't leave any contact information here as the rule of aliexpress .

4MP WDR IR Mini Dome Network Camera

> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440)@25/30 fps,  max. supports 4MP (2688 ×   1520) @ 20 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 30 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection

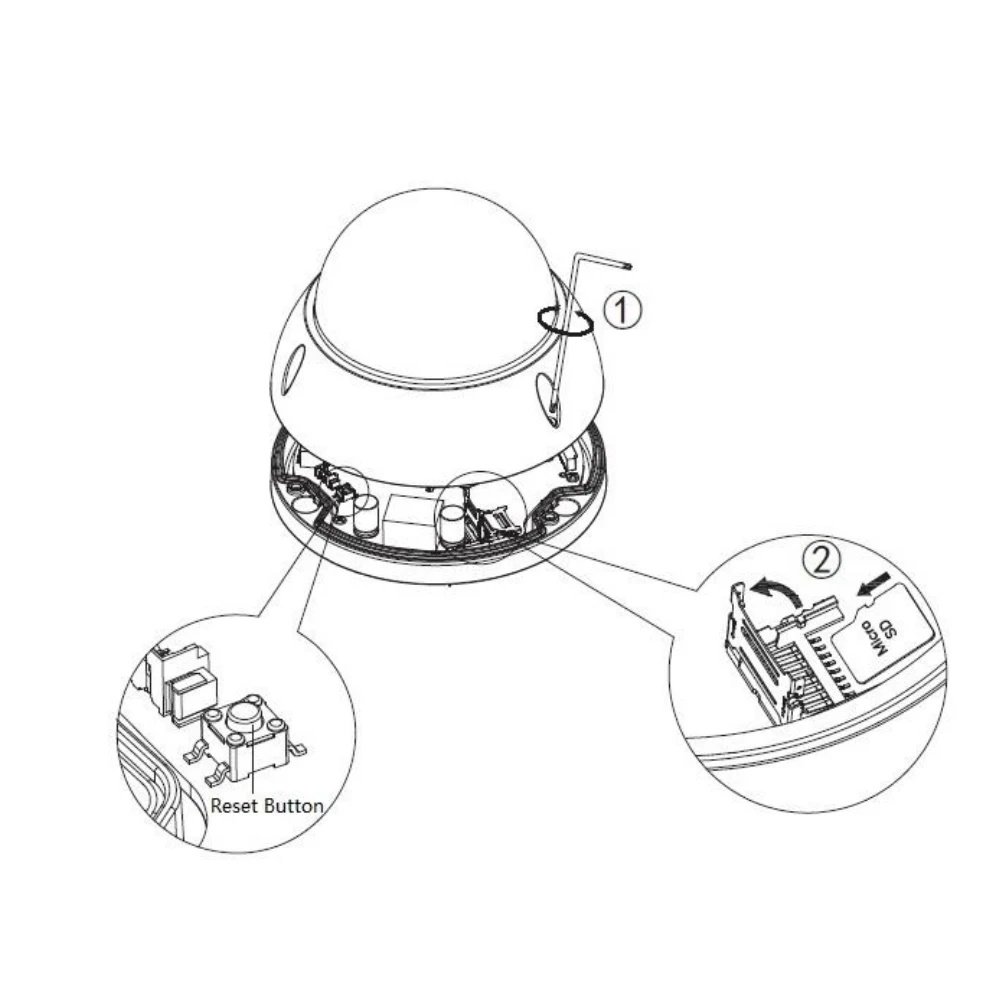

> Supports max. 256 GB Micro SD card
> 12V DC/PoE power support
> IP67, IK10 protection grade

Model:  IPC-HDBW2431E-S-S2

1.Camera:
Image Sensor:  1/3” 4Megapixel progressive CMOS
Effective Pixels:  2688 (H) × 1520 (V)
ROM:  128 MB
RAM:  128 MB
Scanning System:  Progressive
Electronic Shutter Speed:  Auto/Manual 1/3 s-1/100000 s
Min. Illumination:  0.008 Lux @ F1.6
IR Distance:  30 m (98.43 ft)
IR On/Off Control:  Auto/Manual
IR LEDs Number:  3
Pan/Tilt/Rotation Range:  Horizonal: 0°-355°
 Vertical: 0°-65°
 Rotation: 0°-355°

2.Lens:
Lens Type:  Fixed
Mount Type:  M12
Focal Length:  2.8 mm/3.6 mm
Max. Aperture:  F1.6
Field of View:
2.8 mm:Horizonal: 102.0°/Vertical: 55.0°/Diagonal: 121.0°
3.6 mm:Horizonal: 84.0°/Vertical: 45.0°/Diagonal: 100.0°
Iris Type:  Fixed aperture
Close Focus Distance:
2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)

3.Smart Event:
General IVS Analytics:  Intrusion; tripwire

4.Video:
Video Compression:  H.265; H.264; H.264B; MJPEG
Smart Codec:  Yes
Video Frame Rate:  Main stream:2688 × 1520 (1 fps-20 fps)/2560 × 1440 (1 fps-25/30 fps)
 Sub stream:704 × 576 (1 fps-25 fps)/704 × 480 (1 fps-30 fps)
Stream Capability:  2 streams
Resolution:  2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
Bit Rate Control:  CBR/VBR
Video Bit Rate:  H.264: 32 kbps-6144 kbps
 H.265: 12 kbps-6144 kbps
Day/Night:  Auto(ICR)/Color/B/W
BLC:  Yes
HLC:  Yes
WDR:  120 dB
White Balance:  Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control:  Auto/Manual
Noise Reduction:  3D DNR
Motion Detection:  OFF/ON (4 areas, rectangular)
Region of Interest(RoI):  Yes (4 areas)
Smart IR:  Yes
Image Rotation:  0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution.)
Mirror:  Yes
Privacy Masking:  4 areas

5.Network:
Network:  RJ-45 (10/100 Base-T)
Protocol:  IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability:  ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene self-adaptation:  20
User/Host:  20
Edge Storage:  Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser:  IE/Chrome/Firefox
Smart PSS; DSS; DMSS
Mobile Phone:  IOS; Android

6.Certification:
Certifications:  CE-LVD: EN60950-1
 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
 FCC: 47 CFR FCC Part 15, Subpart B
 UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

7.Power:
Power Supply:  12V DC/PoE (802.3af)
Power Consumption:  < 5.2W

8.Environment:
Operating Conditions:  -40°C to +60°C (-40°F to +140°F)/less than ≤ 95 %
Storage Temperature:  -40°C to +60°C (-40°F to +140°F)
Protection Grade:  IP67, IK10

9.Structure:
Casing:  Metal

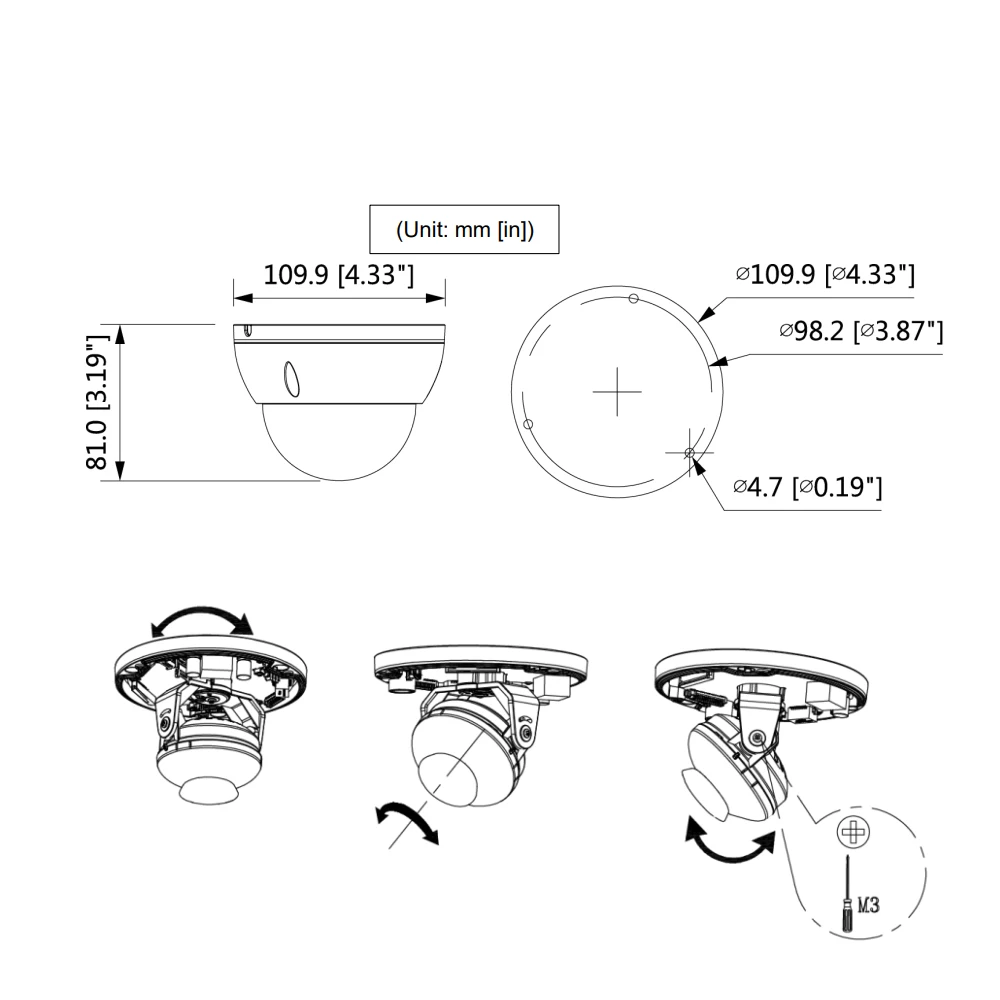

Dimensions:  81 mm × Φ109.9 mm (3.19" × Φ4.33")
Net Weight:  0.350 kg (0.77 lb)
Gross Weight:  0.491 kg (1.08 lb)

1. Original 4MP IPC-HDBW2431E-S-S2 Starlight Dome IP Camera*1

2. Original Accessories
