Dahua Original IPC-HDBW4431F-AS 4MP HD POE Built in MiC SD Card Slot H.265 IP67 IK10 Starlight IVS Upgradeable Dome IP Camera

1. About camera :

This model is 100% original Dahua IP camera ,it support firmware updating !

2. About shipment :

If you can order ≥ 4pcs cameras , we will try to send items via fast shipping for free .
We will choose the best shipping method for your order according to our experience as different countries has different shipping rules . Besides , wish you kindly understand that we could not remove the shipping cost for you if your shipping cost is too high .

3. About service :

Please contact our customer service if any doubt , We can support Skype/WhatsApp/WeChat , please contact our customer service to get the ID because we can't leave any contact information here as the rule of aliexpress .

4MP IR Mini Dome Network Camera

> 1/3” 4Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@4M(2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm, 6mm optional)
> Max. IR LEDs Length 20m
> Micro SD memory, IP67, IK10, PoE

Model:  IPC-HDBW4431F-AS-S2

1.Camera:
Image Sensor:  1/3” 4Megapixel progressive scan CMOS
Effective Pixels:  2688(H)x1520(V)
RAM/ROM:  512MB/32MB
Scanning System:  Progressive
Electronic Shutter Speed:  Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination:  0.08Lux/F2.0( Color,1/3s,30IRE)/0.3Lux/2.0( Color,1/30s,30IRE)/0Lux/F2.0(IR on)
S/N Ratio:  More than 50dB
IR Distance:  Distance up to 20m (66ft)
IR On/Off Control:  Auto/ Manual
IR LEDs:  10

2.Lens:
Lens Type:  Fixed
Mount Type:  Board-in
Focal Length:  2.8mm (3.6mm, 6mm optional)
Max. Aperture:  F2.0 (F2.0, F2.0)
Angle of View:  H: 104° (87°, 55°), V: 57° (48°, 31°)
Optical Zoom:  N/A
Focus Control:  Fixed
Close Focus Distance:  N/A

3.Pan/Tilt/Rotation:
Pan/Tilt/Rotation Range:  Pan:0˚~60˚; Tilt:0˚~80˚; Rotation:0˚~360˚

4.Intelligence:
IVS:  Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions:  Face Detection

5.Video:
Compression:  H.265+/H.265/H.264+/H.264
Streaming Capability:  3 Streams
Resolution:  4M(2688×1520)/3M(2304×1296)/1080P(1920×1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Frame Rate:  Main Stream: 4M(1~25/30fps)/Sub Stream: D1(1~25/30fps)/Third Stream: 720P(1~25/30fps)
Bit Rate Control:  CBR/VBR
Bit Rate:  H.264: 24~10240Kbps
H.265: 14~9984Kbps
Day/Night:  Auto(ICR) / Color / B/W
BLC Mode:  BLC / HLC / WDR(120dB)
White Balance:  Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control:  Auto/Manual
Noise Reduction:  3D DNR
Motion Detetion:  Off / On (4 Zone, Rectangle)
Region of Interest:  Off / On (4 Zone)
Electronic Image Stabilization (EIS):  N/A
Smart IR:  Support
Defog:  N/A
Digital Zoom:  16x
Flip:  0°/90°/180°/270°
Mirror:  Off / On
Privacy Masking:  Off / On (4 Area, Rectangle)

6.Audio:
Compression:  G.711a/ G.711Mu/ AAC/ G.726

7.Network:
Ethernet:  RJ-45 (10/100Base-T)
Protocol:  HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP
Interoperability:  ONVIF, PSIA, CGI
Streaming Method:  Unicast / Multicast
Max. User Access:  10 Users /20 Users
Edge Storage:  NAS/Local PC for instant recording/Mirco SD card 128GB
Web Viewer:  IE, Chrome, Firefox, Safari
Management Software:  Smart PSS, DSS, Easy4ip
Smart Phone:  IOS, Android

8.Certifications:
Certifications:  CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

9.Interface:
Video Interface:  N/A
Audio Interface:  Built-in Mic
RS485:  N/A
Alarm:  N/A

10.Electrical:
Power Supply:  DC12V, PoE (802.3af)(Class 0)
Power Consumption:  <4.5W

11.Environmental:
Operating Conditions:  -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions:  -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection:  IP67
Vandal Resistance:  IK10

12.Construction:
Casing:  Metal

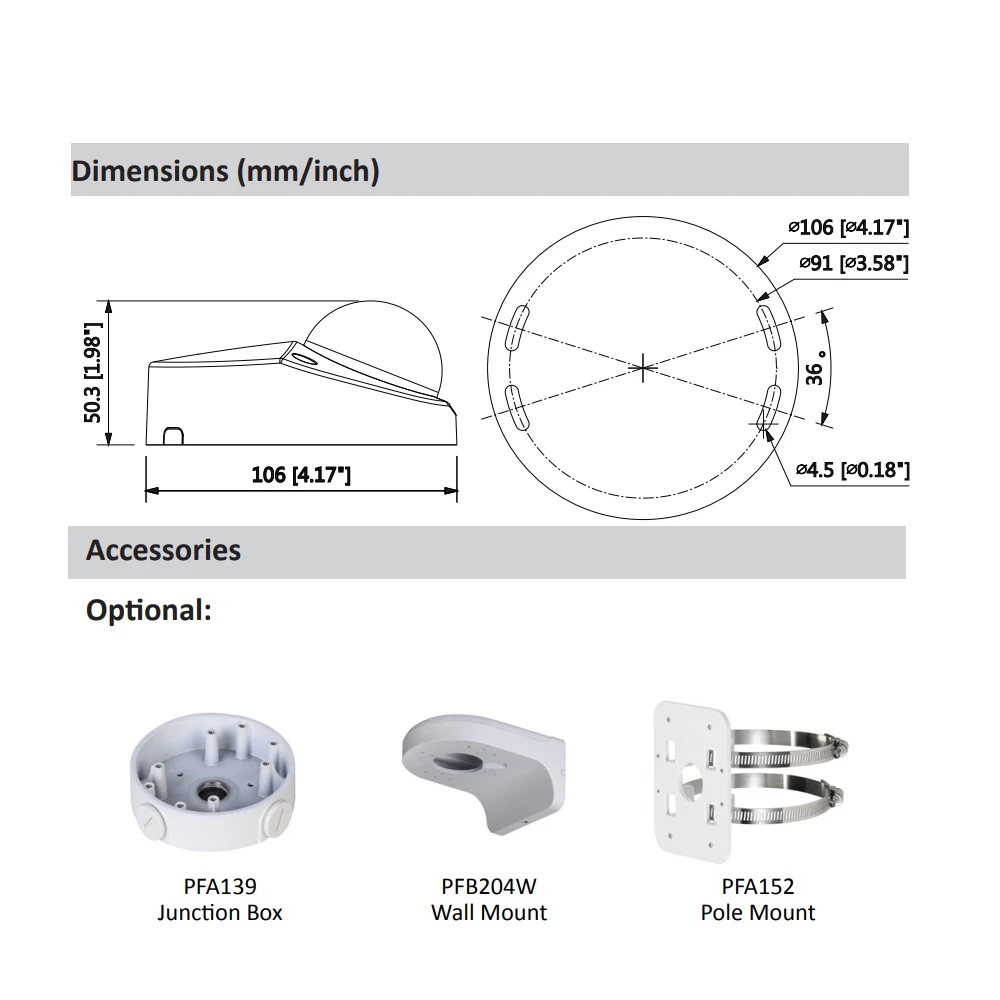

Dimensions:  Φ106mm×50.3mm (4.17”×1.98”)
Net Weight:  0.4kg (0.88lb)
Gross Weight:  0.44kg (0.97lb)

1. Original 4MP IPC-HDBW4431F-AS Dome IP Camera*1

2. Original Accessories
