Dahua Original IPC-HDBW3541F-AS-M 5MP Lite AI POE Built-in Mic SD Card Slot H.265 50M IR Onvif IP67 IK10 Starlight IP Camera

1. About camera :

This model with logo is 100% original Dahua IP camera ,it support firmware updating !

2. About shipment :

If you can order ≥ 4pcs cameras , we will try to send items via fast shipping for free .
We will choose the best shipping method for your order according to our experience as different countries has different shipping rules . Besides , wish you kindly understand that we could not remove the shipping cost for you if your shipping cost is too high .

3. About service :

Please contact our customer service if any doubt , We can support Skype/WhatsApp/WeChat , please contact our customer service to get the ID because we can't leave any contact information here as the rule of aliexpress .

5MP Lite AI IR Fixed focal Dome Network Camera
> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 5MP (2592 × 1944)@20 fps
> H.265 codec, high compression rate, low bit rate
> Built-in IR LED, max. IR distance: 50 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Supports max. 256 G Micro SD card, built-in Mic
> 12V DC/POE power support
> IP67, IK10 protection
> SMD

Model:  IPC-HDBW3541F-AS-M

1.Camera:
Image Sensor:  1/2.7”5Megapixel progressive CMOS
Effective Pixels:  2592 (H) ×1944 (V)
ROM:  128 MB
RAM:  512 MB
Scanning System:  Progressive
Electronic Shutter Speed:  Auto/Manual 1/3 s-1/100000 s
Min. Illumination:  0.005 Lux@F1.6
IR Distance:  50 m (164.0 ft)
IR On/Off Control:  Auto/Manual
IR LEDs Number:  8 (IR LEDs)
Pan/Tilt/Rotation Range:  Horizontal: -30° to 30°; vertical: 0° to 80°; rotation: 0° to 360°

2.Lens:
Lens Type:  Fixed focal
Mount Type:  M12
Focal Length:  2.8 mm; 3.6 mm; 6 mm
Max. Aperture:  F1.6
Field of View:
2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°
3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°
6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°
Iris Type:  Fixed aperture
Close Focus Distance:
2.8 mm: 0.9 m (3.0 ft)
 3.6 mm: 1.6 m (5.3 ft)
 6 mm: 3.2 m (10.5 ft)

3.Professional, Intelligent:
Perimeter Protection:  Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search:  Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

4.Video:
Video Compression:  H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec:  Yes
Video Frame Rate:  Main stream (2592 × 1944@1-20 fps)/ (2688 × 1520@1-25/30 fps)
 sub stream (704 × 576@1-25/30 fps)
 third stream (1280 × 720@1-25/30 fps)
Stream Capability:  3 streams
Resolution:  5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control:  CBR/VBR
Video Bit Rate:  H.264: 3 Kbps-8192 Kbps
 H.265: 3 Kbps-8192 Kbps
Day/Night:  Auto(ICR)/Color/B/W
BLC:  Yes
HLC:  Yes
WDR:  120 dB
White Balance:  Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control:  Auto/Manual
Noise Reduction:  3D DNR
Motion Detection:  OFF/ON (4 areas, rectangular)
Region of Interest(RoI):  Yes (4 areas)
Smart IR:  Yes
Image Rotation:  0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Mirror:  Yes
Privacy Masking:  4 areas

5.Audio:
Built-in MIC:  Yes
Audio Compression:  G.711a; G.711Mu; G726; AAC

6.Network:
Network:  RJ-45 (10/100 Base-T)
Protocol:  IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Interoperability:  ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene Self-adaptation:  Yes
User/Host:  20 (Total bandwidth: 64 M)
Edge Storage:  FTP; SFTP;Micro SD Card (support max. 256 G);Cloud; NAS
Browser:  IE: IE8, IE9, IE11 Chrome Firefox
Management Software:  Smart PSS, DSS, DMSS
Mobile Phone:  IOS; Android

7.Certification:
Certifications:  CE-LVD: EN60950-1
 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
 FCC: 47 CFR FCC Part 15, Subpart B

8.Power:
Power Supply:  12V DC/PoE (802.3af)
Power Consumption:  <5.7W

9.Environment:
Operating Conditions:  -40°C to +60°C (-40°F to +140°F)/ less than≤95%
Strorage Conditions:  -40°C to +60°C (-40°F to +140°F)
Ingress Protection:  IP67; IK10

10.Structure:
Casing:  Metal + Plastic

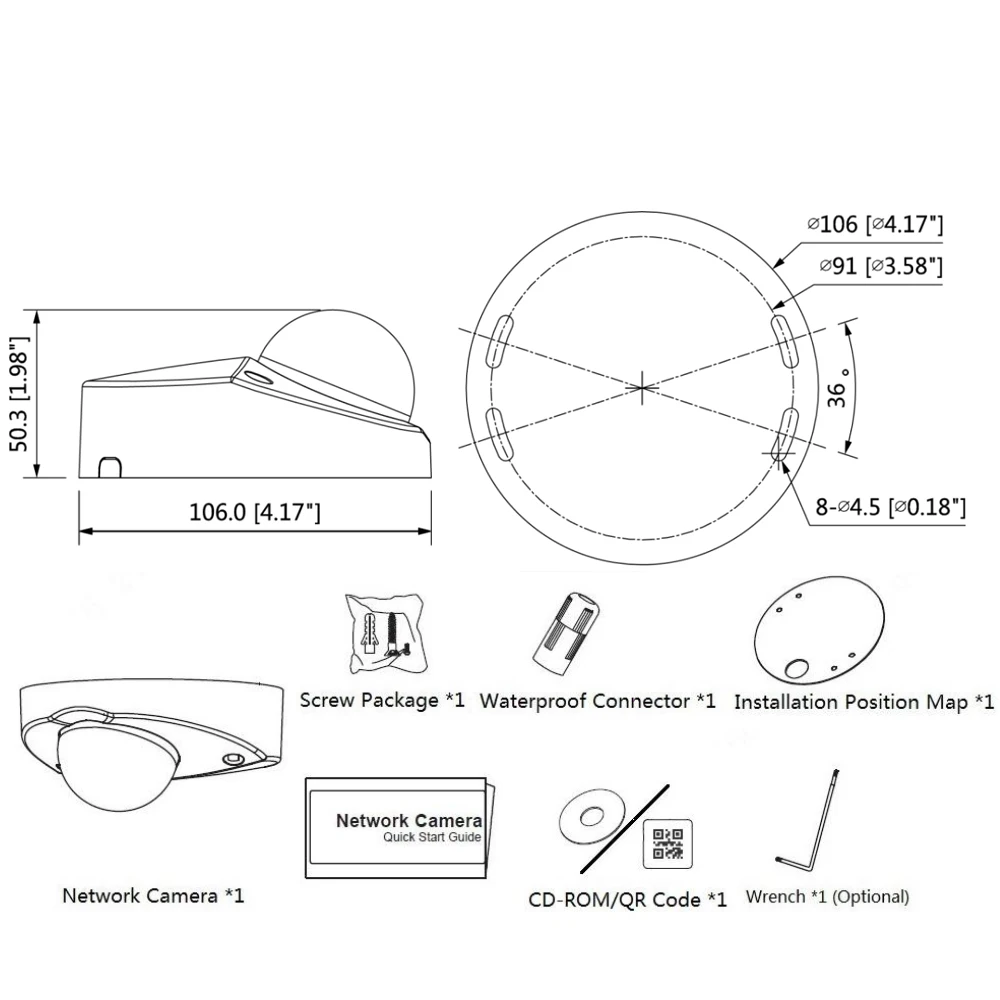

Dimensions:  55 mm × Φ108.9 mm (2.2" × Φ4.3")
Net Weight:  380 g (0.8 lb)
Gross Weight:  520 g (1.1 lb)

1. Original IPC-HDBW3541F-AS-M 5MP Lite AI Dome IP Camera*1 or without logo version *1

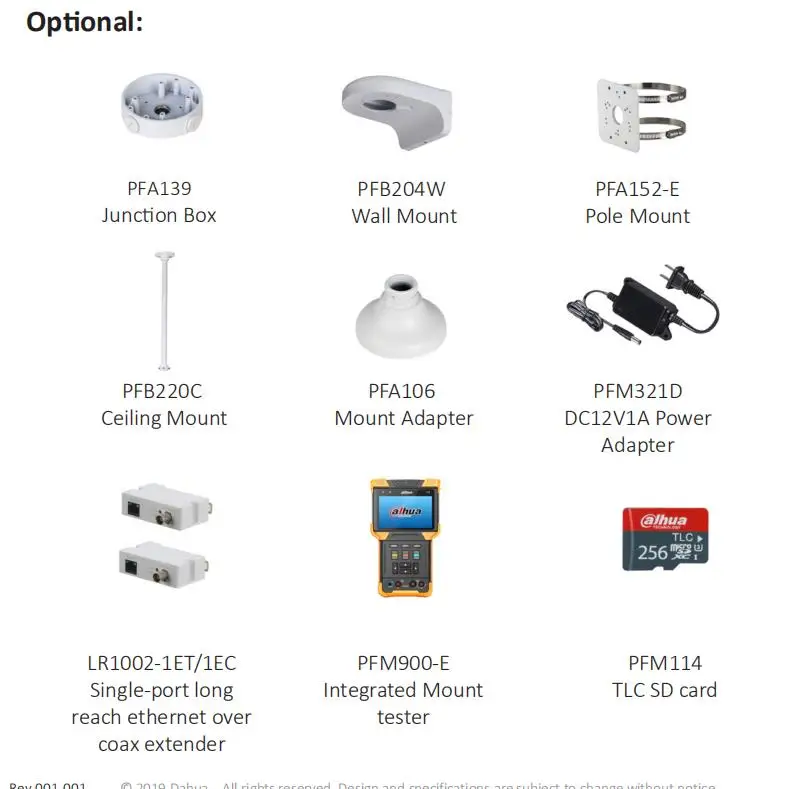

2. Original Accessories
