Introduction:

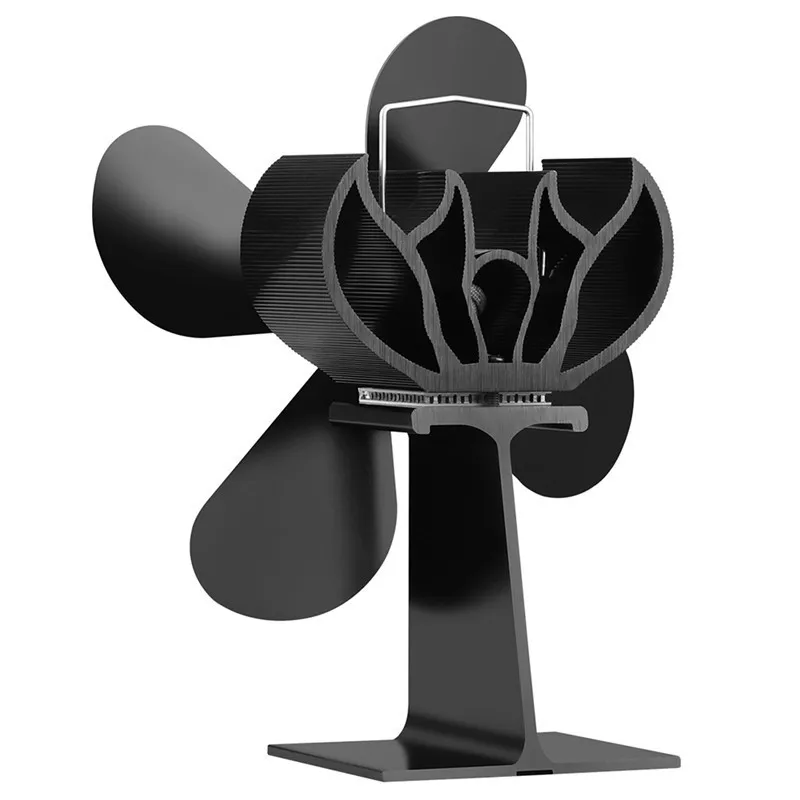

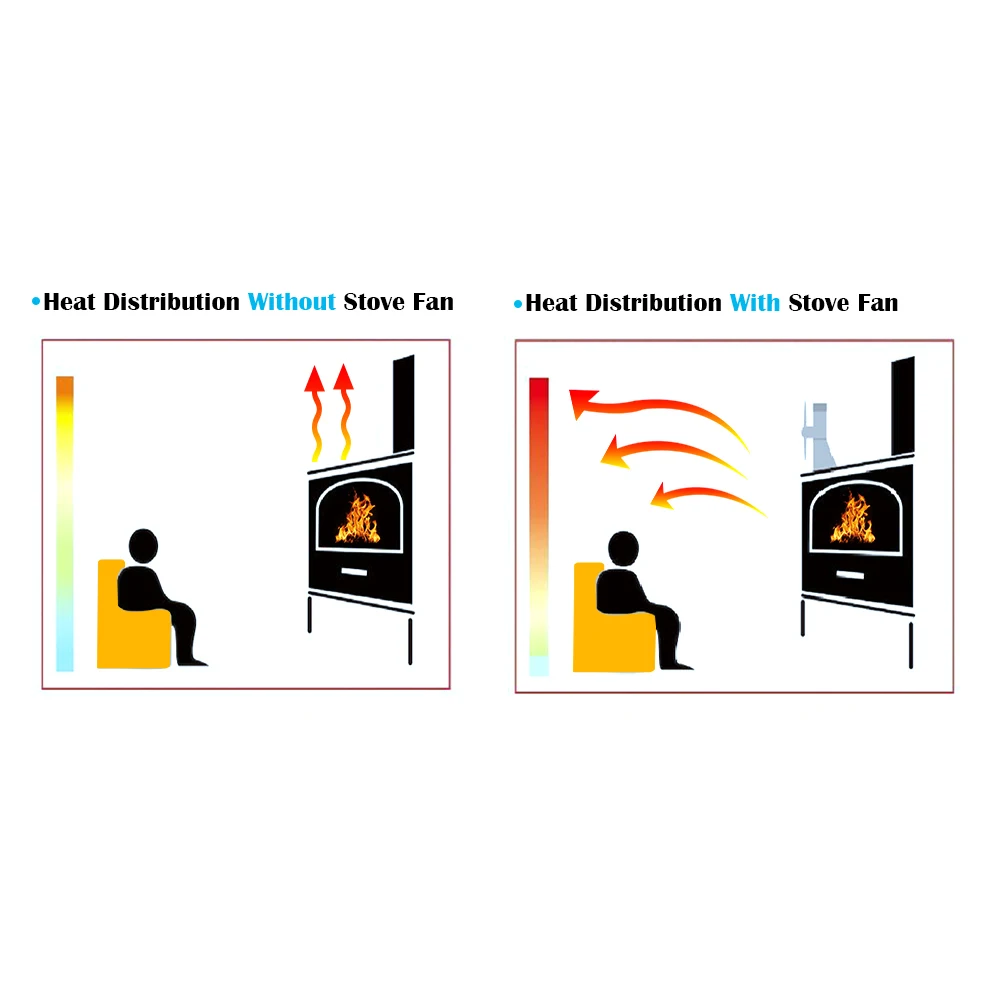

Heat powered fans designed to circulate the warm air through out your room. increasing the heating efficiency of your stove.you can enjoy the warm air faster. These fans do not use batteries or electricity.

Installation:

1. Easy operation,ready to use out of the box
2. Ensure lifting handle is upright before placing on the stove
3. Please DO NOT place the fan in front of the chimney or near the chimney,the temperature around chimney pipe is very high,it may cause damage of your fan.The optimum position is at the side or back part of the stove top.
4. The stove fan starts automatically and adjusts its speed with the stove temperature,the hotter,the faster it runs to circulate the warm air through out the room
5. The optimum running temperature is 60~370℃(140~698℉）,stove thermometer is recommended been used to monitor the temperature to avoid damage to your fan
6. Please only use this product with the free standing stoves,as it is not suitable for inset stove or other stove that has heat insulation design on the top

Safety:

1. Please keep Children away from the stove fan while it is working.
2. The stove fan will get very hot during working.Do not touch any part of the fan.To move or carry the fan,always use the lift handle while wearing gloves
3. Please make sure that the fan has completely cooled down before being placed on an unprotected surface
4. Remove the fan from the stove if the temperature exceeds 698°F / 370°C,or it may damage the fan and
the electricity generating units
5. Featured blade design, safe and efficient, moving more air at a wider range of stove temperature.

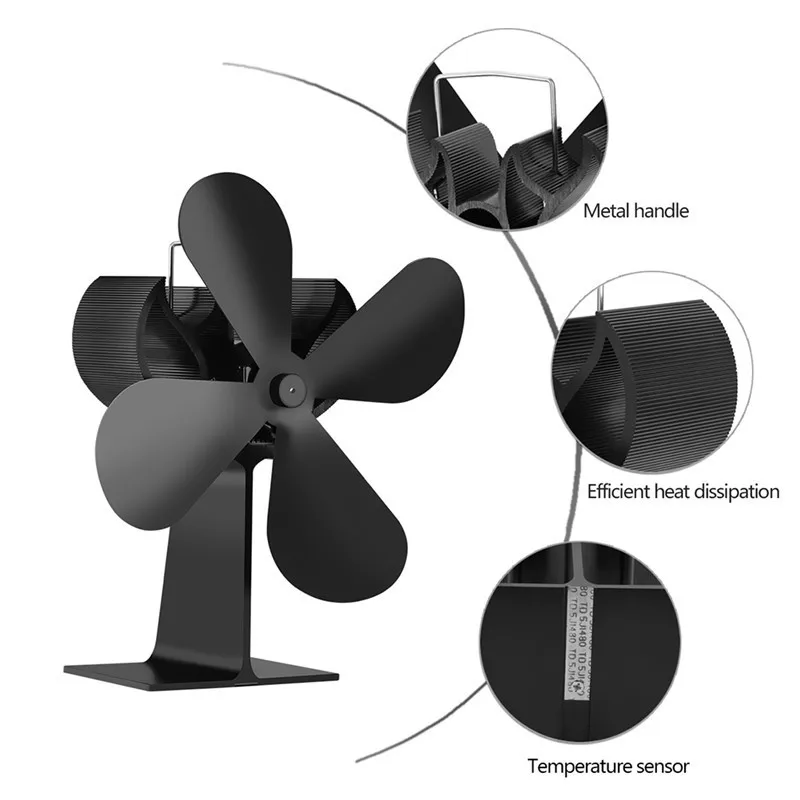

6. Overheat protection,it come with a built-in bi-metal strip that is set under the base,when the temperature
of the stove top surface reaches 300°C,the strip begins to bend and tilt the fan backwards.

Package Includes:

1 x Stove Fan




Q&A

1. How Does the Stove Fan Work?
Our stove fan utilize temperature difference thermoelectric technology to convert a temperature difference into electricity. At the center of an stove fan is a unique thermoelectric module. This creates a hot side and a cold side on the module and when this happens, a principle called the “Seebeck Effect” causes electrons to flow within the module and electricity is generated to run the fan

2. How Do I Know if My Stove is Too Hot?
To ensure satisfactory long term use and that your stove is working within the temperature range of 'best operation'. We recommend the associated use of a Stove & Stovepipe thermometer,and please remove or reposition the stove fan if the stovetop temperature exceeds 370°C.

3. How Do I Use This Stove Fan?
Simply place your fan on the top of your stove, away from the flue pipe, allowing the back of your fan to have access to cooler, room temperature air. The thermoelectric modules require a temperature difference to create the electricity needed to operate the fan’s motor.
*Not recommended for wood or gas stove inserts

4. Where Should I Place My Stove Fan?
Be sure to place the stove fan on a smooth flat surface on your stovetop near the side or back of the stove where cooler air can be drawn from behind and over the cooling fins. Do not place your stove fan in front of the stovepipe or at the front of the stove. This should ensure your fan can draw the necessary cooler air from the rear/side of your stove.

5. What Temperature Does the Surface Need to Reach in Order to Operate?
The stove fan will start to rotate once the base of the fan has reached a temperature of 40°C(please noted that our testing environment temperature is 20°C),that is to say, theoretically ,when the temperature difference is up to 20°C,it begin to operate

6. What to Do If Noise
If there is noise caused by the spinning fan,please check the fan blade,normally it because the blade is a little bent,rotate the blade with your finger,find the bent part,fix it to the right position by hand,no tool needed.Sometimes it may happened after shipping.As the blade is aluminum,not iron or other hard materials,so it's also very easy to be fixed.
