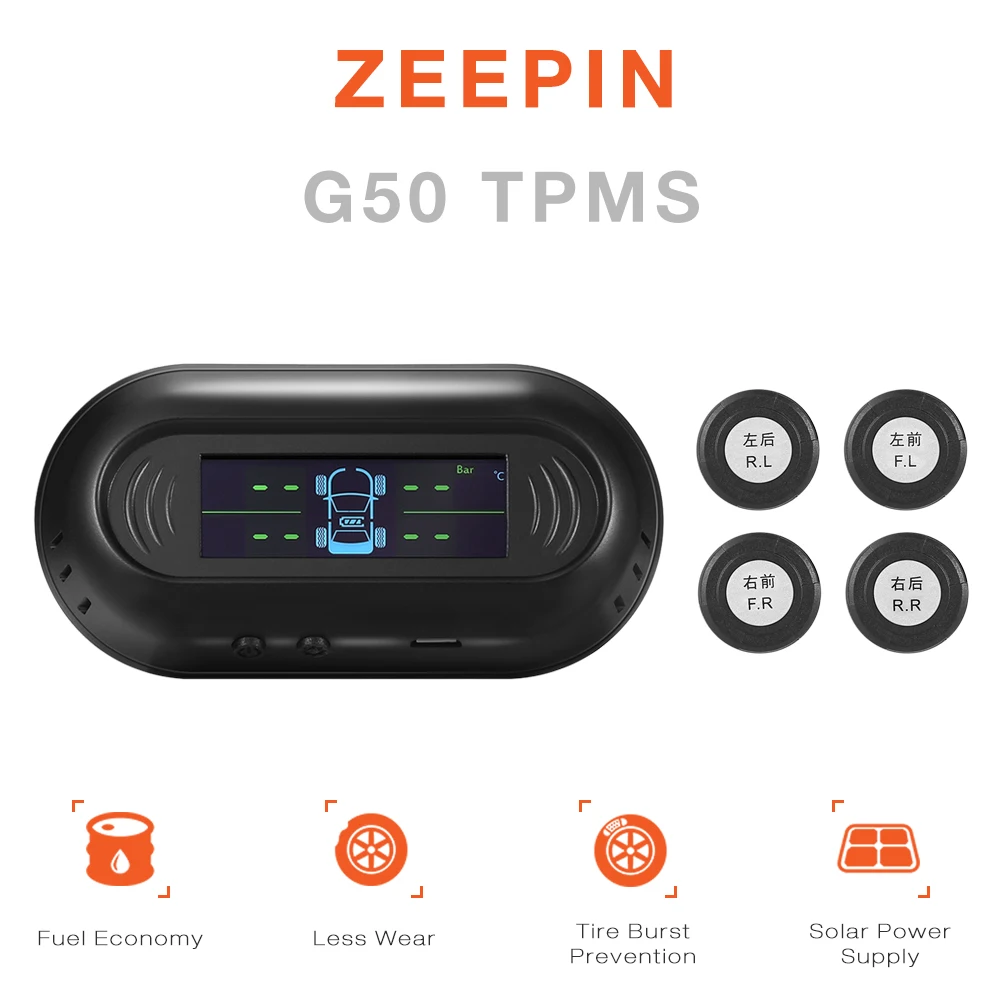

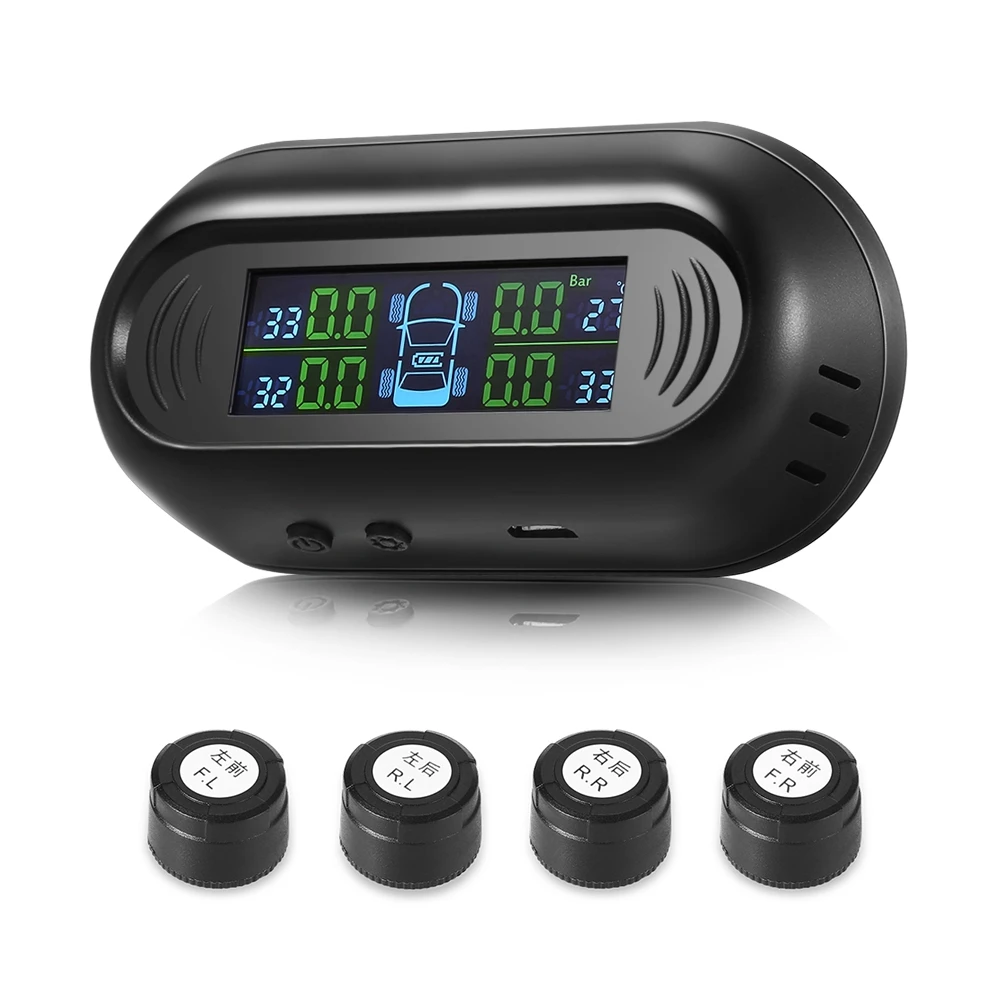

ZEEPIN G50 Solar Powered TPMS Car Tire Pressure LCD Screen Display Monitor System 4 External Sensors





- High-definition LCD screen display

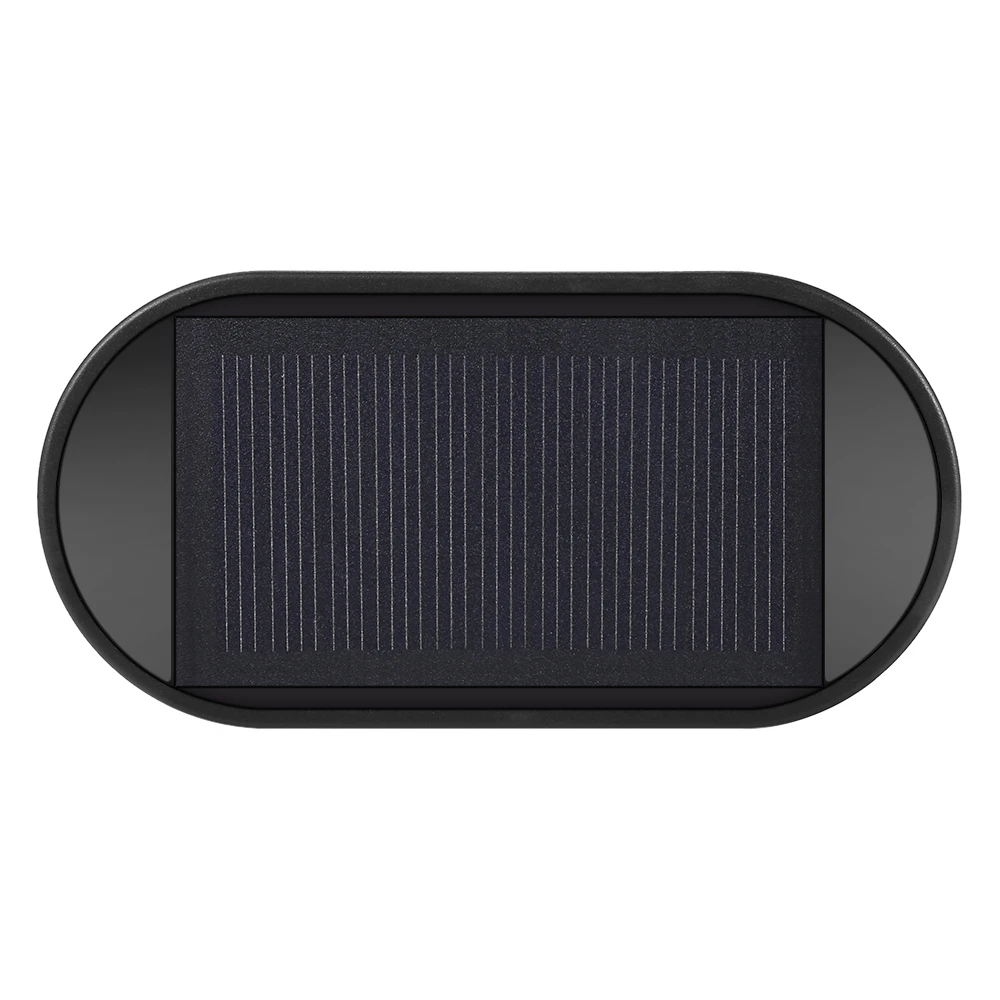

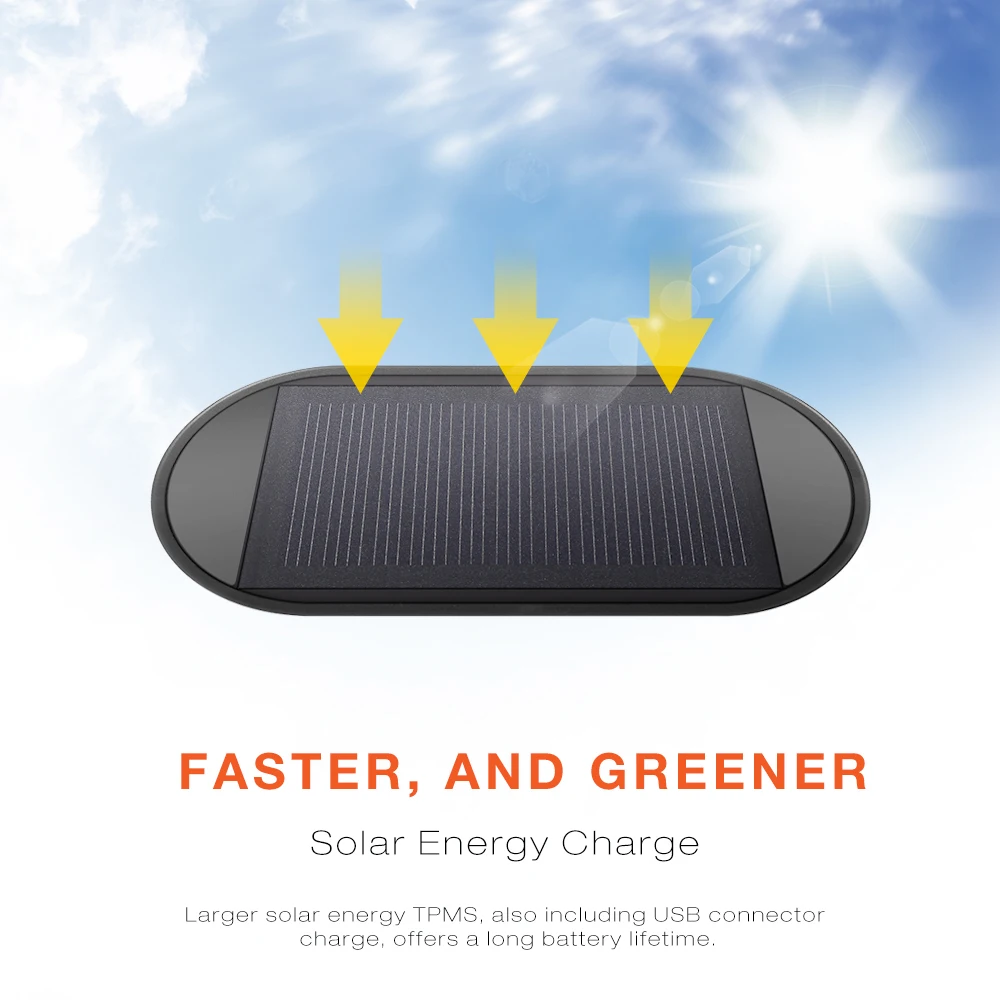

- Supports solar energy / USB charging

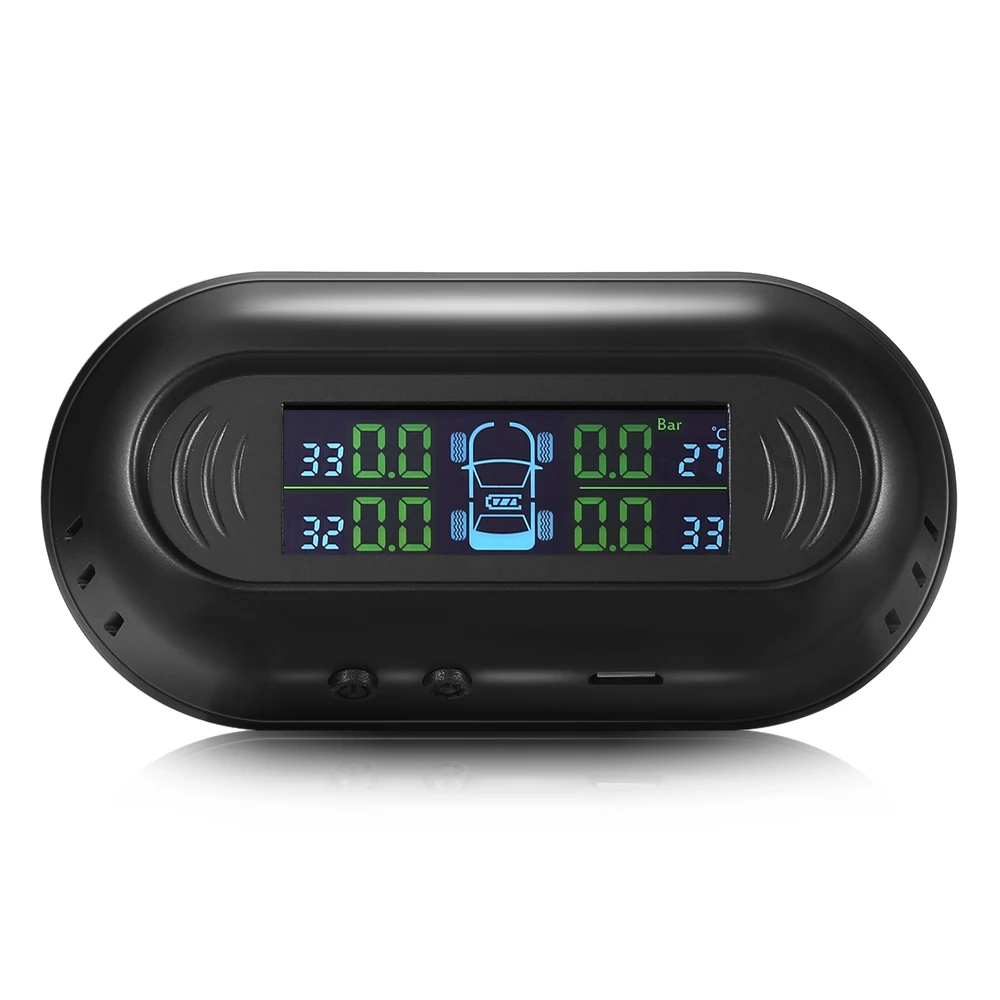

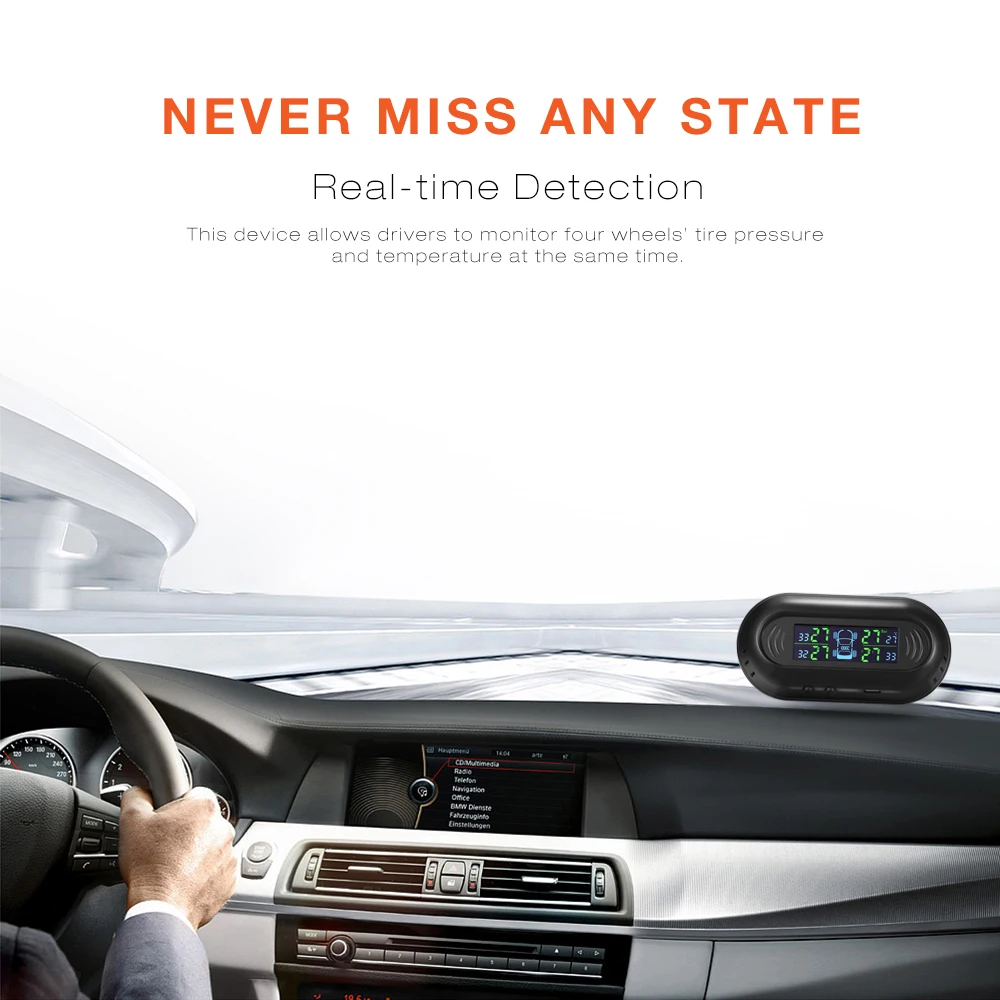

- Shows four wheels' tire pressure and temperature simultaneously
- High and low tire pressure alarm
- High temperature alarm
- Air leakage condition alarm
- Sensor lower power alert

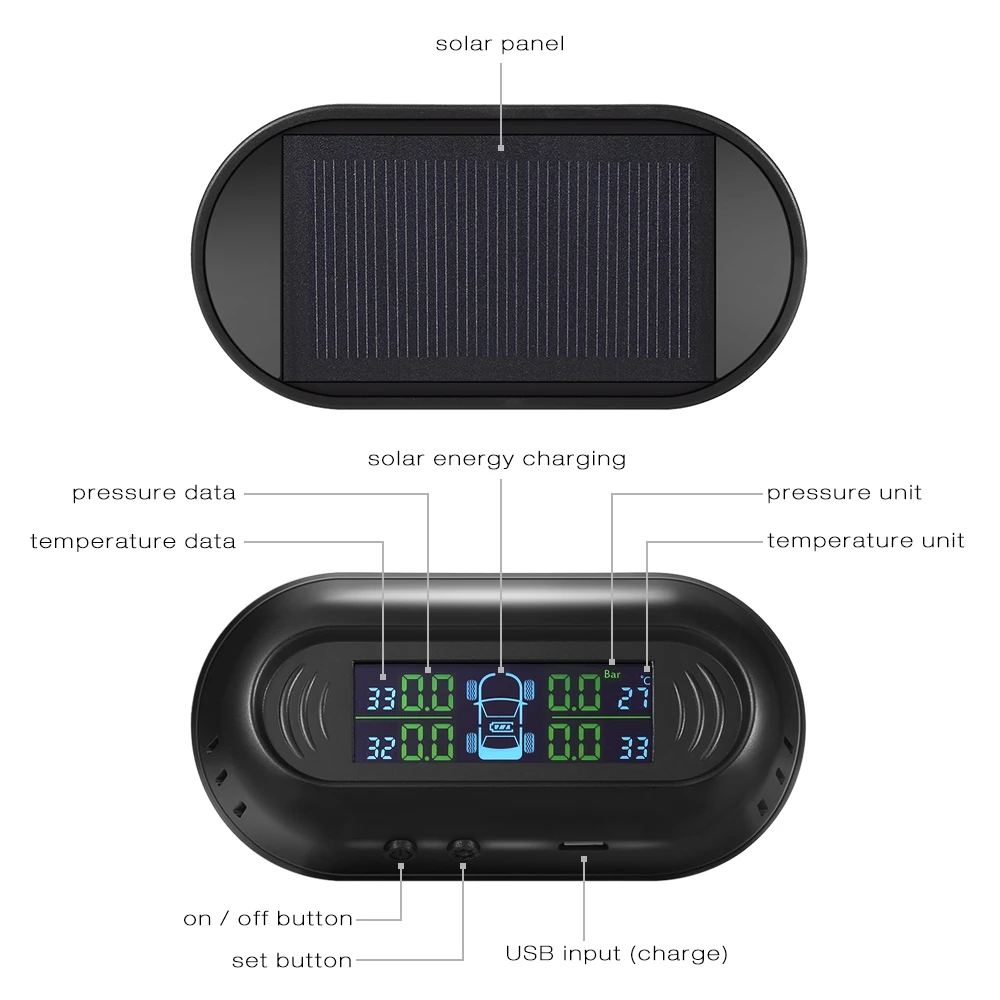

- Multiple information: sensor / display's battery capacity display, solar energy charging display, spare tire display
- Non-stop monitor always keeps an eye on your car's performance
- Reliable alarm system delivers audio alerts whenever an unusual situation occurs
- Low power alarm

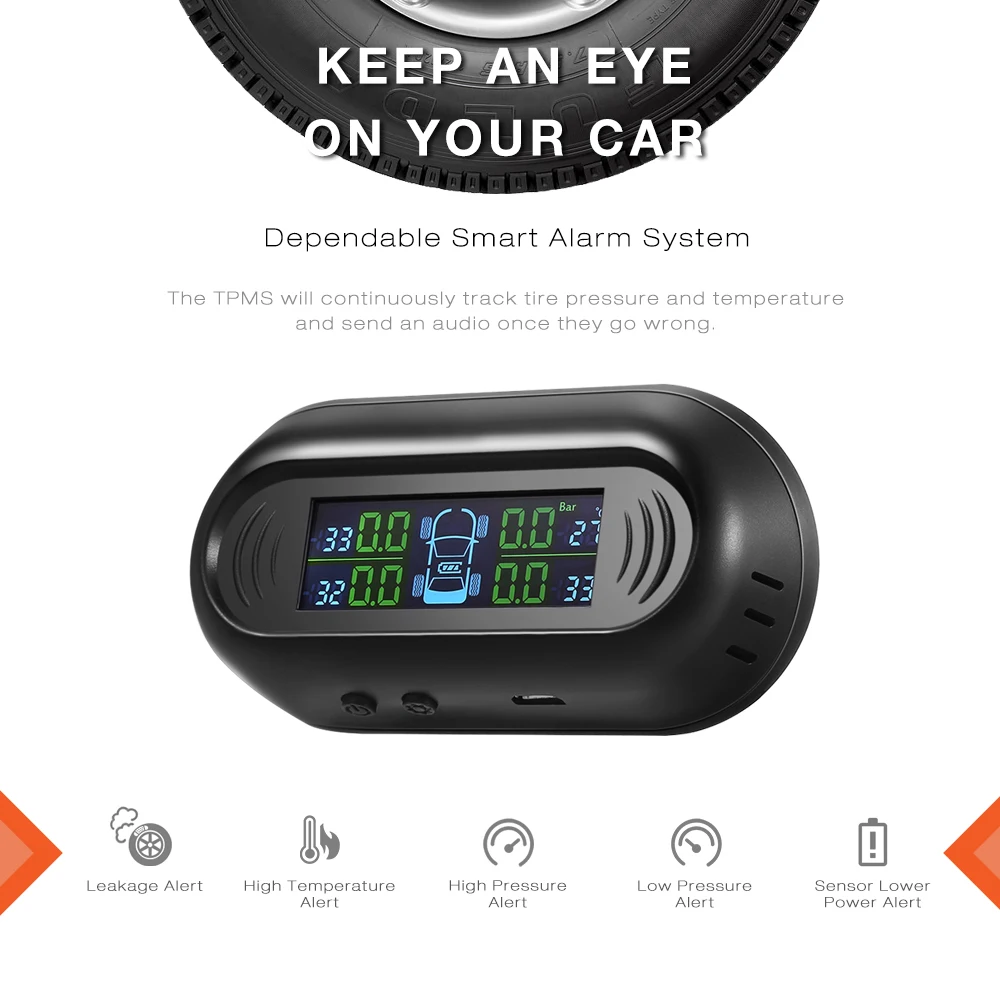

Intelligent Alarm



1. Leakage Alert

When the tire leaks continuously, the display will show the declining pressure data and fault icon, as well as send an alert

2. High Temperature Alert
When the tire temperature is higher than the setpoint ( default 70 Deg.C ), the pressure and fault icon on the display will flicker with buzzer warning ( temperature setting range: 20 - 90 Deg.C )

3. High Pressure Alert
When the tire temperature reaches to the upper limit value ( default 3.0 Bar ), the pressure and fault icon on the display will flicker with buzzer warning ( upper limit value setting range: 1.1 - 8 Bar )

4. Low Pressure Alert
When the tire temperature reaches to the lower limit value ( default 2.0 Bar ), the pressure and fault icon on the display will flicker with buzzer warning ( upper limit value setting range: 1.1 - 8 Bar )

5. Sensor Lower Power Alert
When the sensor is in low-power condition, the display will flicker with buzzer warning

Specification:

Model: G50
Category: TPMS

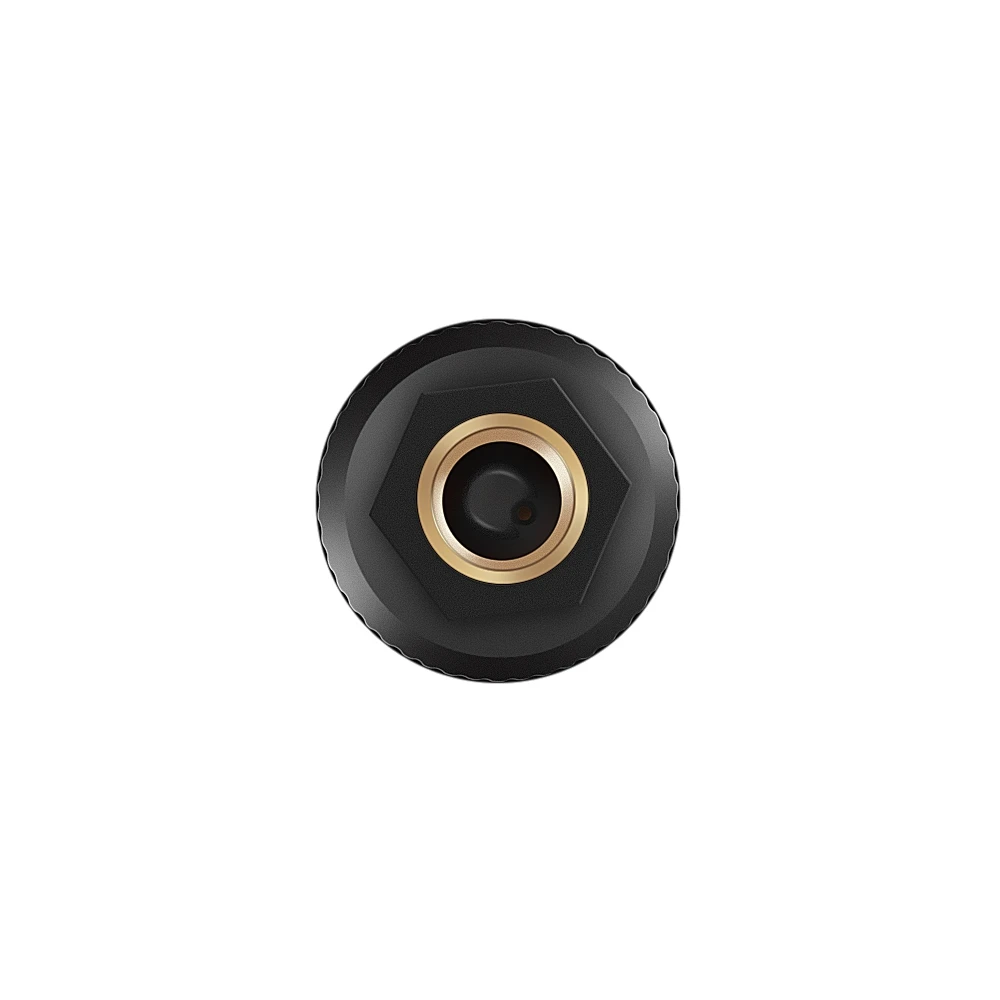

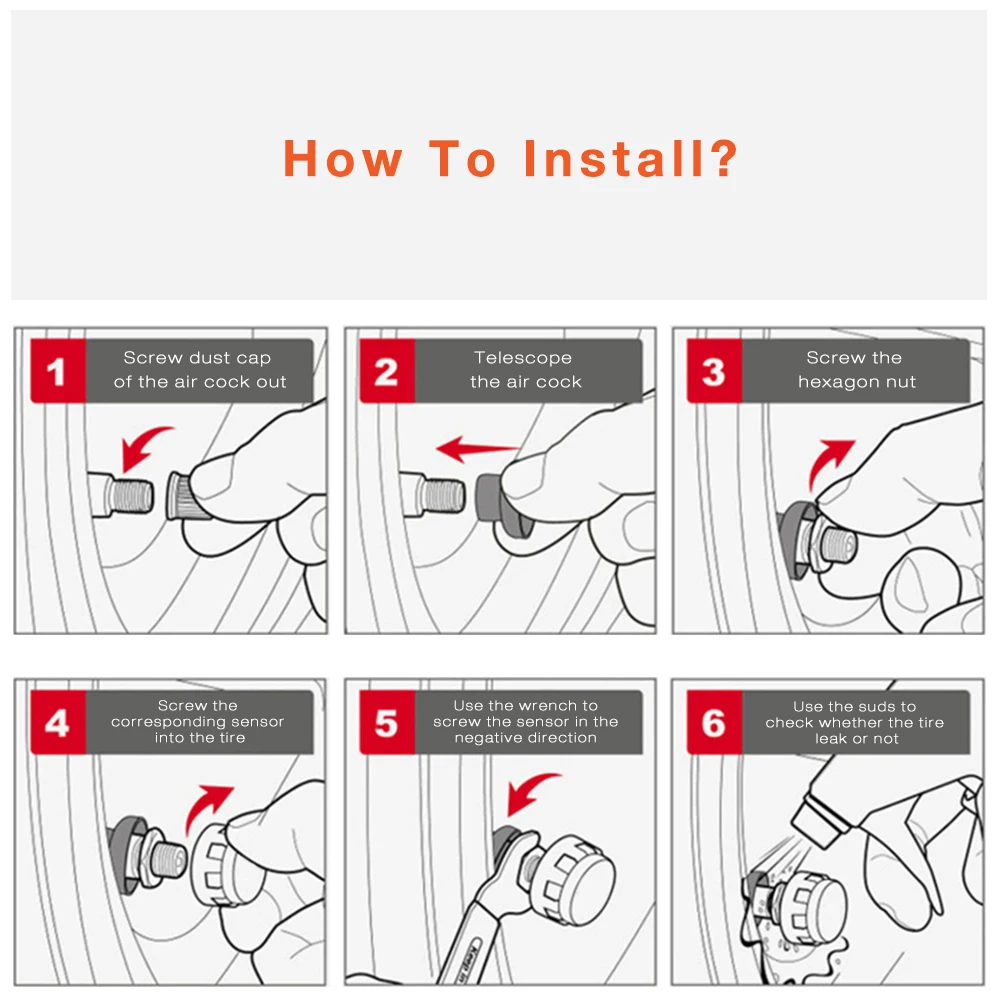

Install way: external
Display way: screen
Sensor working voltage: 2 - 3.6V
Display working voltage: 5V
Optional pressure units: Bar
Optional temperature units: Deg.C
Operating frequency: 433.92MHz + / - 20KHz
Sensor working temperature: -20 Deg.C - 85 Deg.C
Sensor storage temperature: -40 Deg.C - 125 Deg.C
Display working temperature: -40 Deg.C - 105 Deg.C
Display storage temperature: -40 Deg.C - 125 Deg.C
Monitoring pressure scope: 0 - 8 Bar
Display battery capacity: 280mAh
Sensor battery supply: CR1632 battery

Sensor battery capacity: 140mAh



Certification:

CE: http://pdm.gw-ec.com/uploads/pdm-certification-file/2017/09/16/RTTE%E8%AF%81%E4%B9%A6_1505532217984.pdf

FCC: http://pdm.gw-ec.com/uploads/pdm-certification-file/2017/09/16/TCT161118E002%20FCC%20ID%2015.231_1505532225122.pdf

MSDS 1: http://pdm.gw-ec.com/uploads/pdm-certification-file/2017/09/16/%E8%81%9A%E5%90%88%E7%89%A9%E9%94%82%E7%94%B5%E6%B1%A02017MSDS_1505532240833.pdf

MSDS 2: http://pdm.gw-ec.com/uploads/pdm-certification-file/2017/09/16/%E4%BC%A0%E6%84%9F%E5%99%A8CCR-PSDS-CR%E7%94%B5%E6%B1%A0PSDS%E6%8A%A5%E5%91%8A_1505532251669.pdf



ITEM DETAIL:

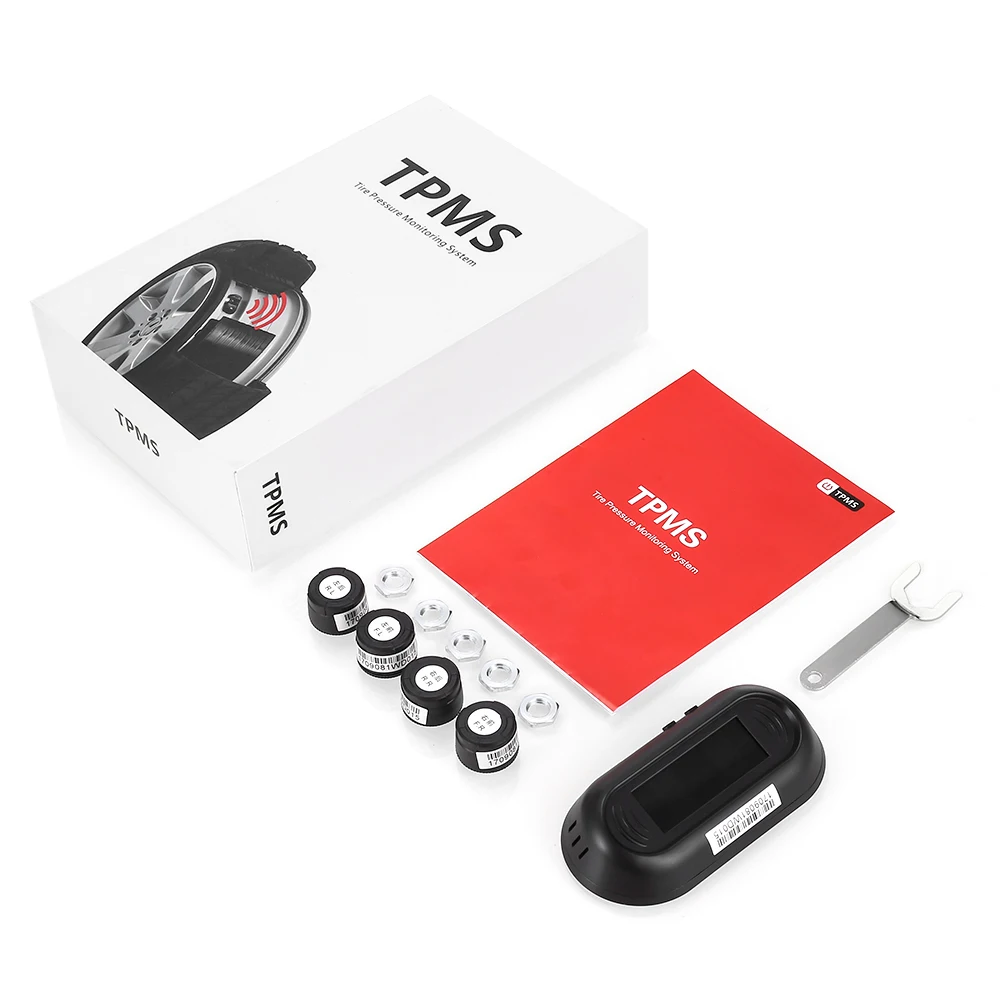

Specifications Type Portable Dimensions and Weight Product weight 0.0920 kg Package weight 0.2770 kg Package Size(L x W x H) 19.60 x 12.80 x 5.00 cm / 7.72 x 5.04 x 1.97 inches Package Contents Package Contents 4 x TPMS, 1 x Display, 1 x Bag of Accessories, 1 x English User Manual
