720P Mini HD USB Camera CMOS OV9712 free driver Mac Linux Android Windows usb webcam 2.1/2.8/3.6/6/8/12/16mm lens optional

The HD 720P USB CMOS board camera module(model: ELP-USB100W05M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image  sensors made by OmniVision, one of the world leaders in this field of electronics.

*720P resolution 1280x720P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC

Optional models

ELP-USB100W05MT-BL21(2.1mm lens)
ELP-USB100W05MT-BL28(2.8mm lens)
ELP-USB100W05MT-BL36 (3.6mm lens)
ELP-USB100W05MT-BL60(6mm lens)
ELP-USB100W05MT-BL80(8mm lens)
ELP-USB100W05MT-BL12(12mm lens)

Sensor

OV9712

Lens size

100W, 1.0megapixel, 1280X720

Max. Resolution

640X480 VGA

Picture format

YUY2
MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1280 (H) x 720 (V) pixels   MJPEG 30fps      YUY2 10fps
960 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 15fps
800 (H) x 600 (V) pixels    MJPEG 30fps      YUY2 20fps
640 (H) x 480 (V) pixels    MJPEG 30fps      YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

30-150 degree optional

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

 simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

 credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

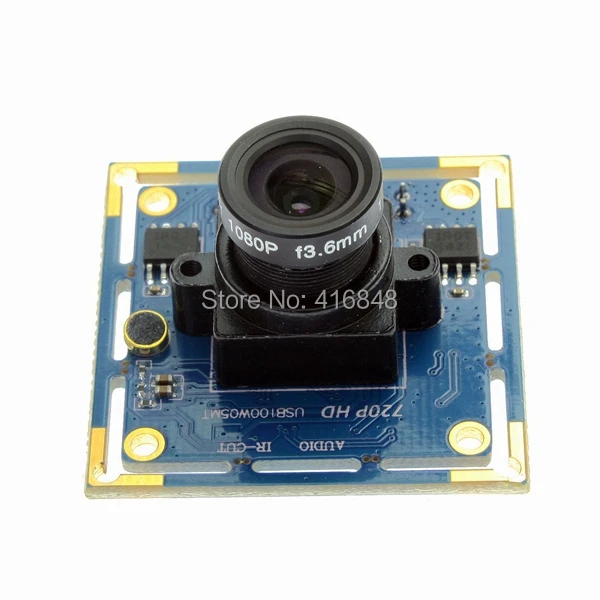

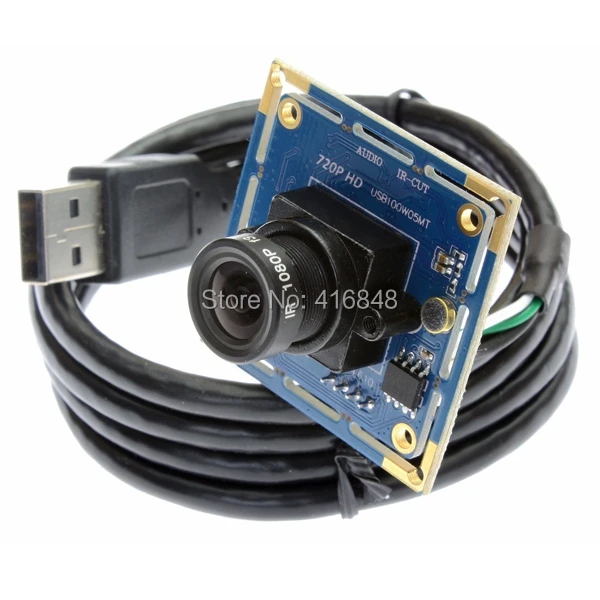

Inside the case, the usb camera module

​

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
