Warning: The product is 220V strong electric products, non-professionals do not operate, or at your own risk!

\

Features:

\

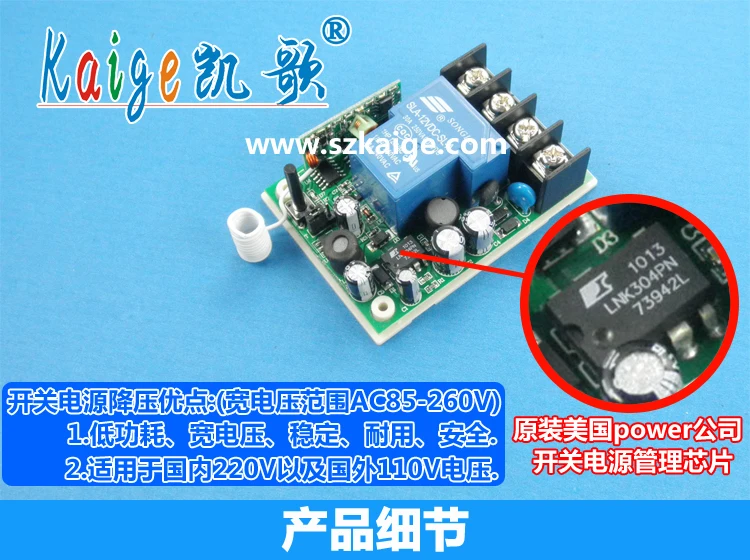

1>. Switching power supply step-down circuit:Using the United States POWER company's switching power supply chip LNK304 control power, quality assurance, stability and durability.

\

2>. Wide operating voltage:Suitable for AC85V-260V voltage between the circuit to ensure that different voltage environment in the long-term stable operation of the circuit.

\

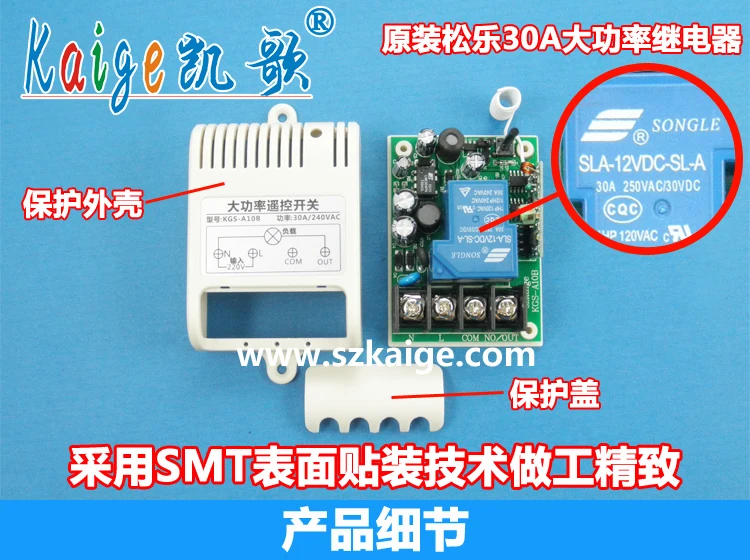

3>. Ultra-high power:Using genuine Ningbo Song Le 30A relay, to ensure long-term stability control of high-power appliances.

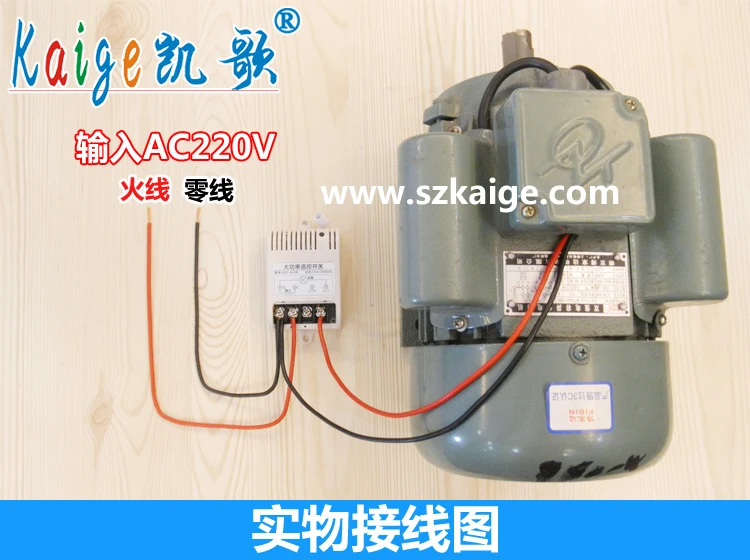

\Do not need AC contactor, direct control within the 3000W of the pump, motor, lamps, car washing machine, etc. with electrical appliances.

\

4>. Work by the user free to adjust:Users can modify their own lock, interlock, jog work.

\

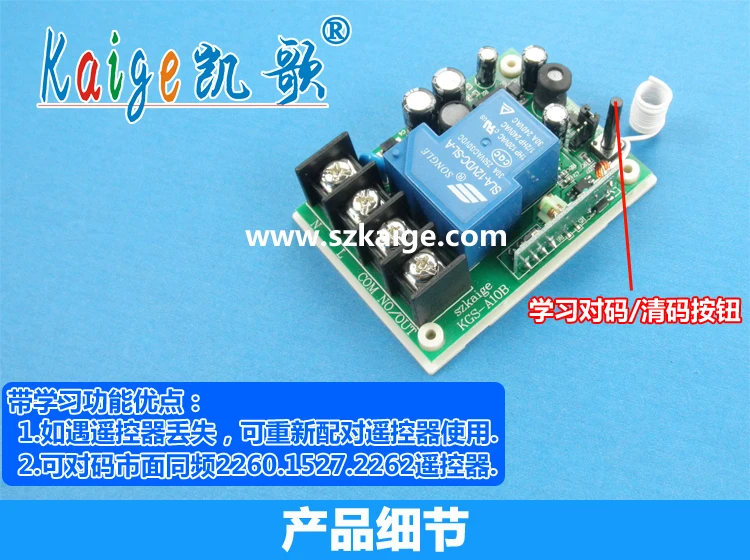

5>. Learning type code:Can be arbitrary to learn the same frequency with the remote control, (the use of remote control lost in the process do not have to worry about, buy a remote control to learn about OK, without the whole set of replacement, significant savings in the user's cost).

\

6>. Operation is simpler:Remote control 2 buttons, a button to open, a button off.

\

\

7>. Do not interfere with each other:The use of digital coding, and neighbors with the same type of product does not appear between the phenomenon of mutual control. (Ie, multiple sets of the same type of product can not be controlled by the same environment.)

\

\

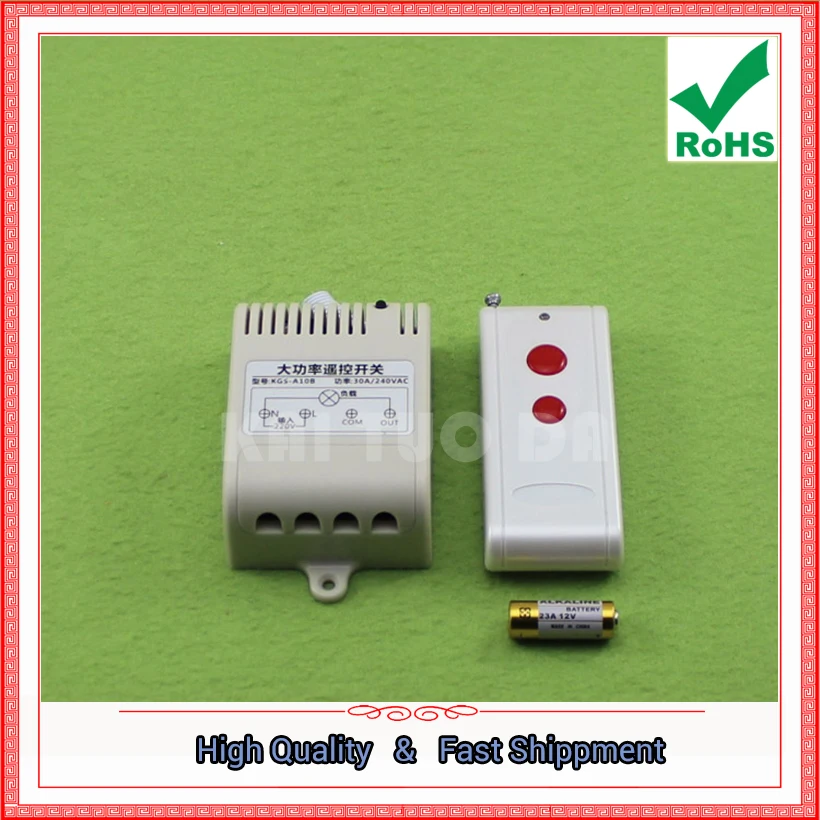

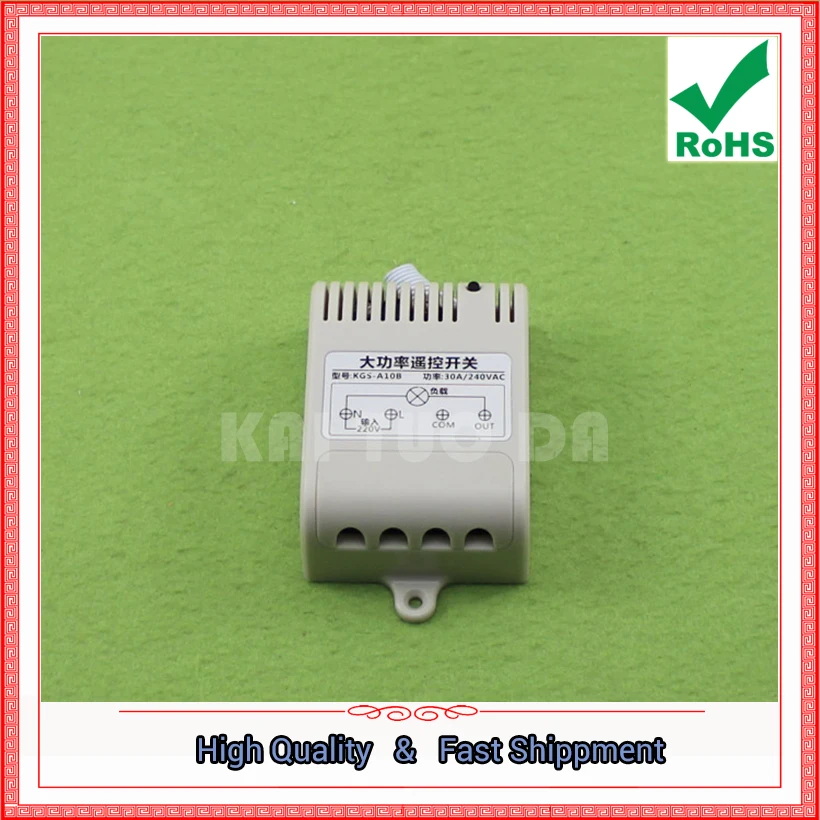

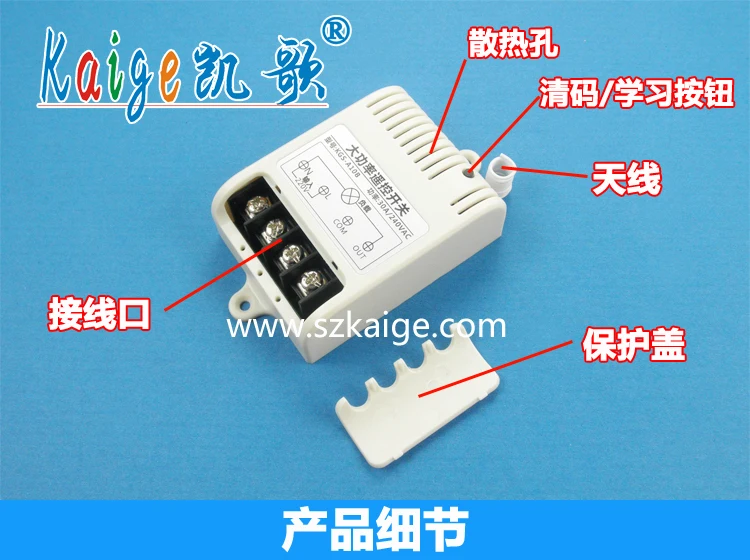

 This price includes:1 receiver (with shell) +1 2 key remote control,

\

\

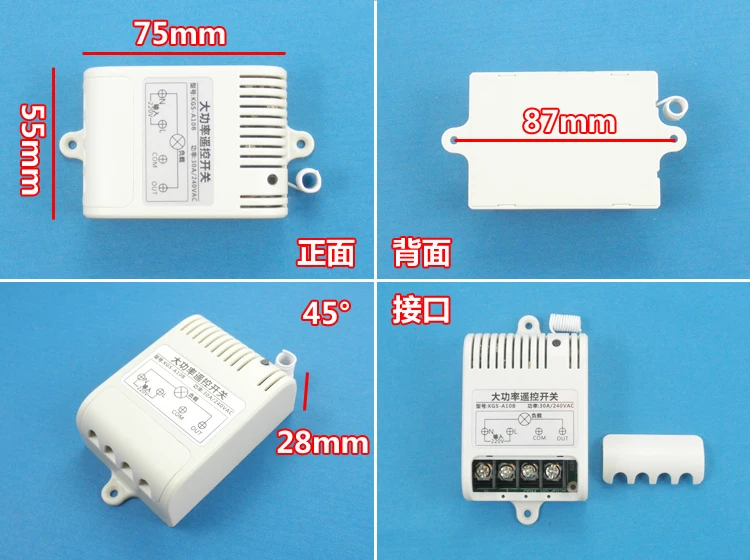

Size: 70 * 50 * 22mm

\

Product Description:

\

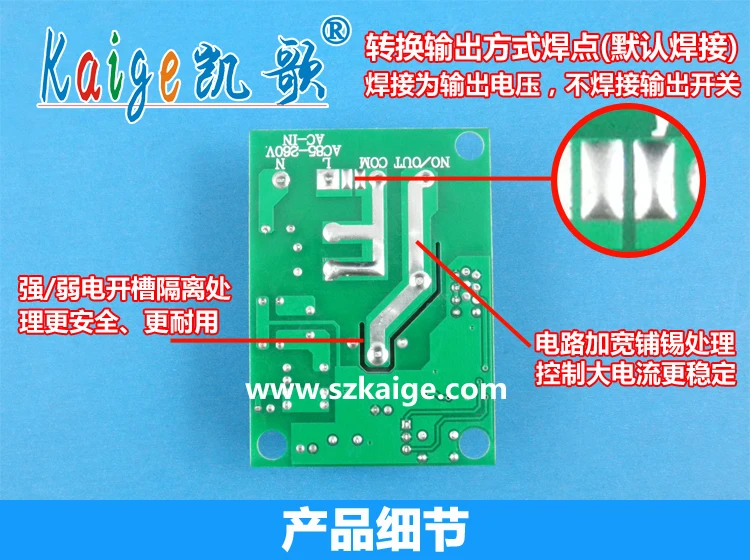

The company's remote control receiver board, for burglar alarm, remote control electric doors and windows, signal control, industrial control, lifting equipment, such as electrical control circuit. Very suitable for direct control of various types of load; products using learning code wireless coding technology, no direction, the switch does not interfere with each other.220V remote control switch circuit components full material, circuit boards are used high-quality double-sided PCB, the power part of the US imports of LNK304PN professional switching power supply management chip, stable performance and low power consumption, performance is much higher than the market commonly used Inexpensive RC buck circuit, the protection of resistors and varistors to the effective protection of the circuit board, greatly improving the life of the entire remote control switch.Buyers can compare after the purchase.
\ Receiver board can withstand up to 30A current, can directly drive the AC load, the relay with a set of normally open (normally closed) contacts. To extend the service life of the receiver board, it is recommended to control the power at 4000W (resistive load); 3000W (inductive load); 3000W (motor load).

\

\

Basic parameters:

\

Product number:KGS-A10B-1

\

Operating Voltage:AC85V ~ 260V

\

working frequency:315MHZ

\

Contact capacity: 30A / 250VAC; 30A / 30VDC

\

Receiving Sensitivity:> -105dB

\

Remote distance:1000 meters (open space without interference) This distance is open to no interference with the theoretical distance,

\

The use will be based on different environmental interference and the wall has been reduced. Generally nominal

\

Distance of about 10% -50%.

\

Number of controls:1 way voltage output (or normally open contact).

\

Encoding Type:Learning type.

\

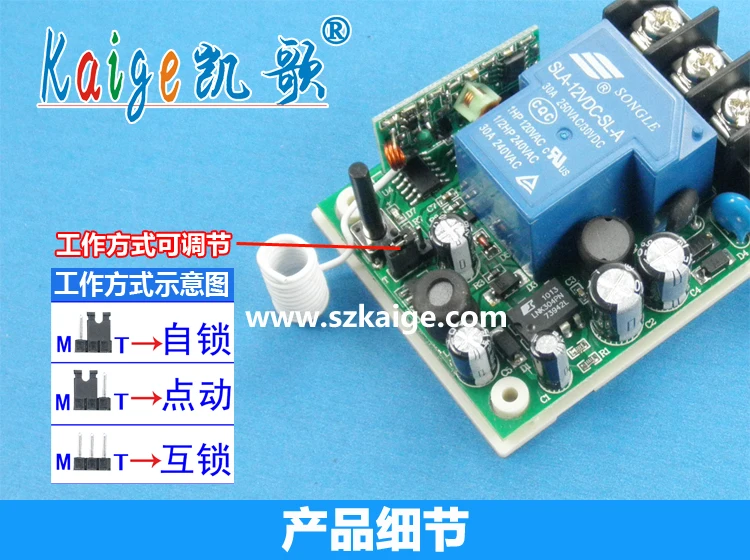

Way of working:Short (M) non-latching (jog), short (T) for the lock, are not short for interlocking.

\

study method:Turn on the power indicator for 3 seconds, press the button once after the light is off, then the indicator light is on, press the remote control button indicator light to go out and the study is successful.

\

Clear method:Turn on the power indicator light for 3 seconds, press and hold the learning button while the indicator light is on, after 8 seconds the indicator light goes off and the clear code is successful.

\

General learning method:Press the button once, press the button once, press the button once, press the button once, press the button, the indicator light is off, press the button, the indicator light is off, press the button, Learning success.

\

General learning method:Turn on the power indicator light, press the button once and then press the learning button, the indicator light is on. At this time, press the remote control button, the indicator light goes out and the learning is successful.

\

Receiving board size:70 * 50 * 22mm

\

\
