315MHZ wireless transmitter module

Technology to create the future, this is a remote control era!

* Into the house before, can not open the first light, automatically open the door for you, every time you enter the bright and spacious home?

* When you drive home, every time you have to get off to drive the garage door, have you ever thought that every time you drive home, garage door, the lights automatically open for you?

* Will you feel inconvenient when you need to turn on the lights and turn off the lights in a warm blanket in winter or in a closed mosquito net in summer?

* If there is no street at home, go home at night to find the key to open the door, do you feel some inconvenience?

* At night to rest, you need to turn off the lights go back to the bedroom, or go to the bedroom to open the lights and then turn off the living room lights, so back and forth running whether you feel helpless?

* Before going to bed or going out, always have one to turn off the lights, there is no way to turn them off once
Friends party, some people want to use the bathroom, he is not know which is the toilet lighting switch?

* When you are lying in bed reading or TV feel sleepy, the use of remote control can turn off the lights TV peace of mind, from your hard work, especially when the weather is cold

* Sleep with the remote control before turning off the TV

Only provide the following information parameters, do not provide technical support, will only use to buy, thank you!

Quality characteristics:

1, the transmitter module and the market fixed code, learning code with the same frequency to receive any supporting the use of modules can be equipped with our wireless receiver module.

2, sound table frequency stability, stable performance; wide operating voltage range; product consistency is good, cost-effective.

Precautions:

Please refer to our foot order in detail, and check the order of your host's foot to see if it is the same.

Wireless Transmitter Module Wireless Transmitter Transmitter Panel 3-12V Universal Voltage

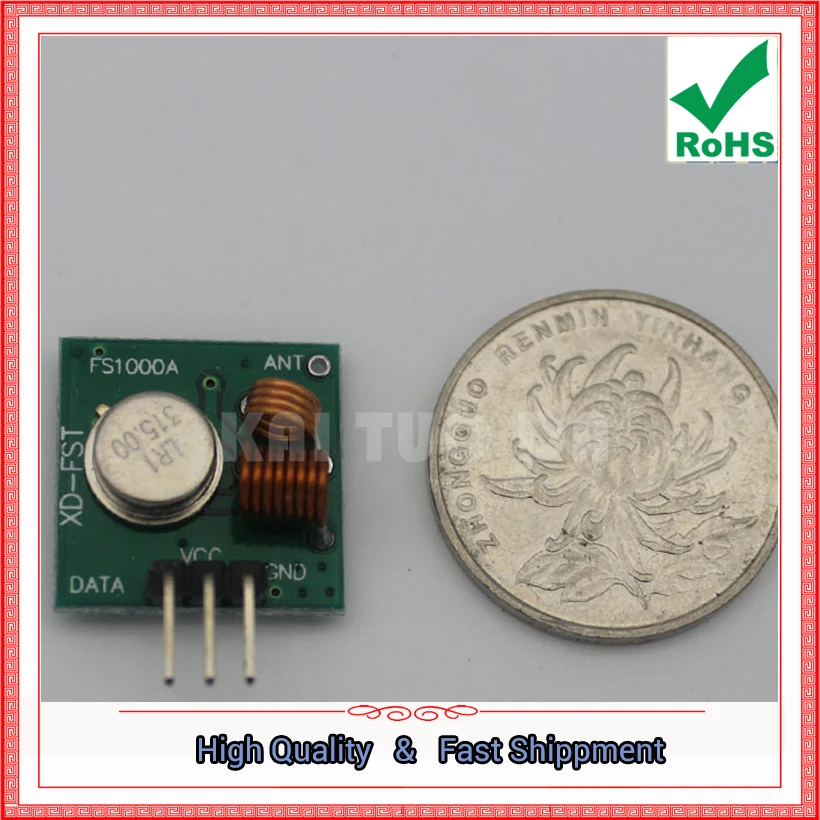

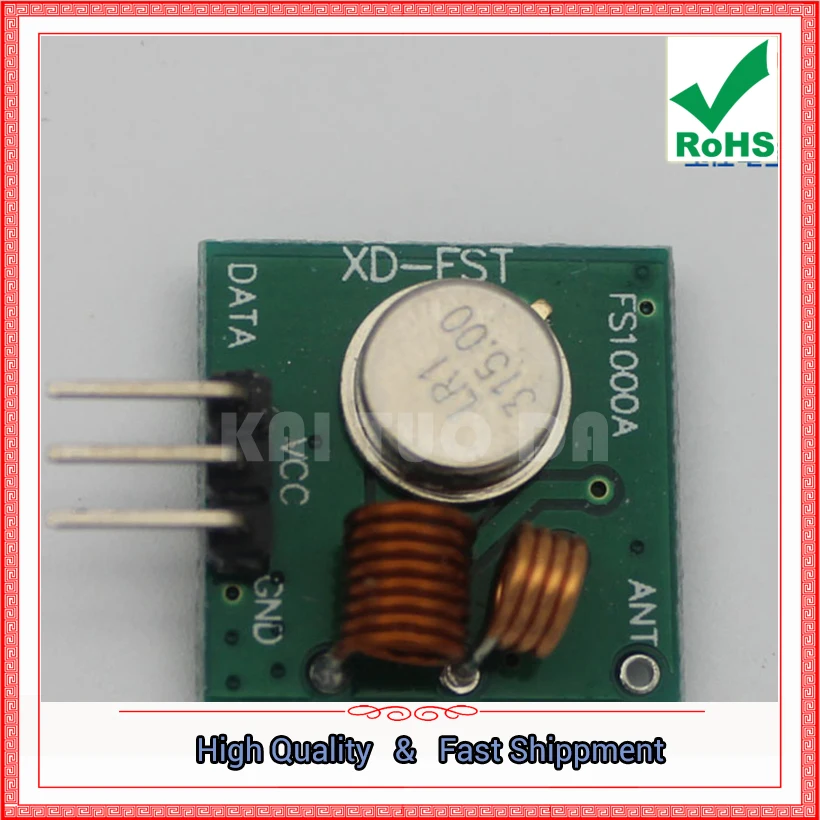

 Pin and instructions:

Pin (from left to right) and instructions:
Pin Name Function Description
1 ATAD data input pin
2 VCC power positive
3 GND power supply negative

The transmitter module has three external interfaces, one in English. "VCC" means the power supply positive, "ATAD" means input, "GND" means the power supply negative.

use:Remote control electric door, remote control garage door, remote control retractable door, remote control shutter, remote control, remote control, remote control, remote control, remote control, Remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control, remote control

Technical Parameters

Product Name: Without Encoding Transmitter Module
Model: MX-F01
Working voltage: 3-12V
Operating frequency: 315MHz

Standby current: 0mA
Working current: 20-28mA
Transmission distance:> 500m (open receiving plate sensitivity above -103dBm distance)
Output power: 16dBm (40mW)
Transmission rate:
Modulation: OOK (amplitude modulation)
Working temperature: -10 ~ +70
Size: 19 × 19 × 8mm

 Note:

Such as pro-distant distance requirements, can be accessed by a quarter-wavelength antenna, generally 50 ohm single-core wire, the antenna length of 315M is about 23cm, 433M of about 17cm;
Antenna position on the module to receive the effect is also affected, the installation, the antenna as far as possible straight away from the shield, high pressure, and interference sources;
