Data download address

Http://pan.baidu.com/s/1mgv6i1M

Http://www.kuaipan.cn/file/id_121557448606613652.htm

Http://115.com/file/beno591n#GY-45-MMA845251.rar

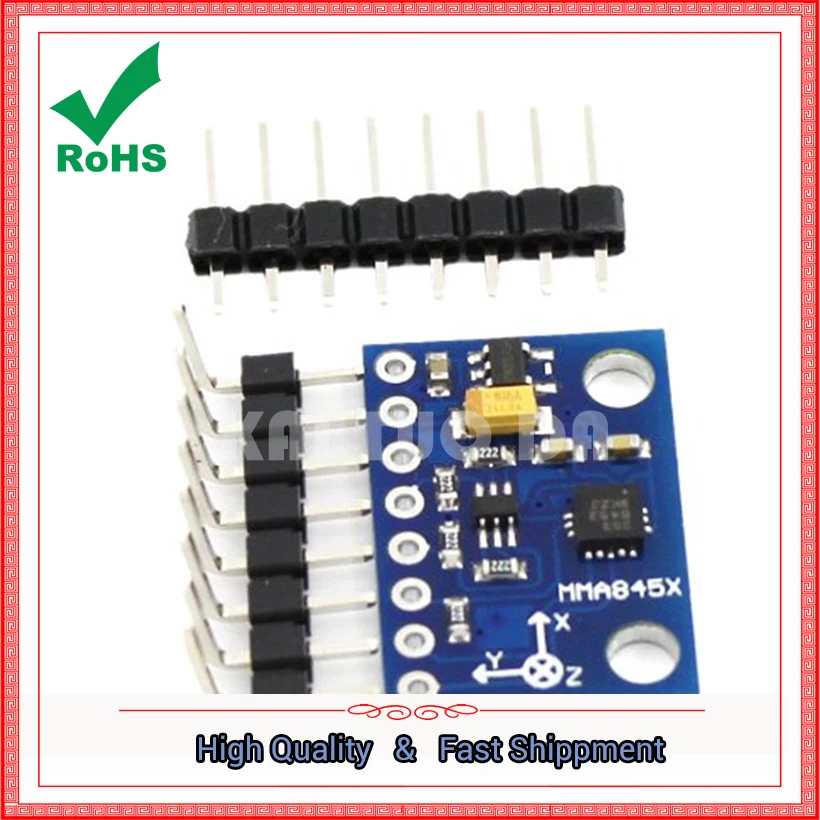

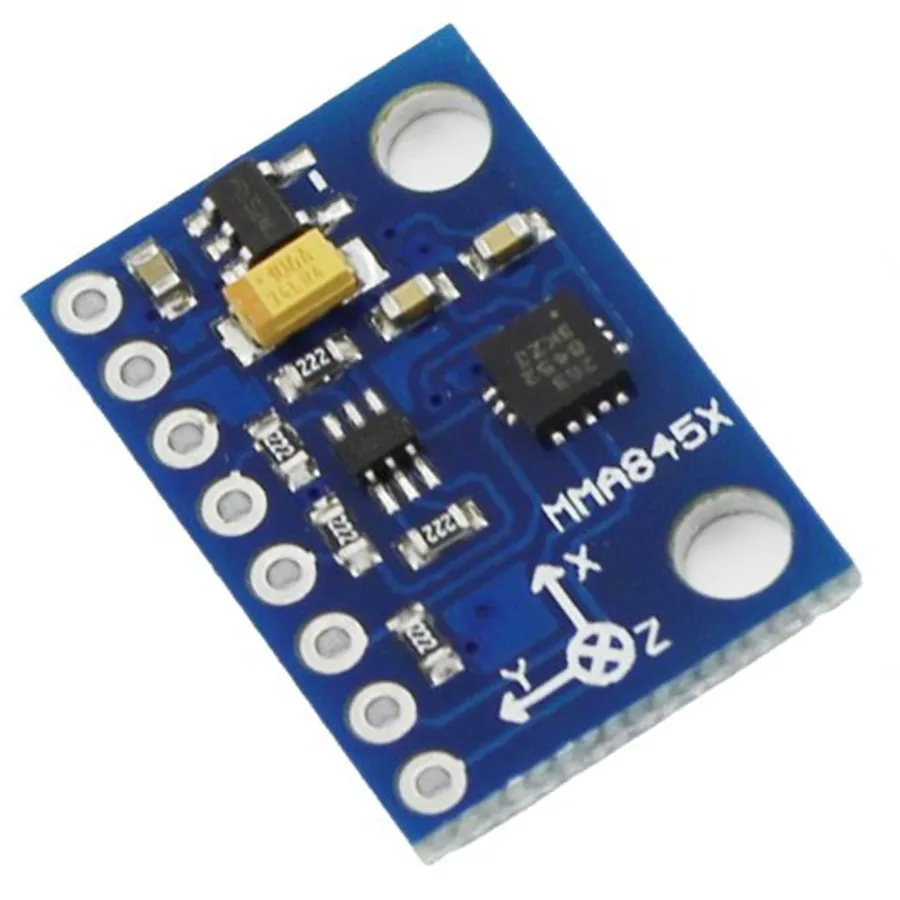

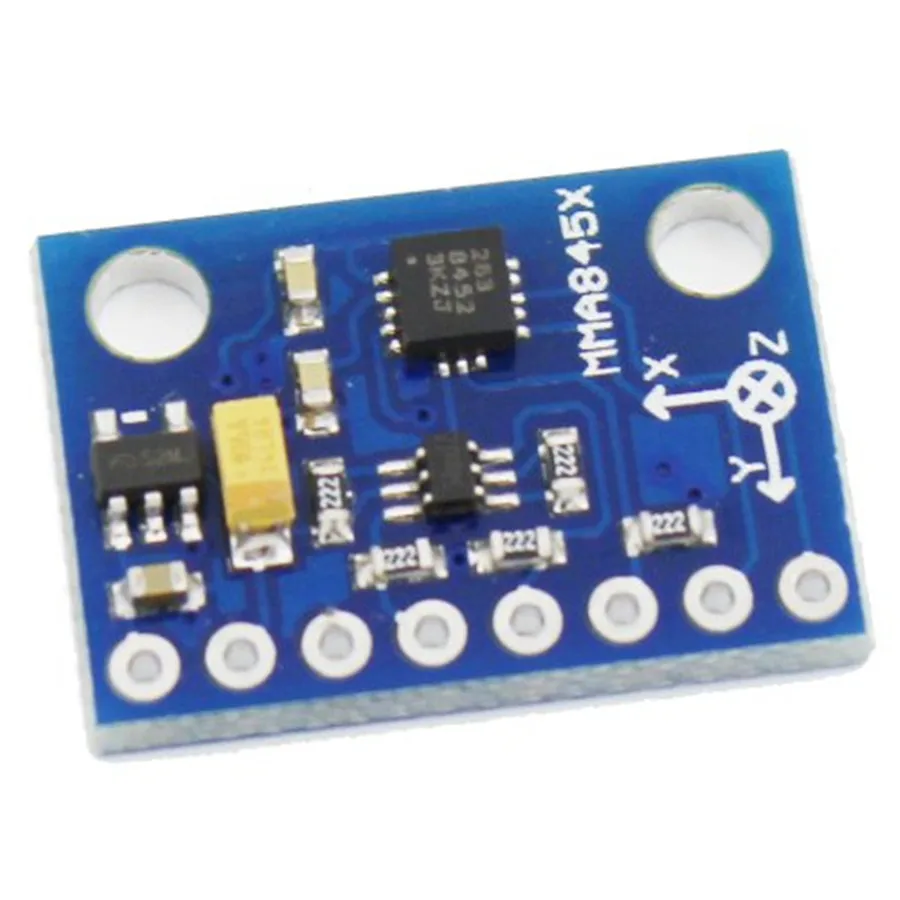

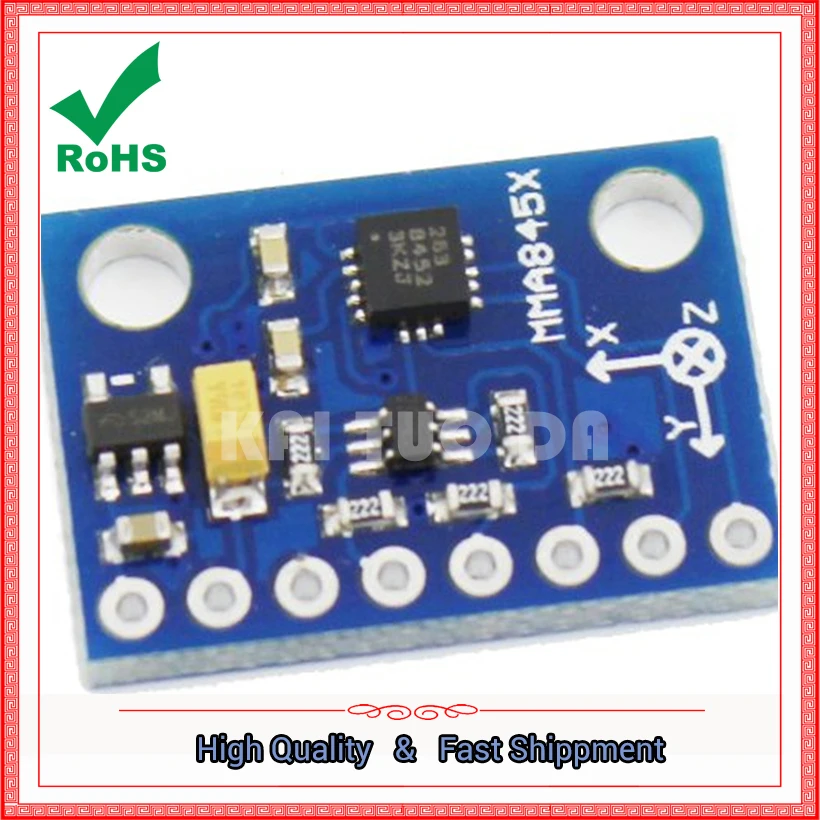

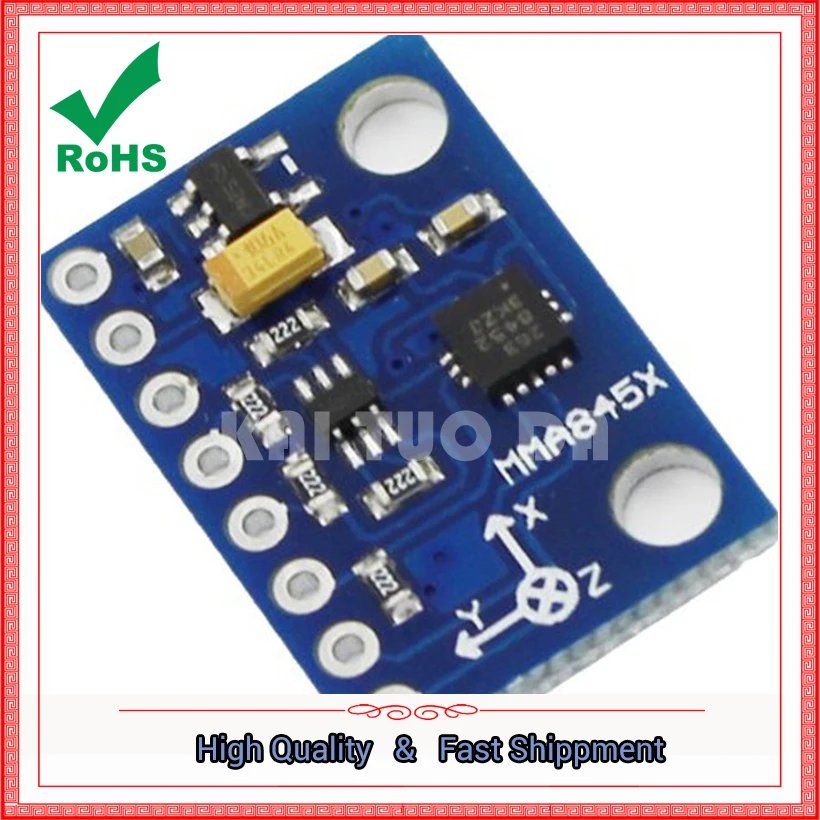

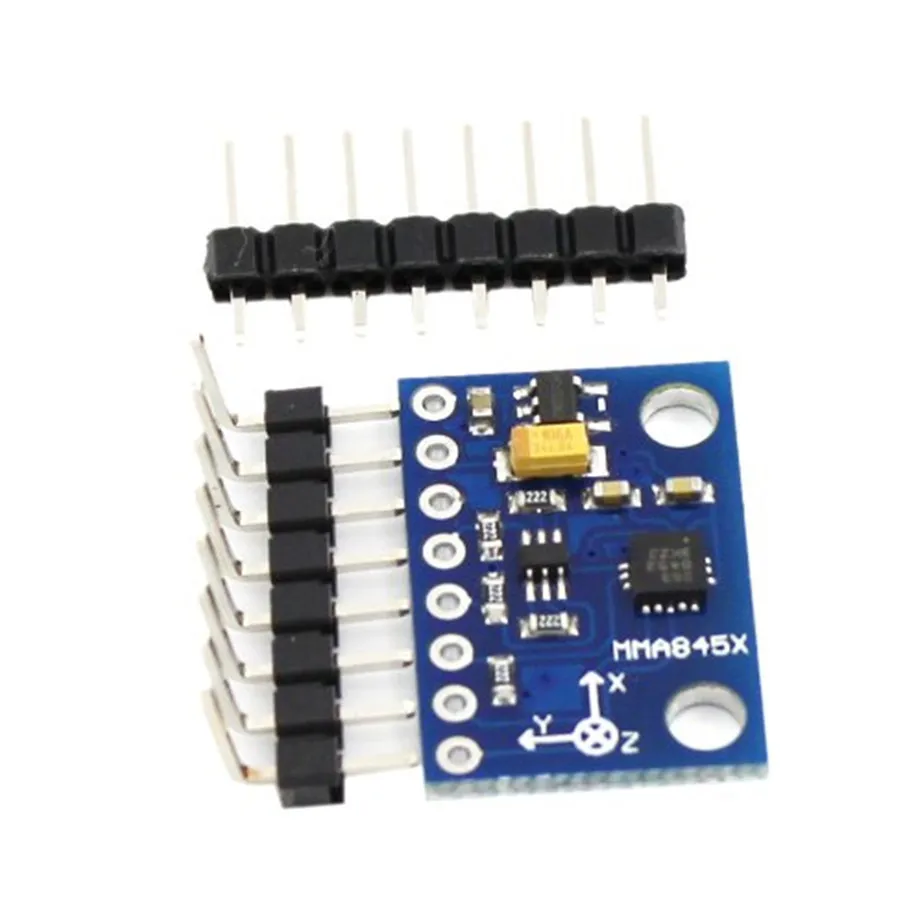

MMA8452 module, high-precision tilt sensor module

Module Model: GY-45

Power supply: 3-5v (communication is fully compatible with 5v working system)

Module size long * wide = 14.5mm * 20.5 mm

Mounting hole diameter 3mm, hole 15mm

Provide 51 test code

The MMA8452Q is an intelligent low power, triaxial, capacitive micromechanical acceleration sensor with 12-bit resolution. This acceleration sensor has a rich embedded function, with a flexible user-programmable option, you can configure up to two interrupt pins. Embedded in the hazy street to remove the blind MA8452Q with
± 2g / ± 4g / ± 8g user-selectable range, real-time output of high-pass filter data and non-filtered data. The device can be configured to generate an inertial wake-up interrupt signal using any combination of configurable embedded functions, which keeps the MMA8452Q in a low power mode while monitoring events while in a quiescent state.

characteristic

typical application
