Бесплатная доставка беспроводной WiFi IP RFID дверной звонок с видеоинтеркомом для телефона и ПК с удаленным просмотром, разблокировкой и магнитным замком двери 8ГБ TF

Brand NameJOINLGOModel NumberGR-KW02-Electric Magnetic LockTypeEntrance MachinePowerOtherInstallationWall MountingResolutionOtherCameraOtherConnection MethodWirelessKit ConfigurationOne to One video doorphoneCamera Sensor typeCMOSSensor Size(Inch)1/4Viewing Angle (°)90Answering ModeTELEPHONEDisplay SizeOtherConnection TypeWirelessPower12V DCTechnologyOtherAccess ControlInductive CardMaterialMetal panel, plastic rainproofSamrt Home InterfaceYesDoorbellYesDisplay Screen TypecolorZone InputOtherWaterproofYesIP Camera InterfaceNoMeasurement unitpiece/piecesEach pack1E-lockElectric Magnetic Lock (180kg holding force)supported OSIOS Androidwifisupport , remote monitor / intercom / unlock via phonetake photosupportrecord videosupporttypewifi wireless doorbell / video intercomfunctionintercom / monitor / unlock / record / networknight visionsupportTF cardcomes with a 8G TF card, supports maximum 128GB TF cardPower supply controller12V 3A

Unavailable in

Description

RM1968263255886133



Description

This WIFI/IP video intercom doorbell uses H.264 image compression.This product is easy and safe to operate. It is applicable under both wifi, LAN and 3G/4G network. Unlock is safer with its sole ID number as factory unlock password. Restoring factory setting is not necessary if mobile phone is lost; just make missing devices disconnected by changing admin password.  All events that happen can be recorded. Moreover, this item has video message function and all important information will not be missed. Outdoor unit's videos can be remotely downloaded by mobile devices; removing TF card and downloading from other terminals are not necessary. 90° wide view angle camera with real time motion detection function. You can control your door at any place and in any time.

The smart video doorbell that lets you answer the door from your smartphone, allows you to see, hear and talk to your visitor from an iOS or Android mobile device with Wi-Fi or 3G/4G coverage.– anywhere in the world!

Features Supports both IOS and Android System. Supports maximum 500 rfid keys, this item comes with 10 rfid keys. Supports unlock via RFID keys Motion detection alarm function, take photo automaticlly. Supports video recording and take photoes. Hidden RFID card reader, support unlock door locally. One doorbell support up to 500pcs users card. Remote unlock the electornic lock by phone. 5 IR LED for night vision. 720P HD video. Supports both LAND and 3G/4G network, wifi signal. Support remote monitor, intercom, unlock from anywhere in the world. Intercom between the phone/tablet and outdoor bell. Full Metal panel, beautiful design. Support night vision. APP installation APP’s name is Yoosee, free for Android and iOS both. A) Download APP at http://www.yoosee.co B) Search “Yoosee” from APP store or Google Play Store according to phone system Note: Select 'Only iPhone’ on iPAD C) Scan QR code to dowload and install Window software download at http://dl1.cloudlinks.cn:8765/dl/exe/CMSsetup.exe

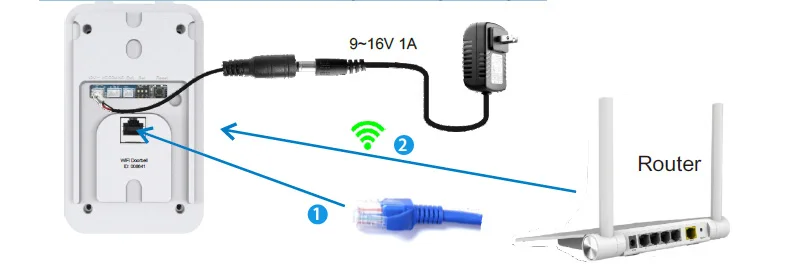

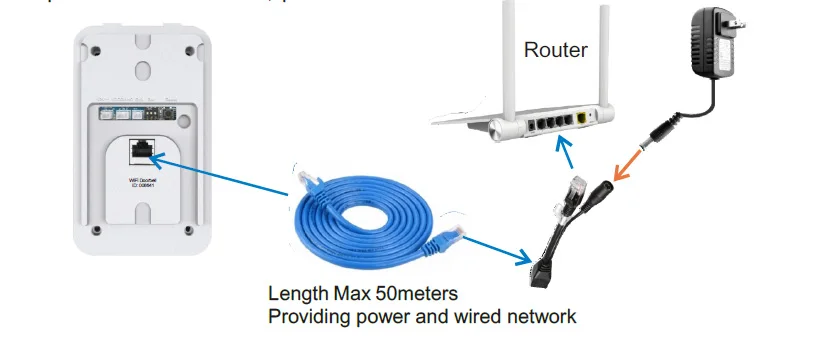

Installation   Doorbell’s power and network connection selection, please refer to: 1 Power and network cable both available, plug the network cable and power. 2 Power available but no network cable, plug the power and connect to WiFi, try to ensure that the doorbell received signal strength is higher.





Details



Specification



Server Cloudlink P2P transmission, Adaptive Network Network WiFi 802.11 b/g/n or directly connected to a wired network Audio G.711 A compression mode Talk 3Dvoice speech engine technology, Full duplex talk Video format H.264  Record mode Manual Recording, Alarm Recording, Scheduled Recording External Memory Micro SD card up to 128GB Camera 1 megapixels Camera Lens 2.5mm, 130 degree wide-angle Night vision IR CUT no color deviation,  B/W night vision within 5meters  Frame rate 25 Frame HD (1280*720), SD (640*480), LD(320*240) Alarm Motion detection, PIR detection, Tamper alarm Push Push message to smart phone, Send pic to settings mail Data interface TCP/IP, UDP, SMTP, DHCP, UPnP, ONVIF connect NVR  Power adapter DC9~16V 1A  or  POE power by connect POE injector Waterproof level IP44 Temp/humidity -20~55 °C  10-95% RH Weight G.W.: 750g



Remote Control

when you want to go out, you just need to click this Remote control, then you can go out.

input voltage: 12VDC. frequency: 433MHZ.



Power supply

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



Input voltage: AC110-240V 50-60HZ Output: 12VDC 3A It controls electric lock directly.
  Can reduce the load of access controller, save wiring to reduce the hidden trouble
  Based delay control circuit, lock time can be in 0-15 seconds
  Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  Operative device: E/M Lock, Access Controller, Exit Push Button. Size:120x98x35mm.

  Electric Magentic lock



It is a High-performance  180kg Holding Force electric magnetic lock which suit for many access control system. This electric lock can meet your need perfectly!







Voltage: 12V DC  Mode: NC (locked whilst power supply is operating), fail safe mode  Application: wood, iron doors Main body dimensions: 171 x 39.2 x 22mm  Pack includes: electric magnetic lock, installation diagrams  Construction: stainless steel. Performance Testing: 1000000 times aging test Safety function: Built-in voltage spike suppressor Anti-Residual Magnesium Designed Weight: 1.3kg Package









---
