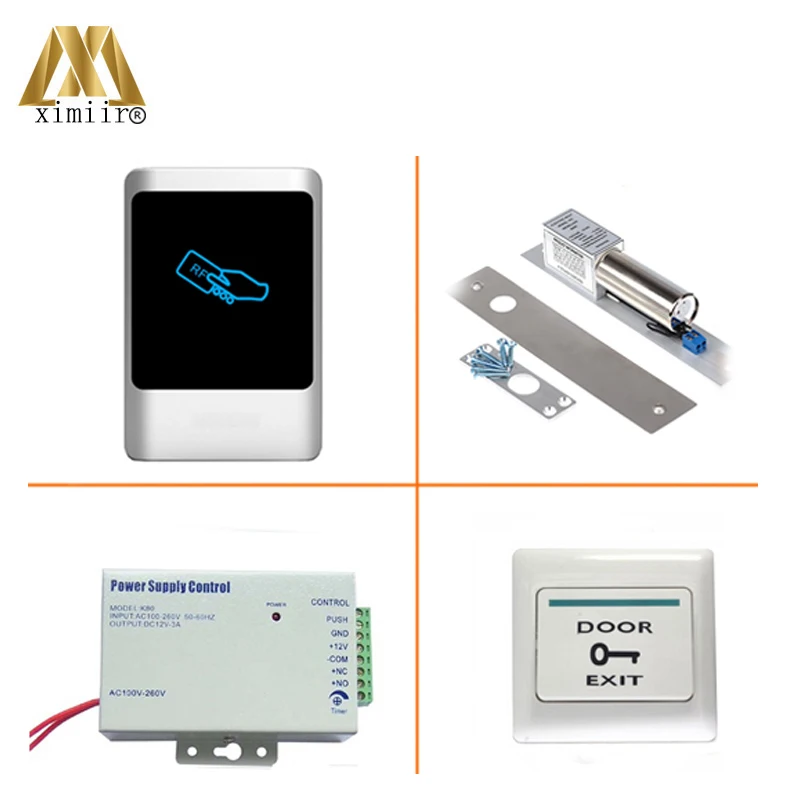

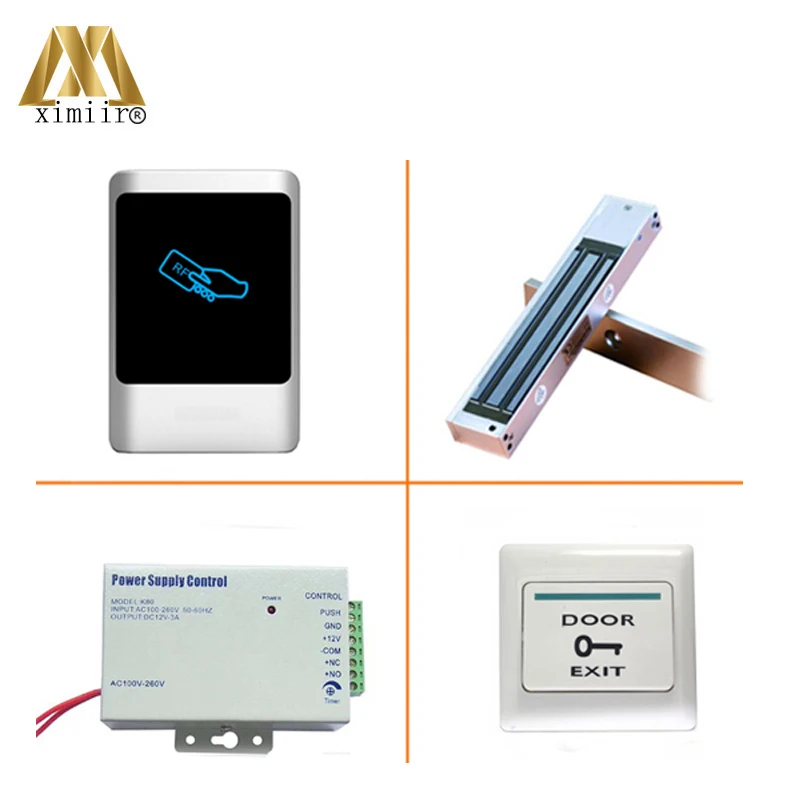

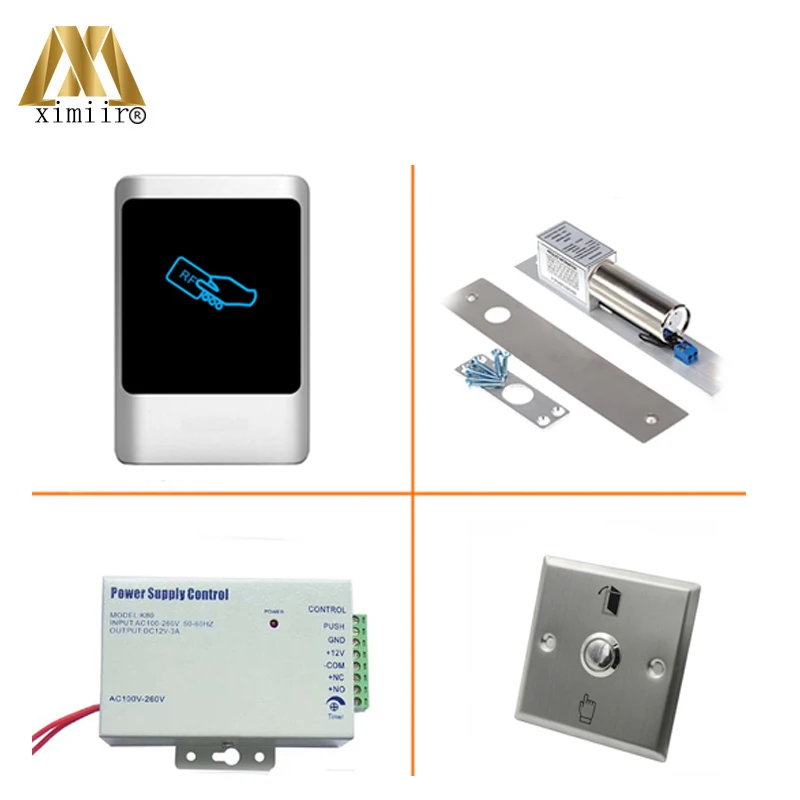

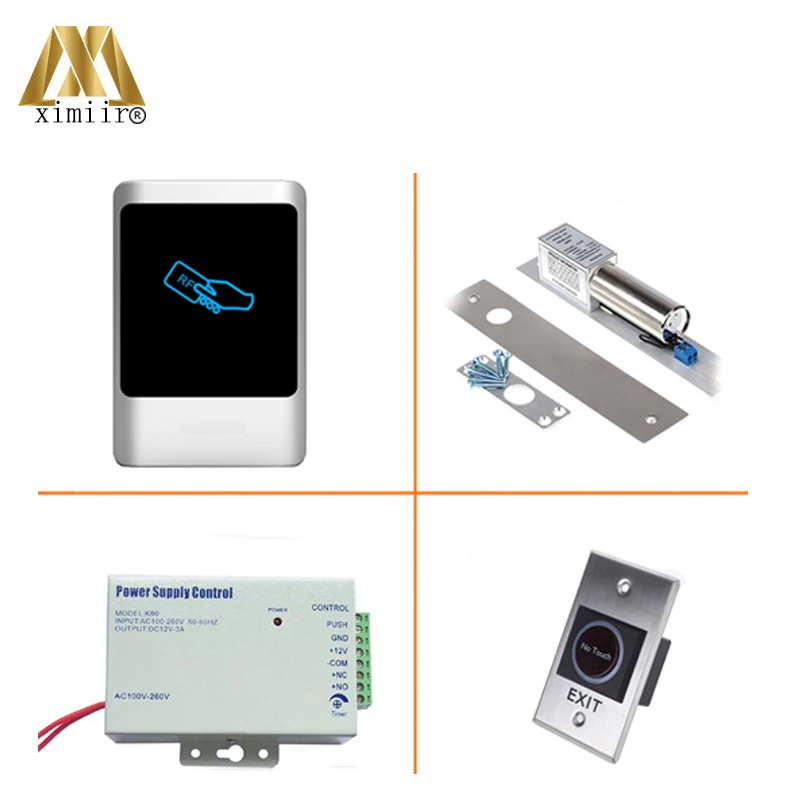

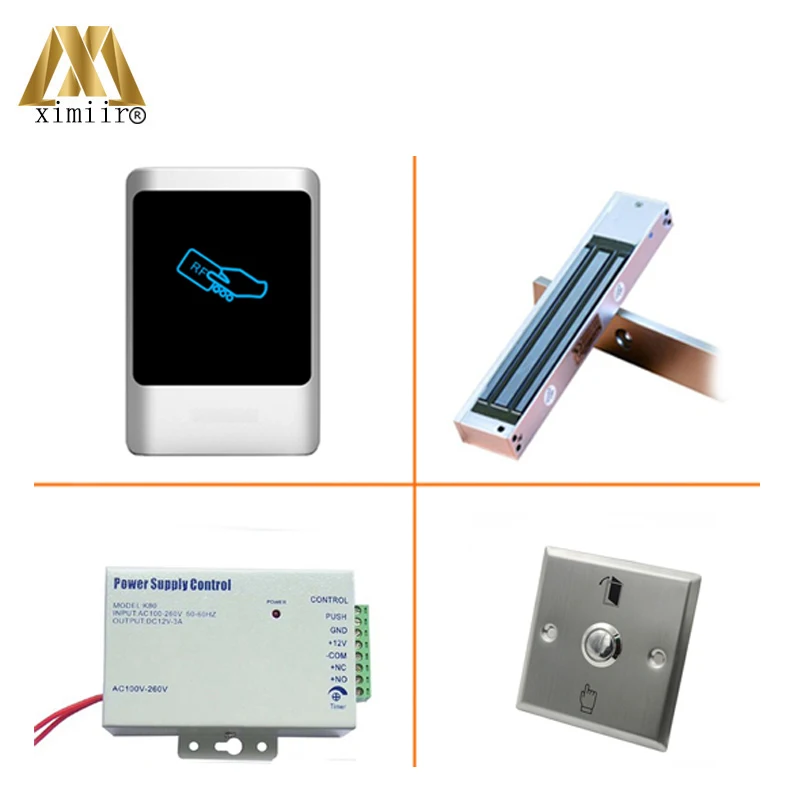

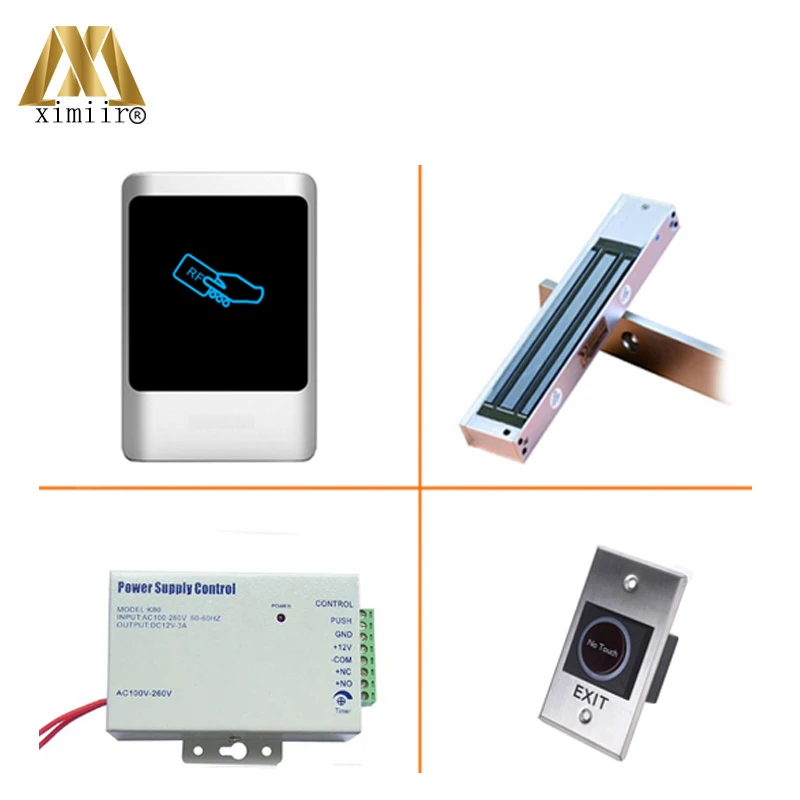

Good Quality Access Control M07 Kit With Electromagnetic Lock/12V3A Power Supply/Infrared Exit button IP65 Controller | Безопасность и

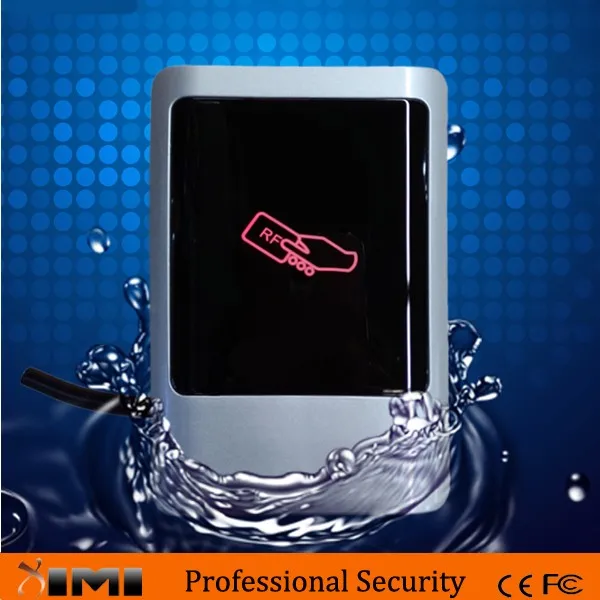

Package: 1pc access control 1pc magnetic lock 1pc power supply( can lay battery) 1pc exit button     Standalone Card Access Control Without software Description: XIMI new reader, touch panel, elegant, classic and unique design, especially suit for the high-end market, also suit for different kinds of need of the customers. ·  M07 reader is a new generation proximity card reader, allows entry by presenting a proximity EM, IC card ·  Aluminum alloy structure, waterproof, fully potted, confirms to IP65. Touch panel. ·  Built-in 125KHz (EM card) reader part: M07E /13.56MHz(IC) reader part: M07M.



Specification:

·  M07E:  support RFID EM card ·  M07M: support IC card .  User capacity: 1000 .  Weigand: IN and OUT ·  Input voltage: DC 12V±10% ·  Idle current: ≤35mA ·  Reading range: 3-8cm (ID card)                             2-6cm (IC card) ·  Frequency: 125KHz(EM) or 13.56MHz(IC) ·  Wiegand output format: Wiegand 26 ·  Keypad output format: visual card No; 4 bits or 8 bits of single key pressing ·  Dimension :128x84x23mm ·  Operating temperature range: -10-60° C ·  Operating humidity: 0-95%(non-condensing).              Power Supply:   Specifications: 100% Brand New. Size: Approx. 120 x 95 x 38mm(L * W * H) Input voltage: 110~240v Input Frequency: 50~60Hz Output voltage: DC 12V Output Current: 3A Output voltage trim range: ±10%~ ±15% Insulation voltage: Junior/sub-polar inter-1500v ac, primary/shell between 1500V AC, subpolar/shell between 500V AC Hold time: full load typically 20ms Operating temperature: -20~ ±35 degree Overload protection: All output in a short circuit, overload are protected; Power output of 0-15 seconds delay locks     Magnetic Lock:   Specifications: Holding force: 180kgs/280kgs
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock
Lock size: 17 * 3.8 * 2cm / 25 * 4.6 * 2.5cm
Plate size: 13 * 3.3 * 1cm / 18 * 3.8 * 1.6cm
Package weight: 1.3kg / 2kgs           Features: Secure mode: The door will lock while supplied with power, and unlock without power. Especially suitable for glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.   Specifications: Color: Silver
Material: Aluminium Alloy
Working Voltage: DC 12V
Working Current:
Ordinary Mode:
Start State: 450mA
Persistent State: 450mA
Normal Mode:
Start State: 750mA
Persistent State: 180mA
Lock Mode: Magnetic Induction
Lock Size: 20.3 * 3.4 * 4.2cm / 8 * 1.34 * 1.65in (L * W * H)
Lock Weight: 425g / 15oz
Face Plate Size: 21.3 * 4.2cm / 8.4 * 1.65in (L * W)
Face Plate Weight: 31g / 1.08oz
Magnetic Base Size: 9 * 2.5cm / 3.54 * 0.98in (L * W)
Magnetic Base Weight: 16g / 0.58oz
Package Weight: 500g / 17.6oz     Exit button:  Specification: Dimensions 86Lx86/56Wx20H(mm)  Input  DC12V Contact Rating  3A 36VDC Max  Output Contact   NO\COM  Mechanical Life 500000 tests  Suitable for Door  Hollow Door  Operating temp  -20~+55 degree(14-131F)  Suitable Humidity 0-95% (relative humidity)  Color Depends on Pic Weight  0.2kg  Standard Packing  60pcs/carton                   ​
