Note:The balancing board must need BMS to use together,and the BMS is without balancing function

Parameter:

Balance Voltage for each single cell: 4.2V

Balance current for each single cell :66mA

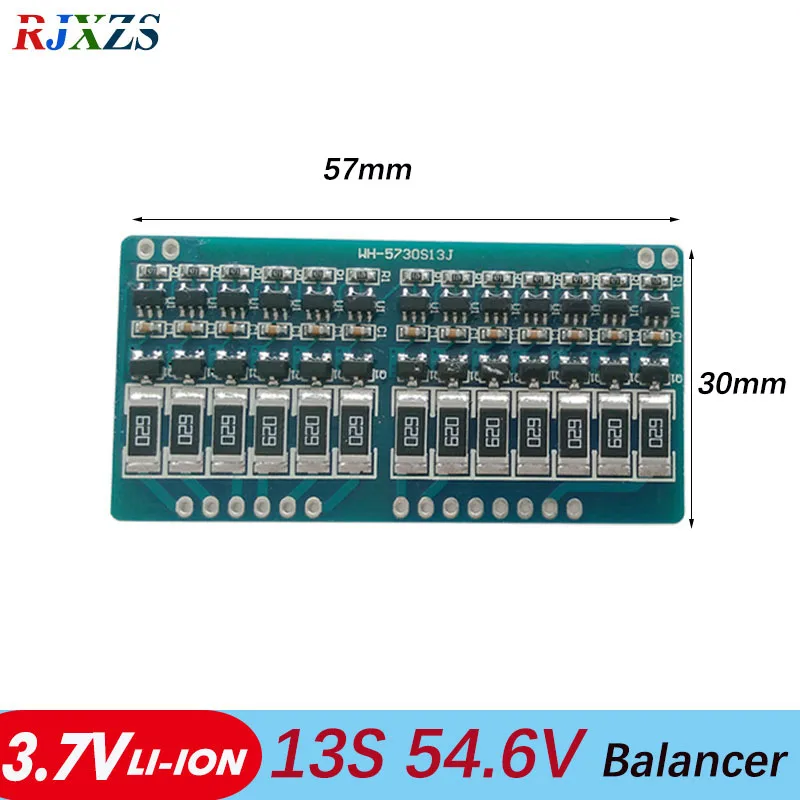

Size;57mm*30mm

Note:the balancer starts balancing when the one cell get 4.2V, The Cut-off  Voltage is according to the BMS setting,but the bms cut-off voltage needs more than 4.25V which is much better.

4S  Cnnection instruction:

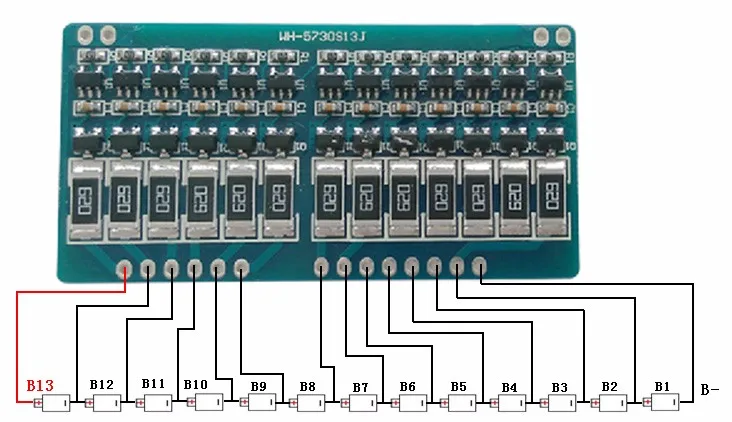

B13+    Connect battery positive;

B12+Connect the point between battery 12 and battery 13;

B11+Connect the point between battery 12 and battery 11;

B10+Connect the point between battery 11 and battery 10;

B9+Connect the point between battery 9 and battery 10;

B8+    Connect the point between battery 8 and battery 9;

B7+    Connect the point between battery 8 and battery 7;

B6+    Connect the point between battery 7 and battery 6;

B5+    Connect the point between battery 6 and battery 5;

B4+    Connect the point between battery 5 and battery 4;

B3+    Connect the point between battery 1 and battery 2;

B2+    Connect the point between battery 2 and battery 3;

B1+    Connect the point between battery 3 and battery 4

B-     Connect battery negative;

1. this board is only balance board, should use together with PCM, whitch no balance function.

2. this board can use as 10S 11S 12S 13S balance board.

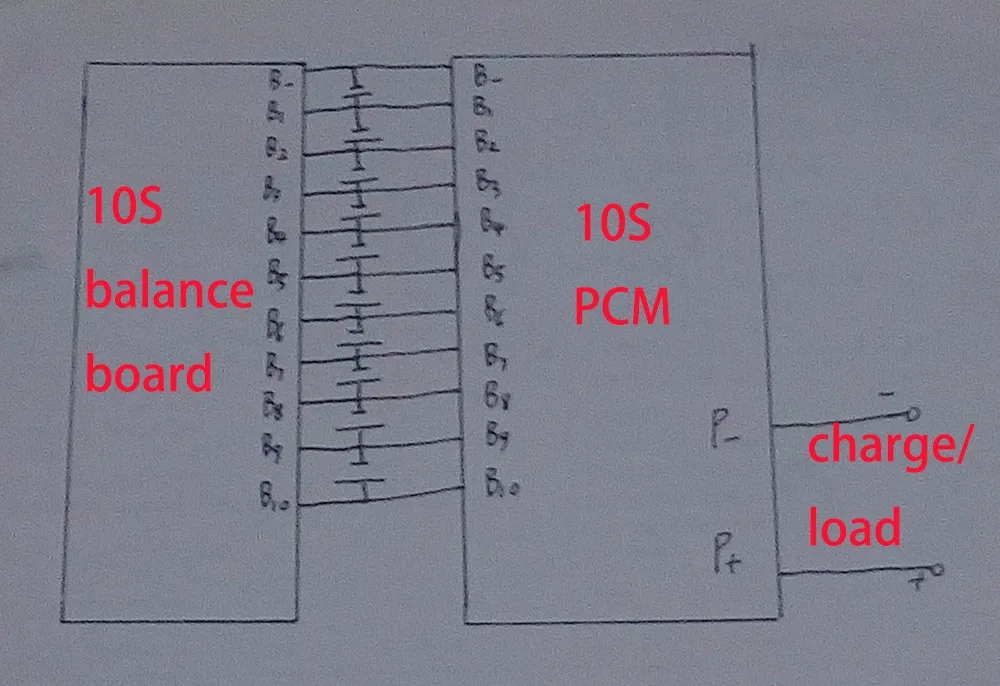

use as 10S balance board, wiring diagram for reference.

Notice:

1) This balance do not have charge and discharge protection function, so it cannot be instead of bms;

2) If you have any requirement,please tell us soon;
