1080p 2MP Веб-камера CMOS OV2710 высокой скорости CCTV безопасности Мини-веб-камера USB-камера с объективом с переменным фокусным расстоянием 2,8-12 мм и 5-50 мм.

1080p 2MP Веб-камера CMOS OV2710 высокой скорости CCTV безопасности Мини-веб-камера USB-камера с объективом переменным фокусным расстоянием 2 8-12 мм и 5-50 мм.

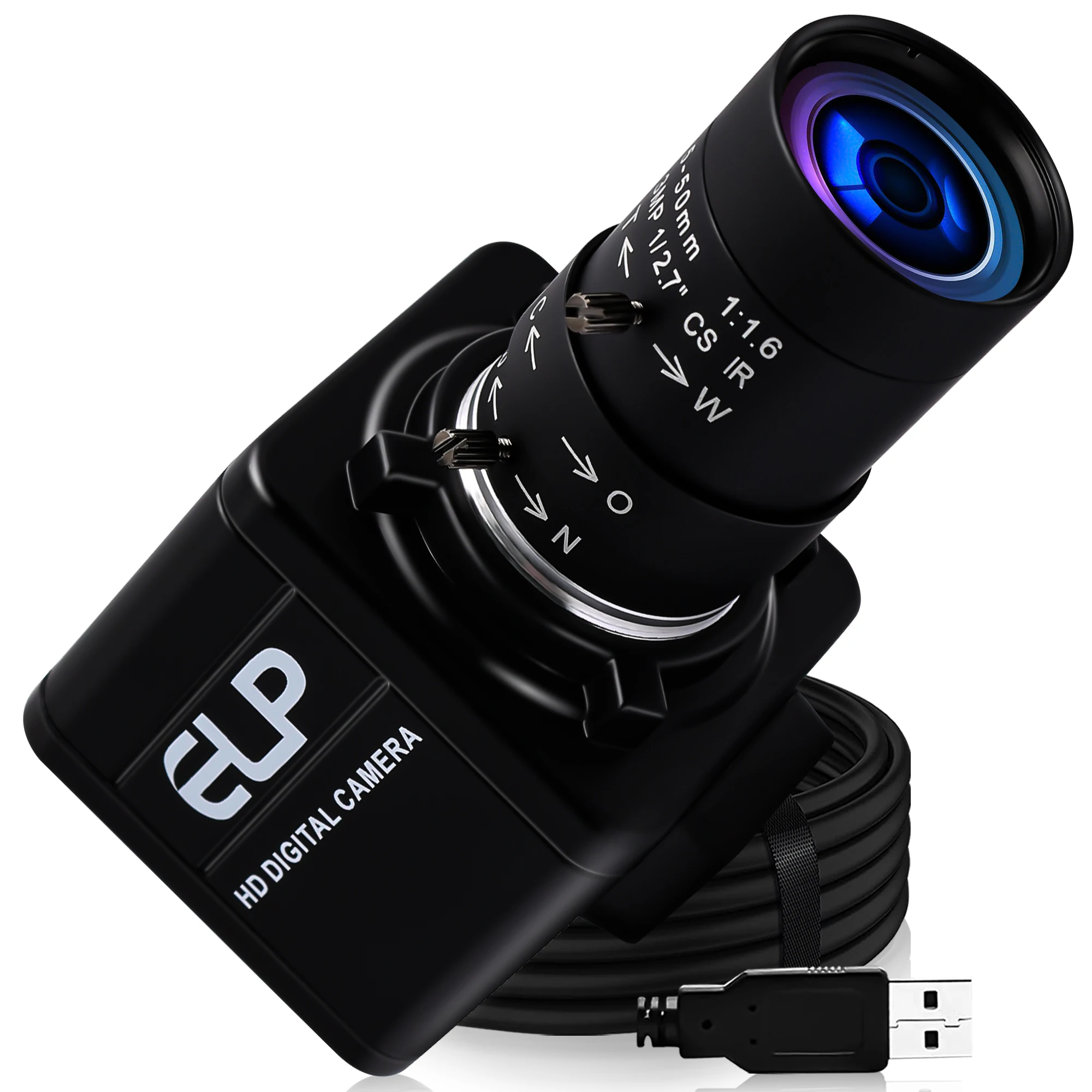

1*1080P usb camera with two lenses . 2.8-12mm  and 5-50 mm varifocal lens

1*3m usb cable

1*User manual

*High Speed1080PHD USB Camera

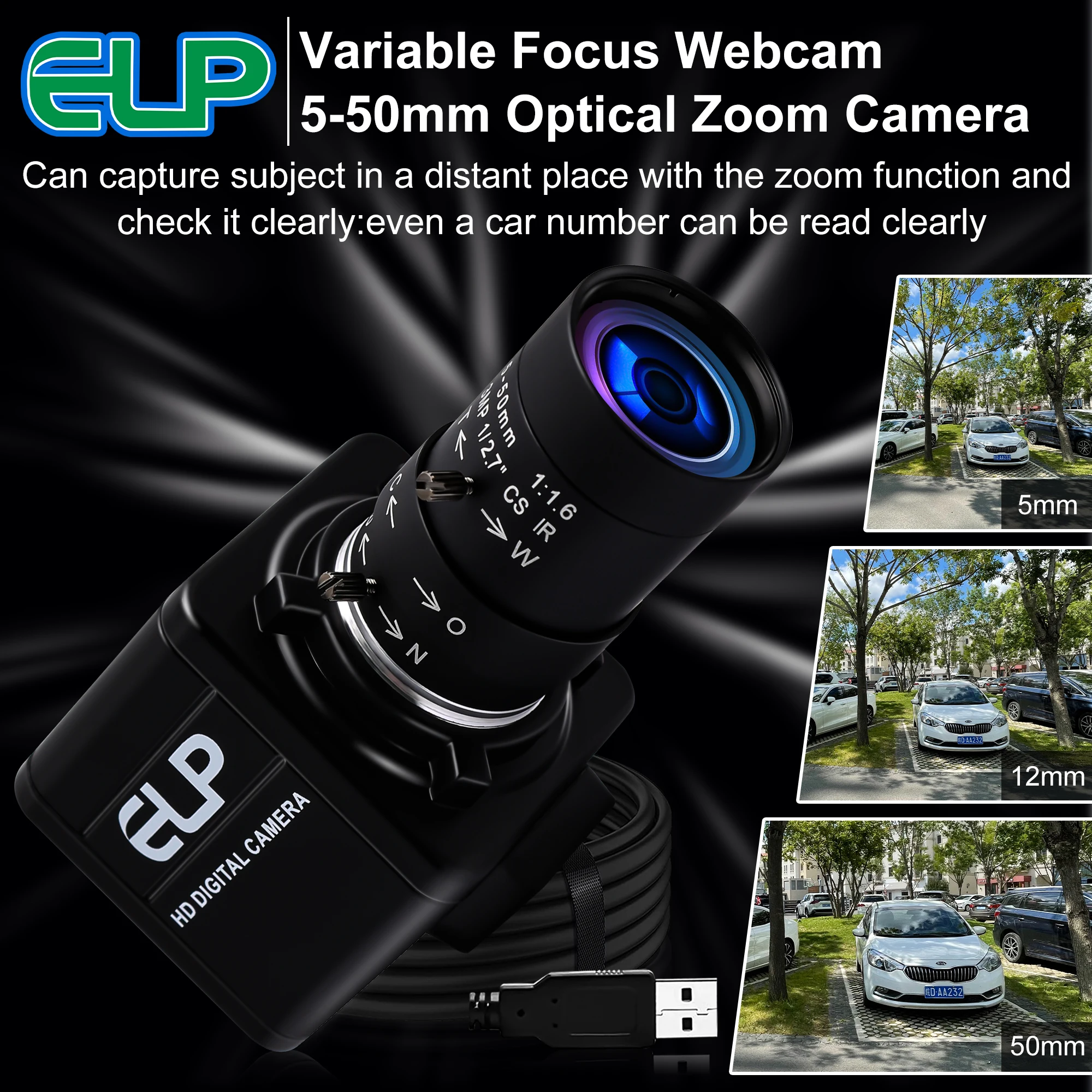

*Equiped with2.8-12mm and 5-50mm varifocal  lens
*Can drive30fps@1080Pand60fps@720p , 120fps@480P
*CMOS 1080P sensor for high quality image and low power consumption.
*High speedUSB 2.0 interfacefor high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use inLinux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Optional models

ELP-USBFHD01M-MFV

Sensor

1/2.7" CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG /YUY2

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps
1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps
800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps
640 (H)   x  480 (V) pixels    MJPEG 100fps     YUY2 30fps
352(H)    x  288 (V) pixels    MJPEG 100fps     YUY2 30fps
320 (H)   x  240 (V) pixels    MJPEG 100fps     YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

lens

2.8-12mm varifocal lens

view angle

depend on lens

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

board Size

32x32mm/38*38

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

1080P usb camera with 2.8-12mm varifocal lens -Good camera for Skype Youtube Live streaming.

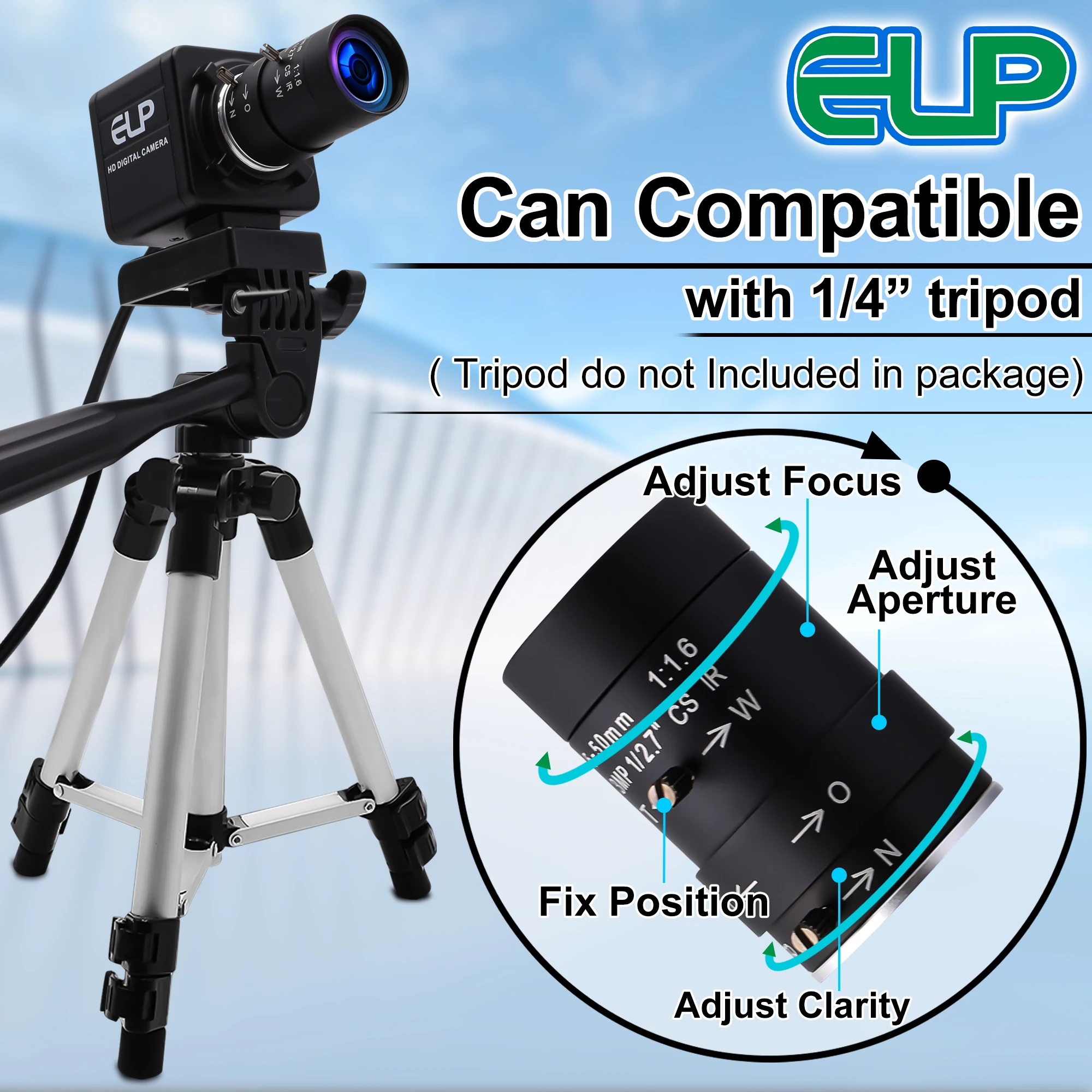

Notice: The Tripod is not included in the package:

Picture by 2mp usb camera module:
