Main function:

YH-853D 3A USB 4LED tegrate all merits of 853D+.

it is improved from our old model:YIHUA853D+ 3A ,this new type also additional below new function:

1.all parts is LED digital display ,and the current is 4 digital precise display current value,the

current value can precise display mA value.it is very directly perceived through the senses.

2.Air gun handle add to auto./manual conversion function ,

Manual mode: air gun back into the handle frame, air gun to maintain the current state of the work, the manual mode is suitable for frequent use of air guns, eliminating the need for back and forth to cool the warming

process, convenient.

Automatic mode: air gun back into the handle frame, air gun automatic cooling to standby, automatic mode

for infrequently used air gun to save energy and reduce wear and tear on the machine, to extend the life of

the machine

3.Iron handle add to iron sleep function: iron handle have 10mins sleep function ,can use iron handle use lite.

4.This new type add to 5V output USB interface ,it more convenience repair mobile phone,also can use

power supply for mobile.

5.Wiring terminal output use thick material than before,then the output end power will be larger than

 before.

6.The goods inside board use double panel SMT technology,the performance more stability and durable.

7.New front printing ,it makes the machine outlook more pretty.

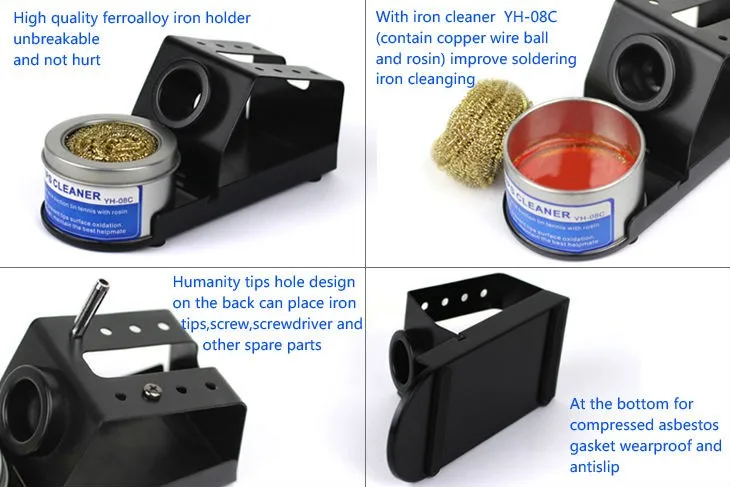

8.The iron holder is more professional and convenience ,the iron holder include solder tips flux and cleaner tips copper wire ball,more convenience clean tips,it's prolong use life.

Picture display:

Technical data:

Rated voltage:  AC 220V±10% 50HZ ( 110V±10% 50HZ)

Total Power:  720W+75W+45W=840W±10%(max)

Work environment: 0-50°C

Iron parts

Gun parts

DC power supply parts

work Voltage: AC:26V±10% 50HZ

work Voltage:  AC:220V±10% 50HZ\( 110V±10% 50HZ)

work Voltage: AC 20V±10% 50HZ\ ( 110V±10% 50HZ)

Output power: 75W±10%

Output power: 720W±10%

Output power: 45W

Temperature range: 200°C-480°C

Temperature range: 100°C-480°C

Output voltage: 0-15V

Output current:0-3A

Temperature stability: ±2°C

Temperature stability: ±2°C

Tip of ground impedance: <2ohm

recovery time: <100us

Tip of ground voltage: <2mV

Ripple dB: <1mvrms (virtual value)

Temperature coefficient:<300PPm/°C

Protection starting current: >standard value 10%

What's in the box :


* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder +gun frame+ cable
* 4nozzles
