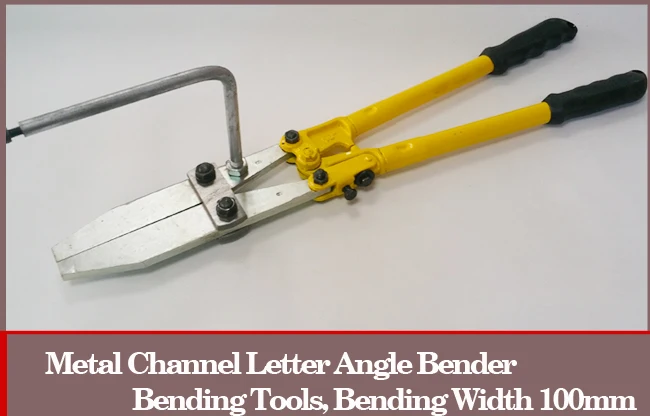

Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm
Small volume, light weight, high speed, the metal channer letter bender tool is an ideal tool for making luminous words.

Specification:
Maximum Process Thickness: 1.2mm (0.05")
Maximum Bending Materials Width: 100mm (3.9")
Machine Size: 550 x 150 x 50mm (21.6" x 5.9" x 2")
Machine Weight: 2kg

Description:
• This metal letters bending plier is made to solve problems of time-consuming and laborious in manual bending metal letters, and has effectively solved problems existed in bending metal sheet.
• It can bend metal sheets quickly and accurately, save time and effort, and improve production efficiency.

Features:
• This Bending pliers are mainly used for more than one meter Channel Letter material.

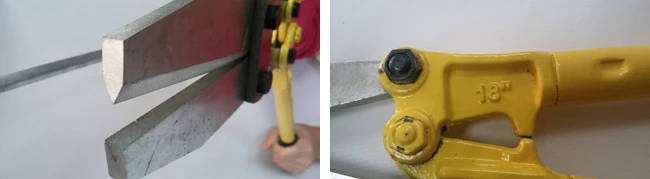

• This metal letters tool has 18 inch handle bending, and thus can bend more strength.

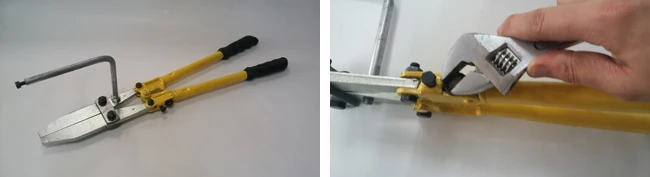

• This bending pliers side has two screws, screw top side is to adjust the tightness of the clamp, tighten more tightly, more tightly clamp side.
• The bending tool is easy to install and operate. Small size.
• It can bend iron 1.2mm, aluminium: 1.2mm, stainless steel: 1.0mm, effective flanging height is 100mm

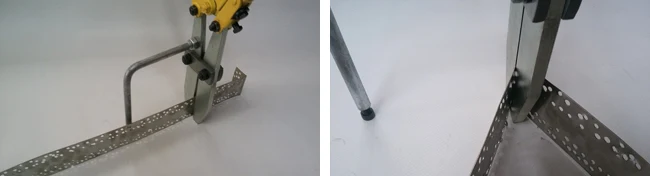

Usage:

Tips:
• This metal letter bending tool adopts screw rod clamp type, you would better not fix the metal too tight, otherwise will reduce the tool's service life;
• If you want to bend thicker metal or you need attain standard 90 degree angle, please make a slot at first with our CS-MBBT-001 metal slot bending machine;
• If the distance between two angles is less than 10cm, but plus the distance between the third angle is more than 10cm, you can bend the third angle first, and then bend the second angle, so that you can avoid in-operation situation.

Application:

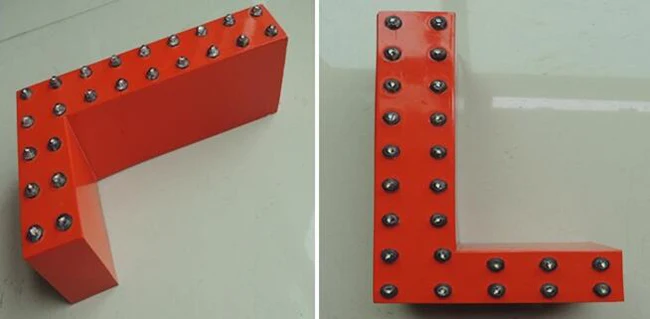

This metal channel letter bending tool can be used for bending angles of metal sheet, stainless steel, aluminum extrusions and various metal strips.

Package:
Gross Weight: 2kg/pc
Packing Size: 23.6" x 5.9" x 2.0"(600 x 150 x 50mm)
