5MP 2592X1944 PCB Board Aptina MI5100 Color CMOS Sensor 100 degree no distortion lens USB Camera Module USB2.0 interface

The HD 5Megapixel USB CMOS board camera module,which meet those program need to see clear all kinds of distance. It is ideal for many applications like security systems, portablevideo system, video phones, industrial machine monitoring and toys.

 Feature

*Super high resolution 5mp USB  camera module
*Can used for micro endoscope camera
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance-ideal for any lighting condition.
*Super small outline and thin profile for embedded application
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Specification

Model

ELP-USB500W05G-FD100

Sensor

Aptina MI5100

Lens Size

1/2.5 inch (4:3)

Pixel Size

2.2um

image area

5.7mm x 4.28mm

Max. Resolution

2592(H) X 1944(V)

Compression format

MJPEG  / YUV2 (YUYV)

Resolution & frame

2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG

1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG

1920x1080 @ 30fps MJPEG / 1280x720  @ 30fps MJPEG

800x600   @ 30fps MJPEG / 640x480   @ 30fps MJPEG

S/N Ratio

38dB

Dynamic Range

70dB

Sensitivity

1.4V/lux-sec@550nm

Mini illumination

0.1lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class (UVC)

OTG protocol

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Button camera

Support

Adjustable parameters

Brightness,  Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

Size:  1/2.5,  Iris:  F2.4,  Focus:  3mm,  FOV(D):  100 Degree

LED board control interface

Support  2P-1.25mm socket

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Operating Voltage

DC5V

Working current

150Ma~200Ma

Working temperature

-10~70 centigrade

Storage temperature

-20~85 centigrade

Board size

38X38mm (compatible 32X32mm)

Operating system request

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

 simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

 credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

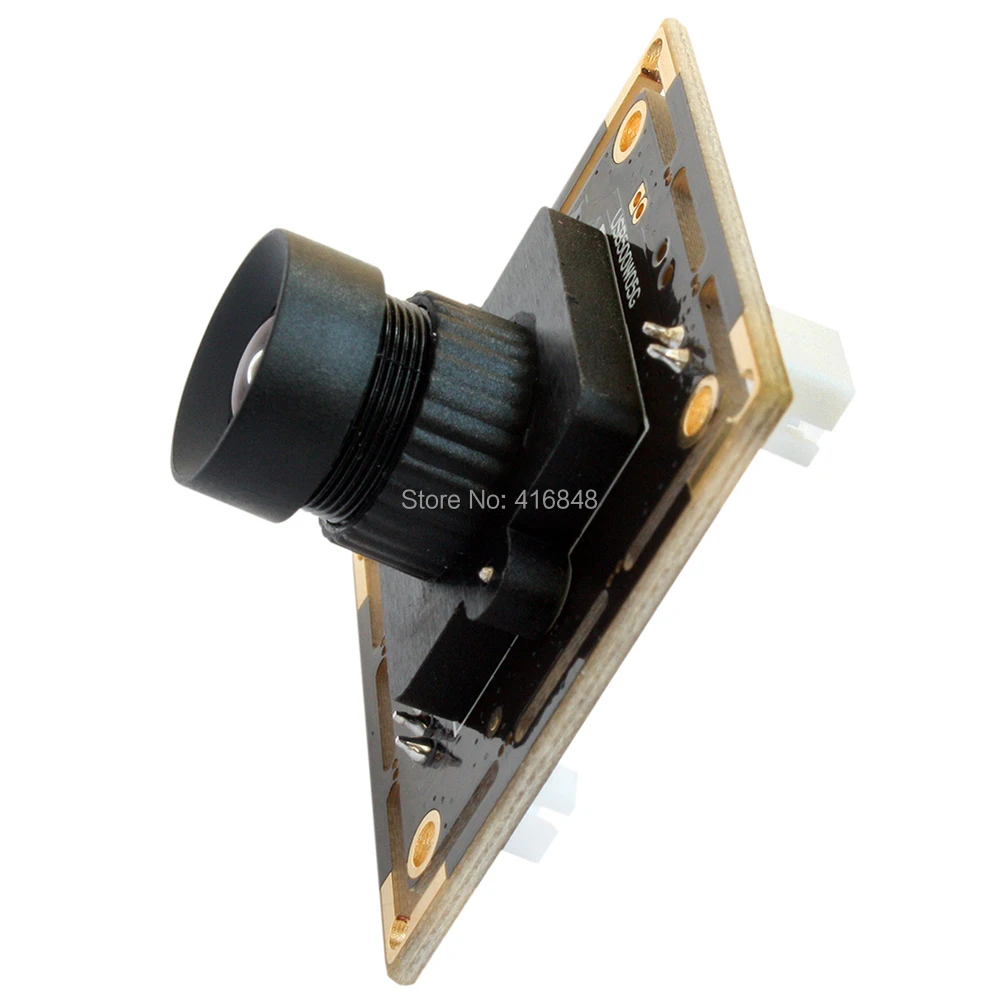

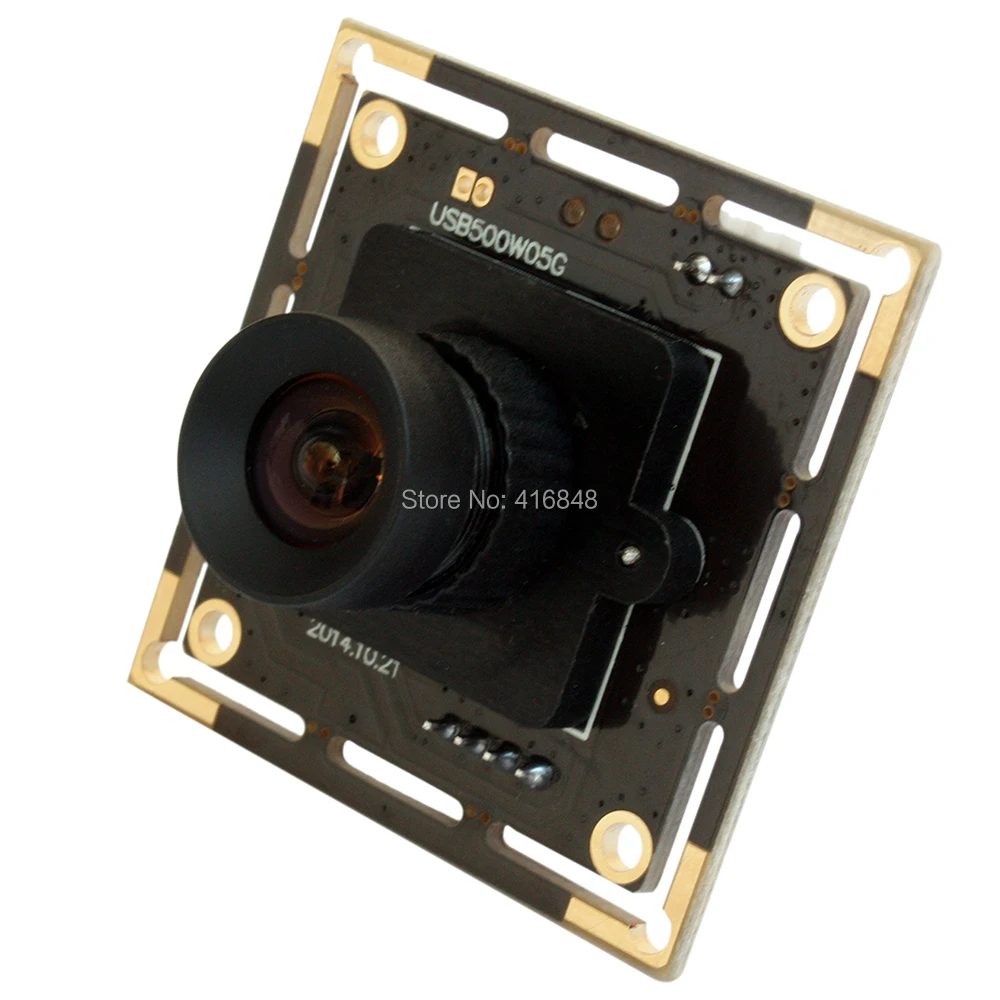

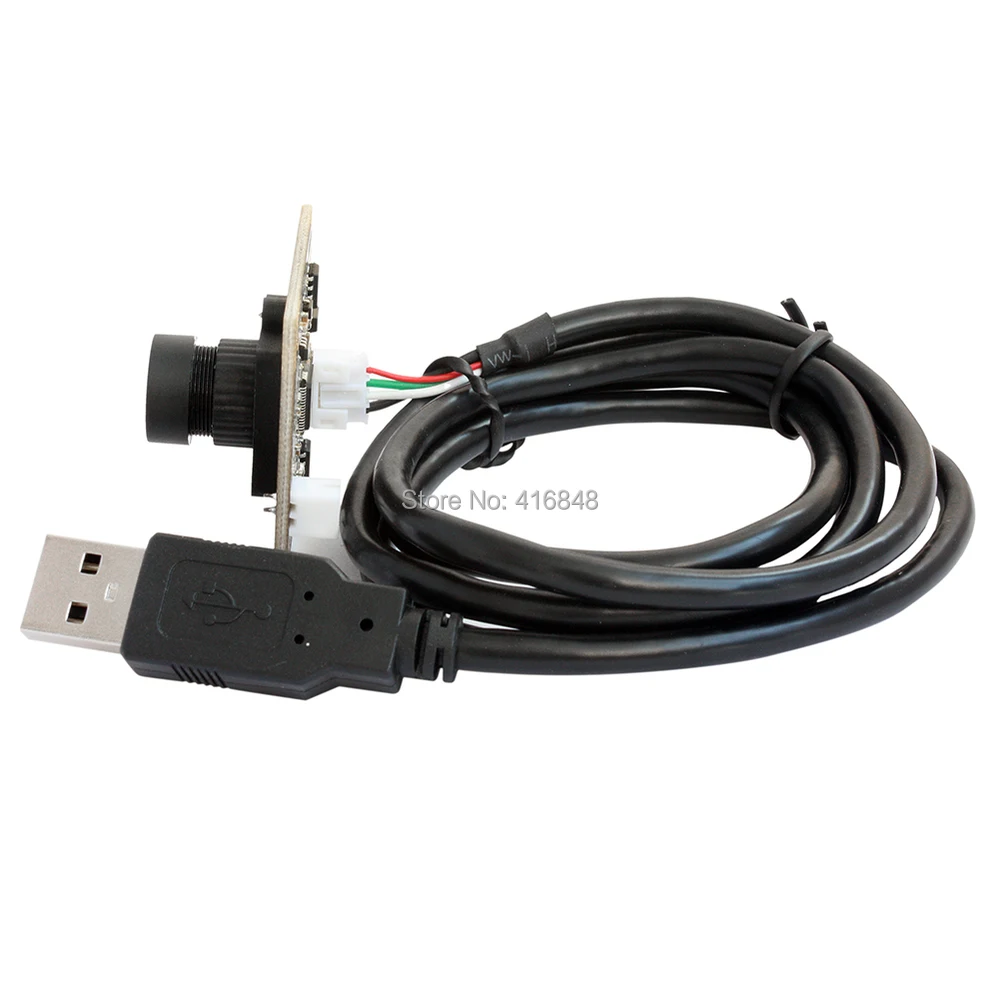

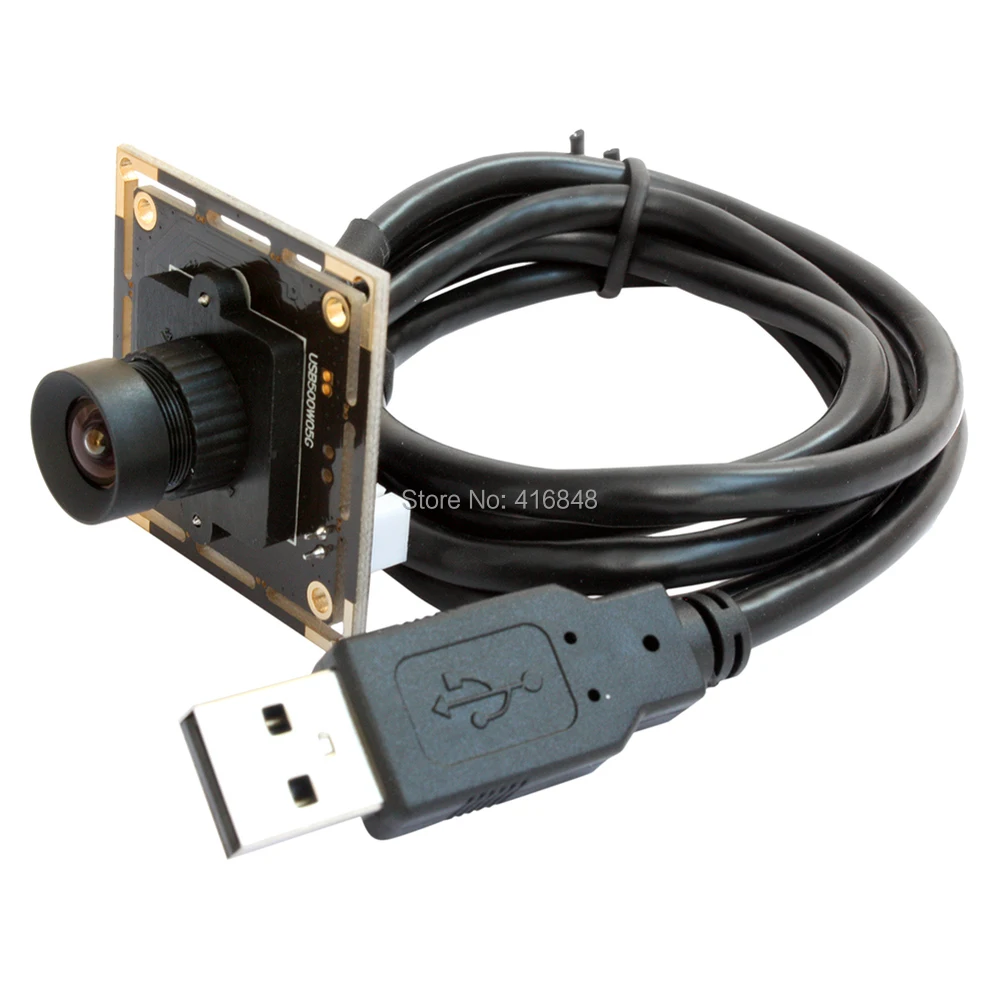

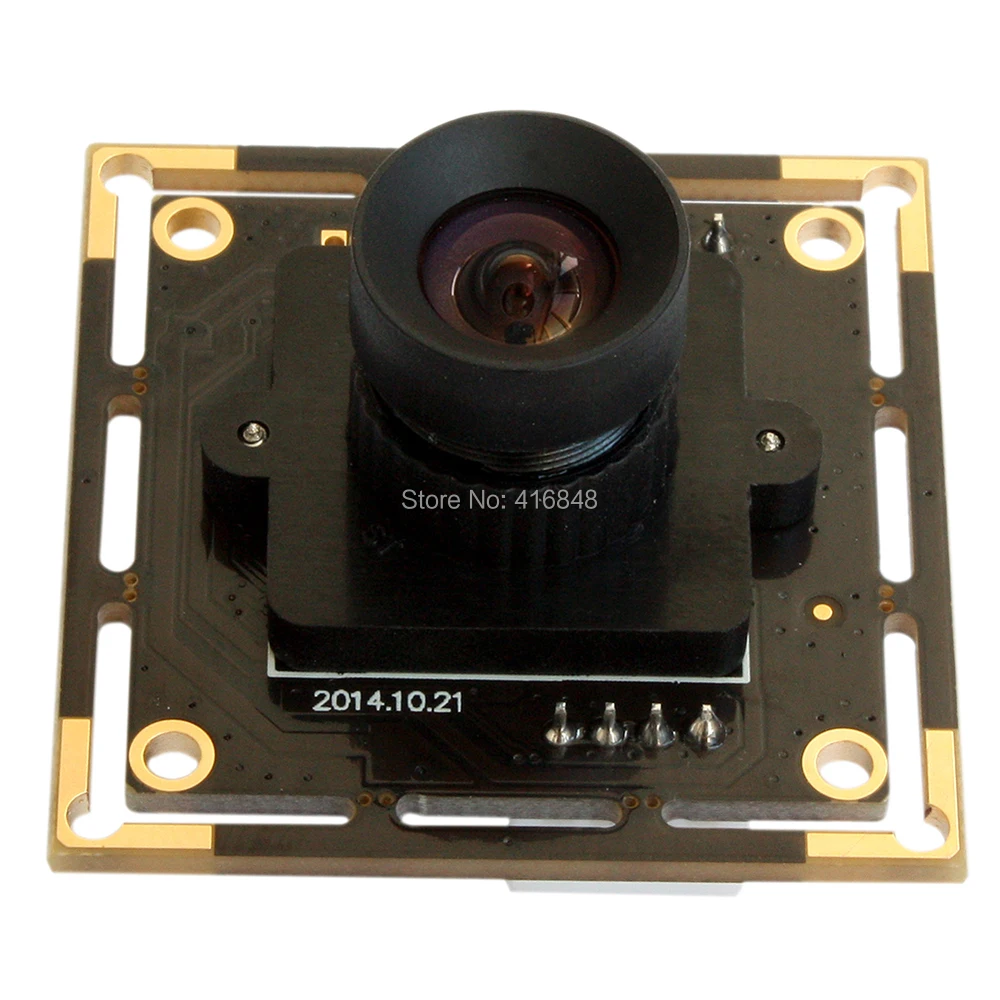

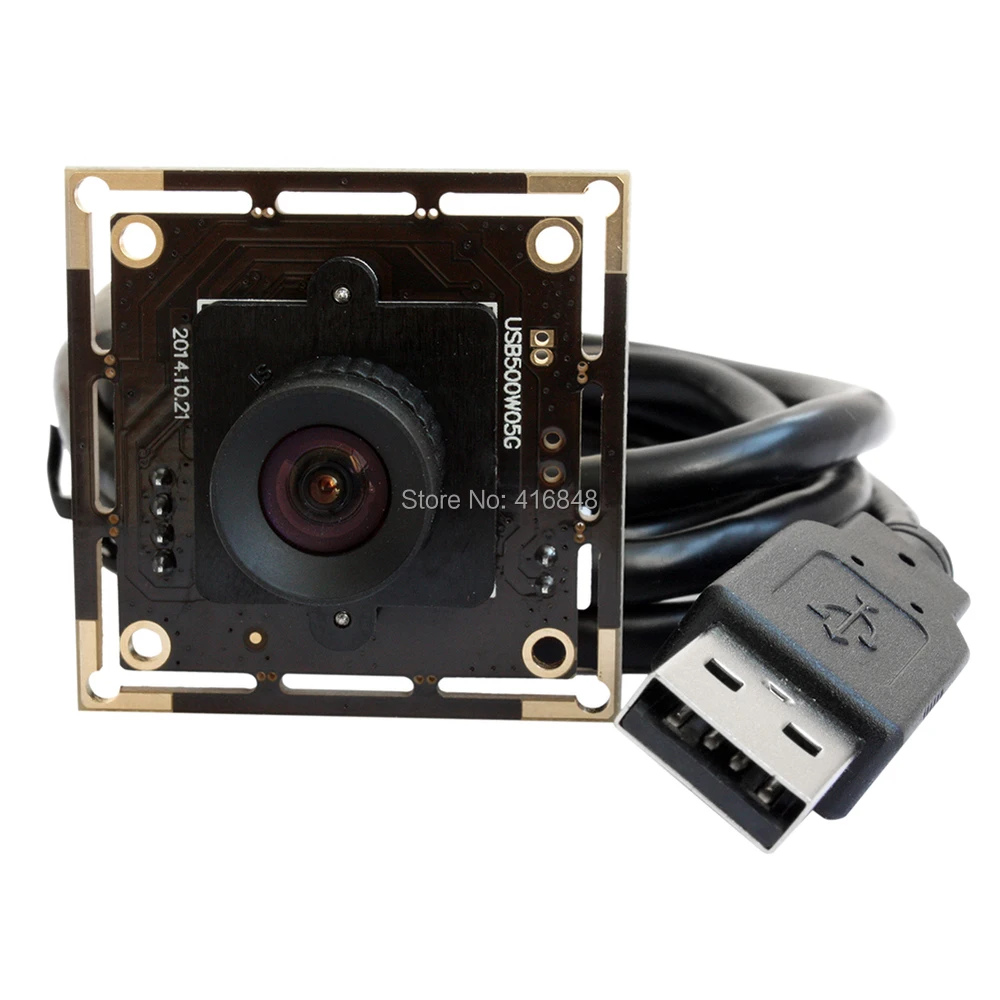

Product detail

Package

effect

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
