Please be noted that the camera without DC 12V power supply, If you need, please contact us

1.0 megapixel 1280X720 H.264 onvif 2.0 p2p 3.7mm lens mini hd ip camera 720p support mobile phone remote surveillance

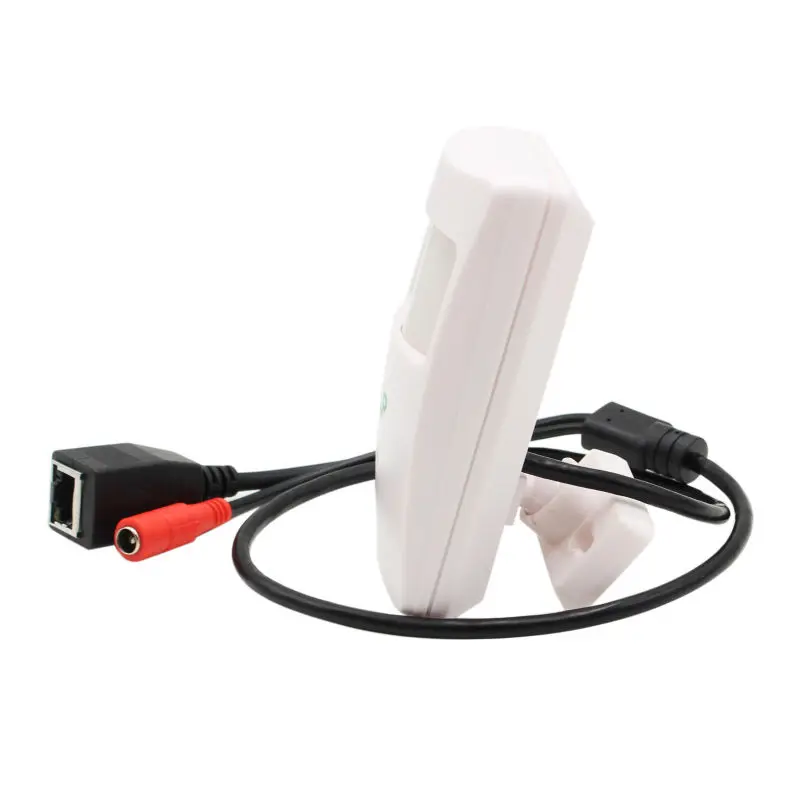

*1.0 Megapixel mini size pinhole IP camera
*Main stream always, resolution: 1280X720
*3.6mm/6mm /8mm/12mm lens*Use highly advanced image sensor
*Advanced H.264 video compression, achieving ultra low bit rate, superb high-definition picture quality.
*Support various information superimposed(such as DDNS etc.)
*Support dural-stream
*plug and play, with multiple cloud service
*support various mobile long-distance monitoring(Iphone, Symbian, Android etc.)
*Support multiple web browser(IE,Chrome,Firefox,Safari)
*Support auto electronic shutter, adapt to different monitoring environment
*Web and CMS supporting central managemet software
*Support HVR connection

model

1.0Megapixel Mini IP Camera

camera

image sensor

1/4" HI3518C+OV9712 CMOS

min.illumination

Color:0.1Lux @(F1.2,AGC ON)
Black/white:0.2 Lux @ (F1.2,AGC ON)

shutter

1/50(1/60)s -  1/10,000 s

lens

HD professional lens 3.6mm (6mm,8mm,12mm optional)

compression

video compression

H.264 HighProfile, JPEG snapshot

bite rate

100Kbps~6Mbps

iamge

max.image resolution

1280*720

frame rate

50Hz:25fps (1280*720) 60Hz:30fps (1280*720)

image setting

Saturation, brightness and contrast are adjustable through IE browser or client.

network

storage

Network storage

intelligent alarm

Motion detection, video loss, cable break, IP address conflicts

protocol

TCP/IP,HTTP,DHCP,DNS,DDNS, PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6 )

basic

anti-flicker, dual-stream, heartbeat, password protection

  interface

net interface

One RJ45 10M/100M

general

operating condition

-20 to 70 degree, 90% or less(non-condensing)

Power supply

DC12V±10%

Protection range

IP65

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

 simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

 credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

Phobe view step

 mini ip camera
