Комплект контроля доступа Iclock660 отпечатков пальцев с камерой кард-ридер питания

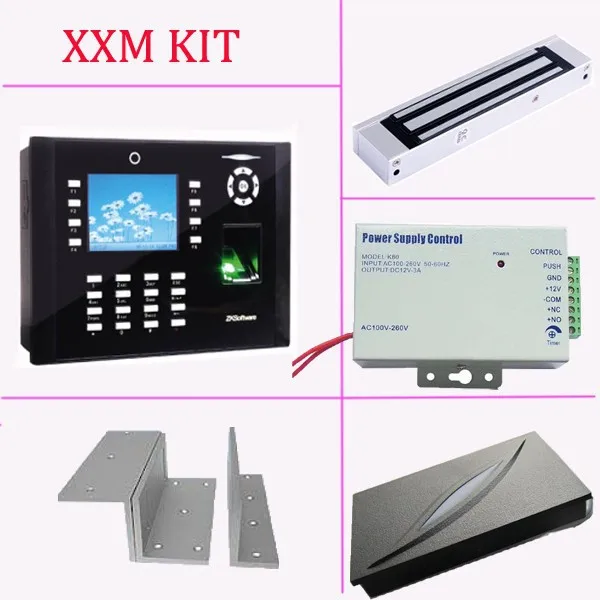

NOTE

1pc access control

1pc magnetic lock

1pc power supply

1pc card reader

1pc bracket



Access Control:

Introduction:

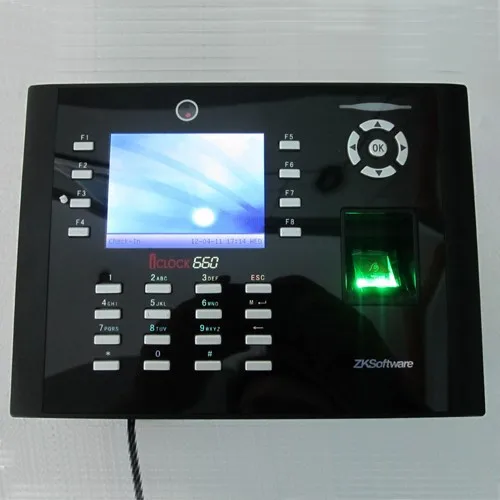

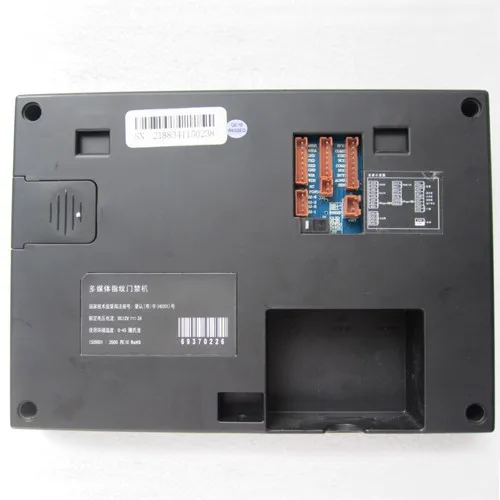

iClock660 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The iClock660 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3.5” TFT can display more information vividly, including user photo, fingerprint image quality and verification result etc. 8 function keys are the shortcuts to change the attendance status, work-code or to browse the short message, and can be defined as required. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds. The camera can capture the image of the user.

Features:

Color TFT screen with GUI Interface for ease of use. ZK Optical Sensor 1 touch a-second user recognition Stores 8,000 templates and 100,000 transactions Reads Fingerprint and/or PINs Optional integrated proximity or smart card reader Built-in Serial and Ethernet ports Built-in USB port allows for manual data transfer when network isn't available Optional integrated Wi-Fi\ GPRS also available. 8 user-defined function keys Multi Language Support Built in bell scheduling Real-time 1-touch data export 3rd party hosted & non-hosted applications Audio-Visual indications for acceptance and rejection of valid/invalid fingers SDK available for OEM customers and software developers

Specifications:

Fingerprint Capacity

8000 templates

Transaction Capacity

200,000

Sensor

ZK Optical Sensor

Algorithm Version

ZK Finger v10.0

Communication

GPRS,RS232/485, TCP/IP,  USB-host

Standard Functions

Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID, Anti-passback

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm, Door Bell

Wiegand Signal

Input & Output

Optional Functions

ID/Mifare/HID/iClass,Webserver,9 digit user ID, Wi-Fi

Display

3.5 inches TFT Screen

Power Supply

12V DC 1.5A

Operating Temperature

0 ?- 45 ?

Operating Humidity

20%-80%

Dimension

205.6 x 150 x 41.6 mm

Gross Weight

2 kg

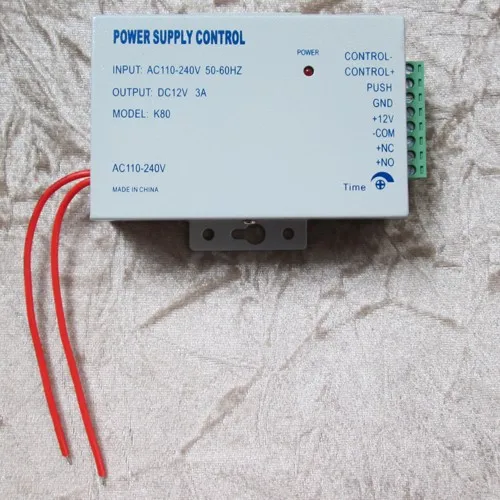

Power Supply: Power output: Standard 12VDC,3A Control electric locks or bolts directly Lessen the load of access controller Save project wires With UPS terminal which can connect with battery Lower potential trouble NC/NO output Control all kinds of electric locks Has delay control circuit Unlock delay time in 0~10S Auto protective function Dimension:215X 170 X75 MM

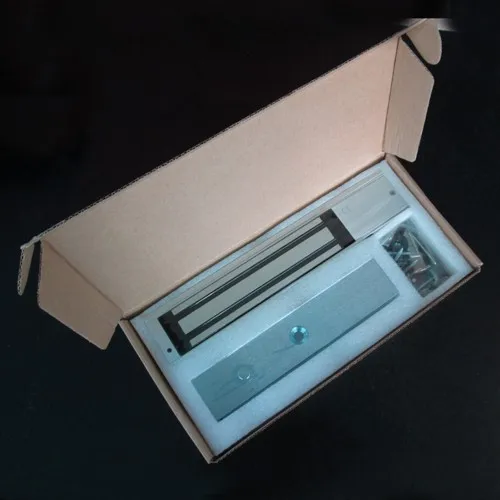

Magnetic Lock: Collinear Load Test 280kg,600pounds The Standard Voltage is 12VDC when Finished MOV Provides Reverse Current Protection Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door LED Indicates the Door Status Lock Status sensor(NO/NC/COM) Optional Bracket: ZL,L, U Bracket Anti-Residual Magnetism Designed High Strength Material, Anodized Aluminum Housing Design without Mechanical Failure Increase the holding Force, Dual Insulated Housing

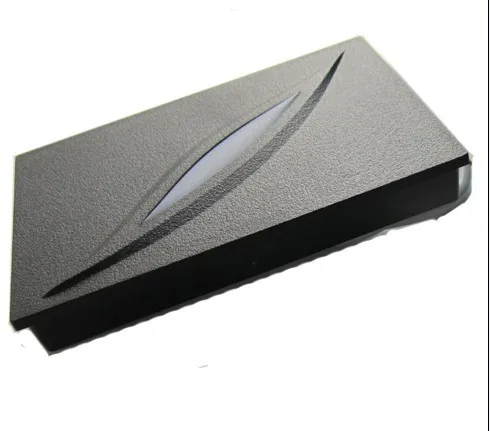

Card  reader:  Card Type: Proximity Card Frequency: 125 KHz Data Mode: Wiegand 26 ProximityRange: >=5cm Built-in buzzer LED indicator: Red, Green Working current: <= 30 mA Working Voltage: DC 5-16V, standard 12V SAmbient temperature: -10°C to 50 °C Ambient humidity : 10%-90% Speed: <= 0.2 sec Punching Interval: < 0.5 sec Communication Distance: 100 meters Transmittal Mode:real-time       Bracket
