Двухпортовый 8K USB C KVM переключатель с DisplayPort, совместимый с 60 Гц 4K, 120 Гц 2xUSB-C ПК на один монитор.

Двухпортовый 8K USB C KVM переключатель с DisplayPort совместимый 60 Гц 4K 120 2xUSB-C ПК на один монитор.

USB-C 8K KVM Switch DP 1.4 2xUSB-C PC to One DisplayPort Dual Monitor 8K@60Hz 4K@144Hz 3X USB2.0 Sharing Mouse Keyboard Printer 2in 4out Converter Compatible with Thunderbolt 3/4

2xUSB-C 8K KVM Switch with one DisplayPort 1.4 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 Port to your DisplayPort Monitors via your own displayport 8k Standard Cable,you can press the "select"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working

With 3xUSB2.0 Output Port,two Computers share one set,you can connect 3xUSB2.0 Output to your USB Mouse,Keyboard,Printer,Disks,or other usb devices,while you switch from one PC to another PC,Your USB device will be synced to your external display without pluging and unpluging the related USB device repeatedly.The USB Port supports the USB2.0 Specifications and the transfer rate is 480Mbps

DisplayPort 1.4 HDR Video Output,with this switch,you can max output 8K@60Hz 4K@144Hz resolution in your external DisplayPort Monitors,This requires that your USB-C pc and DisplayPort cable/Monitors should both supports the max resolution you would like to output,that is,your computer's USB-C port should be thunderbolt 4 and Monitor's DP Port should be DP1.4 Alternate Mode.If laptops with usb-c Gen-2 Port or Thunderbolt 3 Port,it can only max up to 4K@60Hz

This USB-C KVM switch equipped with two USB-C Gen-2 Cable as accessories to connect your USB-C Laptops,meanwhile,it includes a USB-A to USB-C Cabler for Power.With Multiple USB Ports,solved the problems of insufficient USB Interface,Two computers share one screen, and connect USB devices such as mouse and keyboard synchronously.Notes:The PC1 Input and PC2 Input only connect to your USB-C PC,these two ports are forbidden to connect to your USB-C Hub

Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment

Specifications of USB-C 2PC Input 1 DisplayPort Output 8K KVM Switch

Input Port

2 x USB Type C Female Port for USB-C PC Input,1xUSB Type-C Female for Power

Output Port

1 x DP Female Port,3 x USB 2.0 A Female Port

Bandwidth

DP 1.4: 32.4Gbps/USB 2.0: 480Mbps

DP Output Resolution

1080P@60Hz/120Hz/165Hz, 4K@60/120Hz/144Hz(DSC), 8K@30, 8K@60Hz(DSC)

DP Deep Color

8bit / 10bit / 12bit

DP Chroma

4:2:0 / 4:2:2 / 4:4:4

Chassis

Aluminium alloy Shell

Dimension

123mm(L)x54.0mm(W)x13.0mm(H)

Cable Length

2.0m Max(Standard 8K DP cable)

Extra Power Supply

Required,via a USB A to USB-C Cable to your USB Devices or Power Adapter

Accessories

2xUSB-C 3.1 Gen-2 Cable/1xUSB A to USB C Power Cable/user Card/User Manual

Package

Box,Package size:137*137*38mm

USB-C Standard

Thunderbolt 3 /USB-C Gen 2 max supports 4K@60Hz,even DisplayPort supports DP 1.4

DisplayPort Standard

DisplayPort Standard 1.4 Alternate Mode,if USB-C Ports supports Thunderbolt4 ,you can max output 4K@144Hz

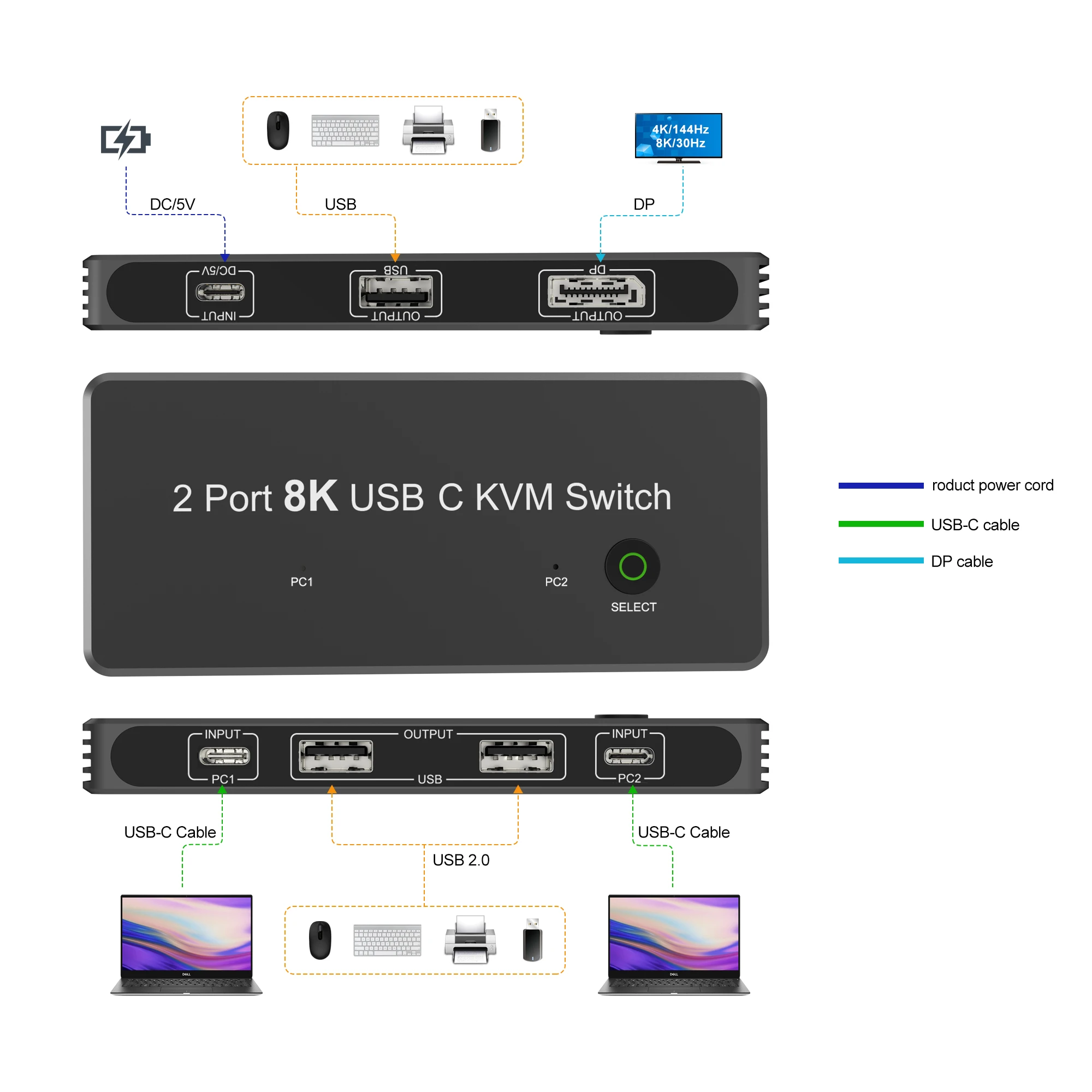

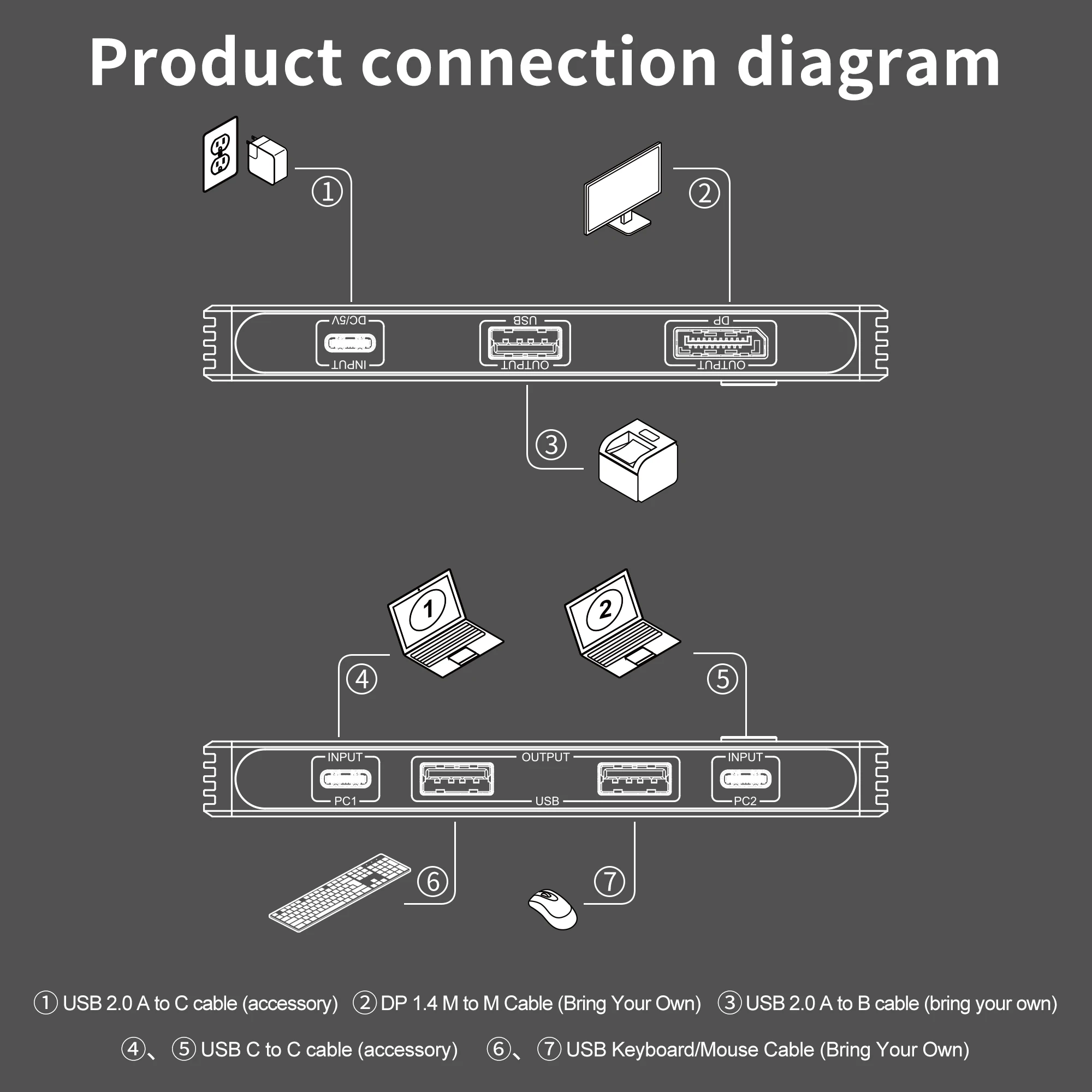

Connection Operation:

1:Connect from switcher's PC1 Input and PC2 Input port to your USB-C Laptop's USB-C Port via our Two USB-C Gen-2 Cable(Accessories in our Packages)

2:Connect the USB-C to USB-A Cable to your USB Devices to power the switcher.

3:Connect your own Standard DisplayPort cable from our switch's DP Output port to your displayport of your monitor(If you would like to output 8k@60hz or 4k@144hz,we suggest connecting max cable 2m)

4:Connect USB Devices,Like USB Printer,USB Keyboard,USB Mouse,USB Disks or other usb devices according your request to 3x USB Output's in your switch.

5:While PC1 is working,the PC1 Led Indicator Light is on,While PC2 is working,The PC2 Led Indicator light is on,you can press"select"button in the switcher to swift between your two pcs.

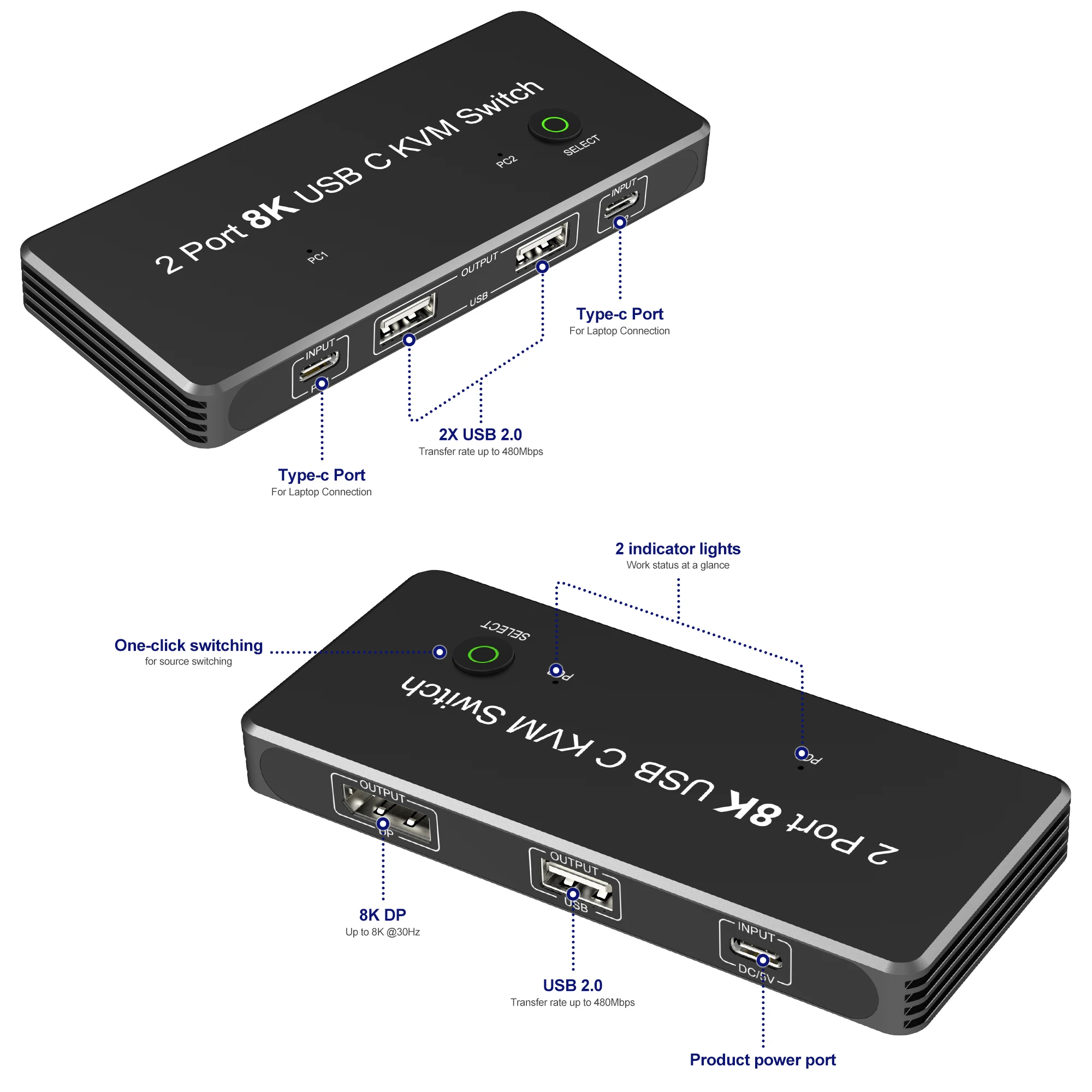

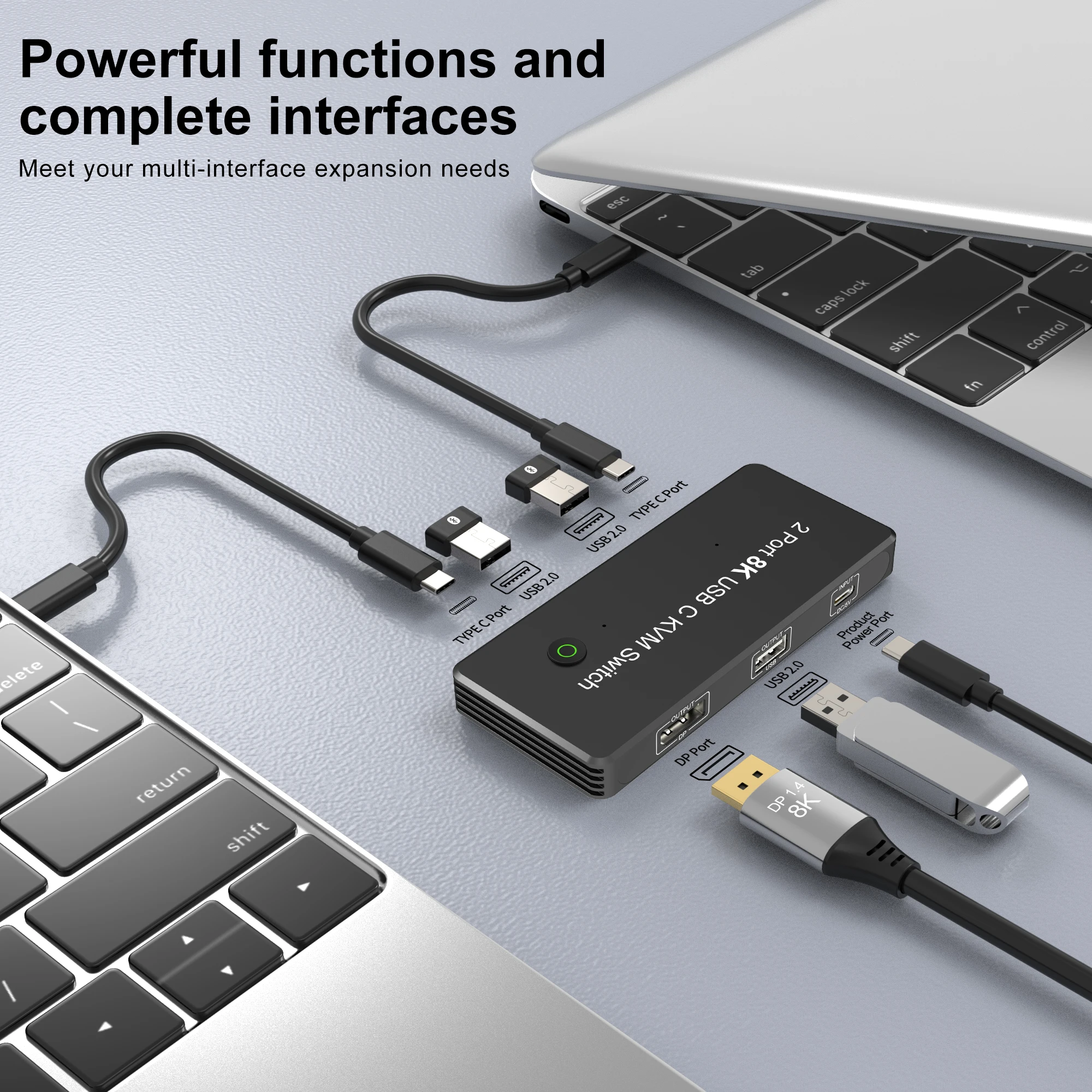

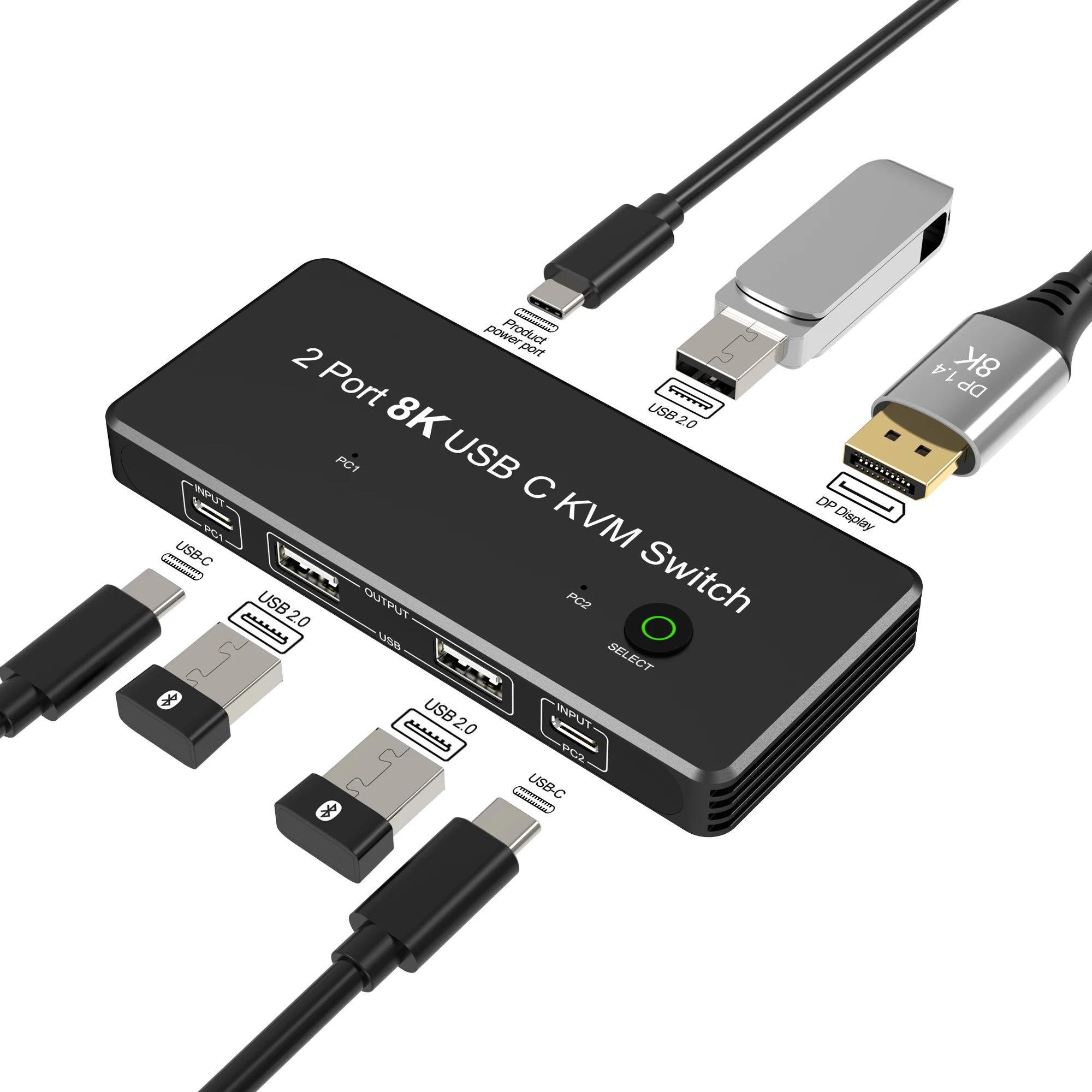

This USB C KVM 8k Switcher,with 2 xUSB-C PC Input Ports,3x USB Output Ports,

2 xUSB-C PC Input Ports,connecting to your USB-C Laptops(Supports video Transmitting)

3x USB Output Ports,connecting to your USB Keyboard,USB Mouse,USB Printer,USB Disks or USB Hubs

You can control your two PCs with one USB Mouse or Keyboard ,and making your usb disks to be read in both your two pcs via connecting USB Mouse,Keyboard/Disks in the USB-C KVM Switcher(Press"Select"button in the switcher to switch between your two PCs)

1:If your USB-C laptops with USB-C/Thunderbolt 3 Port,you can max output 4K/60Hz in your Displays.If USB-C Laptops with Thunderbolt 4 Port and your Monitors support DP1.4,then you can max output 4K@144Hz(Your dp cable,your usb-c cable and your dp monitors should supports 4K@144Hz). 2:While connecting,you should power the switch via our attached USB-A to USB-C Cable. 3:We do not suggest to connect to Phone and Tablet.
